[shortdesc]
- Expansion module
- RS-232 x 24
- for Cisco 4451-X; ISR 4221
- 4321
- 4331
- 4351
- 4431
[/shortdesc]
[properties]
| Properties |

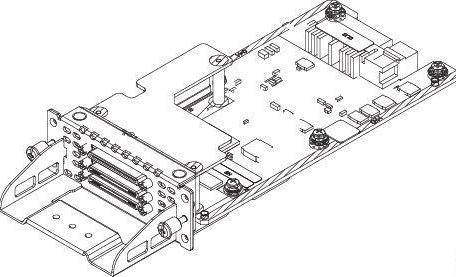

Cisco NIM-24A 24-Port Async Serial Network Interface Module |
| Description |
High-density RS-232 terminal server NIM for out-of-band console access to remote devices |
| Product Type |
Async Serial Network Interface Module (NIM) |
| Compatibility |
Cisco ISR 4000 Series: 4221, 4321, 4331, 4351, 4431, 4451 |
| Mount Type |
Internal router slot (hot-swappable) |
[/properties] [specifications]
| Interface Type |
RS-232 asynchronous |
| Ports |
24 async serial ports (via Octal cables) |
| Recommended Baud Rate |
9600 bps |
| Max Baud Rate |
115200 bps (low connection count) |
| Software Support |
IOS XE 16.3.1 or higher, IP Base |
| Dimensions (H x W x D) |
32 x 89 x 172 mm |
| Operating Temp |
0°C to 40°C |
| Humidity |
10% to 90% non-condensing |
[/specifications] [accesories]
| Included Items |
NIM-24A module only (no cables included) |
| Compatible Cables |
CAB-ASYNC-8 (mandatory for middle socket), CAB-HD8-ASYNC |
| Optional Accessories |
RJ-45 to DB-25 modular adapters |
[/accesories]
The Cisco Asynchronous Serial NIM are multi-protocol asynchronous serial network interface modules.
