[shortdesc]
- Expansion module
- RS-232/449/530/V.35/X.21 x 16
- for ISR 4321
- 4331
- 4351
- 4431
[/shortdesc]
[properties]
| Properties |

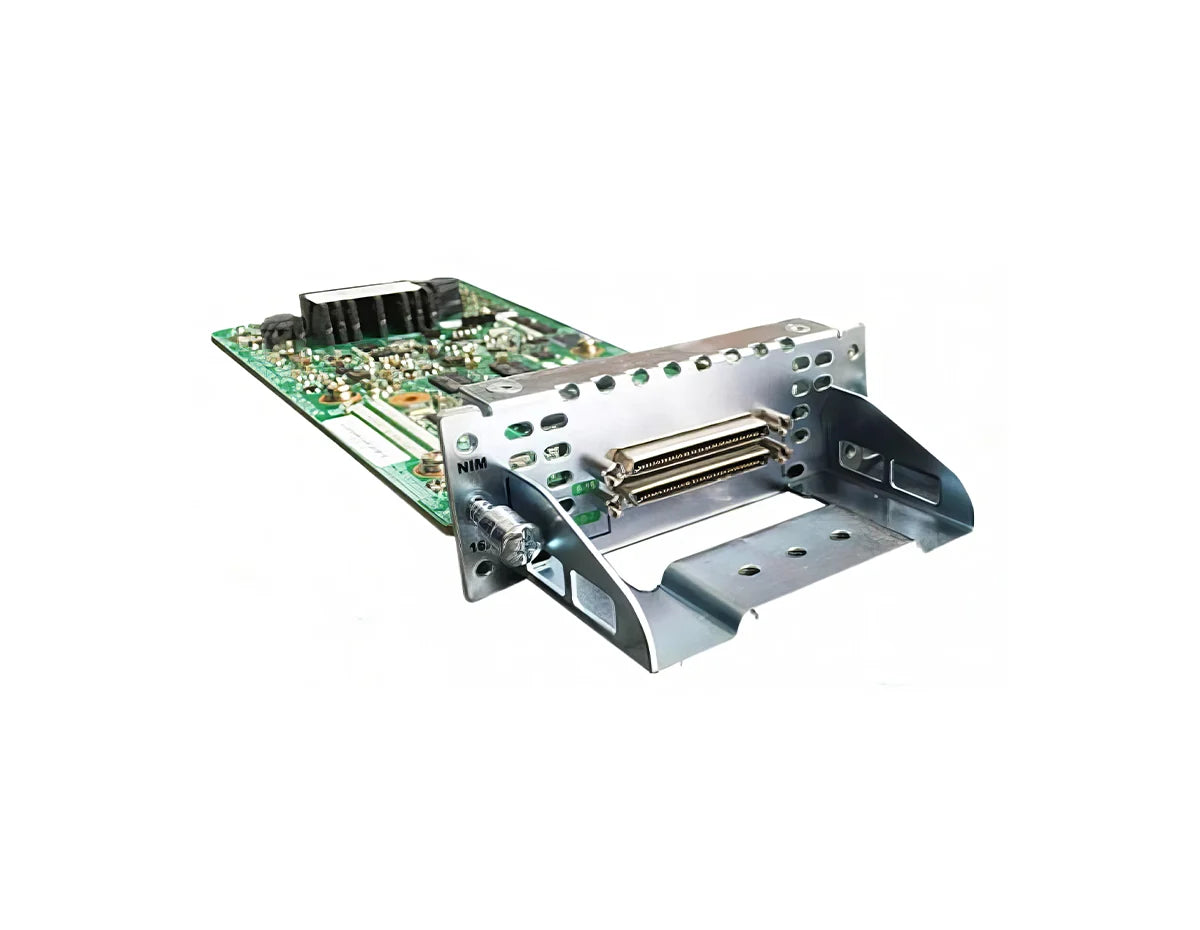

Cisco NIM-16A 16-Port Async Serial Network Interface Module |
| Description |
High-density RS-232 terminal server module for out-of-band console access over LAN/WAN |
| Product Type |
Async Serial Network Interface Module (NIM) |
| Compatibility |
Cisco ISR 4000 Series: 4221, 4321, 4331, 4351, 4431, 4451 |
| Mount Type |
Router internal NIM slot (hot-swappable) |
[/properties] [specifications]
| Interface |
RS-232 asynchronous |
| Ports |
16 async serial ports via Octal cables |
| Baud Rates |
9600 bps recommended; up to 115200 bps supported with low connection counts |
| Cable Support |
CAB-HD8-ASYNC or CAB-ASYNC-8 (upper/lower sockets) |
| Software Compatibility |
Cisco IOS XE 16.3.1 or higher |
| Dimensions (H x W x D) |
32 x 89 x 172 mm |
| Operating Temperature |
0°C to 40°C |
| Humidity |
10% to 90% (non-condensing) |
[/specifications] [accesories]
| Included Items |
NIM-16A module only (no cables included) |
| Compatible Cables |
CAB-HD8-ASYNC, CAB-ASYNC-8 (sold separately) |
| Optional Accessories |
RJ-45 to DB-25 adapters (for legacy device connectivity) |
[/accesories]
Cisco NIM-16A EXPANSION MODULE for Superior Networking Performance
CISCO NIM-16A EXPANSION Module features multi-protocol asynchronous serial network interface modules (NIMs) supported on the Cisco ISR 4321, 4331, 4351 & 4431.
Key Benefits of CISCO NIM-16A EXPANSION MODULE
CISCO NIM-16A EXPANSION Module ensures high-performance from users network with the Cisco WAN Network Interface Module.
