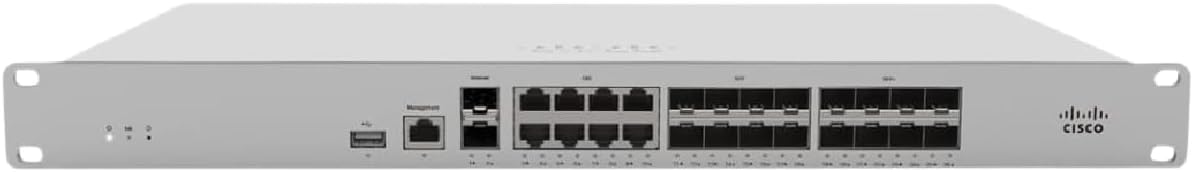

Description
The Cisco MX85-HW is a cloud-managed security and SD-WAN appliance designed to provide integrated firewall, VPN, and routing functions for medium branch networks. It delivers up to 1 Gbps firewall throughput and supports centralized configuration through the Cisco Meraki Dashboard. This device is used in distributed enterprise environments requiring secure connectivity and simplified network management.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco |
| Category |
Networking Equipment |
| Part Number |
MX85-HW |
| Subcategory |
Security Appliance |
| Device Type |
Security Appliance |
| Management Platform |
Cisco Meraki Dashboard |
| Firewall Throughput |
1 Gbps |
| VPN Throughput |
500 Mbps |
| Advanced Security Throughput |
750 Mbps |
| Recommended Users |
Up to 250 |
| WAN Interfaces |
2x GbE RJ45 (1x PoE+), 2x GbE SFP |
| LAN Interfaces |
8x GbE RJ45, 2x GbE SFP |
| USB Ports |
1x USB 3.0 (cellular failover support) |
| Power Supply |
Internal AC 100–127V / 200–240V (50/60 Hz) |
| Mounting Type |
Rack Mount (1U) |
| Dimensions |
19.1 x 9.8 x 1.7 in |
| Weight |
8.16 lb |
Information About MX85-HW
The MX85-HW is part of Cisco’s Meraki MX series, engineered for scalable and remotely managed network security deployments. It features a 1U rack-mountable design with multiple WAN and LAN interfaces, including SFP and RJ45 ports for flexible connectivity. The appliance integrates SD-WAN, firewall, and VPN technologies into a single platform managed through a cloud-based dashboard. It is commonly deployed in medium branch environments where centralized visibility, redundancy, and reliable performance are required.
Key Features:
- Cloud-Based Management: Managed through Cisco Meraki Dashboard for centralized control and monitoring
- SD-WAN Capability: Supports intelligent traffic routing and WAN optimization across multiple uplinks
- High Firewall Performance: Delivers up to 1 Gbps stateful firewall throughput
- VPN Connectivity: Provides site-to-site VPN support with up to 500 Mbps throughput
- Multiple WAN Interfaces: Includes 2x RJ45 and 2x SFP WAN ports for redundancy and failover
- Integrated LAN Ports: Offers 8x RJ45 and 2x SFP LAN interfaces for network device connectivity
- PoE+ Support: One WAN port supports Power over Ethernet Plus for powered devices
- Rack-Mountable Design: 1U form factor suitable for structured network installations
The MX85-HW delivers the reliability and precision required for secure SD-WAN connectivity and centralized network management in enterprise branch environments.
