[shortdesc]48x 1GbE RJ45 ports, 4x 10GbE SFP+ uplinks, 740W PoE+, Layer 3 routing, 160Gbps stacking, 1U rack mount[/shortdesc]
[properties]
| Brand |
Cisco Meraki |
| Model |
MS350-48FP |
| SKU |
MS350-48FP-HW |
| Product Type |
Cloud-managed access switch |
| Series |
MS350 |
| Form Factor |
1U Rack Mount |
| Interface |
48x 1GbE RJ45, 4x 10GbE SFP+ |
| PoE Support |
PoE+ Capable, 740W |
| Power |
Hot Swap Power Supply (Dual Compatible) |
| Dimensions |
1.72 x 19.07 x 20.32 in (4.38 x 48.46 x 51.62 cm) |
| Weight |
12.83 lb (5.82 kg) |
| Operating Temperature |
23 °F - 122 °F (-5 °C - 50 °C) |
[/properties]
[specifications]
| Layer 3 Routing |
Yes |
| Switching Capacity |
176 Gbps |
| Stacking Bandwidth |
160 Gbps |
| Hardware Stack Port |
2 (40G Hardware Stack Ports) |
| Dedicated Mgmt Interface |
1 |
| Hot Swap Fans |
Yes |
| Power Load |
69 / 888 W |
| Humidity |
5% to 95% |
| Management |
Managed via Cisco Meraki Dashboard |
| Supported Protocols |
802.1q VLAN tagging, 802.1X Authentication, SNMP/Syslog Integration, OSPF |
| Security Features |
IPv4/6 ACL support, Dynamic ARP Inspection / DHCP Snooping |
[/specifications]
[accessories]
| Optional Power Cables |
MA-PWR-CORD-US, MA-PWR-CORD-EU, MA-PWR-CORD-UK, MA-PWR-CORD-AU |
| Replacement Fan Module |
16K system fan (MA-FAN-16K) |
[/accessories]
High-Capacity PoE+ Switching for Campus Networks

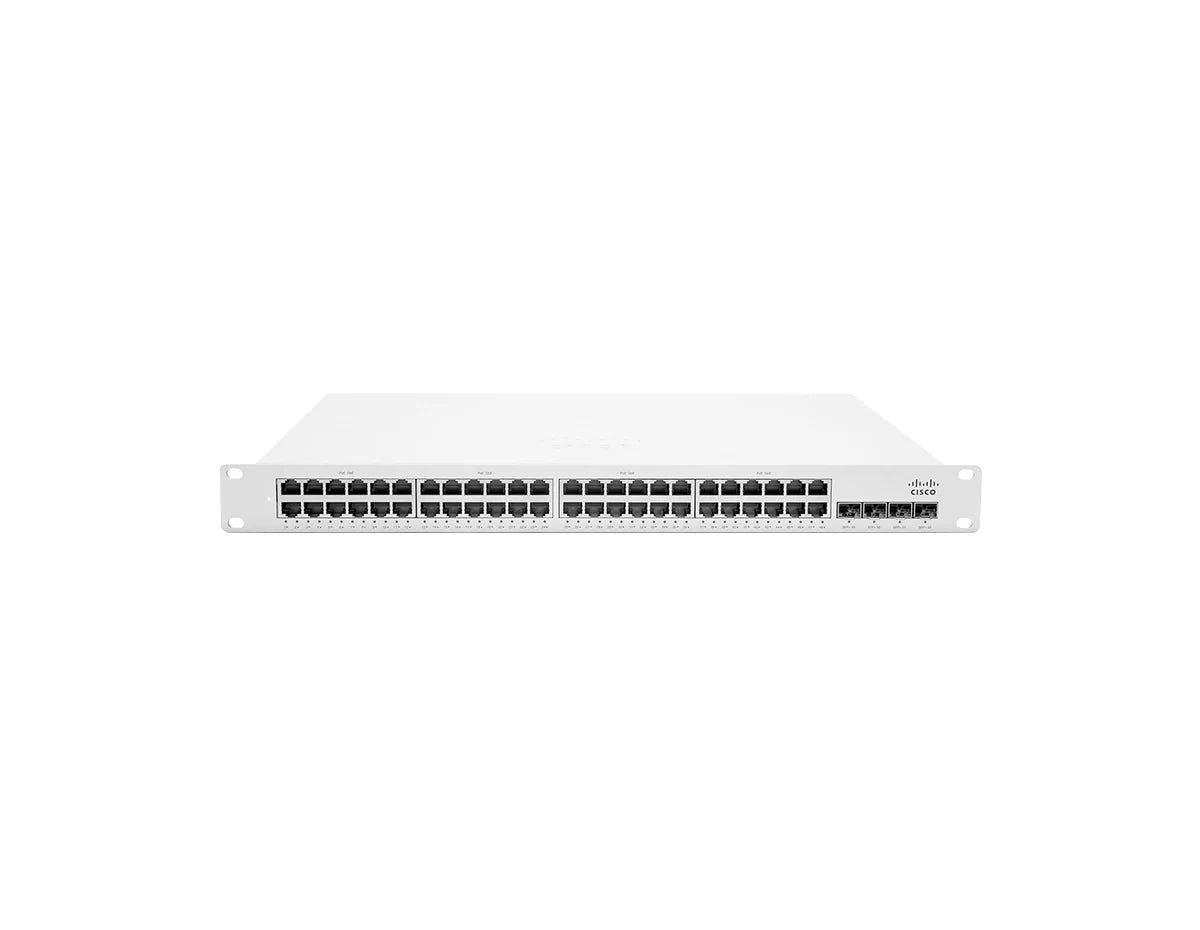

The Cisco Meraki MS350-48FP-HW is a cloud-managed Layer 3 access switch designed for campus and enterprise networks that need scalable wired connectivity, high PoE+ power, and 10GbE uplink performance. With 48 Gigabit Ethernet RJ45 ports and a 740W PoE+ budget, it supports dense deployments of access points, IP phones, cameras, and other powered network devices.
Key Benefits and Features
- Managed through the Cisco Meraki Dashboard for centralized switch visibility and configuration.
- 48 10/100/1000 Mbps RJ45 ports for high-density access layer connectivity.
- 4 1000/10000 Mbps SFP+ uplinks for high-speed aggregation connectivity.
- 2 dedicated 40G stack ports provide up to 160Gbps stacking bandwidth.
- Layer 3 routing, OSPF support, IPv4/IPv6 ACLs, DHCP snooping, and 802.1X authentication.
Ideal Use Cases
- Enterprise campus access switching with centralized cloud management.
- PoE+ deployments for wireless access points, IP phones, and security cameras.
- Layer 3 access networks requiring routing and warm spare capability.
- High-density wiring closets needing 48 Gigabit Ethernet access ports.
- Stacked switch deployments using dedicated hardware stack ports.
Technical Specifications
-
Brand: Cisco Meraki
-
SKU: MS350-48FP-HW
-
Product Series: MS350
-
Access Ports: 48x 10/100/1000 Mbps RJ45
-
Uplink Ports: 4x 1000/10000 Mbps SFP+
-
Stack Ports: 2x 40G hardware stack ports
-
PoE Capability: PoE+ capable, 740W power budget
-
Switching Capacity: 176Gbps
-
Stacking Bandwidth: 160Gbps
-
Mount Type: 1U rack mount
Deploy Cisco Meraki MS350-48FP-HW With Confidence
Choose the MS350-48FP-HW for cloud-managed, high-density PoE+ access switching with 10GbE uplinks, Layer 3 routing, and dedicated hardware stacking for scalable enterprise network deployments.
