[shortdesc]48 x 1GbE RJ45, 4 x 1GbE SFP, 740W PoE budget, 104Gbps switching, 1U rack mount[/shortdesc]
[properties]
| Brand |
Cisco Meraki |
| Model |
MS130-48P |
| SKU |
MS130-48P-HW |
| Product Type |
Layer 2 access switch |
| Series |
MS130 |
| Form Factor |
Integrated 1U Rack Mount |
| Port Count |
48 x 1 GbE RJ45 |
| Interface |
4 x 1 GbE SFP |
| PoE Support |
802.3bt |
| Power |
740W PoE switch budget |
| Input Voltage |
100-240V~, 12-6A, 50-60Hz |
| Dimensions |
1.73 x 17.32 x 13.4in (4.4 x 44 x 34cm) |
| Weight |
12.13 lb (5.5 kg) |
| Operating Temperature |
32°F - 113°F, 0°C - 45°C |
[/properties]
[specifications]
| Switching Capacity |
104 Gbps |
| Dedicated Mgmt Interface |
1 |
| PoE Port Budget |
30W |
| Power Load |
49W/803W idle/max |
| Power Supply |
Fixed Internal |
| Fan Operation |
Fixed Internal |
| Storage and Transportation Temperature |
-4°F - 158°F, -20°C - 70°C |
| Humidity |
5% to 95% |
| Management |
Managed via Cisco Meraki Dashboard |
| Supported Features |
SNMP/Syslog Integration, IPv4/6 ACL support, 802.1Q VLAN tagging, DHCP Snooping, 802.1X Authentication |
| MTBF Rating |
309,196 hours at 25°C |
[/specifications]
[accessories]
| Included |
MS130 switch; rack mount screws |
| Optional Cable |
MA-PWR-CORD-US, MA-PWR-CORD-EU, MA-PWR-CORD-UK, MA-PWR-CORD-CN, MA-PWR-CORD-IN, MA-PWR-CORD-BR, MA-PWR-CORD-TW, MA-PWR-CORD-AU, MA-PWR-CORD-AR, MA-PWR-CORD-JP |
| Compatible Accessories |
MA-SFP-1GB-SX, MA-SFP-1GB-LX10, MA-SFP-1GB-TX |
[/accessories]
Cloud-Managed PoE Switching for Branch and Campus Networks

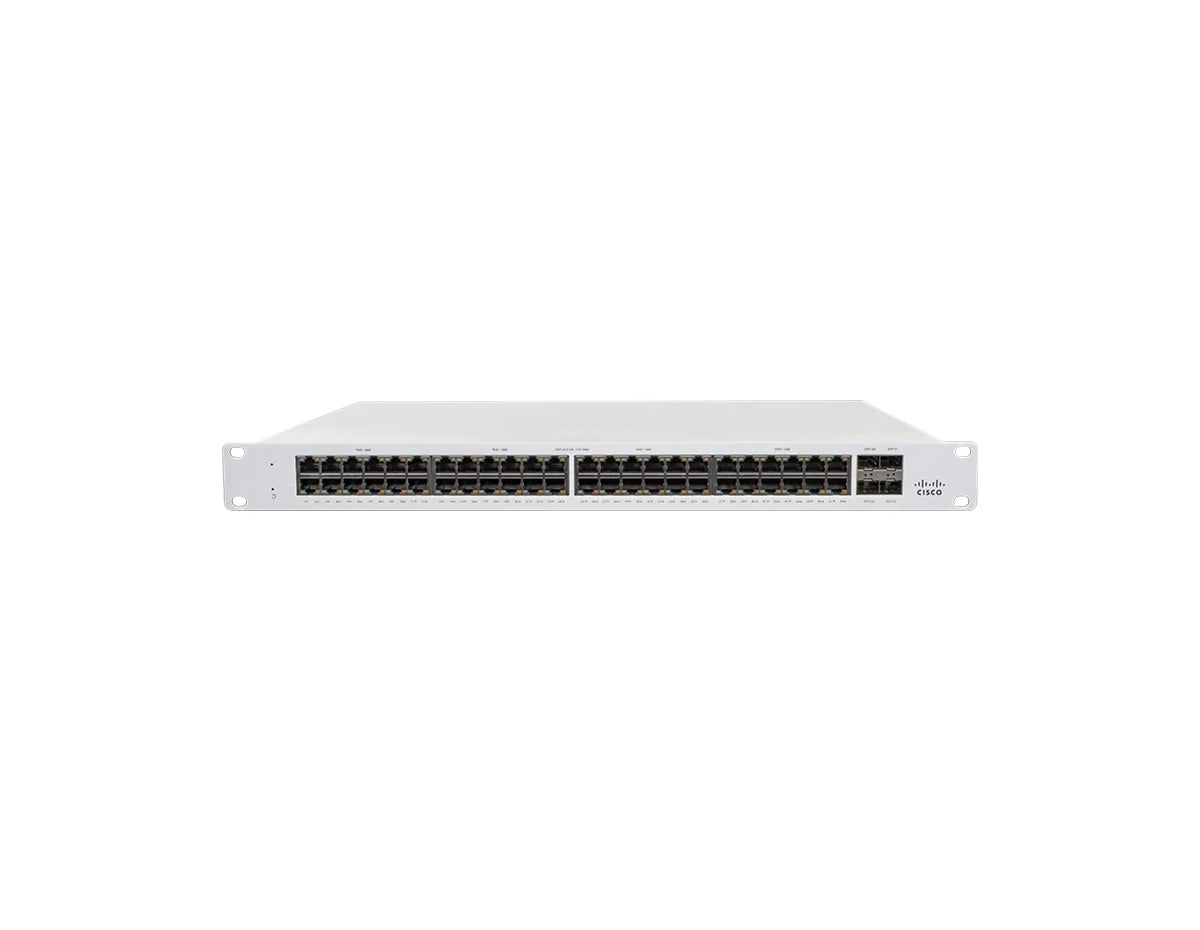

The Cisco Meraki MS130-48P-HW is a 48-port Layer 2 access switch designed for branch and campus deployments that need centralized cloud management, PoE connectivity, and reliable rack-mounted switching. It provides 48 Gigabit RJ45 access ports, 4 Gigabit SFP uplinks, and a 740W PoE switch budget for powering connected network devices.
Key Benefits and Features
- Cloud-managed through the Cisco Meraki Dashboard for centralized switch administration.
- 48 x 10/100/1000 Mbps RJ45 ports support high-density wired access deployments.
- 802.3bt PoE support with up to 30W per port and a 740W total switch budget.
- Integrated Layer 2 features include VLAN tagging, DHCP snooping, IPv4/IPv6 ACL support, and 802.1X authentication.
- Built-in tools support remote packet capture, SNMP/Syslog integration, and automatic firmware upgrades.
Ideal Use Cases
- Branch office access switching for business users and network endpoints.
- Campus edge deployments requiring cloud-managed Layer 2 connectivity.
- PoE network designs supporting connected devices across multiple access ports.
- IT teams standardizing switch monitoring and configuration through Meraki Dashboard.
Technical Specifications
-
Brand: Cisco Meraki
-
SKU: MS130-48P-HW
-
Switching Type: Layer 2 access switch
-
RJ45 Ports: 48 x 10/100/1000 Mbps
-
SFP Ports: 4 x 1GbE SFP
-
Dedicated Management Interface: 1
-
PoE Type: 802.3bt
-
PoE Budget: 740W switch budget, 30W per port
-
Switching Capacity: 104 Gbps
-
Mounting: Integrated 1U rack mount
Deploy Cisco Meraki MS130-48P-HW with Confidence
Choose the MS130-48P-HW for cloud-managed Gigabit access switching with high port density, PoE power, and practical Layer 2 controls for modern branch and campus networks.
