Description

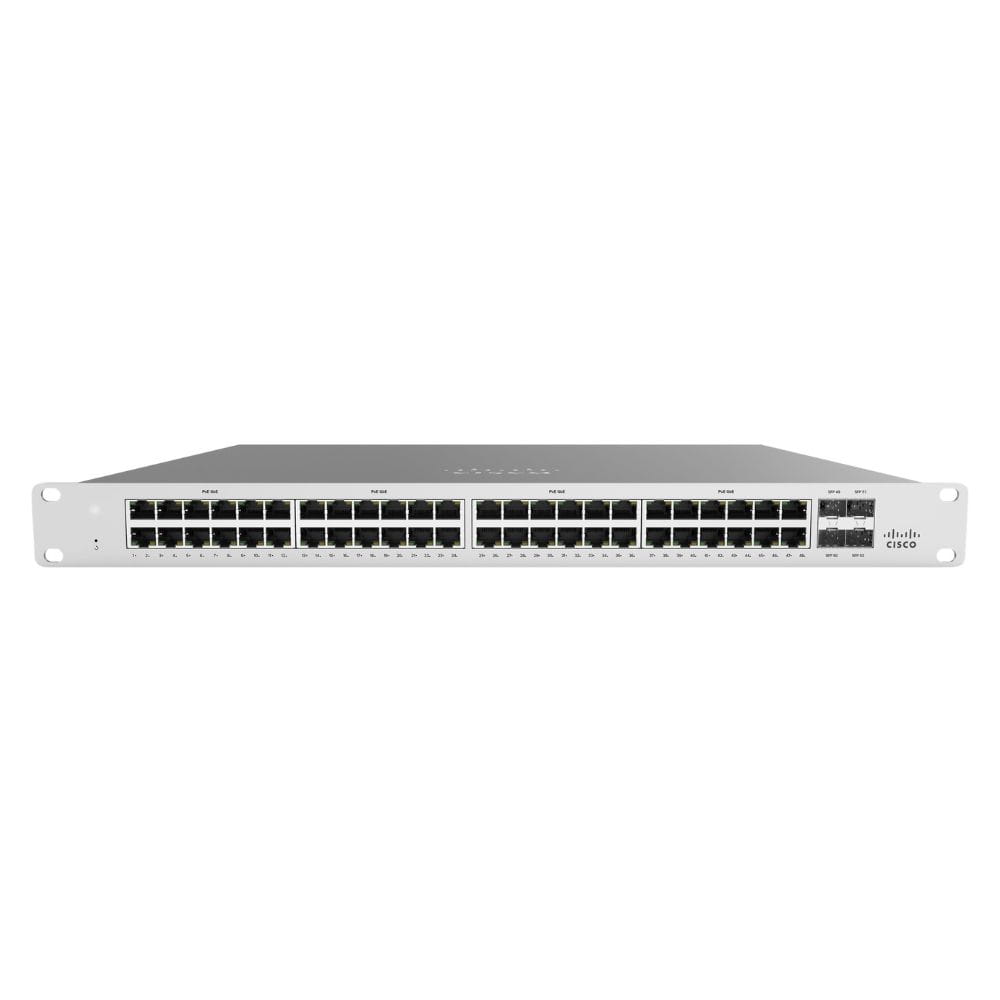

The Cisco Meraki MS120-48LP-HW is a cloud-managed Gigabit Ethernet switch designed to provide reliable network connectivity and Power over Ethernet capabilities for business environments. Featuring 48 Gigabit PoE+ ports and four Gigabit SFP uplink interfaces, it supports the deployment of wireless access points, IP phones, surveillance systems, and other connected devices. The Cisco Meraki MS120-48LP-HW combines centralized cloud management, scalable performance, and simplified network administration within a compact access-layer switching platform.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco Meraki |
| Category |
Networking |
| Part Number |
MS120-48LP-HW |
| Subcategory |
Cloud-Managed Ethernet Switches |
| Series |
Cisco Meraki MS120 Series |
| Device Type |
Cloud-Managed Gigabit Ethernet Switch |
| Network Ports |
48 × 1 Gigabit Ethernet PoE+ RJ-45 |
| Uplink Ports |
4 × 1 Gigabit Ethernet SFP |
| Management Port |
1 × RJ-45 Management Port |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at PoE+ |
| PoE Budget |
370 W |
| Switching Capacity |
104 Gbps |
| Forwarding Rate |
77.38 Mpps |
| MAC Address Table Size |
32,000 Entries |
| Virtual Stacking |
Supported Through Meraki Dashboard |
| Power Supply |
1 × Internal AC Power Supply |
| Cooling System |
Fanless Design |
| License Requirement |
Meraki License Required (Not Included) |
| Management Platform |
Cisco Meraki Cloud Dashboard |
| Product Status |
Unclaimed Unit (UC) |
| Form Factor |
Rack-Mountable |
| Weight |
10.40 lb (4.72 kg) |
Information About MS120-48LP-HW
The Cisco Meraki MS120-48LP-HW is a cloud-managed Gigabit Ethernet switch designed to provide reliable network connectivity and Power over Ethernet capabilities for business environments. Featuring 48 Gigabit PoE+ ports and four Gigabit SFP uplink interfaces, it supports the deployment of wireless access points, IP phones, surveillance systems, and other connected devices. The Cisco Meraki MS120-48LP-HW combines centralized cloud management, scalable performance, and simplified network administration within a compact access-layer switching platform.
Key Features:
- 48 Gigabit PoE+ Ports: Provides high-density Ethernet connectivity with integrated power delivery for connected devices.
- 370W PoE Budget: Supports wireless access points, IP phones, security cameras, and other PoE-enabled equipment.
- Four Gigabit SFP Uplinks: Enables flexible fiber uplink connections to aggregation and core network infrastructure.
- Cloud-Based Management: Centralized administration through the Cisco Meraki Dashboard platform.
- Virtual Stacking Support: Allows management of multiple switches through a single dashboard interface.
- High Switching Performance: Delivers up to 104 Gbps switching capacity for demanding network traffic requirements.
- Large MAC Address Capacity: Supports up to 32,000 MAC address entries for growing network environments.
- Fanless Design: Enables quiet operation while maintaining reliable switching performance.
The MS120-48LP-HW delivers the reliability and precision required for cloud-managed access networking, PoE device deployments, and scalable business infrastructure.
