[properties]

Properties	Cisco IE-3300-8T2S-E
Description	Catalyst IE3300 with 8 GE Copper and 2 GE SFP, Modular, Network Essentials
Product Family	Cisco Catalyst IE3300 Rugged Series
Product Type	Ethernet Switch
Switches
Total Ports	10
10/100/1000 RJ45 Copper Ports	8
100/1000 SFP Ports	2
1GE/2.5G RJ45 Copper ports	-
1GE/10G SFP+ Ports	-
Software License (Default)	Network Essentials
PoE/PoE (+) budget	N/A
Software Features
Network Essentials License (Perpetual)	Features
Layer 2 Switching	IEEE 802.1, 802.3 standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP, VTPv2, VTPv3, EtherChannel, Q-in-Q tunneling, voice VLAN, PVST+, MSTP, and RSTP
Multicast	IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier
Management	WebUI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN session, RSPAN, FSPAN, Express setup, NETCONF, RESTCONF
Security	Port security, 802.1x, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, guest VLAN, MAC auth bypass, storm control (unicast/multicast/broadcast), SCP, SSH, SNMPv3, TACACS+, RADIUS, BPDU guard, ACLs (PACL/VACL/RACL), SUDI, Full Flexible NetFlow (FNF), MACsec-128
Quality of Service (QoS)	Ingress policing, rate limit, egress queuing and shaping, Auto QoS
IPv6	IPv6 host support, HTTP/HTTPS over IPv6, SNMP over IPv6, Syslog over IPv6, DHCPv6 relay source, DHCPv6 bulk lease query (RFC 5460), IPv6 VRF-aware, IPv6 QoS, IPv6 FHS (RA/DHCPv6 Guard)
Layer 3 Routing	Inter-VLAN routing, Static routing
Utility	Dying gasp, SCADA protocol classification (GOOSE), MODBUS TCP/IP
Industrial Ethernet	CIP Ethernet/IP, IEEE 1588 PTP v2 (Default and Power Profile), PROFINET
Redundancy	REP ring, PROFINET-MRP, REP Preferred, Fast REP
Automation	YANG, NETCONF, RESTCONF
Industrial Management	Layer 2 switching with 1:1 switch Network Address Translation (L2NAT)
IOx	Container (Native Docker)
Dimensions (HxWxD) Inches	6 in. x 3.6 in. x 5.3 in. 15.2 cm x 9.1 cm x 13.5 cm
Weight	3.8 lbs (1.7 kg)
Mounting	DIN Rail
Cisco Catalyst Center Features
Catalyst Center Essentials	Discovery, Topology, Inventory, software image management; Health dashboards; Cisco Network Plug-and-Play
Catalyst Center Advantage	All Essentials plus Compliance, Custom Reports, Device 360/Client 360, Patch/SMU, SD-Access Extended Node (REP Ring Workflow)

[/properties][specifications]

Specifications	IE-3300-8T2S-E
DRAM	4 GB
Flash Memory (user accessible)	1.5 GB
Hardware
PoE power budget	Not applicable
Removable storage	USB (Optional), SD card (Optional)
Alarms	2 alarms in, 1 alarm out
Console ports	1 RS-232 (via RJ-45), 1 USB Mini Type B
Power inputs	Dual DC power inputs
Number of Queues	8
Forwarding Rate	Line rate for all ports and all packet sizes
Unicast MAC addresses	16K
Jumbo Frames	8996 bytes
No. of VLANs	256
Internet Group Management Protocol (IGMP) Multicast Groups	1000
Spanning Tree Protocol (STP) instances	128
Access Control Entries (PACL/VACL/RACL)	3K
SD card capacity (Optional)	4 GB, 16 GB
Input Voltage Range	Redundant DC input voltage: 9.6 to 60VDC
Maximum Input Current	3.8A
Power Consumption	23W
Operating Temperature	-40°C to +70°C (40 LFM vented enclosure) -40°C to +60°C (sealed enclosure) -40°C to +75°C (Min. 200 LFM fan or blower-equipped enclosure) +85°C (type tested for 16 hours)
Storage Temperature	-40°C to +85°C
Operating Altitude	Up to 15,000 feet
Storage Altitude	15,000 feet
Mean Time Between Failures (MTBF)	633,420

[/specifications][accesories]

Accessories and License Upgrade PIDs
SD-IE-4GB=	IE 4GB SD memory card for IE
STK-RACK-DINRAIL=	19 in. DIN Rail mount kit
IE3300-NW-A=	Network Advantage License for IE3300, Perpetual
IE3300-DNA-E	Cisco Catalyst Center Essentials license for IE3300 Series
IE3300-DNA-E-3Y	IE 3300 Catalyst Center Essentials, 3 Year Term license
IE3300-DNA-E-5Y	IE 3300 Catalyst Center Essentials, 5 Year Term license
IE3300-DNA-E-7Y	IE 3300 Catalyst Center Essentials, 7 Year Term license
IE3300-DNA-A	Cisco Catalyst Center Advantage license for IE3300 Series
IE3300-DNA-A-3Y	IE 3300 Catalyst Center Advantage, 3 Year Term license
IE3300-DNA-A-5Y	IE 3300 Catalyst Center Advantage, 5 Year Term license
IE3300-DNA-A-7Y	IE 3300 Catalyst Center Advantage, 7 Year Term license
LIC-MRP-MGR-XE=	MRP Ring Manager License
LIC-MRP-CLIENT-XE=	MRP Ring Client License
IE 3300 Series Power Supplies
PWR-IE50W-AC	50W AC Power Supply
PWR-IE50W-AC-IEC=	50W AC-IEC Power Supply
PWR-IE50W-AC-L	50W AC-L Power Supply
PWR-IE65W-PC-AC	65W PC-AC Power Supply
PWR-IE65W-PC-DC	65W PC-DC Power Supply
PWR-IE170W-PC- AC	170W PC-AC Power Supply
PWR-IE170W-PC- DC	170W PC-DC Power Supply
PWR-IE240W-PCAC-L	240W PCAC-L Power Supply
PWR-IE480W-PCAC-L	480W PCAC-L Power Supply
SFPs
GLC-FE-100FX-RGD=	100BASE-FX Rugged SFP for Fast Ethernet SFP Ports
GLC-FE-100LX-RGD	100BASE-LX10 Rugged SFP for Fast Ethernet SFP Ports
GLC-FE-100FX=	100BASE-FX SFP for Fast Ethernet SFP Ports
GLC-FE-100LX=	100BASE-LX10 SFP for Fast Ethernet SFP Ports
GLC-FE-100EX=	100BASE-EX for Fast Ethernet SFP Ports
GLC-FE-100ZX=	100BASE-ZX for Fast Ethernet SFP Ports
GLC-FE-100BX-D=	100BASE-BX10-D SFP for Fast Ethernet SFP Ports
GLC-FE-100BX-U=	100BASE-BX10-U SFP for Fast Ethernet SFP Ports
GLC-SX-MM-RGD=	1000BASE-SX short wavelength; rugged
GLC-LX-SM-RGD=	1000BASE-LX/LH long wavelength; rugged
GLC-ZX-SM-RGD=	1000BASE-ZX extended distance; rugged
GLC-BX40-U-I=	1000BASE-BX40-U for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX40-D-I=	1000BASE-BX40-D for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX40-DA-I=	1000BASE-BX40-D (Alternative) for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX80-U-I=	1000BASE-BX80-U for 80km Single-Fiber Bidirectional Applications; with DOM
GLC-BX80-D-I=	1000BASE-BX80-D for 80km Single-Fiber Bidirectional Applications; with DOM
GLC-SX-MMD=	1000BASE-SX short wavelength; with DOM
GLC-LH-SMD=	1000BASE-LX/LH long-wavelength; with DOM
GLC-EX-SMD=	1000BASE-EX long-wavelength; with DOM
GLC-ZX-SMD=	1000BASE-ZX extended distance; with DOM
GLC-BX-D=	1000BASE-BX10-D downstream bidirectional single fiber; with DOM
GLC-BX-U=	1000BASE-BX10-U upstream bidirectional single fiber; with DOM
GLC-BX-D-I=	1000BASE-BX10-D downstream bidirectional single fiber, (IND) rated, with DOM
GLC-BX-U-I=	1000BASE-BX10-U upstream bidirectional single fiber, (IND) rated, with DOM
CWDM-SFP-1470	Cisco CWDM 1470-nm SFP; Gigabit Ethernet and 1 and 2 Gb Fibre Channel
CWDM-SFP-1610	Cisco CWDM 1610-nm SFP; Gigabit Ethernet and 1 and 2 Gb Fibre Channel
CWDM-SFP-1530	Cisco CWDM 1530-nm SFP; Gigabit Ethernet and 1 and 2-Gb Fibre Channel
CWDM-SFP-1490	Cisco CWDM 1490-nm SFP; Gigabit Ethernet and 1 and 2 Gb Fibre Channel
DWDM-SFP-3033	1000BASE-DWDM 1530.33 nm SFP (100-GHz ITU grid)
DWDM-SFP-3112	1000BASE-DWDM 1531.12 nm SFP (100-GHz ITU grid)

[/accesories]

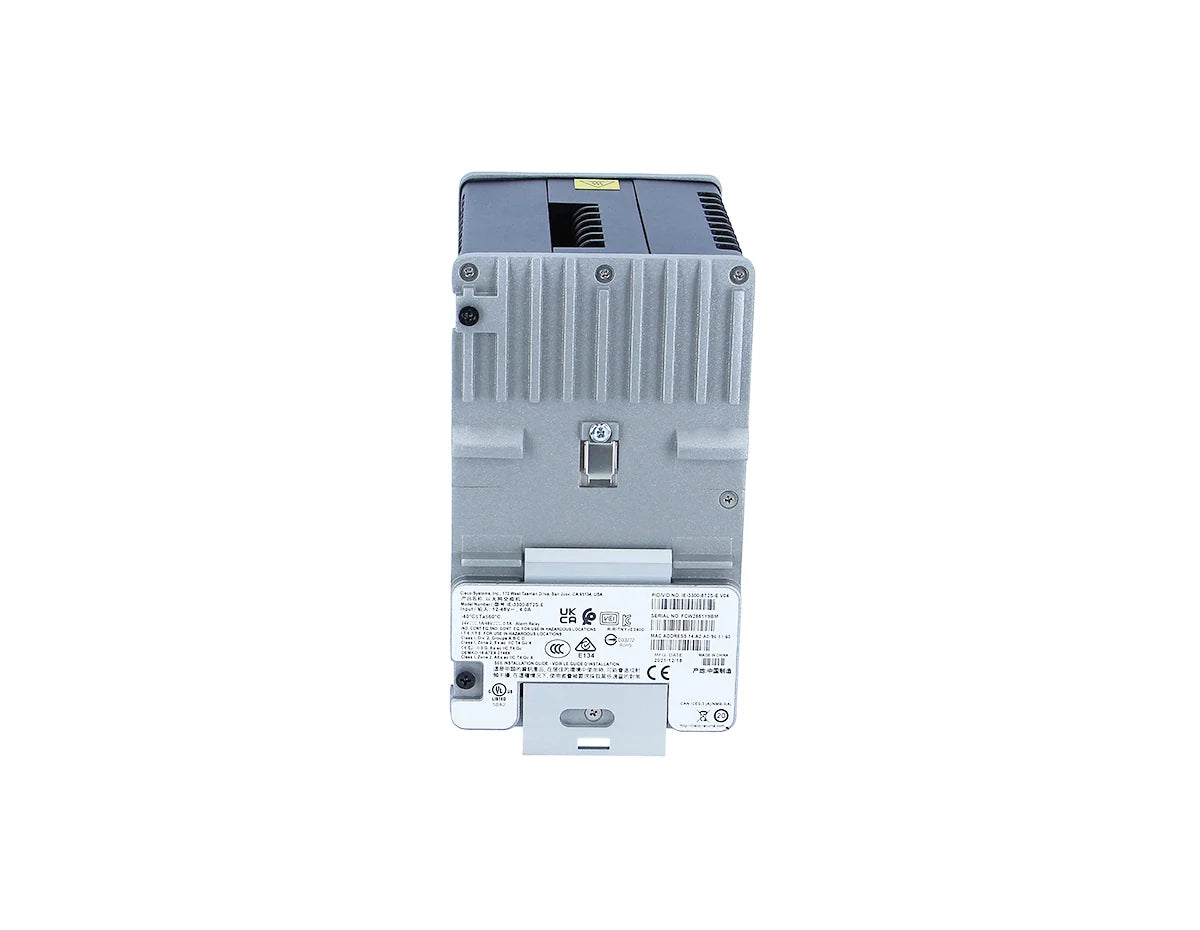

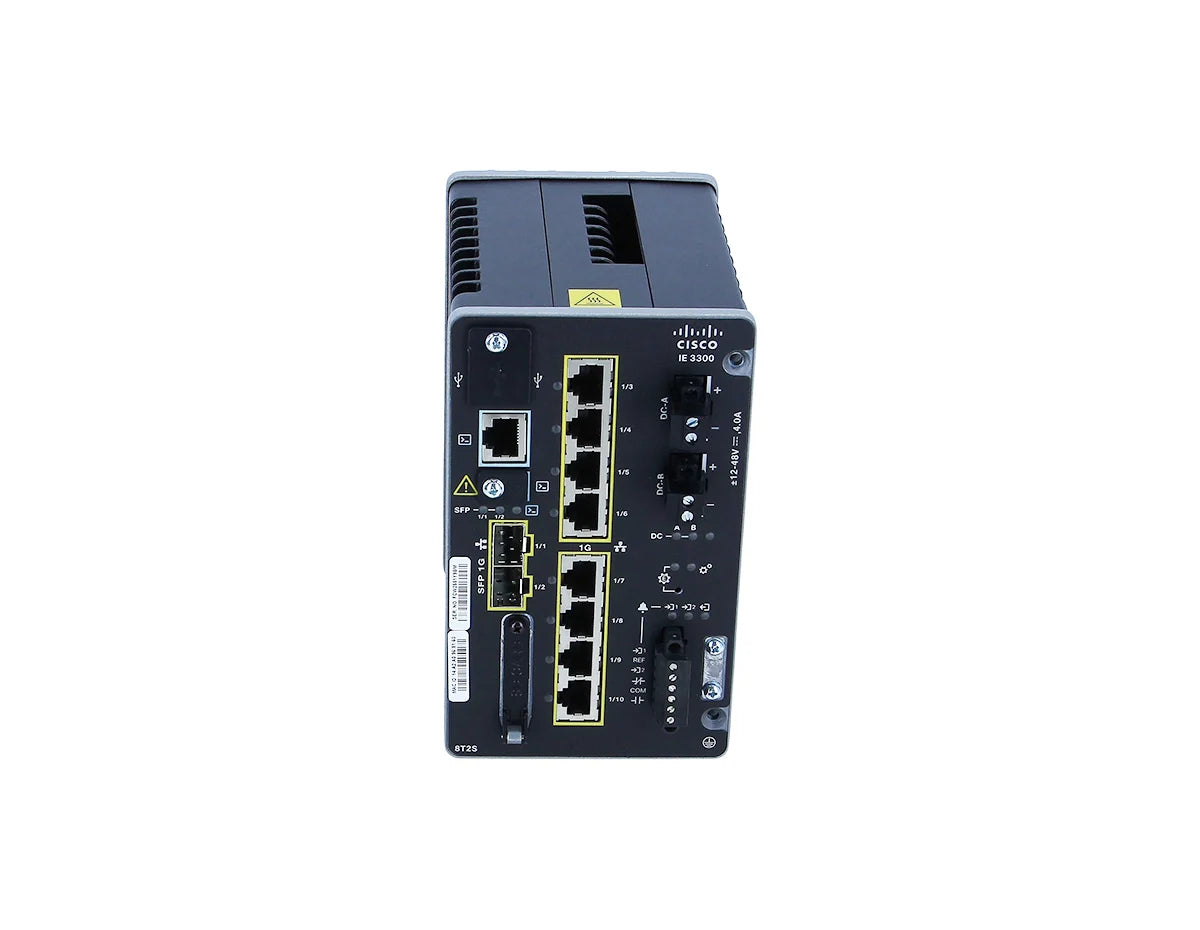

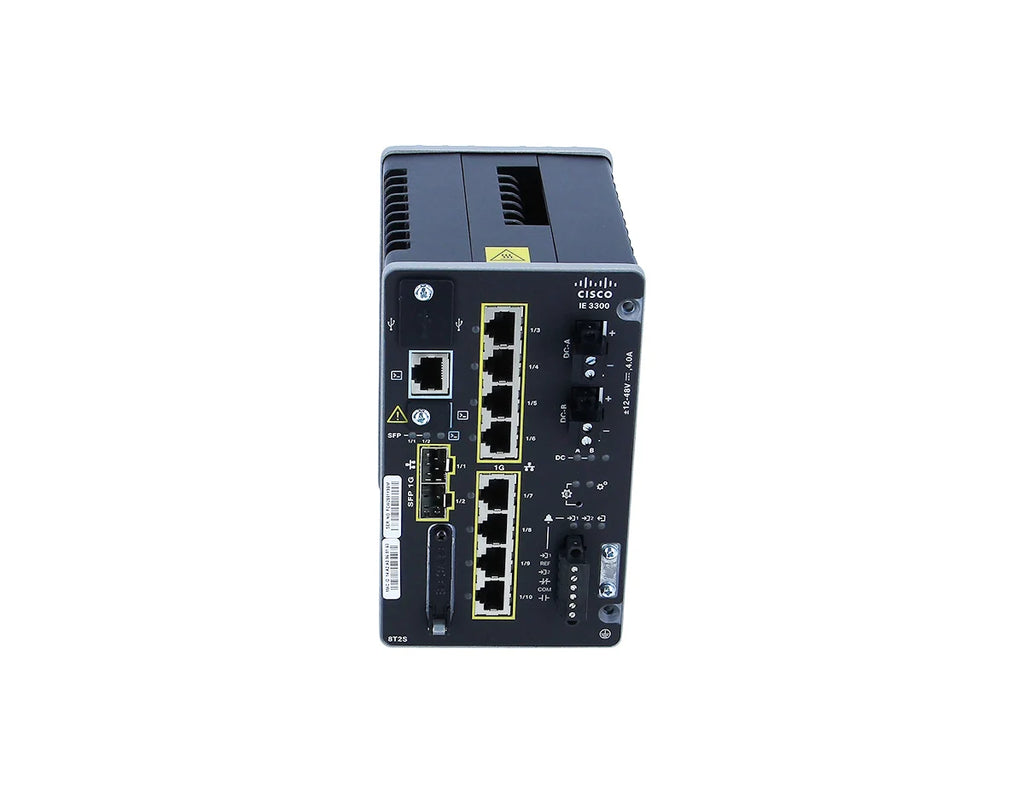

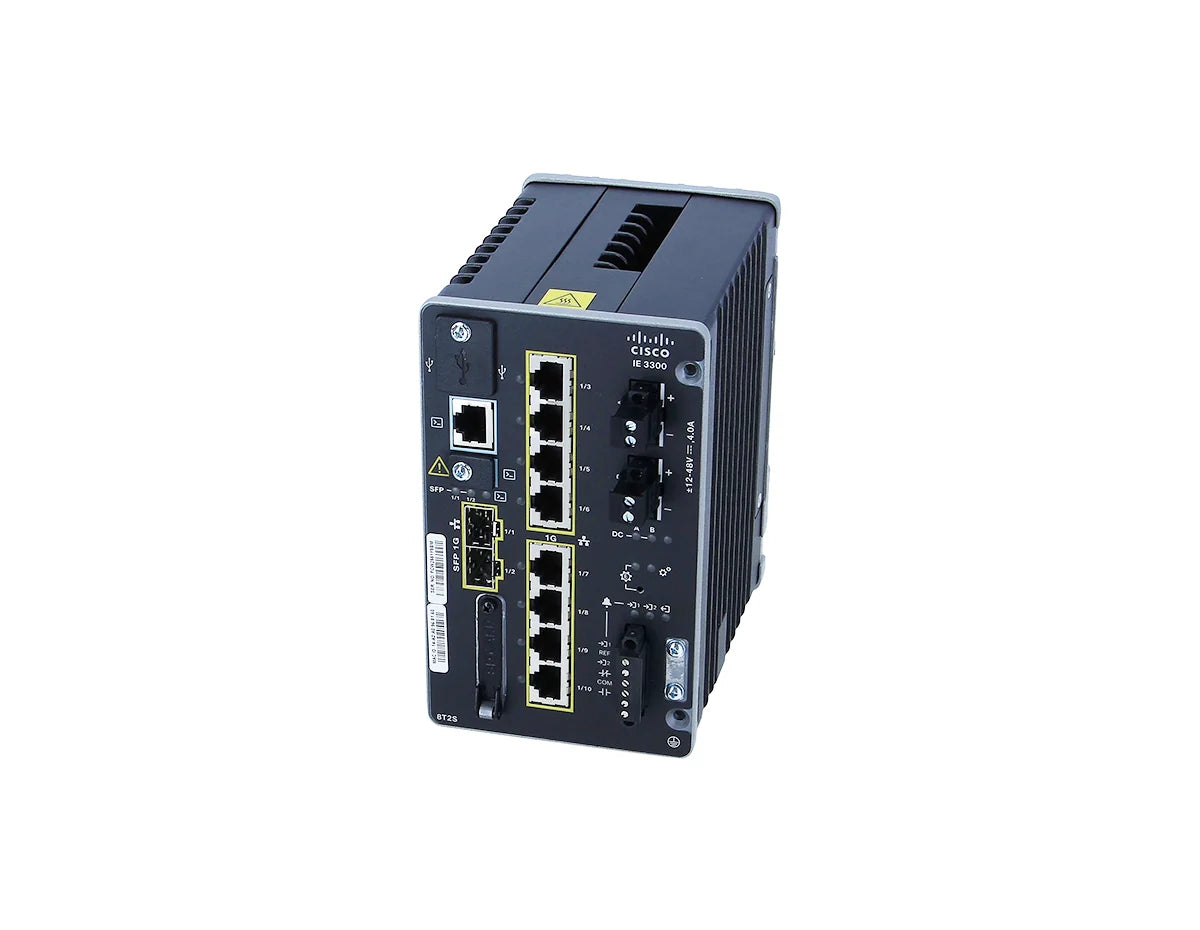

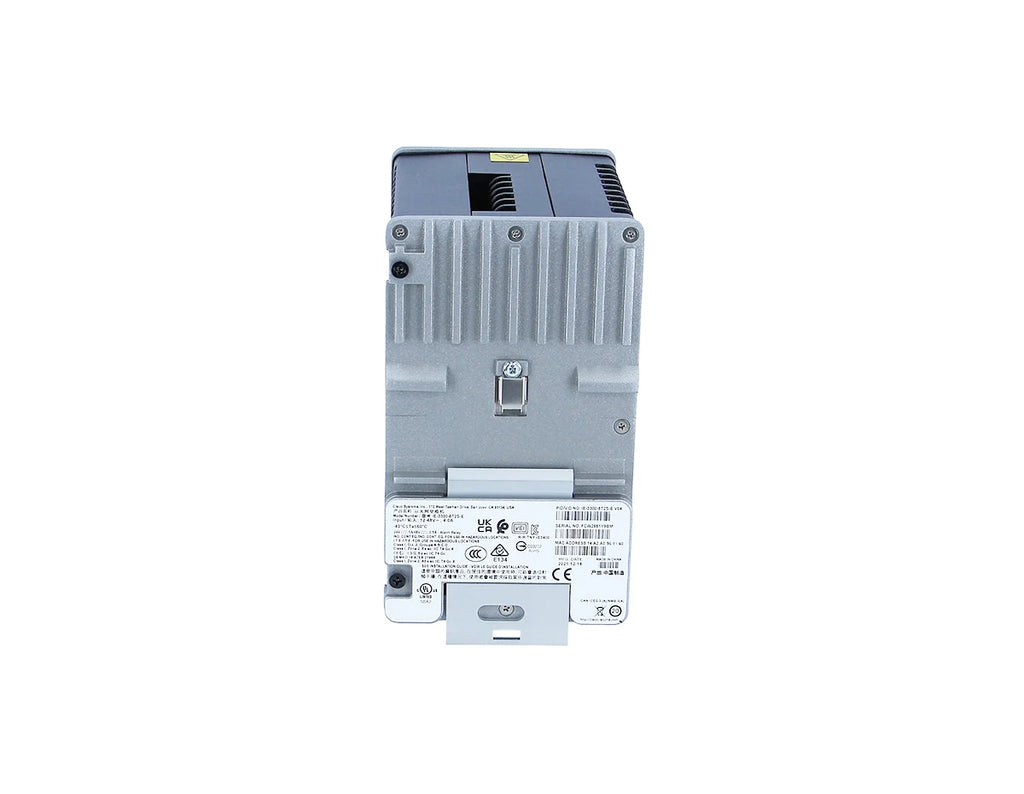

Cisco IE-3300-8T2S-E Industrial Ethernet Switch

The Cisco IE-3300-8T2S-E is a rugged, high-performance industrial Ethernet switch designed to provide reliable and secure network connectivity in harsh environments. This switch features 8 Gigabit Ethernet ports and 2 SFP slots, making it an ideal solution for connecting critical industrial devices such as IP cameras, sensors, and controllers. The IE-3300-8T2S-E is engineered to operate under extreme conditions, ensuring continuous operation while offering advanced Layer 2 and Layer 3 management features for effective network segmentation, security, and traffic control.

Key Features:

• 8 x Gigabit Ethernet Ports: Provides reliable and high-speed data connectivity for various industrial devices, ensuring stable network communication.
• 2 x SFP Slots: Offers flexible uplink options with fiber connectivity, enabling high-speed data transfer and network scalability.
• Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for demanding industrial environments.
• Layer 2 and Layer 3 Management: Includes advanced features such as VLANs, QoS, and routing protocols to enhance network control and security.
• Compact Form Factor: Designed for space-constrained installations, making it suitable for industrial enclosures and cabinets.

Technical Overview:

• Recommended for: Industrial environments requiring robust Ethernet connectivity with advanced management features.
• Ports: 8 x Gigabit Ethernet ports, 2 x SFP slots.
• Operating Temperature: Designed to operate in a wide temperature range suitable for harsh industrial applications.
• Management: Managed through a web interface, CLI, SNMP, and Cisco Catalyst Center for comprehensive network setup and monitoring.
• Form Factor: Rugged, compact design suitable for space-constrained industrial environments.

You can check the related tab for the Cisco IE-3300-8T2S-E datasheet.
