Properties	Cisco IE-3200-8P2S-E
Description	Catalyst IE3200 w/ 8 GE PoE/PoE+ and 2 GE SFP, Fixed System, Network Essentials
Product Family	Cisco Catalyst IE3200 Rugged Series
Product Type	Ethernet Switch
Switches
Total Ports	10
10/100/1000 RJ45 Copper Ports	8
100/1000 SFP Ports	2
Software License (Default)	Network Essentials
PoE/PoE (+) budget	240W
Software Features
Network Essentials License (Perpetual)	Features
Layer 2 Switching	IEEE 802.1/802.3 standards, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP, VTPv2/v3, EtherChannel, Q-in-Q tunneling, voice VLAN, PVST+, MSTP, RSTP
Multicast	IGMPv1/v2/v3 snooping, IGMP filtering, IGMP querier
Management	WebUI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN/RSPAN/FSPAN, Express Setup, NETCONF, RESTCONF, Delayless IPDT
Security	Port security, 802.1X, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, guest VLAN, MAC Authentication Bypass, 802.1X MDA, storm control (unicast/multicast/broadcast), SCP/SSH/SNMPv3, TACACS+/RADIUS, BPDU Guard, ACLs (PACL/RACL/VACL), SUDI 2099, MACsec-128, FIPS 140-2
Quality of Service (QoS)	Ingress policing, rate limiting, egress queuing and shaping, Auto QoS
IPv6	IPv6 host support; HTTP/HTTPS, SNMP, Syslog over IPv6; DHCPv6 relay bulk lease query; IPv6 SLAAC; IPv6 QoS; IPv6 FHS (RA/DHCPv6 Guard); NTP/SSH/RADIUS/TACACS+ over IPv6; IPv6 DNS/TFTP transport
Layer 3 Routing	Inter-VLAN routing, static routing
Utility	Dying Gasp, SCADA protocol classification (GOOSE messaging), MODBUS TCP/IP
Industrial Ethernet	CIP EtherNet/IP, IEEE 1588 PTP v2 (default and power), PROFINET
Redundancy	Resilient Ethernet Protocol (REP) ring, PROFINET Media Redundancy Protocol (MRP), REP Preferred, Fast REP
Automation	YANG, NETCONF, RESTCONF
Dimensions (H x W x D)	6.0 in. x 3.6 in. x 5.3 in. (15.2 cm x 9.1 cm x 13.5 cm)
Weight	3.8 lbs (1.7 kg)
Mounting	DIN Rail

[/properties][specifications]

Specifications	IE-3200-8P2S-E
DRAM	2 GB
Flash Memory	1.5 GB
Hardware
PoE power budget	240W
Removable storage	USB (optional), SD card (optional)
Alarms	2 alarms in, 1 alarm out
Console ports	1 RS-232 (via RJ-45), 1 USB Mini Type B
Power inputs	Dual DC power inputs
Number of Queues	8
Forwarding Rate	Line rate for all ports and all packet sizes
Unicast MAC addresses	16,000
Jumbo Frames	8996 bytes
No. of VLANs	256
Internet Group Management Protocol (IGMP) Multicast Groups	1000
Spanning Tree Protocol (STP) instances	128
Access Control Entries (PACL/VACL/RACL)	3000
SD card capacity (optional)	4 GB, 16 GB
Input Voltage Range	Redundant DC input voltage: 9.6 to 60 VDC 48 VDC required for PoE; 54 VDC required for PoE+
Maximum Input Current	5.5 A
Power Consumption	32 W (does not include PoE power)
Operating Temperature	-40°C to +70°C (40 LFM vented enclosure) -40°C to +60°C (sealed enclosure) -40°C to +75°C (min. 200 LFM blower-equipped enclosure) +85°C (type tested for 16 hours)
Storage Temperature	-40°C to +85°C
Operating Altitude	Up to 15,000 feet
Storage Altitude	15,000 feet
Mean Time Between Failures (MTBF)	613,125 hours
Industrial Automation Control System	IEC 62443-4-1, IEC 62443-4-2
Electromagnetic emissions	FCC 47 CFR Part 15 subpart B Class A; EN 55032/CISPR 32 Class A; VCCI Class A; AS/NZS CISPR 32 Class A; CISPR 11 Class A; ICES 003 Class A; CNS 13438 Class A; KN 32 Class A; EN 300 386
Electromagnetic immunity	CISPR 24; EN 55024; KN 35; EN 61000-4-2 (ESD), -4-3 (Radiated RF), -4-4 (EFT), -4-5 (Surge), -4-6 (Conducted RF), -4-8 (Power Freq. Magnetic Field 1000 A/m), -4-10 (Damped Oscillatory), -4-16 (Conducted CM), -4-17 (Ripple), -4-18 (Damped Oscillatory Wave), -4-29 (DC Dips/Interruptions)
Industry standards	EN 61000-6-2, EN 61000-6-4, EN 61000-6-1, EN 61326-1, IEEE 1613, EN/IEC 61850-3, ODVA EtherNet/IP, NEMA TS 2-2016, AREMA C&S 11/19, IP30
Marine I	DNV certification per DNV-CG-0339; IEC 60945; IACS UR E10
Safety standards and certifications	UL/CSA 60950-1; IEC 60950-1 CB; UL/CSA 62368-1; IEC 62368-1 CB; UL/CSA 61010-2-201; IEC/EN 61010-2-201; Hazardous: UL121201 (Class I, Div 2, Groups A-D), CSA 213 (Class I, Div 2, Groups A-D), UL/CSA 60079-0/-15 (Class I, Zone 2, Gc/IIC), IECEx 60079-0/-15, ATEX EN 60079-0/-15 (cabinet enclosure required)
Humidity	5% to 95% non-condensing; IEC 60068-2-78; IEC 60068-2-30
Shock and vibration	IEC 60068-2-27 (operational 50G/3ms half-sine; non-operational 65–80G/9ms trapezoidal), MIL-STD-810 Method 514.4, IEC 60068-2-6 (5–150 Hz)
Corrosion	IEC 60068-2-52 (salt fog); IEC 60068-2-60 (flowing mixed gas)

[/specifications][accesories]

Accessories and License Upgrade PIDs
SD-IE-16GB=	Industrial Ethernet (IE) 16 GB SD memory card for IE
STK-RACK-DINRAIL=	19” DIN Rail mount kit
IE3200-DNA-E	Cisco Catalyst Center Essentials license for IE3200 Series
IE3200-DNA-E-3Y	IE3200 Catalyst Center Essentials, 3 Year Term license
IE3200-DNA-E-5Y	IE3200 Catalyst Center Essentials, 5 Year Term license
IE3200-DNA-E-7Y	IE3200 Catalyst Center Essentials, 7 Year Term license
LIC-MRP-MGR-XE=	MRP Ring Manager License
LIC-MRP-CLIENT-XE=	MRP Ring Client License
IE 3200 Series Power Supplies
PWR-IE50W-AC=	50W AC Power Supply
PWR-IE50W-AC-IEC=	50W AC-IEC Power Supply
PWR-IE50W-AC-L=	50W AC-L Power Supply
PWR-IE65W-PC-AC=	65W PC-AC Power Supply
PWR-IE65W-PC-DC=	65W PC-DC Power Supply
PWR-IE170W-PC-AC=	170W PC-AC Power Supply
PWR-IE170W-PC-DC=	170W PC-DC Power Supply
PWR-IE240W-PCAC-L=	240W PCAC-L Power Supply
PWR-IE480W-PCAC-L=	480W PCAC-L Power Supply
SFPs
GLC-FE-100FX-RGD=	100BASE-FX rugged SFP for FE ports
GLC-FE-100LX-RGD	100BASE-LX10 rugged SFP for FE ports
GLC-FE-T-I=	100BASE-T for FE SFP ports
GLC-FE-100FX=	100BASE-FX SFP for FE ports
GLC-FE-100LX=	100BASE-LX10 SFP for FE ports
GLC-FE-100EX=	100BASE-EX for FE ports
GLC-FE-100ZX=	100BASE-ZX for FE ports
GLC-FE-100BX-D=	100BASE-BX10-D SFP for FE ports
GLC-FE-100BX-U=	100BASE-BX10-U SFP for FE ports
GLC-SX-MM-RGD=	1000BASE-SX short wavelength; rugged
GLC-LX-SM-RGD=	1000BASE-LX/LH long wavelength; rugged
GLC-ZX-SM-RGD=	1000BASE-ZX extended distance; rugged
GLC-BX40-U-I=	1000BASE-BX40-U, 40 km single-fiber bidirectional; with DOM
GLC-BX40-D-I=	1000BASE-BX40-D, 40 km single-fiber bidirectional; with DOM
GLC-BX40-DA-I=	1000BASE-BX40-D (Alternative), 40 km single-fiber; with DOM
GLC-BX80-U-I=	1000BASE-BX80-U, 80 km single-fiber bidirectional; with DOM
GLC-BX80-D-I=	1000BASE-BX80-D, 80 km single-fiber bidirectional; with DOM
GLC-SX-MMD=	1000BASE-SX short wavelength; with DOM
GLC-LH-SMD=	1000BASE-LX/LH long wavelength; with DOM
GLC-EX-SMD=	1000BASE-EX long wavelength; with DOM
GLC-ZX-SMD=	1000BASE-ZX extended distance; with DOM
GLC-BX-D=	1000BASE-BX10-D downstream single-fiber; with DOM
GLC-BX-U=	1000BASE-BX10-U upstream single-fiber; with DOM
GLC-BX-D-I=	1000BASE-BX10-D downstream single-fiber, IND rated; with DOM
GLC-BX-U-I=	1000BASE-BX10-U upstream single-fiber, IND rated; with DOM
CWDM-SFP-xxxx= (8 freq)	Longwave xxxx-nm laser, single-mode
DWDM-SFP-xxxx= (40 freq)	1000BASE-DWDM SFP
SFP-GE-S=	1000BASE-SX SFP for MMF, extended temp
SFP-GE-L=	1000BASE-LX/LH SFP for MMF/SMF, extended temp
SFP-GE-Z=	1000BASE-ZX SFP for SMF, extended temp
GLC-SX-MM=	1000BASE-SX SFP for MMF, commercial temp
GLC-LH-SM=	1000BASE-LX/LH SFP for MMF/SMF, commercial temp
GLC-ZX-SM=	1000BASE-ZX SFP for SMF, commercial temp
GLC-TE=	1000BASE-T copper
GLC-T-RGD=	1000BASE-T copper, industrial

[/accesories]

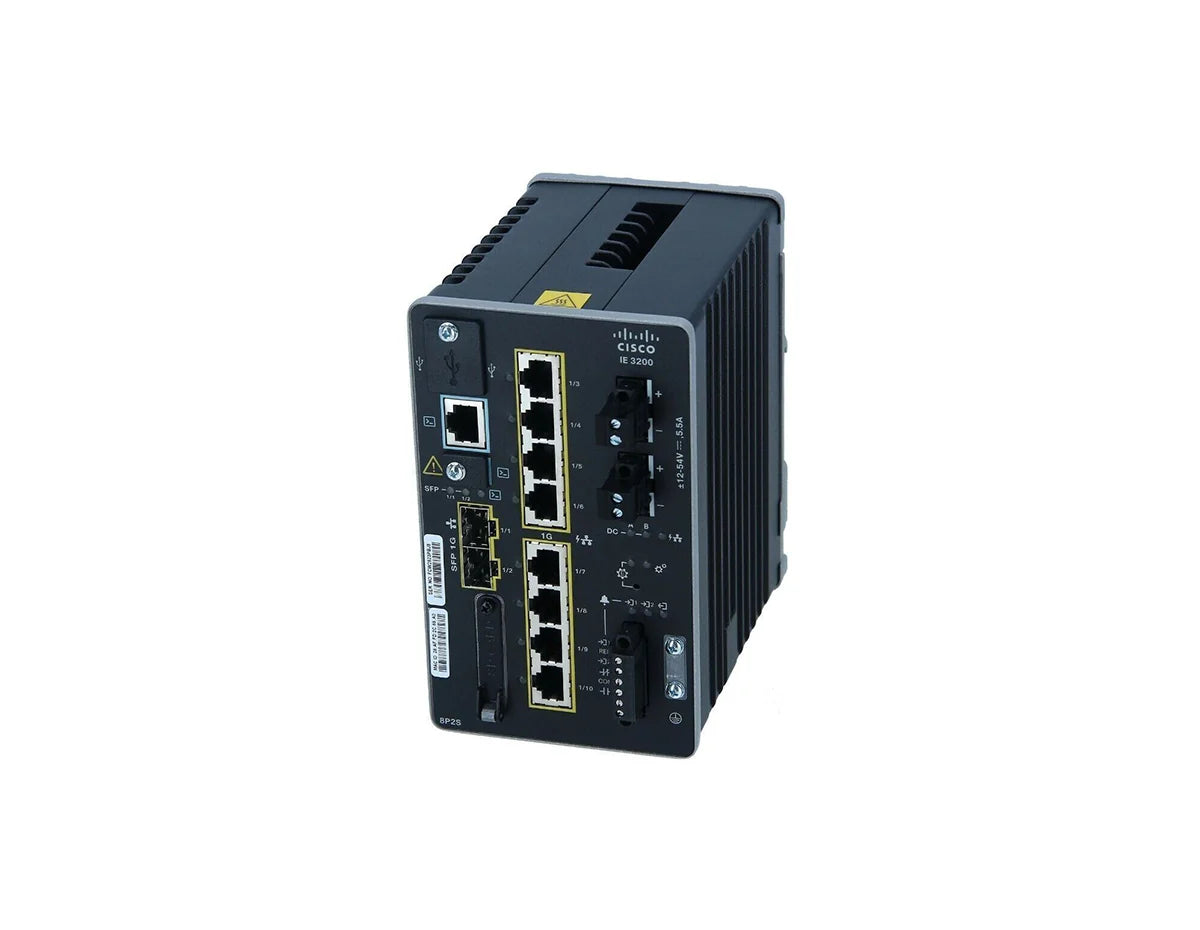

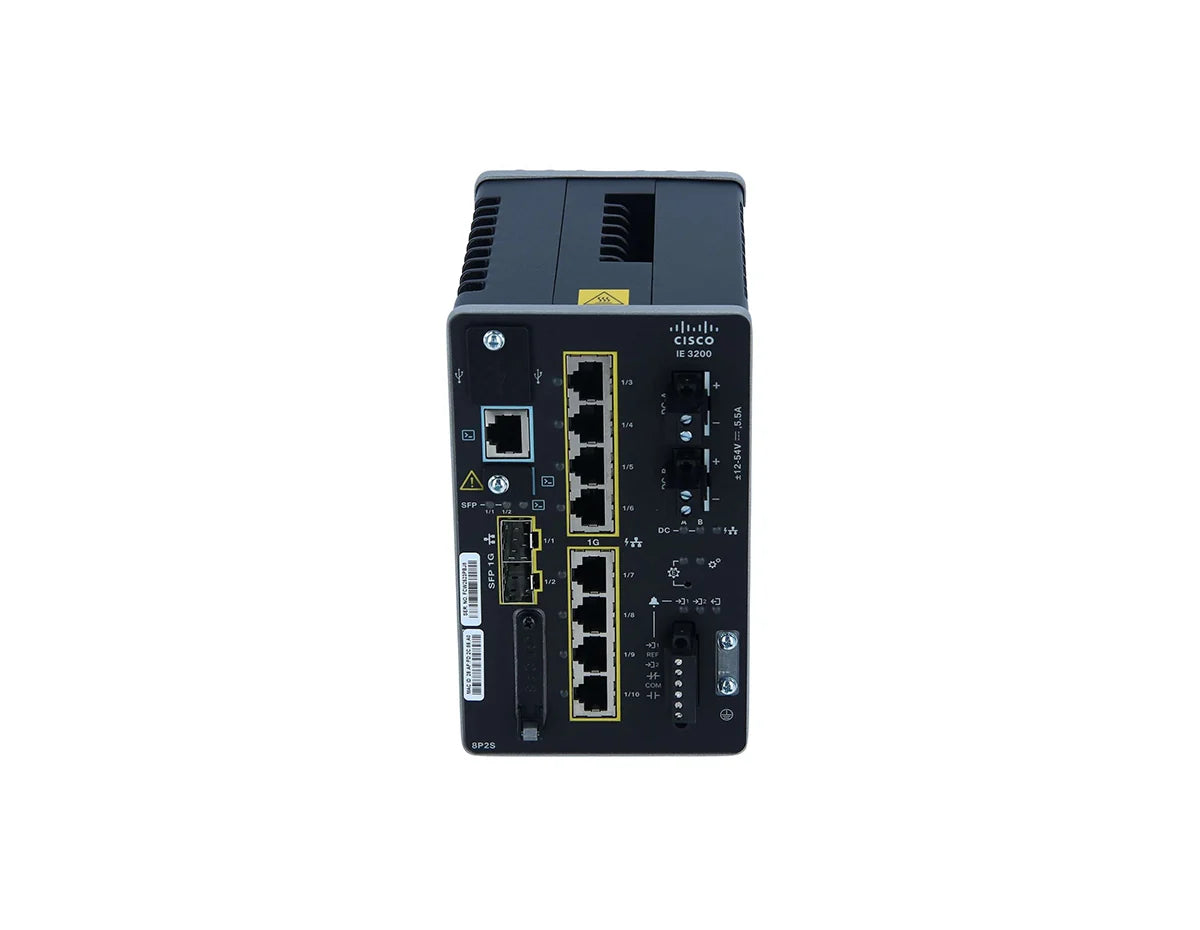

Cisco IE-3200-8P2S-E Industrial Ethernet Switch

The Cisco IE-3200-8P2S-E is a rugged, high-performance industrial Ethernet switch designed to deliver reliable and secure network connectivity in harsh environments. This switch features 8 Gigabit Ethernet ports with Power over Ethernet (PoE/PoE+) and 2 SFP slots, making it an ideal solution for powering and connecting critical industrial devices such as IP cameras, sensors, and controllers. The IE-3200-8P2S-E supports advanced Layer 2 switching and basic Layer 3 (static and inter-VLAN) routing, along with industrial protocol support, to enhance segmentation, security, and traffic control.

Key Features:

• 8 x Gigabit Ethernet Ports: Provides reliable and high-speed data connectivity for various industrial devices, ensuring stable network communication.
• 2 x SFP Slots: Offers flexible uplink options with fiber connectivity, enabling high-speed data transfer and network scalability.
• Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for challenging industrial environments.
• Layer 2 and Layer 3 Management: Includes advanced features such as VLANs, QoS, and routing protocols to enhance network control and security.
• Compact Form Factor: Designed for space-constrained installations, making it suitable for industrial enclosures and cabinets.

Technical Overview:

• Recommended for: Industrial environments requiring robust Ethernet connectivity with advanced management features.
• Ports: 8 x Gigabit Ethernet ports, 2 x SFP slots.
• Operating Temperature: Designed to operate in a wide temperature range suitable for harsh industrial applications.
• Management: Managed through a web interface, CLI, SNMP, and Cisco Catalyst Center for comprehensive network setup and monitoring.
• Form Factor: Rugged, compact design suitable for space-constrained industrial environments.

You can check the related tab for the Cisco IE-3200-8T2S-E datasheet.
