[properties]

Properties	Cisco IE-3000-8TC-E
Description	Industrial Ethernet switch with 8 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has 1 10/100/1000 Ethernet port and 1 SFP-based Gigabit Ethernet port; 1 port active). Supports up to two IEM-3000 expansion modules (e.g., 8TM, 8FM, 4SM, 8SM, 4PC, 4PC-4TC). Layer 3 IP Services image installed.
Product Family	Industrial Ethernet 3000
Product Type	Ethernet Switch
Configurations	8 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has one active port either 10/100/1000 copper or SFP fiber) Support up to two expansion modules with various combinations DC input range 18VDC-60VDC Layer 3 IP Services Image
Dimensions (HxWxD) Inches	6.0W x 5.8H x 4.4D (152mm W x 147mm H x 112mm D)
Weight	4.0 lb (≈1.8 kg)

[/properties]

[specifications]

Specifications	IE-3000-8TC-E
DRAM	128 MB
Flash Memory	64 MB Compact Flash Memory
Max. Switching Bandwidth	16 Gbps
Max. Forwarding Rate	6.5 Mpps
Max. MAC Addresses	Configurable up to 8000 MAC addresses (Layer 2)
Jumbo Frames	Jumbo frames up to 9018 bytes on Gigabit uplink port and mini-jumbo frame (system MTU) up to 1998 bytes on both 10/100 and 10/100/1000 ports
Unicast Routes	Configurable up to 3,000 (Layer 3)
Internet Group Management Protocol (IGMP) Multicast Groups	Configurable up to 256 (Layer 2) Configurable up to 1000 (Layer 3)
Indicators	Per-port status LED: Link integrity, disabled, activity, speed, full-duplex indications System-status LED: System, link status, link duplex, link speed, indications
Input Voltage	18-60VDC
Max. Power Consumption	15.7W
Power Rating	.05KVA
Connectors and cabling	10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 UTP cabling 100BASE-TX ports: RJ-45 connectors, two-pair Category 5 UTP cabling 1000BASE-T ports: RJ-45 connectors, four-pair Category 5 UTP cabling 1000BASE-SX, -LX/LH, -ZX SFP-based ports: LC fiber connectors (single/multimode fiber) 100BASE-LX10, -FX: LC fiber connectors (single/multimode fiber)
Operating Temperature	-40C to +75C -40C to +70C (Vented Enclosure 40 LFM Air Flow) -40C to +60C (Sealed Enclosure 0 LFM Air Flow) -24C to +75C (Fan or Blower equipped Enclosure 200 LFM Air Flow) -40C to +85C (IEC 60068-2-2 Environmental Type Testing 16 hours)
Storage Temperature	-40 C to +85 C
Operating Altitude	Up to 13,000 ft (3963m)
Storage Altitude	Up to 15,000 ft (4573m)
Mean Time Between Failures (MTBF)	329,451
Standard safety certifications	UL 60950-1 CSA C22.2 No. 60950-1 TUV/GS to EN 60950-1 CB to IEC 60950-1 with all country deviations NOM
Electromagnetic emissions	FCC Part 15 Class A EN 55022 CISPR 22 CISPR11 VCCI Class A AS/NZS 3548 Class A CNS 13438 Class A KN 22 Class A
Electromagnetic immunity	EN 55024 AS/NZS CISPR 24 KN 24 IEC/EN 61000-4-2 (Electro Static Discharge) IEC/EN 61000-4-3 (Radiated Immunity) IEC/EN 61000-4-4 (Fast Transients) IEC/EN 61000-4-5 (Surge) IEC/EN 61000-4-6 (Conducted Immunity) IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity) IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity) IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity) IEC/EN 61000-4-11 (AC power Voltage Immunity) IEC/EN 61000-4-16 (Low Frequency Conducted CM Disturbances) IEC/EN 61000-4-17 (Ripple on DC Input Power) IEC/EN 61000-4-18 (Damped Oscillatory Wave) IEC/EN 61000-4-29 (Voltage Dips Immunity, DC power) IEEE C37.90 (Surge) IEEE C37.90.1 (Fast Transients) IEEE C37.90.2 (Radiated Immunity) IEEE C37.90.3 (Electro Static Discharge)
Mechanical stability	IEC 60068-2-27 Shock 15g (operational), 30g (nonoperational)
Industry specifications	EN 61131-2 Programmable Controllers (EMC/EMI, environmental, mechanical) IEEE 1613 Power Station and Substation Networking Devices IEC 61850-3 Power Station and Substation Communication Networks and Systems EN 61326-1 Electrical Equipment for Measurement, Control and Laboratory Use - EMC EN 61000-6-1 Immunity for Light Industrial Environments EN 61000-6-2 Immunity for Industrial Environments EN 61000-6-4 Emissions for Industrial Environments TS 61000-6-5 EMC Immunity for Power Station and Substation EN 50155 Railway, Electronic Equipment on Rolling Stock (EMI/EMC, environmental, mechanical) EN 50121-3-2 Railway, Electromagnetic Compatibility on Rolling Stock EN 50121-4 Railway, Emission and Immunity of Signaling and Telecommunications Apparatus EN 60945 Maritime Navigation and Radio-communication Equipment and Systems IEC 60533 Shipboard Electrical and Electronic Installation EMC Marine Type Approval (BV, DNV, Korean Register, Lloyd Register) NEMA TS-2 (EMC, environmental, mechanical) ABB Industrial IT certification ODVA Industrial EtherNet/IP support PROFINETv2 support Directive 2011/65/EU RoHS IP20
Hazardous locations	UL/CSA 60079-0, -15 (Class 1, Div 2 A-D) (requires cabinet enclosure) EN 60079-0, -15 ATEX Certification (Class 1, Zone 2 A-D) (requires cabinet enclosure) IEC 60079-0, -15 (Test report only) (requires cabinet enclosure) UL 508 CSA C22.2 No. 142
Humidity	Relative humidity: 5% to 95% non-condensing

[/specifications]

[accesories]

Accessories and License Upgrade PIDs
IEM-3000-8TM=	Expansion Copper module for Cisco IE-3000-4TC and IE-3000-8TC switches 8 10/100 TX ports 2.8W
IEM-3000-8FM=	Expansion Fiber module for Cisco IE-3000-4TC and IE-3000-8TC switches 8 100 FX ports 10.1W
IEM-3000-4SM=	Expansion SFP module for Cisco IE-3000-4TC and IE-3000-8TC switches 4 100M SFP ports 7.6W
IEM-3000-8SM=	Expansion SFP module for Cisco IE-3000-4TC and IE-3000-8TC switches 8 100M SFP ports 12.2W
IEM-3000-4PC=	Expansion PoE/PoE+ module for Cisco IE-3000-4TC and IE-3000-8TC switches 4 10/100 PoE/PoE+ ports External PoE power source (44-57 VDC for PoE/50-57 VDC for PoE+) 7.3W
IEM-3000-4PC-4TC=	Expansion PoE/PoE+ module for Cisco IE-3000-4TC and IE-3000-8TC switches 4 non-PoE ports and 4 10/100 PoE/PoE+ ports External PoE power source (44-57 VDC for PoE/50-57 VDC for PoE+) 7.9W
PWR-IE50W-AC=	Expansion power module for IE-3000-4TC and IE-3000-8TC switches
PWR-IE50W-AC-IEC=	Expansion power module for IE-3000-4TC and IE-3000-8TC switches
PWR-IE65W-PC-AC=	AC-DC, 54VDC power module to support 65 watts for PoE/PoE+ modules
PWR-IE65W-PC-DC=	DC-DC, 54VDC power module to support 65 watts for PoE/PoE+ modules
CAB-SM-LCSC-1M	1m-fiber single-mode LC-to-SC connectors
CAB-SM-LCSC-5M	5m-fiber single-mode LC-to-SC connectors
CF-IE3000=	IE 3000 Compact Flash
PWR-IE3000-CLP=	IE 3000 Power Transformer Spare connector clip
PWR-IE3000-CNCT=	IE 3000 Power Spare connector
LPNL-IE3000=	IE 3000 Left Panel Spare
RPNL-IE3000=	IE 3000 Right Panel Spare
DINCLP-IE3000=	Din-rail clip 4 pack Spare
BMP-IE3000=	Din-rail clip bumper 4 pack Spare
STK-RACKMNT-2955=	Din-rail adapter for rack mounting
IE-SW-SPARE	Spare IOS software upgrade part number (L2 to L3 features)
IE3000-DNA-E-L	DNA Essentials license
IE3000-DNA-E-L-3Y	DNA Essentials 3-year term license option
IE3000-DNA-E-L-5Y	DNA Essentials 5-year term license option
SFPs
GLC-FE-100FX-RGD=	100BASE-FX Rugged SFP for Fast Ethernet SFP Ports
GLC-FE-100LX-RGD	100BASE-LX10 Rugged SFP for Fast Ethernet SFP Ports
GLC-FE-T-I=	100BASE-T for Fast Ethernet SFP Ports
GLC-FE-100FX=	100BASE-FX SFP for Fast Ethernet SFP Ports
GLC-FE-100LX=	100BASE-LX10 SFP for Fast Ethernet SFP Ports
GLC-FE-100EX=	100BASE-EX for Fast Ethernet SFP Ports
GLC-FE-100ZX=	100BASE-ZX for Fast Ethernet SFP Ports
GLC-FE-100BX-D=	100BASE-BX10-D SFP for Fast Ethernet SFP Ports
GLC-FE-100BX-U=	100BASE-BX10-U SFP for Fast Ethernet SFP Ports
GLC-SX-MM-RGD=	1000BASE-SX short wavelength; rugged
GLC-LX-SM-RGD=	1000BASE-LX/LH long wavelength; rugged
GLC-ZX-SM-RGD=	1000BASE-ZX extended distance; rugged
GLC-BX40-U-I=	1000BASE-BX40-U for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX40-D-I=	1000BASE-BX40-D for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX40-DA-I=	1000BASE-BX40-D (Alternative) for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX80-U-I=	1000BASE-BX80-U for 80km Single-Fiber Bidirectional Applications; with DOM
GLC-BX80-D-I=	1000BASE-BX80-D for 80km Single-Fiber Bidirectional Applications; with DOM
GLC-SX-MMD=	1000BASE-SX short wavelength; with DOM
GLC-LH-SMD=	1000BASE-LX/LH long-wavelength; with DOM
GLC-EX-SMD=	1000BASE-EX long-wavelength; with DOM
GLC-ZX-SMD=	1000BASE-ZX extended distance; with DOM
GLC-BX-D=	1000BASE-BX10-D downstream bidirectional single fiber; with DOM
GLC-BX-U=	1000BASE-BX10-U upstream bidirectional single fiber; with DOM
CWDM-SFP-xxxx= (8 freq)	Longwave xxxx-nm laser, single mode
DWDM-SFP-xxxx= (40 freq)	1000BASE-DWDM SFP
SFP-GE-S=	Cisco 1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, extended operating temperature range.
SFP-GE-L=	Cisco 1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1300-nm wavelength, extended operating temperature range.
SFP-GE-Z=	Cisco 1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, extended operating temperature range.
GLC-SX-MM=	Cisco 1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, commercial operating temperature range.
GLC-LH-SM=	Cisco 1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1300-nm wavelength, commercial operating temperature range.
GLC-ZX-SM=	Cisco 1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, commercial operating temperature range.
GLC-TE=	1000BASE-T standard
GLC-T=	1000BASE-T SFP transceiver module for copper networks, commercial operating temperature range.
GLC-T-RGD=	1000BASE-T standard

[/accesories]

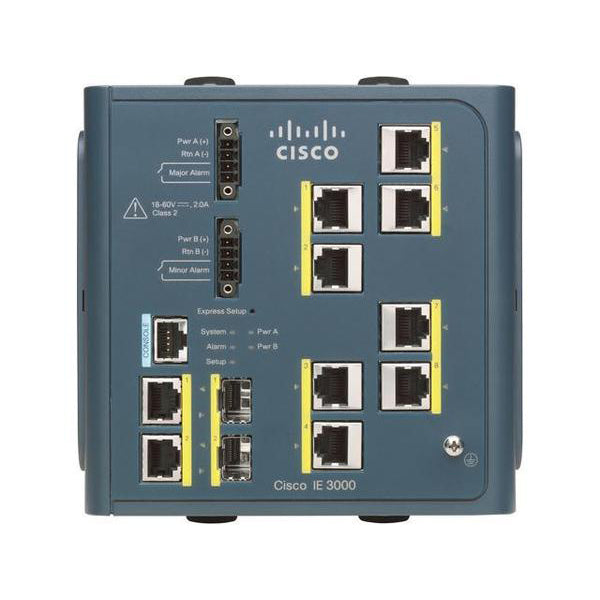

Cisco IE-3000-8TC-E Industrial Ethernet Switch

The Cisco IE-3000-8TC-E is a high-performance industrial Ethernet switch designed to deliver reliable network connectivity in harsh industrial environments. This switch features 8 Fast Ethernet ports and 2 Gigabit combo ports (Ethernet/SFP), making it ideal for connecting critical industrial devices such as sensors, controllers, and IP cameras. The IE-3000-8TC-E is engineered to operate under extreme conditions, ensuring continuous operation while offering advanced Layer 2 and Layer 3 management features for effective network segmentation, security, and traffic control.

Key Features:

• 8 x Fast Ethernet Ports: Provides reliable and efficient data connectivity for a variety of industrial devices, ensuring stable network communication.
• 2 x Gigabit Combo Ports: Offers flexible uplink options with Ethernet and SFP connectivity, enabling high-speed data transfer and network scalability.
• Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for challenging industrial environments.
• Layer 2 and Layer 3 Management: Includes advanced features such as VLANs, QoS, and routing protocols to enhance network control and security.
• Compact and Modular Form Factor: Designed for space-constrained installations, with the ability to expand as your network grows.

Technical Overview:

• Recommended for: Industrial environments requiring robust Ethernet connectivity with advanced management and security features.
• Ports: 8 x Fast Ethernet ports, 2 x Gigabit combo ports (Ethernet/SFP).
• Operating Temperature: Designed to operate in a wide temperature range suitable for harsh industrial applications.
• Management: Managed through a web interface, CLI, SNMP, and Cisco Network Assistant for comprehensive network setup and monitoring.
• Form Factor: Modular design suitable for space-constrained industrial environments.

You can check the related tab for the Cisco IE-3000-8TC-E datasheet.
