[shortdesc]

Cisco IE-2000-8T67P-G-E: Rugged IP67 industrial switch with 8×10/100 M12 D-coded ports, 2×1G M12 X-coded uplinks, PoE/PoE+ on select ports, and Cisco LAN Base software.

[/shortdesc]

[properties]

Properties	Cisco IE-2000-8T67P-G-E Switch
Short Description	Rugged IP67 industrial switch with 8× 10/100 M12 D-coded ports, 2× Gigabit M12 X-coded uplinks, PoE/PoE+ support on select ports, and Cisco LAN Base software.
Description	The Cisco IE-2000-8T67P-G-E is an industrial-grade, IP67-rated switch with 8 Fast Ethernet (10/100) M12 D-coded downlink ports and 2 Gigabit M12 X-coded uplink ports. Built for durability in harsh environments, it supports Layer 2 switching and key industrial protocols, with PoE/PoE+ available on select ports and options for static NAT (with Enhanced LAN Base), making it ideal for manufacturing, transportation, and utility deployments.
Product Family	Cisco Industrial Ethernet 2000 IP67 Series Switches
Product Type	Switch
IE 2000 IP67 product highlights
Certified IP67 rating	The solution is IP67-rated to protect against dust and submersion in water. It meets the most rigorous industrial and safety standards for extreme temperature and vibration, humidity, electromagnetic emissions, and other factors.
Compliant with industrial automation standards	The rugged switch supports EtherNet/IP (CIP) and PROFINET so you can easily integrate it with any Ethernet-based industrial equipment and management system. It also supports Precision Time Protocol (PTP) v2 for demanding synchronized applications.
Easy deployment	With zero-touch discovery using Dynamic Host Control Protocol (DHCP), express setup, and sub-60-second boot-up times, you can easily migrate to an all-IP-over-Ethernet environment.
Strong endpoint security	Support for the following: ● 802.1x ● Port security ● Dynamic port-based authentication using DHCP ● Encrypted administrative traffic ● Centralized authentication
Resiliency	Cisco brings recovery mechanisms such as flex links and Cisco Resilient Ethernet Protocol (REP) to the factory floor or other industrial site. Profinet MRP ring provides open-standard industrial resiliency.
Manageability	Cisco DNA Center enables centralized automation and assurance at scale with a Cisco DNA Essentials 3-year, 5-year, or 7-year term-based subscription. The solution is easy for operations staff to configure and manage. Cisco Auto Smart Port lets you configure the right QoS settings for any port in seconds. It also allows for secure web-based administration and easy integration with your network management system.
Network Address Translation (NAT)	The switches provide line-rate, hardware-enabled static address translation to easily connect complex Layer-2/machine-node networks (requires LAN Base → Enhanced LAN Base image to enable Layer 2 NAT).
Industrial Power-over Ethernet (PoE)	Select switch models let you connect and power endpoints with a single cable in compliance with PoE and PoE+ standards.
Removable SD flash memory	With tightly secured swappable media, you can quickly replace switches in the field with minimal disruption.
Platform flexibility	The Cisco IE2000 IP67 Series is available with 8, 16, or 24 10/100 Base-T fixed-configuration Ethernet ports and 2× Gigabit Ethernet ports. It provides M12 D-coded, X-coded, and a mini-change dual-power connector in an industrial-hardened, wall-mountable form factor.

[/properties] [specifications]

Specifications	Cisco IE-2000-8T67P-G-E Switch
Total ports	10
100 MB D-code	8
GE X-code ports	2 GE
Manufacturing license	LAN Base
IEEE1588	X
NAT	X (Requires LAN Base to LAN Enhanced image (enables Layer 2 NAT))
PoE (+)	X
Hardware	● 256MB DRAM with ECC memory
	● IEEE 1588v2 FPGA
	● 64MB on-board flash memory
	● 1GB removable SD flash memory card (optional)
Alarm	● Alarm—one alarm output relay using an M12 A-coded 5-pin connector (Max. rated: 24VDC @ 1A / 48VDC @ 0.5A)
Input voltage supported	with PoE: 44–57VDC; with PoE+: 50–57VDC
Dimensions (H x W x D)	9.5” × 9.32” × 3.9” (241.7 × 236.7 × 99 mm)
Weight	7.19 lbs. (3.26 kg)
Cisco IE 2000 software features - LAN Base license (Default)
Layer 2 switching	IEEE 802.1, 802.3, 802.3at, 802.3af standards, VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Flex Link, REP, VTPv3, EtherChannel, Voice VLAN
Security	SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session (1), Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary
Multicast	IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier
QoS	IPv4 Ingress Policing, Rate-Limiting, Egress Queuing/Shaping, AutoQoS
Management	Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, Syslog, Port-Based DHCP, Storm Control—Unicast, Multicast, Broadcast, SPAN Sessions (2), RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration
Industrial Ethernet	Ethernet/IP, Profinet, Profinet MRP, IEEE 1588 PTPv2
IPv4 routing	IPv4 static routing
IPv6 routing	IPv6 host support, HTTP over IPv6, SNMP over IPv6
Industrial Management (Enhanced LAN Base)	Layer 2 Switching with 1:1 static NAT
(IP Lite license) IPv4 Routing	RIP, OSPF, EIGRP, VRF Lite
(IP Lite license) IPv6 Routing	IPv6 Static routing, OSPFv3
Compliance specifications

[/specifications][accesories]

Connectors and cabling
Data cable	● Copper 100 Base-T M12 D-coded 4-pole (pin) cable connector ● Copper GE M12 X-coded 8-pole (pin) cable connector
Alarm cable	● M12 A-coded 5-pin cable
Console cable	● M12 A-coded 5-pin connector
Power supply cables	● Power cable for power source, Mini-Change A-size single-ended cord set, 4 poles, female to pigtail, 16 AWG PVC cable (Molex #130006-0737) ● Power cable to IE2000 IP67 switch: Mini-Change A-size double-ended cordset, 4 poles male to female, 16 AWG TPE cable (Molex #130010-0863) ● Power cable for AC-DC power source, Mini-change A-size single-ended cord set, 3 pins, female insert to pigtail, 16 AWG PVC cable (Molex #130006-2419) ● Power cord from power source to power supply: 2-hole female power cord to open for input DC connector (Molex #130006-2419)
Cisco IE 2000 Cisco DNA license
IE2000-DNA-E-L	Cisco DNA Essentials license (up to 12 ports)
IE2000-DNA-E-L-3Y	Cisco DNA Essentials 3-year term license (up to 12 ports)
IE2000-DNA-E-L-5Y	Cisco DNA Essentials 5-year term license (up to 12 ports)
IE2000-DNA-E-L-7Y	Cisco DNA Essentials 7-year term license (up to 12 ports)
IE2000-DNA-E-M	Cisco DNA Essentials license (up to 24 ports)
IE2000-DNA-E-M-3Y	Cisco DNA Essentials 3-year term license (up to 24 ports)
IE2000-DNA-E-M-5Y	Cisco DNA Essentials 5-year term license (up to 24 ports)
IE2000-DNA-E-M-7Y	Cisco DNA Essentials 7-year term license (up to 24 ports)

[/accesories]

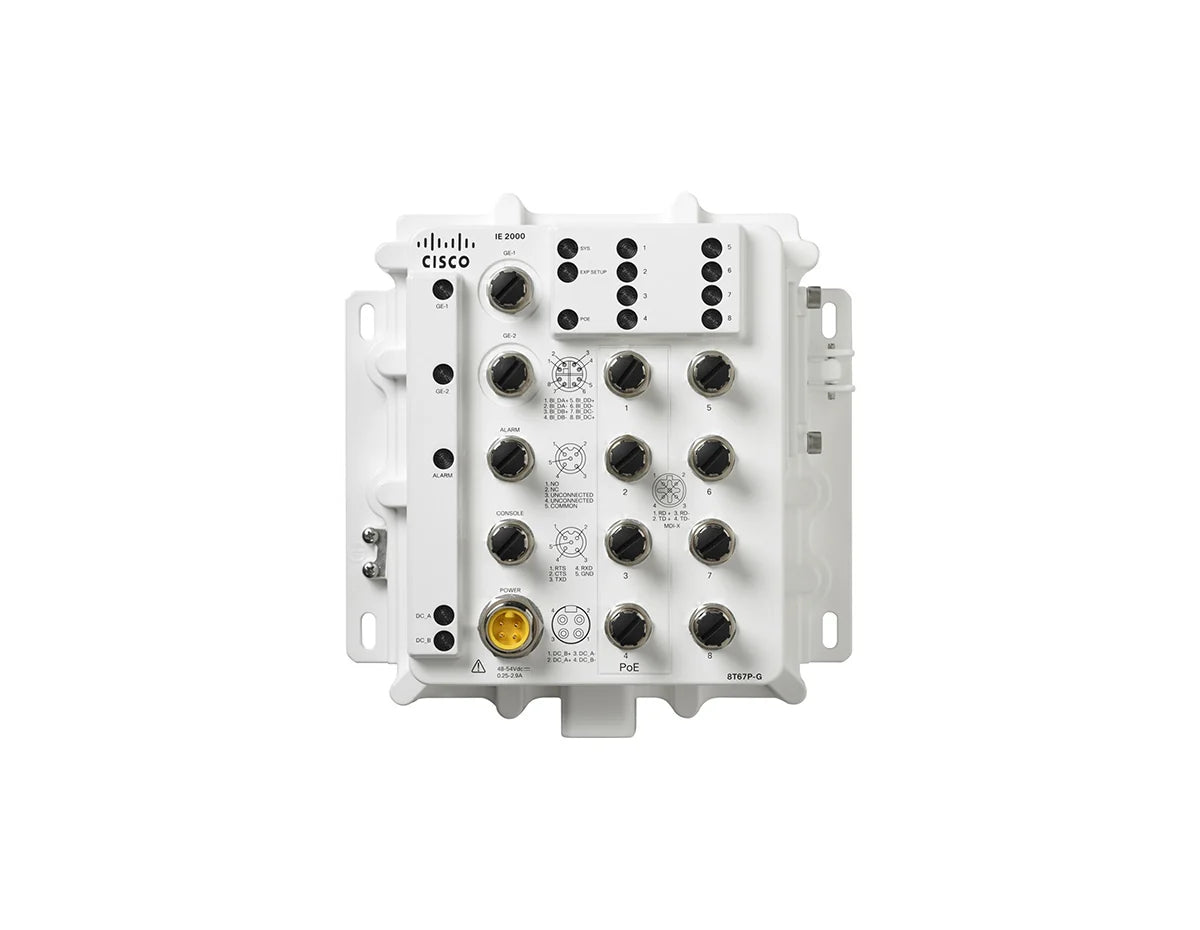

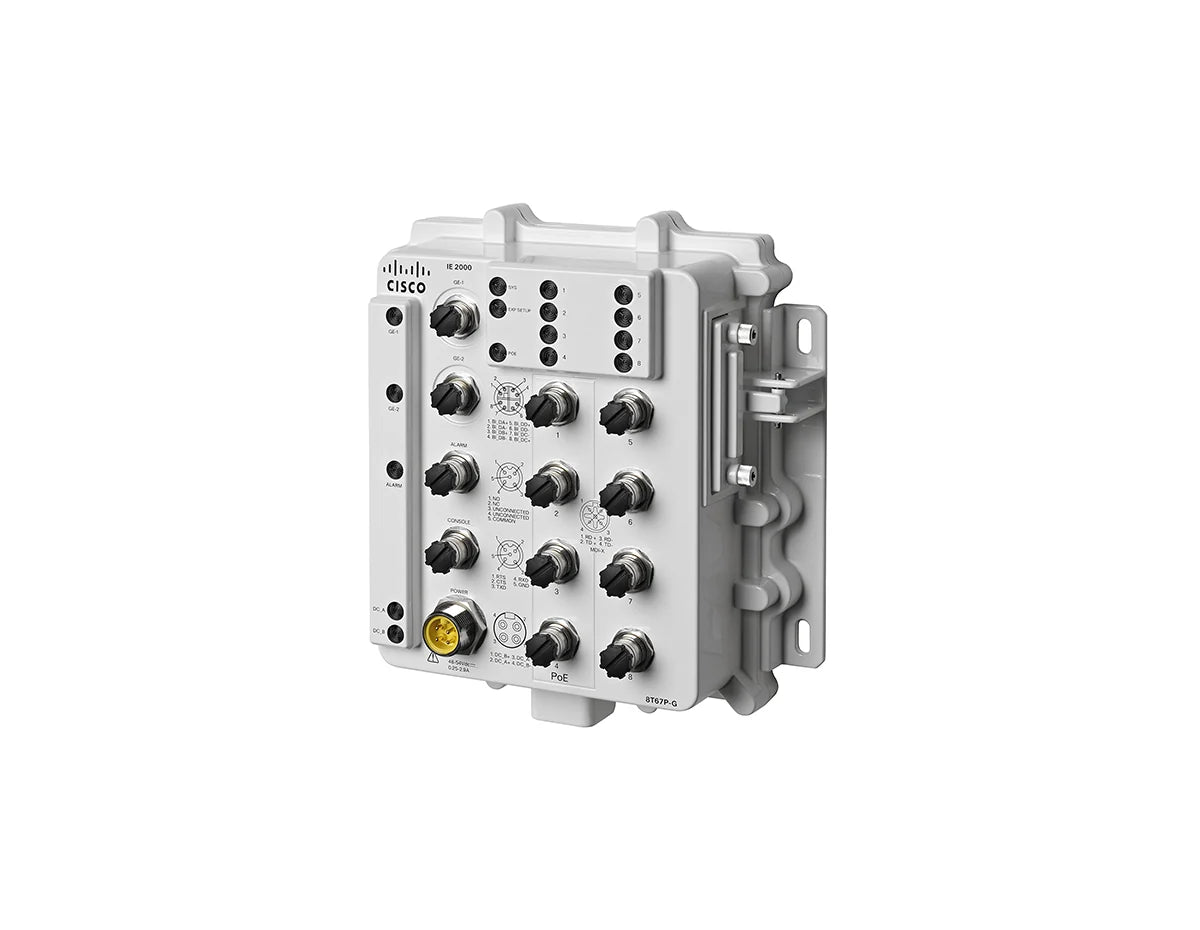

Cisco IE-2000-8T67P-G-E Industrial Ethernet Switch

The Cisco IE-2000-8T67P-G-E is a rugged industrial Ethernet switch designed to deliver reliable and secure network connectivity in harsh environments. Featuring 8 Fast Ethernet (10/100) M12 D-coded downlink ports and 2 Gigabit M12 X-coded uplink ports, this switch is ideal for connecting and, on select ports, powering industrial devices such as IP cameras, sensors, and controllers. The IE-2000-8T67P-G-E is built to operate in extreme conditions while offering essential Layer 2 and industrial features for segmentation, timing, and traffic control.

Key Features:

• 8 × Fast Ethernet Ports: Reliable 10/100 M12 D-coded connections for industrial devices.
• PoE/PoE+ Support (select ports): Power PoE-enabled endpoints to simplify installation (requires appropriate power supply).
• 2 × Gigabit Uplinks: High-speed M12 X-coded uplinks for backhaul and network scalability.
• Ruggedized Design: IP67-rated for dust/water protection; engineered for shock, vibration, and temperature extremes.
• Layer 2 & Industrial Protocols: VLANs, QoS, IGMP snooping, and PTPv2; EtherNet/IP and PROFINET interoperability.

Technical Overview:

• Recommended for: Harsh industrial environments requiring robust Ethernet with optional PoE/PoE+.
• Ports: 8 × 10/100 (M12 D-coded) downlinks; 2 × 1G (M12 X-coded) uplinks.
• PoE: PoE/PoE+ available on select ports; see datasheet and power supply options for budgets.
• Operating Temperature: Industrial temperature ranges supported as specified.
• Management: Web Device Manager, CLI, and SNMP for setup and monitoring.
• Form Factor: Compact, wall-mountable, IP67 enclosure.

You can check the related tab for the Cisco IE-2000-8T67P-G-E datasheet.
