[shortdesc]
- SFP (mini-GBIC) transceiver module
- GigE
- 1000Base-BX
- up to 6.2 miles
- 1490 (TX) / 1310 (RX) nm
[/shortdesc]
[specifications]
| Specifications |
GLC-BX-D |
| Description |
1000BASE-BX10-D downstream bidirectional single fiber; with DOM |
| Product Type |
Transceiver |
| Connector |
Single LC/PC connector |
| Operating range |
up to 10 km (32,821 ft) |
| Form Factor |
SFP |
| Transmit Power Range (dBm) |
-3 to -9 |
| Receive Power Range (dBm) |
-3 to -19.5 |
| Maximum Channel insertion loss in dB (by fiber type) |
5.5 (G.652 SMF) |
| Wavelength Range (nm) |
Transmit: 1490 |
| Receive: 1310 |
| DOM |
Yes |
| Temperature Range |
0 to 70°C (32 to 158°F) |
[/specifications]

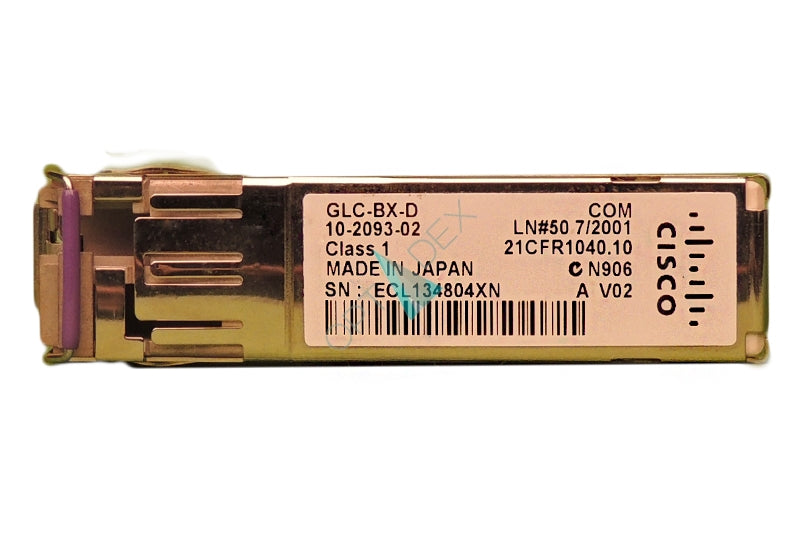

Cisco GLC-BX-D Transceiver Module
The Cisco SFPs for GE applications are durable, industry-standard devices designed to connect switches and routers efficiently to a network. GLC-BX-D= is a 1000BASE-BX10-D downstream bidirectional single fiber device. A 1000BASE-BX10-D device is always connected to a 1000BASE-BX10-U device incorporating Wavelength-Division Multiplexing technology for efficient bidirectional communication.
Key Features:
- Digital Optical Monitoring (DOM)
- Compatible with the IEEE 802.3ah
- Bidirectional
The tabs contain the Cisco GLC-BX-D= datasheet with all the specifics you need.
