Overview

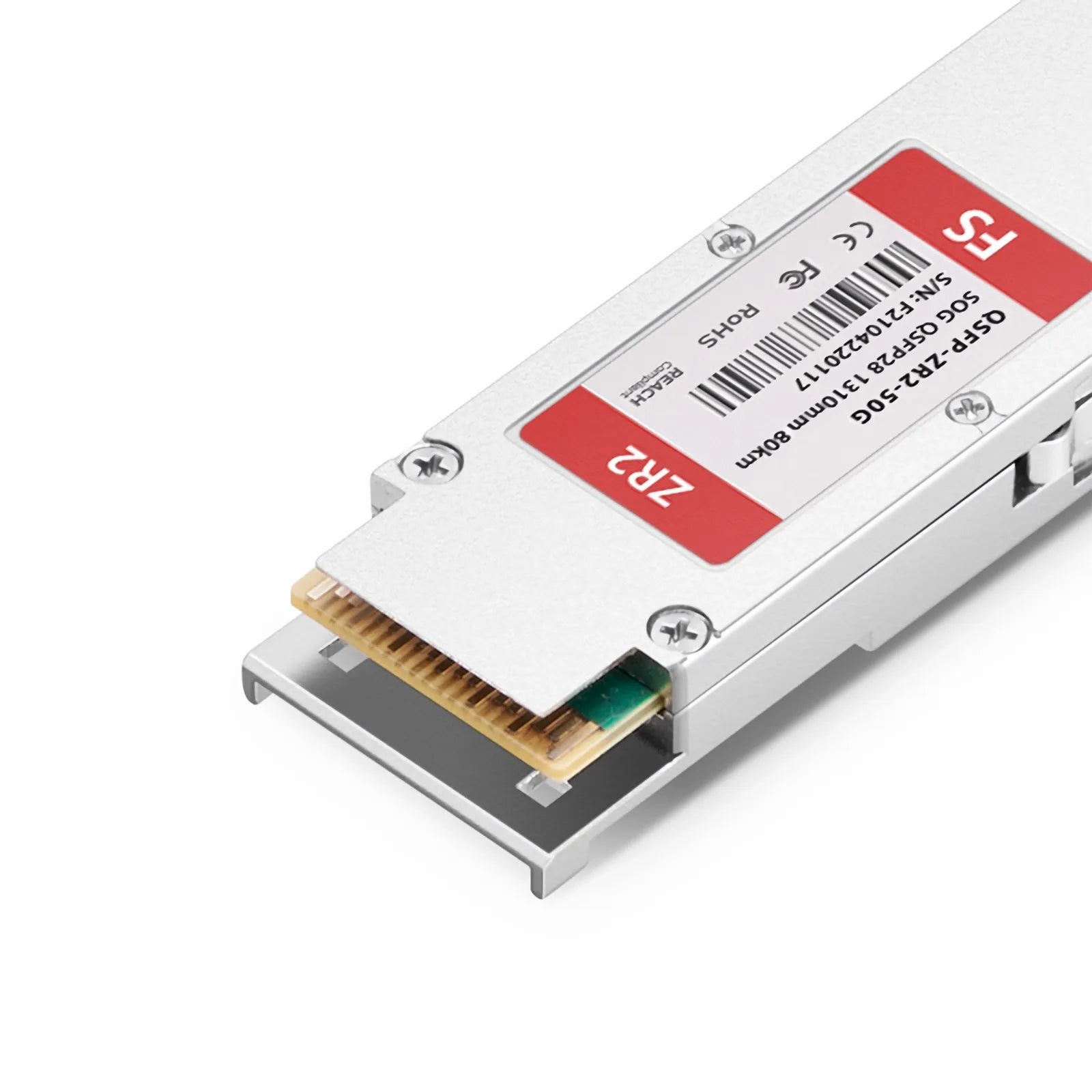

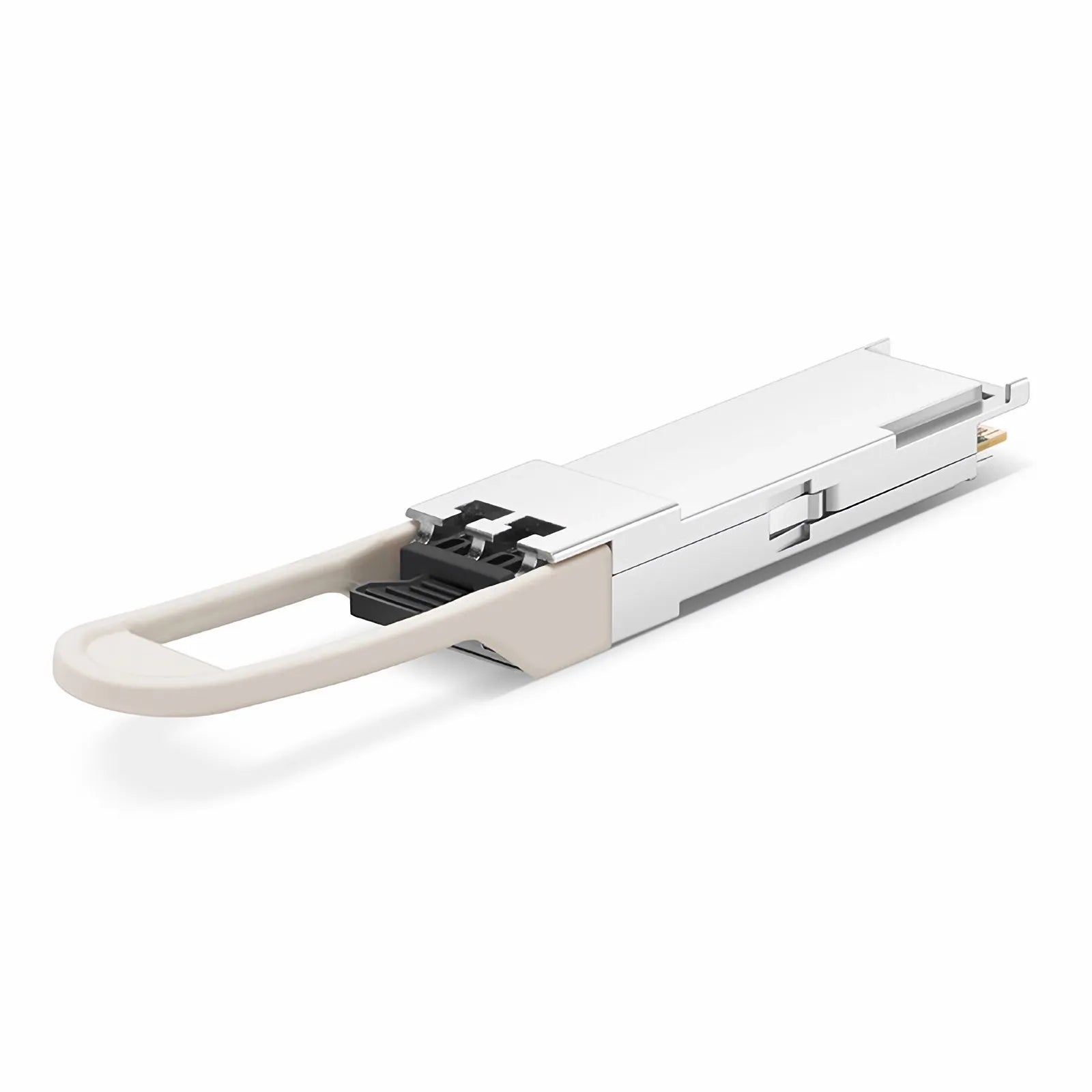

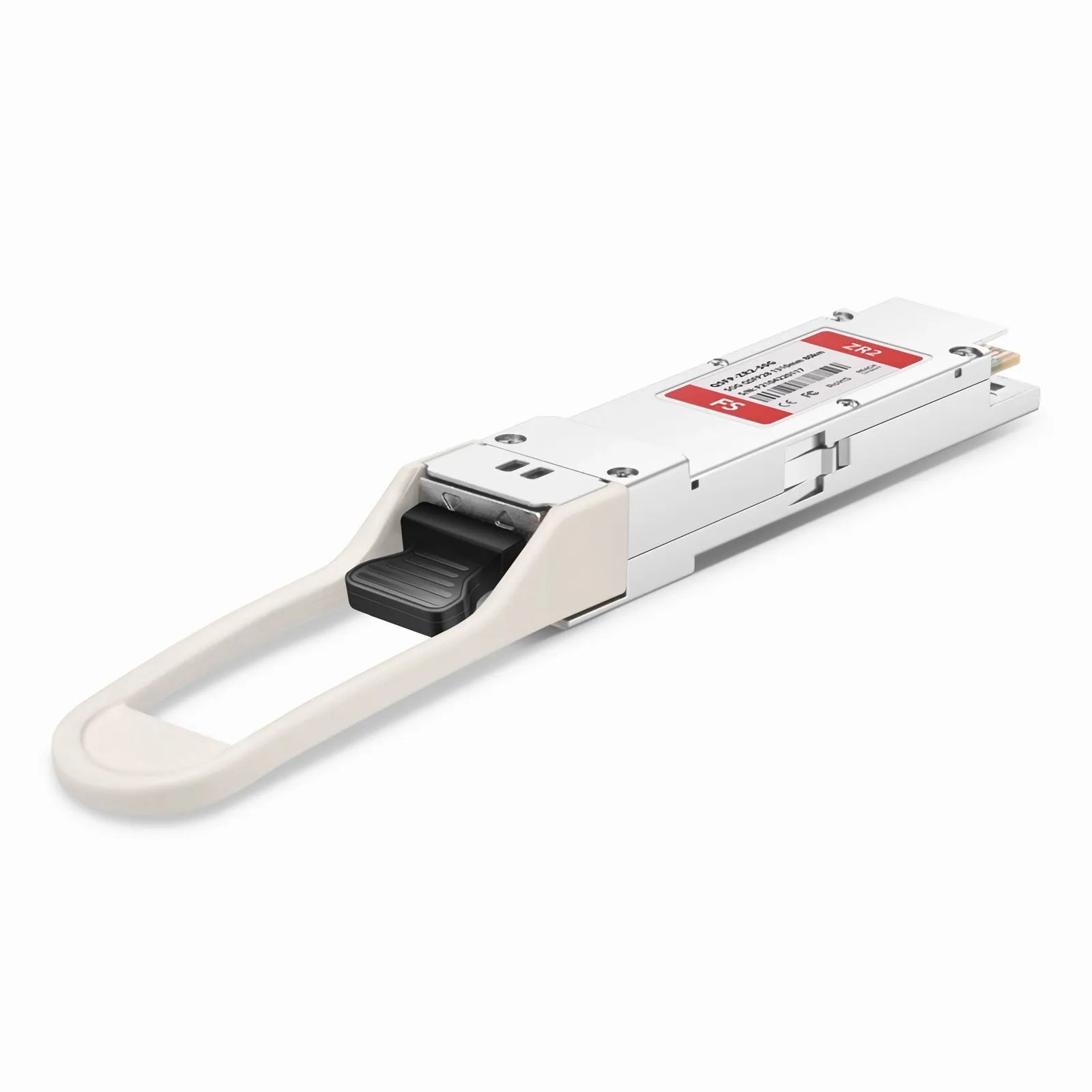

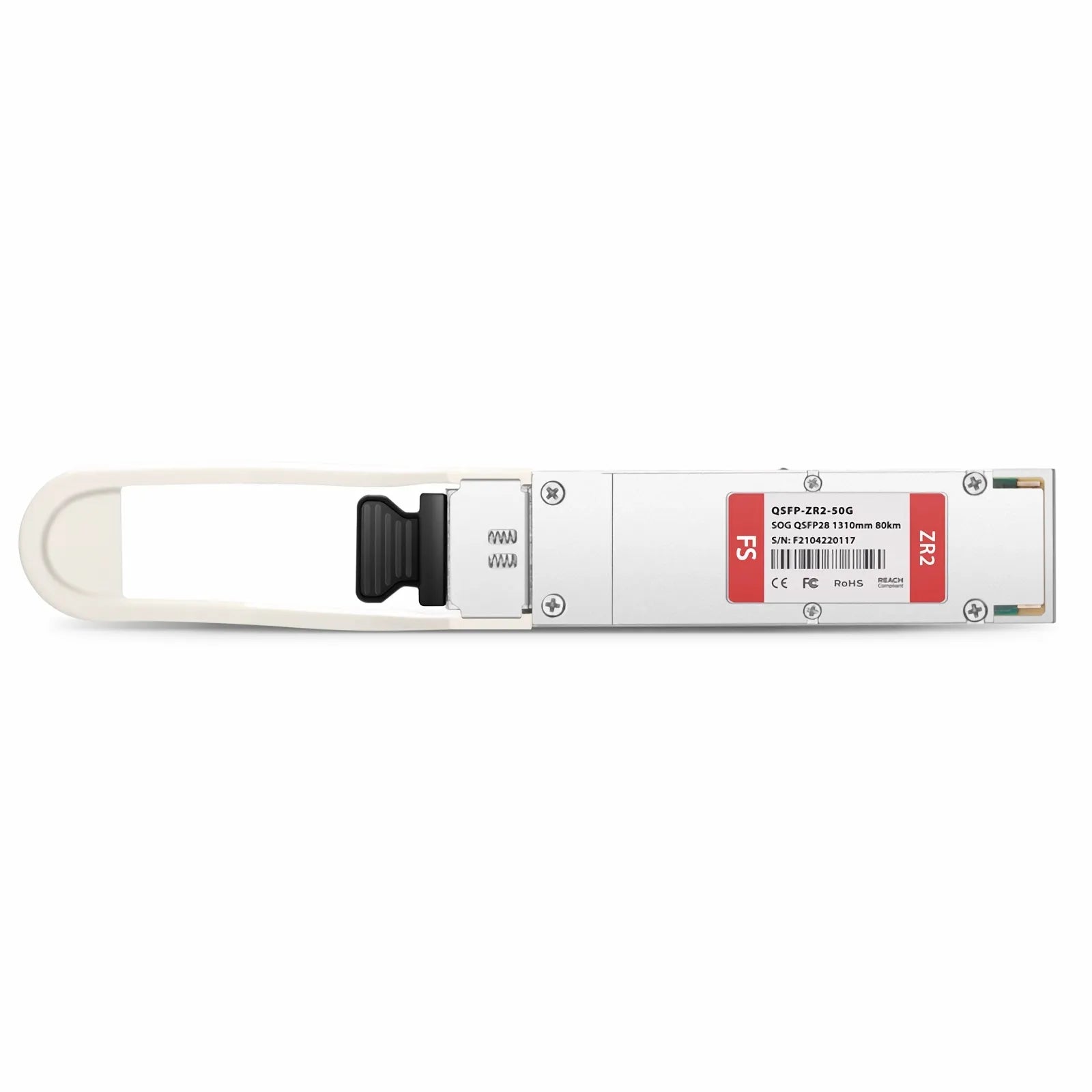

The Cisco Compatible 50GBASE-ZR2 QSFP28 transceiver is designed for high-capacity 50Gbps Ethernet connectivity over single-mode fiber (SMF). This module utilizes a 1310nm LAN-WDM laser configuration to enable data transmission over distances up to 80km. It incorporates a dual-transmitter architecture that multiplexes two 25Gbps signals into a single optical output, supported by integrated CDR (Clock and Data Recovery) on both transmit and receive paths.
Key Features
- Supports 50Gbps data rates for 50GBASE-ZR2 Ethernet applications over distances reaching 80km.
- Equipped with built-in TX and RX Clock and Data Recovery (CDR) to ensure signal integrity across long-reach fiber runs.
- Utilizes a high-performance cooled 1310nm LAN-WDM laser array for stable transmission over single-mode fiber.
- Features digital diagnostic monitoring (DDM/DOM) via a 2-wire serial interface, allowing for real-time monitoring of transceiver parameters.
- Integrated KP4 FEC (Forward Error Correction) support to mitigate bit errors in high-speed transmission environments.
- Designed in a hot-pluggable QSFP28 form factor, allowing for maintenance and upgrades without disrupting network operations.
Technical Specifications
| Parameter |
Specification |
| Part Number |
QSFP-ZR2-50G |
| Form Factor |
QSFP28 |
| Data Rate |
53.125Gbps |
| Wavelength |
1310nm |
| Max Reach |
80km |
| Media |
SMF (Single-Mode Fiber) |

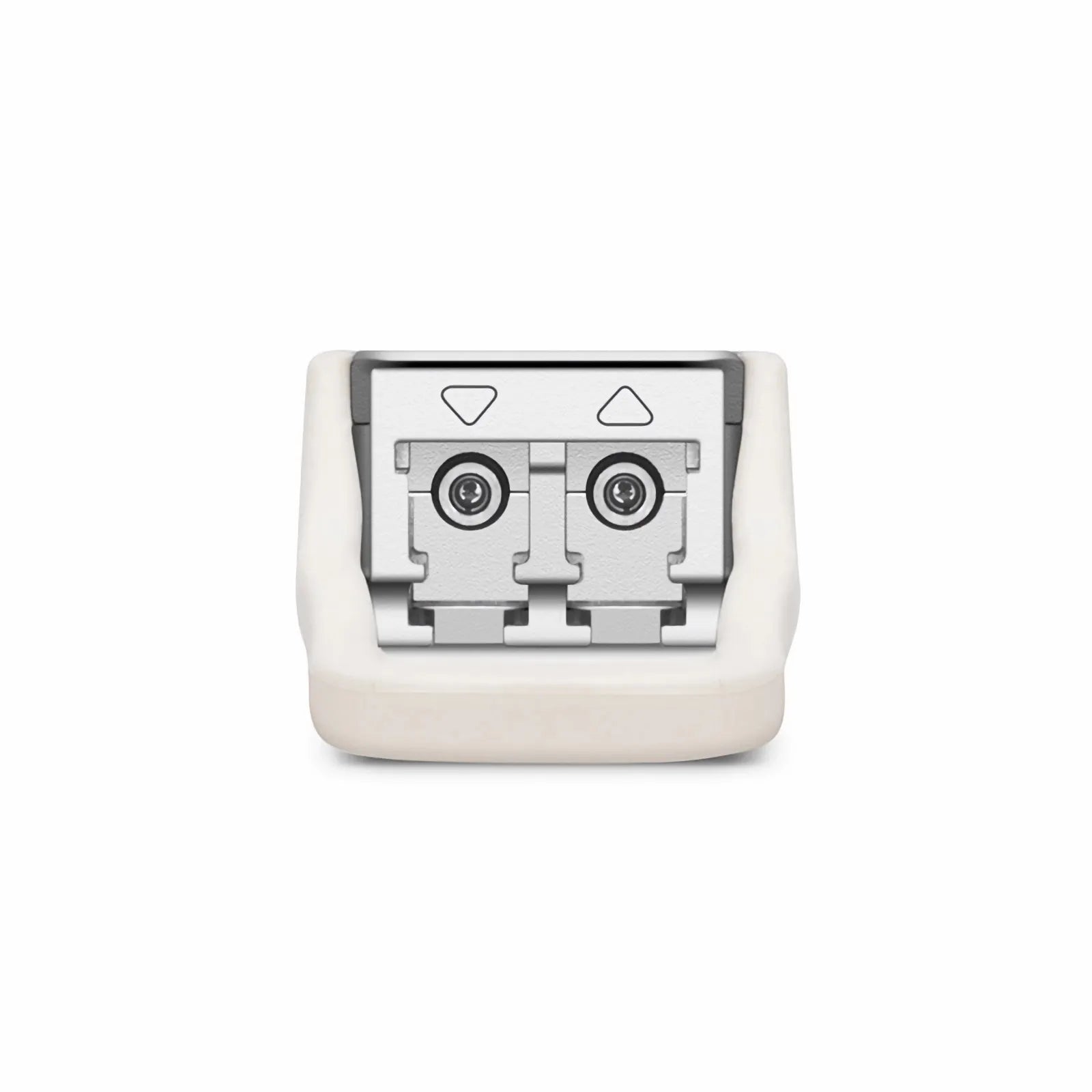

| Connector |
Duplex LC/UPC |
| Transmitter Type |
EML |
| Receiver Type |
PIN |
| TX Power |
2 to 6.5dBm |
| Receiver Sensitivity |
<-28dBm |
| Receiver Overload |
4.5dBm |
| Power Budget |
30dB |
| Power Consumption |
≤6W |
| Extinction Ratio |
>8dB |
| Temperature Range |
0 to 70°C |
| Protocols |
IEEE 802.3cd, SFF-8679, SFF-8661, SFF-8636 |
