[shortdesc] 8x UPOE (60W) ports, 2x 10G SFP+ uplinks, 240W PoE budget, baseline Layer 3, fanless, Cisco IOS XE [/shortdesc]
[specifications] [/specifications]
Secure, Silent, and Scalable Edge Switching

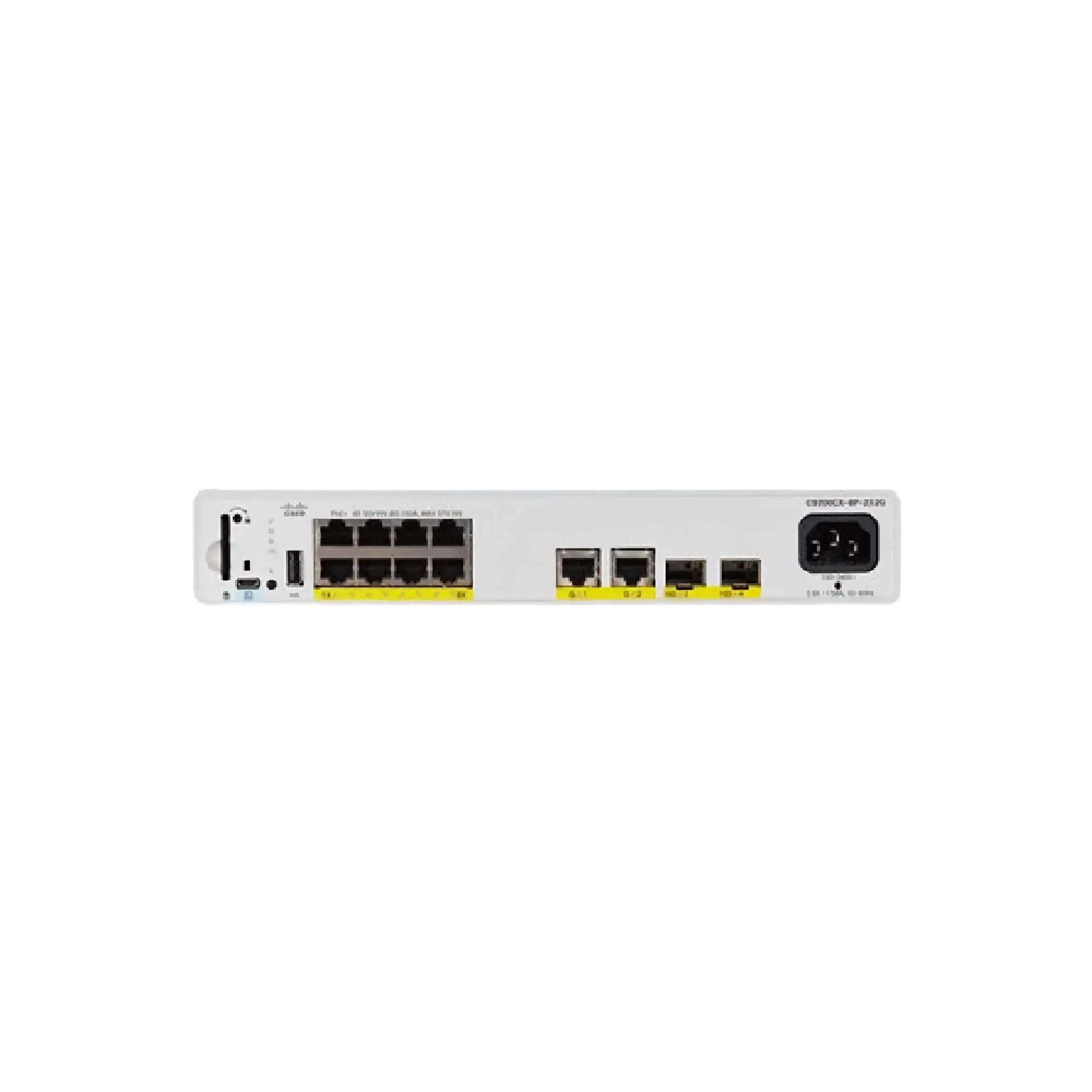

The Cisco Catalyst C9200CX-8UXG-2X-E delivers enterprise-class switching in a compact, fanless design that operates silently in noise-sensitive environments. With eight UPOE ports (up to 60W each), multi-gigabit capability, and two 10G SFP+ uplinks, it provides high-speed connectivity, reliable power, and built-in Cisco IOS XE security for branch offices, campuses, and extended enterprise networks.
Key Benefits & Features
-
High-performance UPOE: Eight downlink ports supporting Cisco UPOE (up to 60W per port) with a 240W PoE budget to power access points, IP phones, and IoT devices.
-
Silent operation: Compact, fanless design with onboard thermal sensors ensures dependable performance in noise-sensitive deployments.
-
Enterprise security: Cisco IOS XE with MACsec-256 encryption, TrustSec segmentation, and First Hop Security provides strong, built-in protection.
-
Flexible management: Manage through CLI, Cisco Catalyst Center, WebUI, or API-driven automation for simplified operations.
-
Scalable performance: 128 Gbps switching capacity and 95.23 Mpps forwarding rate with baseline Layer 3 routing (static, RIP, EIGRP stub); upgrade to Network Advantage for advanced protocols such as OSPF, VRRP, and BGP.
Ideal Use Cases
- Branch offices requiring compact yet powerful PoE+ and UPOE switching
- Campus networks deploying high-density wireless access points
- Healthcare or retail environments demanding silent operation
- Industrial IoT or extended enterprise edge deployments
Technical Specifications
-
Product ID: C9200CX-8UXG-2X-E
-
Downlink Ports: 4 x 10/100/1000 RJ-45 UPOE + 4 x multi-gigabit (100M/1G/2.5G/5G/10G) UPOE
-
Uplink Ports: 2 x 10G SFP+
-
PoE Budget: 240W total (up to 60W per port)
-
Switching Capacity: 128 Gbps
-
Forwarding Rate: 95.23 Mpps
-
Memory: 4 GB DRAM, 8 GB Flash
-
Operating System: Cisco IOS XE, Network Essentials (upgradeable to Network Advantage)
-
Form Factor: Compact 1RU, fanless design
-
Dimensions (H x W x D): 1.7 x 10.6 x 9.6 in (4.3 x 27 x 24 cm)
-
Weight: 7.01 lbs (3.2 kg)
Power Your Edge Today
Delivering silent performance, secure connectivity, and multi-gigabit UPOE support, the Cisco Catalyst C9200CX-8UXG-2X-E is ideal for powering today’s edge networks. Order today to upgrade your infrastructure with confidence.
