[shortdesc]
- Power supply
- hot-plug / redundant (plug-in module)
- AC 90-264 V
- 650 Watt
- for P/N: C9500-24Y4C
- C9500-32QC
- C9500-48Y4C
[/shortdesc]
[specifications]
| Properties |
Cisco C9K-PWR-650WAC-R |
| Description |
650W AC Power Supply |
| Product Family |
Catalyst 9500 |
| Product Type |
Power Supply |
| Power max rating |
650W |
| Input-voltage range and frequency |
AC 90VAC to 264VAC, 47 to 63 Hz |
| Power supply efficiency |
94% (Typ) |
| Input current |
AC 6.8A Max at 115VAC, 3.4 A Max at 230VAC (when full loading) |
| Output ratings |
12Vmain at 54A, 12Vsb at 3A |
| Output holdup time |
AC = 20 ms minimum for system |
| Power-supply input receptacles |
AC IEC 60320 C14 |
| Power cord rating |
AC 10A |
Total output BTU
(Note: 1000 BTU/hr = 293W) - Model |
| C9500-32QC |
1,815 |
| C9500-48Y4C |
1,856 |
| C9500-24Y4C |
1,454 |
| Supported models |
C9500-32QC |
| C9500-48Y4C |
| C9500-24Y4C |
| IEC-61000-4-5 Surge |
4KV CM, 2KV DM |
| AC line Hold-up Time |
>=20ms@90% load |
| OPP (Over Power Protection) |
130% x rated load |
| MTBF (hours) |
2,268,760 |
[/specifications]

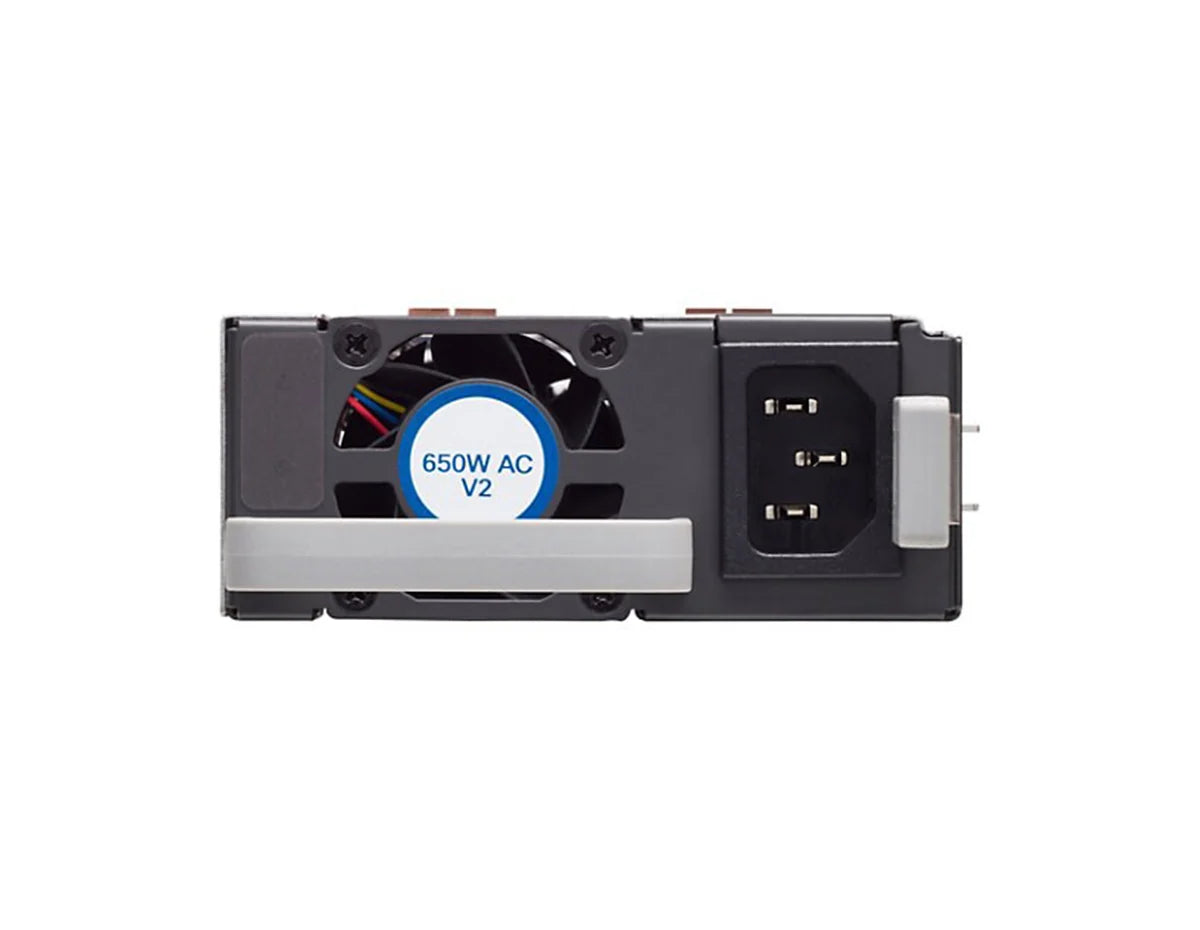

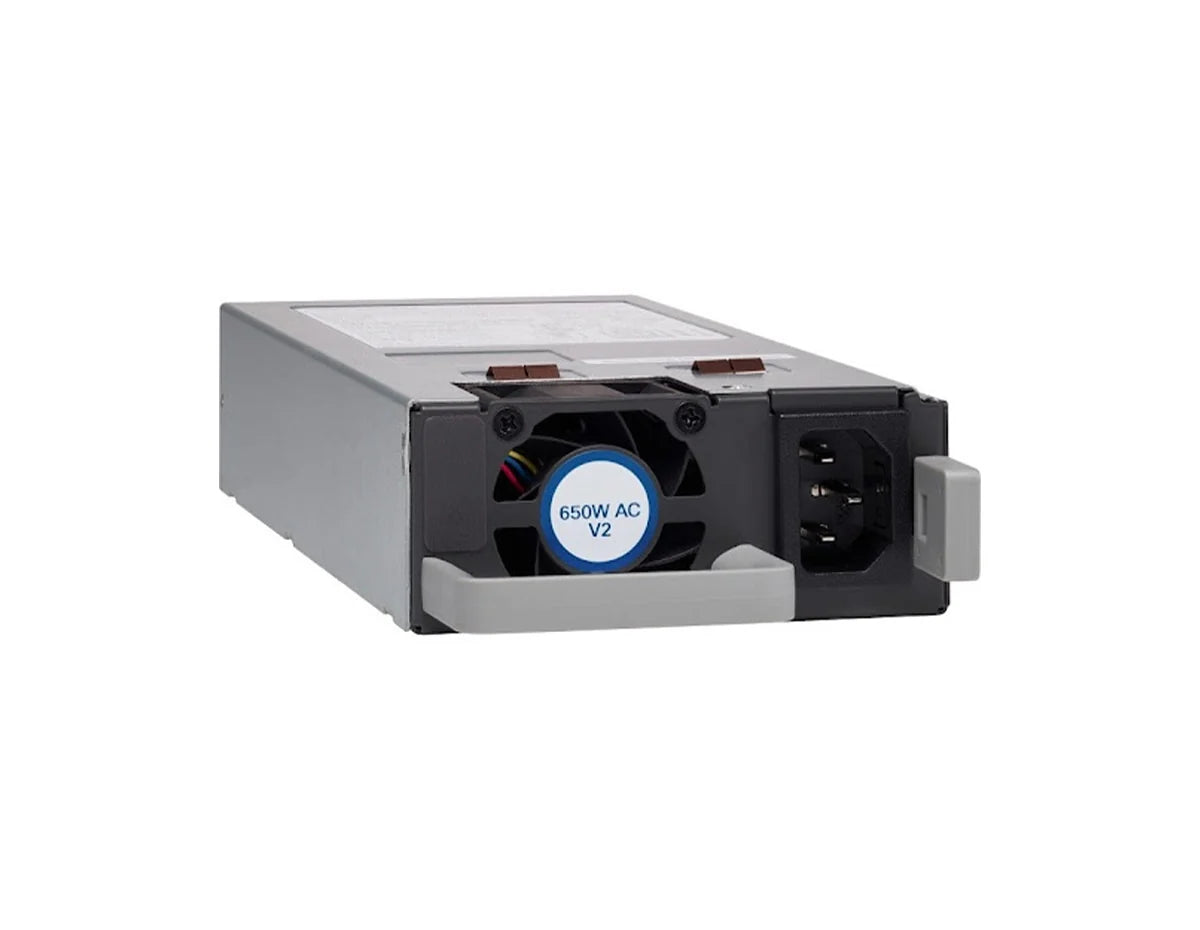

Cisco C9K-PWR-650WAC-R Power Supply
The Cisco C9K-PWR-650WAC-R is a hot-plug, redundant power supply featuring a 650W max rating. It is designed for seamless compatibility with Catalyst C9500 Series, especially C9500-24Y4C, C9500-32QC, and C9500-48Y4C. This plug-in module ensures reliable and efficient AC power delivery from 90-264V.
Key Features:
-
650 Watt
-
Plug-in module
-
For Catalyst 9500
The tabs contain the C9K-PWR-650WAC-R datasheet with all the specifics you need.
