[shortdesc]
- Managed, Rack-mountable, 5 x line-card slots, 2 x Supervisor slots, Integrated PoE (2880W per slot), Layer 3, Network Advantage License
[/shortdesc]
[properties]
| Properties |
Cisco Catalyst 9407R 7-Slot Switch Bundle with 2xC9400-LC-48U and DNA-A License |
| Product Type |
Modular Switch Chassis Bundle |
| Slot Configuration |
7 total slots (5 line-card, 2 supervisor engine) |
| Supervisor Engines |
C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y |
| Redundancy Support |
Yes (Redundant Supervisors Supported) |
| Power Supply Support |
3200W AC, 2100W AC |
| Rack Mounting |
19-in Rack Compatible |
[/properties]
[specifications]
| Specifications |
C9407R-96U-BNDL-A |
| Supervisor Engine Slots |
2 (Slot 3 and 4) |
| Maximum PoE per Slot |
2880W |
| Bandwidth per Slot |
Up to 480 Gbps |
| Power Supply Bays |
8 |
| Fan-Tray Bays |
1 |
| Dimensions (H x W x D) |
17.41 x 17.30 x 16.30 in (44.22 x 43.94 x 41.40 cm) |
| Rack Units |
10 RU |
| Weight (with Fan Tray) |
63.0 lb (28.58 kg) |
| Input Power |
AC (Yes) |
| Integrated PoE |
Yes |
| Operating Temperature |
-5°C to 55°C |
| Humidity Range |
10% to 93% |
| Altitude |
Up to 1829 m (6000 ft) |
| Compliance |
CE Marking, ROHS5 |
[/specifications]
[accesories]
| Included Accessories |
19-in rack and cable guide hardware, fan tray |
| Optional Power Supplies |
Cisco 2100W AC, Cisco 3200W AC power modules |
| Supported Supervisor Engines |
C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y |
| Line Cards Included |
2 x C9400-LC-48U |
[/accesories]

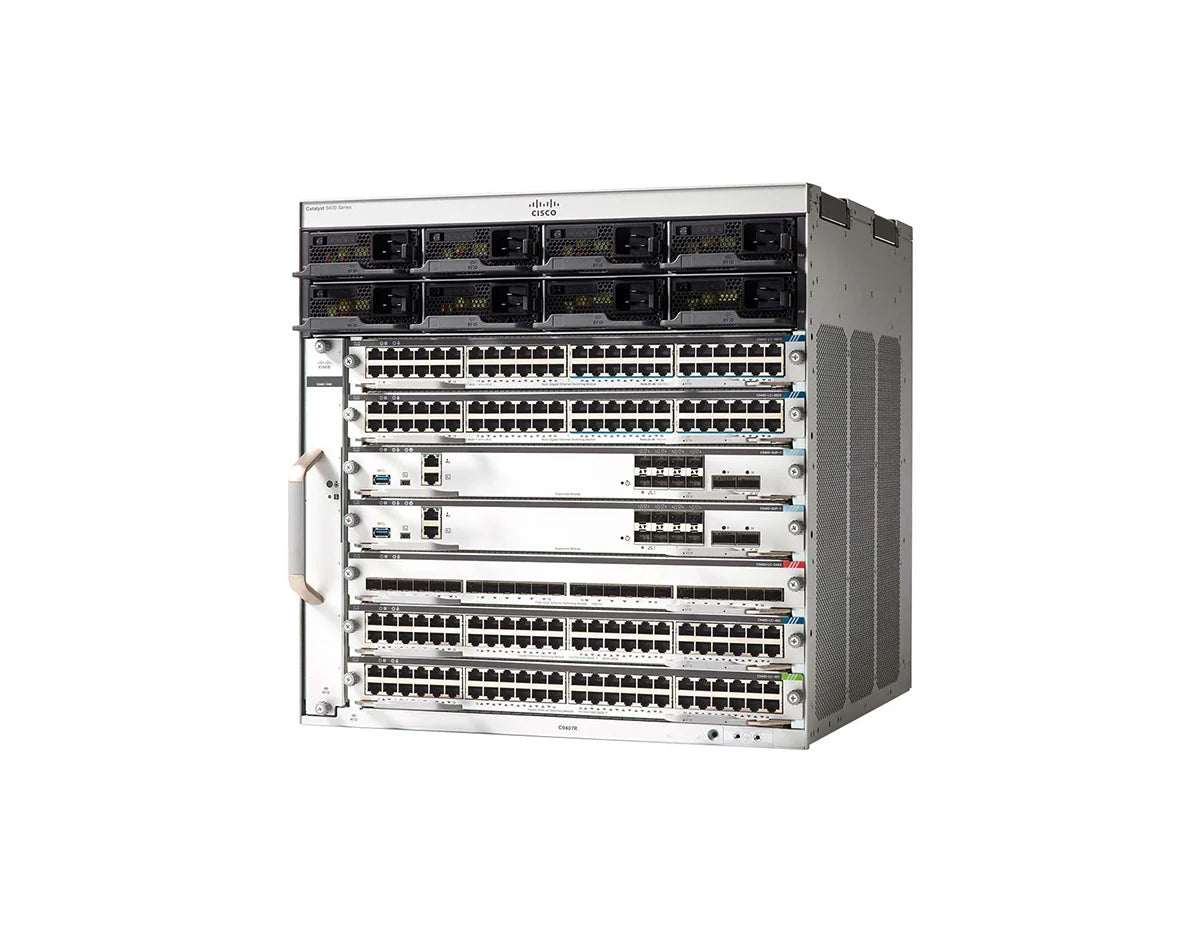

Cisco Catalyst C9407R-96U-BNDL-A Switch
The Cisco Catalyst C9407R-96U-BNDL-A Switch is an enterprise-class modular access switch built for scalability and security. Featuring 96 ports with Universal Power over Ethernet (UPOE), it ensures efficient power delivery while supporting high-density connectivity for modern IoT and mobility networks. Powered by Cisco’s Network Advantage license, this switch delivers advanced Layer 3 routing, network automation, and robust security features, making it ideal for large campus and branch deployments.
Key Features:
-
96 x UPOE Ports: Provides up to 90W of power per port, supporting a wide range of PoE devices such as IP phones, cameras, and wireless access points.
-
Cisco StackWise Virtual Technology: Simplifies network management with seamless redundancy across multiple switches.
-
Advanced Layer 3 Routing: Supports OSPF, EIGRP, and BGP for efficient traffic management and segmentation.
-
Energy-Efficient Design: Compliant with IEEE 802.3az standards, optimizing power consumption for large-scale deployments.
-
Network Advantage License: Unlocks advanced routing, automation, and security features for enterprise-grade networks.
Technical Overview:
-
Recommended for: Enterprise access networks, campus environments, and large branch deployments.
-
Ports: 96 x 10/100/1000 RJ-45 ports with UPOE support.
-
Switching Capacity: 480 Gbps.
-
Forwarding Rate: 240 Mpps.
-
Layer 3 Features: OSPF, EIGRP, BGP, MPLS, and VRF-Lite.
-
Management: Web-based GUI, CLI, SNMP, and Cisco DNA Center.
-
Licensing: Network Advantage.
-
Energy Efficiency: Supports IEEE 802.3az standards for energy-saving operations.
You can check the related tab for the Cisco C9407R-96U-BNDL-A datasheet.
