[shortdesc]
- Managed, Rack-mountable, 48 x 1G SFP ports, Modular Uplinks, nonPoE
[/shortdesc]
[properties]
| Properties |
C9300-48S-E |
| Description |
Catalyst 9300 48-port 1G SFP with modular uplinks, Network Essentials‚ |
| Product Family |
Catalyst 9300 |
| Product Type |
Ethernet Switch |
| Number of Ports |
48 |
Downlinks total 10/100/1000
or PoE+ copper ports |
48 port 1G SFP‚ |
| Uplink configuration |
Modular uplink options |
| Cisco IOS Software |
Network Essentials |
Default primary AC
power supply |
PWR-C1-715WAC-P‚ |
Available PoE power with
additional secondary
power supply |
No PoE |
| Fans |
‚ Three field-replaceable fans |
Chassis + FEP +
‚ Fan Dimensions (HxWxD) Inches |
1.73 X 17.5 X 19.2‚ |
[/properties]
[specifications]
| Specifications |
C9300-48S-E |
| Console Ports |
Catalyst 9300 48-port 1G SFP with modular uplinks, Network Advantage‚ |
| DRAM |
8 GB‚ |
| Flash Memory |
16 GB‚ |
| Switching capacity |
256 Gbps‚ |
| Forwarding rate‚ |
190.47 Mpps‚ |
| MAC addresses |
32000 |
Operating Temperature
Up to 5,000 ft (1500 m) |
-5°C to +45°C |
Operating Temperature
Up to 10,000 ft (3000 m) |
-5°C to +40°C |
| Safety |
UL 60950-1
CAN/CSA-C222.2 No. 60950-1 EN 60950-1
IEC 60950-1
AS/NZS 60950.1
IEEE 802.3 |
Electromagnetic compatibility
certifications |
47 CFR Part 15
EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
TCVN 7189 Class A V-3 Class A
CISPR 35
EN 300 386
EN 55035
TCVN 7317
V-2/2015.04
V-3/2015.04
CNS13438
KN32
KN35 |
EMC
compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
(AC input models only)
VCCI Class A
EN 55024, EN300386,
EN 61000-3-2, EN 61000-3-3
EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6 |
| Environmental |
Reduction of Hazardous Substances (ROHS) 5 |
[/specifications]
[accesories]
| Stacking Support |
Stackwise-480‚ |
| Stacking bandwidth support |
480 Gbps‚ |
| Stacking hardware‚ |
StackWise Cable‚ |
Number of
members |
8 |
| Supported stack members |
Other C9300 SKUs with same license level
C9300 higher scale SKUs only stack with other like higher scale models |
| Stacking accessories |
|
| STACK-T1-50CM |
Data stack 50 cm (cable option with C9300 and C9300X SKUs) |
| STACK-T1-1M |
Data stack 1m (cable option with C9300 and C9300X SKUs) |
| STACK-T1-3M |
Data stack 3m (cable option with C9300 and C9300X SKUs) |
[/accesories]

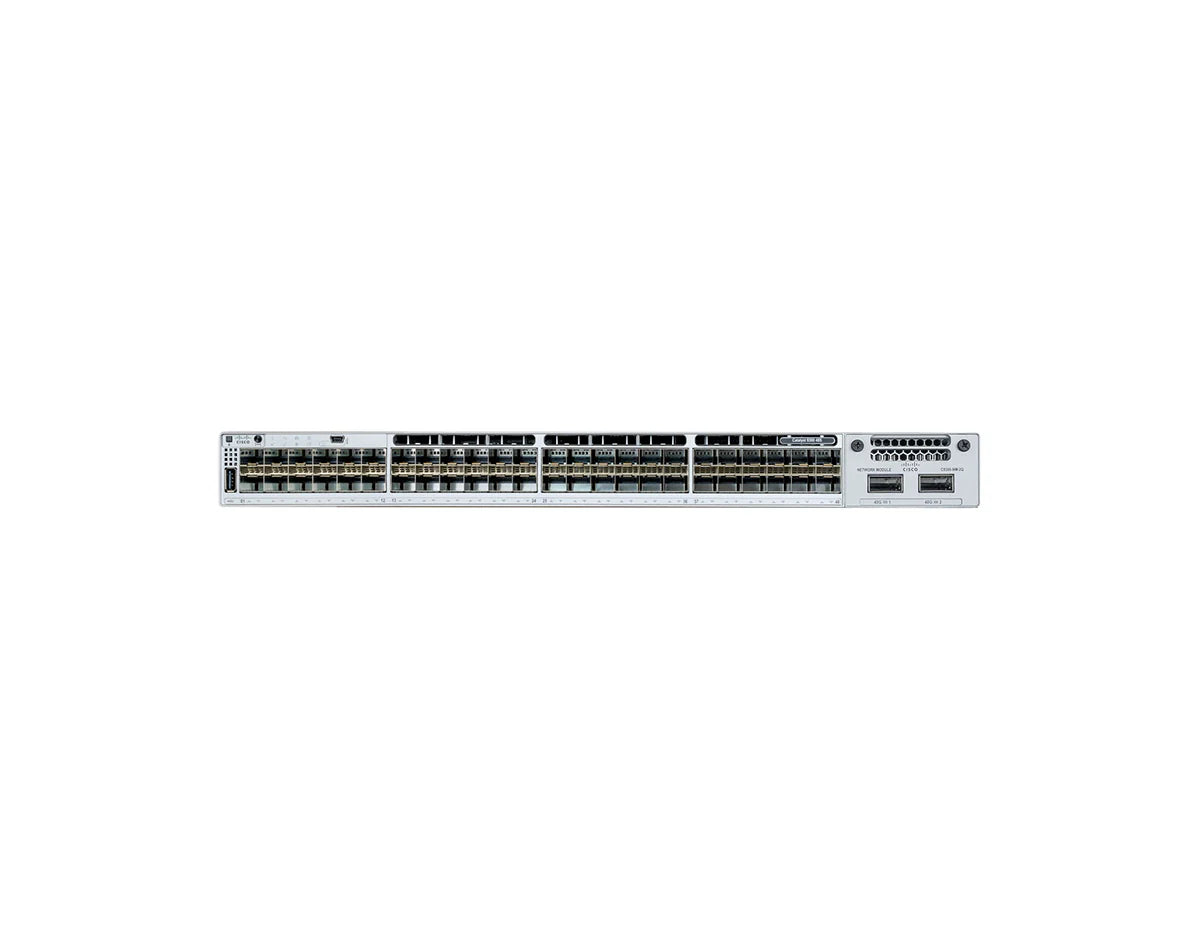

Cisco C9300-48S-E Switch
The Cisco Catalyst C9300-48S-E is a stackable and reliable switch from the Catalyst 9300 family. It has SD-Access, which is a Cisco-led architecture that simplifies the automation and management of your network, making it easier to deploy and manage new services for your business.
Key Features:
- Network Essentials License
- 48x1G SFP ports
- Modular uplinks
- QoS
Please check the C9300-48S-E datasheet and compatible accessories from the tabs above.
