Description

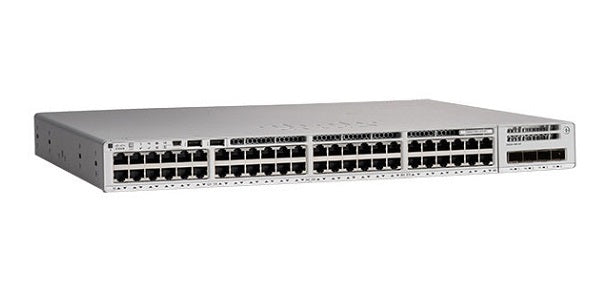

The Cisco C9200L-48T-4X-A is an enterprise-grade Layer 3 access switch designed to provide secure, scalable, and resilient network connectivity for branch offices and campus environments. Equipped with 48 Gigabit Ethernet data ports and 4 fixed 10 Gigabit SFP+ uplinks, it delivers high-speed network performance while supporting advanced routing, automation, and security capabilities. The Cisco C9200L-48T-4X-A is built to support modern enterprise infrastructure with stackable architecture and Cisco IOS XE programmability.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco |
| Category |
Networking |
| Part Number |
C9200L-48T-4X-A |
| Subcategory |
Managed Ethernet Switches |
| Series |
Cisco Catalyst 9200L Series |
| Device Type |
Layer 3 Stackable Managed Switch |
| Network Ports |
48x 10/100/1000 Gigabit Ethernet RJ45 |
| Uplink Ports |
4x 10 Gigabit Ethernet SFP+ |
| Switching Capacity |
176 Gbps |
| Forwarding Rate |
261.9 Mpps |
| Stacking Technology |
Cisco StackWise-80 |
| Stacking Bandwidth |
80 Gbps |
| MAC Address Table Size |
16,000 Entries |
| IPv4 Routes |
11,000 |
| IPv4 Routing Table Entries |
3,000 |
| IPv6 Routing Table Entries |
1,500 |
| VLAN Support |
Up to 1,024 VLANs |
| Switched Virtual Interfaces (SVIs) |
512 |
| Packet Buffer |
6 MB |
| Flexible NetFlow Entries |
16,000 |
| Power Supply |
1x PWR-C5-125WAC Included, Dual PSU Slots |
| Power Redundancy |
Optional |
| Input Voltage |
AC 120/230V, 50-60 Hz |
| Management Protocols |
SNMP v1/v2c/v3, RMON, CLI, NETCONF, RESTCONF |
| Jumbo Frame Support |
Up to 9,198 Bytes |
| Dimensions (W x D x H) |
17.5 x 11.3 x 1.7 in |
| Weight |
11.02 lb (5.0 kg) |
Information About C9200L-48T-4X-A
The C9200L-48T-4X-A is part of the Cisco Catalyst 9200L Series, a family of fixed-access switches engineered to extend enterprise-class networking capabilities to branch and campus deployments. Built with Cisco StackWise-80 technology, the switch supports simplified scalability and centralized management while maintaining operational resiliency. It includes support for Cisco Network Advantage licensing, enabling advanced Layer 3 routing, security, automation, and policy-based networking features. With fixed 10 Gigabit uplinks, redundant power supply support, and extensive protocol compatibility, it serves as a robust foundation for secure business network infrastructure.
Key Features:
- 48 Gigabit Ethernet Ports: Provides 48 high-speed 10/100/1000 Mbps RJ45 data connections.
- Four 10G SFP+ Uplinks: Supports high-bandwidth fiber connectivity for aggregation and core network integration.

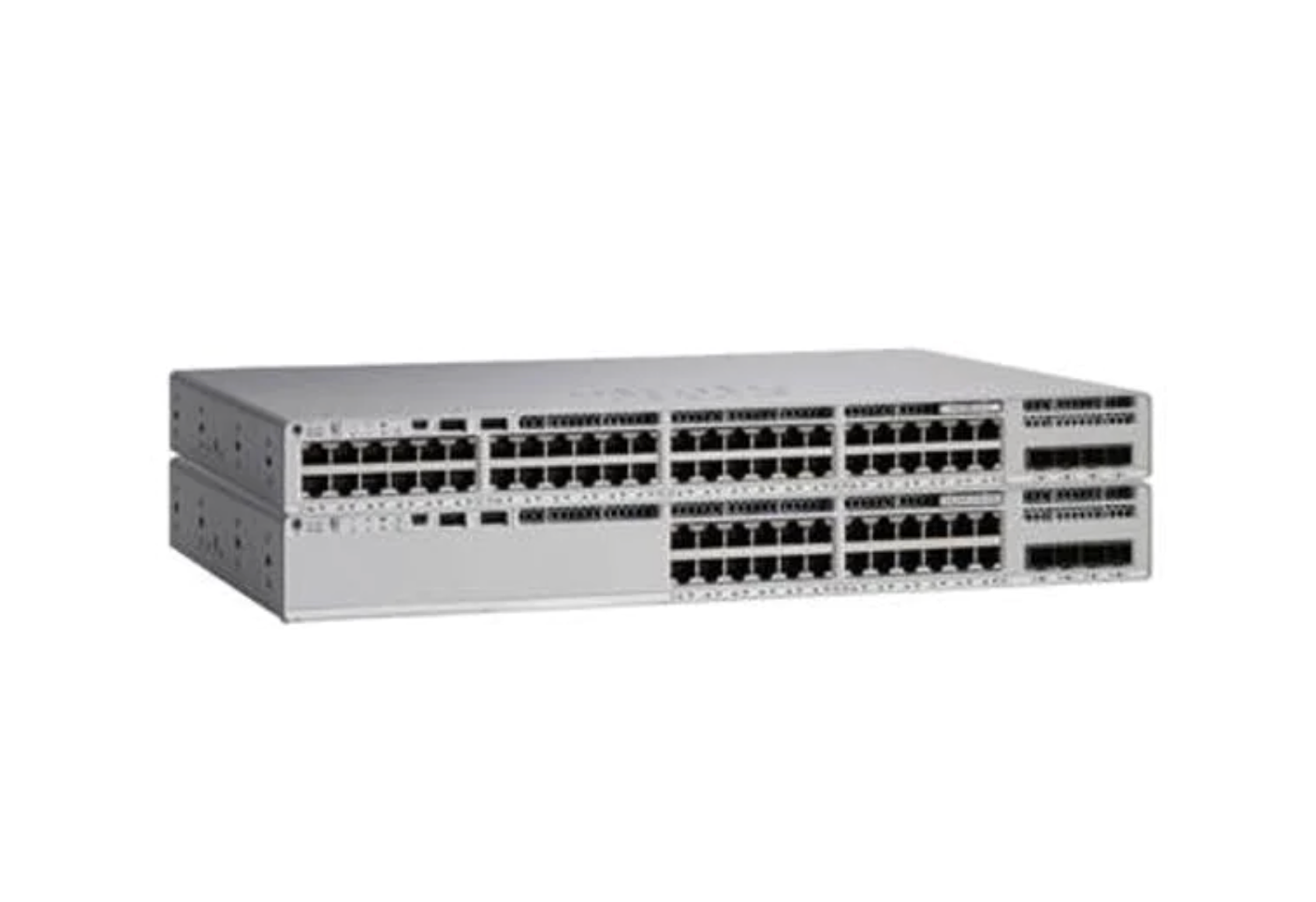

- StackWise-80 Technology: Enables switch stacking with up to 80 Gbps stacking bandwidth for scalability.
- Advanced Layer 3 Routing: Supports OSPF, EIGRP, RIP, VRRP, HSRP, PIM, and policy-based routing.
- Enterprise Security Features: Includes 802.1X authentication, MACsec encryption, First Hop Security, and Control Plane Protection.
- Flexible Network Automation: Supports Cisco IOS XE, NETCONF, RESTCONF, and programmable network management.
- High Switching Performance: Delivers 176 Gbps switching capacity and forwarding rates up to 261.9 Mpps.
- Redundant Infrastructure Support: Features dual power supply capability and resilient hardware architecture.
The C9200L-48T-4X-A delivers the reliability and precision required for enterprise access switching, secure branch connectivity, and scalable campus network deployments.
