Description

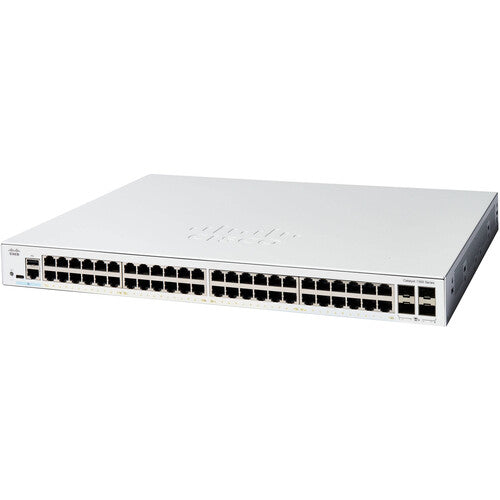

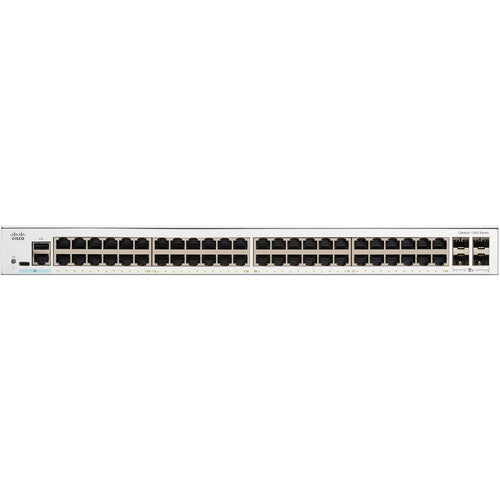

The Cisco C1300-48T-4X is a managed Layer 3 Ethernet switch engineered for high-density Gigabit networking in enterprise, branch, and SMB environments. It features forty-eight 10/100/1000 RJ-45 ports and four 10G SFP+ uplink interfaces to support high-speed aggregation and backbone connectivity. With stackable architecture, advanced routing capabilities, and enterprise-grade security, the Cisco C1300-48T-4X delivers reliable switching performance for growing network infrastructures.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco |
| Category |
Network Switches |
| Part Number |
C1300-48T-4X |
| Subcategory |
Managed Layer 3 Switch |
| Device Type |
Managed Stackable Ethernet Switch |
| Ports |
48 × 10/100/1000Base-T RJ-45 |
| Uplink Interfaces |
4 × 10GBase-X SFP+ |
| Layer Support |
Layer 3 |
| Switching Capacity |
176 Gbps |
| Forwarding Rate |
130.94 Mpps |
| Maximum Stack Units |
8 |
| MAC Address Table Size |
16,000 Entries |
| Jumbo Frame Support |
9000 Bytes |
| Processor |
ARM 1.4 GHz |
| RAM |
1 GB DDR4 SDRAM |
| Flash Memory |
512 MB |
| Packet Buffer Size |
3 MB |
| Management Interfaces |
RJ-45 Console, USB-C Console |
| Power Supply |
Internal AC Power Supply |
| Input Voltage |
AC 100–240 V, 50–60 Hz |
| Power Consumption |
50.58 W |
| Form Factor |
Rack-Mountable 1U |
| Weight |
10.9 lb |
Information About C1300-48T-4X
The C1300-48T-4X is part of the Cisco Catalyst 1300 Series designed to provide scalable Layer 3 switching with simplified deployment and centralized management capabilities. It supports advanced networking technologies including VLAN segmentation, policy-based routing, IPv4/IPv6 dual stack, and dynamic traffic prioritization for optimized data handling. The switch includes a 1.4 GHz ARM processor with DDR4 memory to maintain stable throughput under demanding workloads. Its rack-mountable form factor, front-panel stacking support, and comprehensive security features make it suitable for enterprise edge, campus, and branch office deployments.
Key Features:
- Forty-Eight Gigabit Ethernet Ports: Provides high-density copper connectivity for desktops, servers, and network devices.
- Four 10G SFP+ Uplinks: Enables high-speed fiber aggregation and backbone network connectivity.
- Layer 3 Routing Support: Supports static routing, RIP-2, and policy-based routing for advanced traffic management.
- Stackable Architecture: Supports up to eight switches in a stack for simplified scalability and administration.
- Advanced Security Functions: Includes DHCP snooping, ARP inspection, IP Source Guard, and 802.1X authentication.
- High Switching Performance: Delivers 176 Gbps switching capacity with 130.94 Mpps forwarding throughput.
- Comprehensive Management Options: Supports CLI, SNMP, SSH, HTTPS, RMON, Syslog, and Cisco network management tools.
- Enterprise Resiliency Features: Supports MSTP, RPVST+, link aggregation, storm control, and high availability technologies.
The C1300-48T-4X delivers the reliability and precision required for enterprise network switching and high-performance data connectivity.
