Description

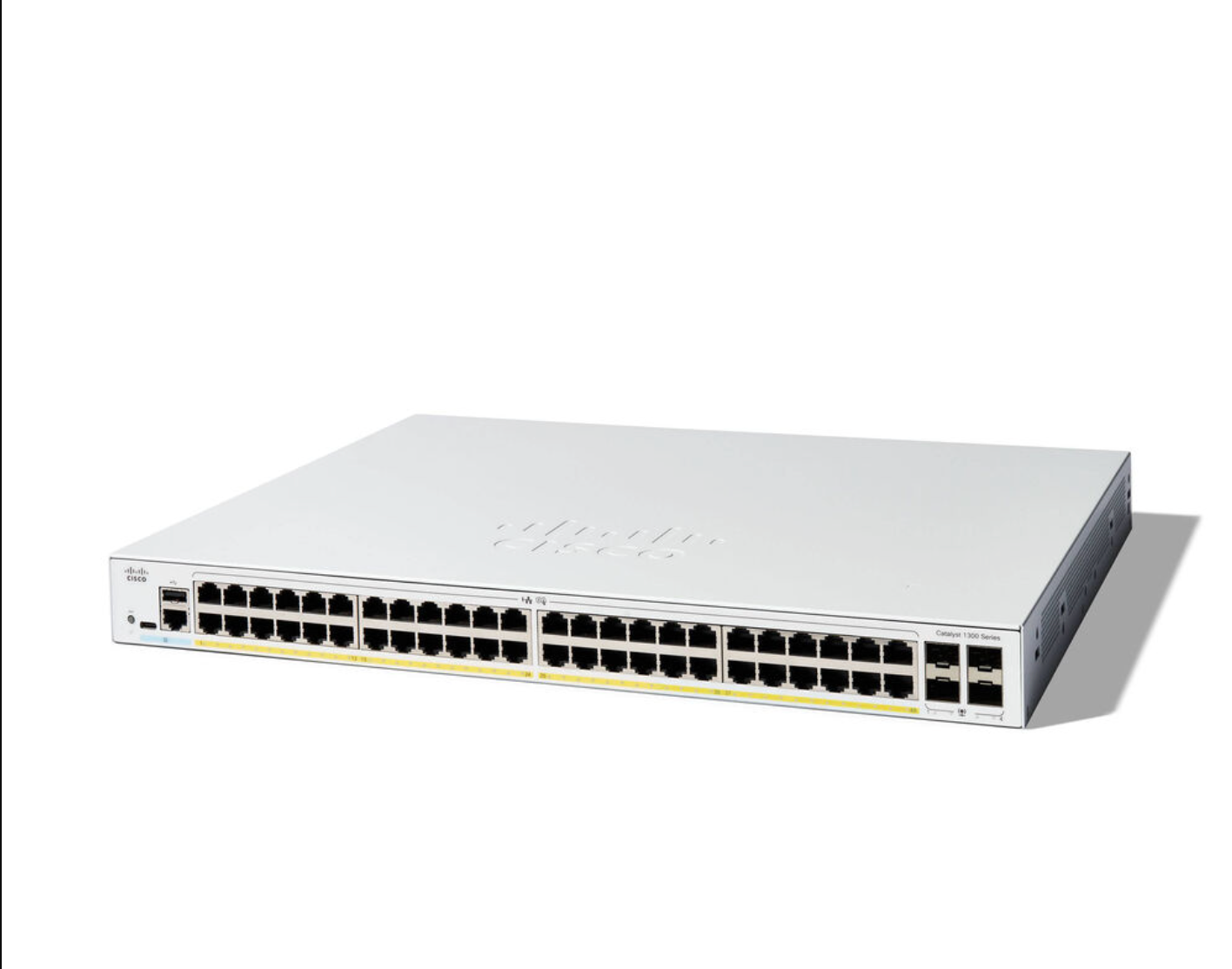

The Cisco C1300-48P-4G is a Layer 3 managed switch designed for business networks requiring high-density Gigabit connectivity with integrated PoE+ support. Featuring forty-eight Gigabit PoE+ ports and four dedicated Gigabit SFP uplinks, the Cisco C1300-48P-4G provides reliable switching performance for offices, branch deployments, surveillance systems, and enterprise edge applications. Its advanced routing, security, and management capabilities support scalable and efficient network operations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco |
| Category |
Network Switches |
| Part Number |
C1300-48P-4G |
| Subcategory |
Layer 3 Managed Switch |
| Device Type |
Managed Ethernet Switch |
| Port Configuration |
48 × 10/100/1000 PoE+ RJ45 |
| Uplink Ports |
4 × Gigabit SFP |
| PoE Budget |
375 W |
| Switching Capacity |
104 Gbps |
| Forwarding Rate |
77.38 Mpps |
| MAC Address Table Size |
16,000 entries |
| Processor |
ARM 1.4 GHz |
| Memory |
1 GB DDR4 SDRAM |
| Flash Memory |
512 MB |
| Jumbo Frame Support |
9000 Bytes |
| Routing Protocols |
RIP-2, Static IP Routing, IGMP, MLD |
| Management Interfaces |
RJ45 Console, USB-C Console |
| Power Input |
AC 100–240 V, 50/60 Hz |
| Mounting Type |
Rack Mountable |
| Weight |
11.9 lb |
Information About C1300-48P-4G

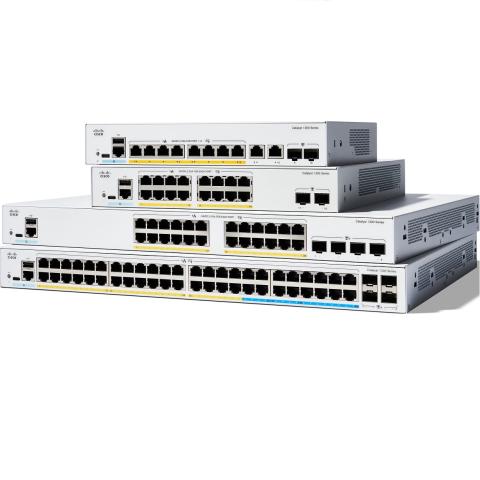

The C1300-48P-4G is part of the Cisco Catalyst 1300 Series developed for secure and flexible Layer 3 business networking environments. The switch combines forty-eight 10/100/1000 PoE+ RJ45 interfaces with four Gigabit SFP uplink ports for copper and fiber connectivity. Built with enterprise-class security, VLAN management, QoS, and IPv4/IPv6 routing support, it enables efficient traffic control across growing networks. Its rack-mountable design, centralized management support, and 375W PoE budget make it suitable for powering IP phones, wireless access points, and surveillance equipment.
Key Features:
- Forty-Eight PoE+ Gigabit Ports: Provides high-density Gigabit Ethernet connectivity with integrated PoE+ support.
- Four Gigabit SFP Uplinks: Enables flexible fiber uplink connectivity for aggregation and backbone deployment.
- Layer 3 Routing Support: Supports static routing, RIP-2, policy-based routing, and IPv4/IPv6 dual stack operation.
- High Switching Performance: Delivers 104 Gbps switching capacity and 77.38 Mpps forwarding rate.
- Advanced Security Features: Includes ACLs, DHCP snooping, IP source guard, ARP inspection, and RADIUS authentication.
- Enterprise Network Management: Supports CLI, SNMP, SSH, HTTPS, Cisco Business Dashboard, and remote monitoring tools.
- Large PoE Power Budget: Provides up to 375W PoE+ output for connected business devices.
- Energy-Efficient Design: Supports IEEE 802.3az Energy Efficient Ethernet for optimized power consumption.
The C1300-48P-4G delivers the reliability and precision required for secure Layer 3 business switching and high-density PoE+ network deployments.
