Description

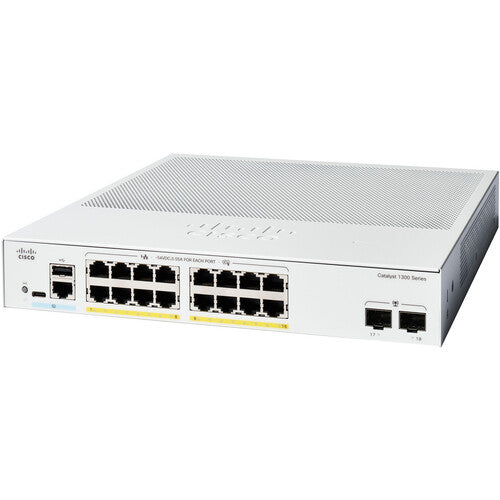

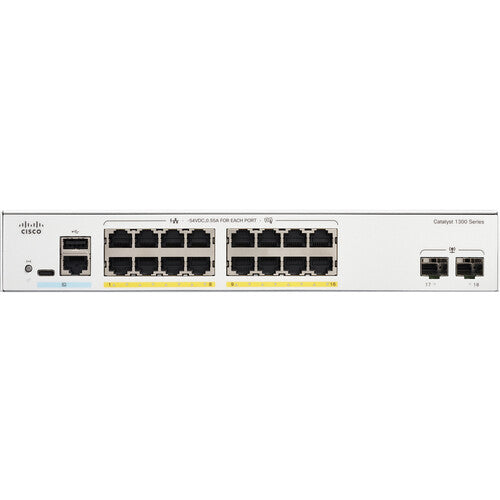

The Cisco C1300-16FP-2G is a managed Gigabit Ethernet switch designed for small and medium-sized business networks that require Power over Ethernet Plus (PoE+) connectivity and advanced Layer 3 capabilities. Equipped with 16 Gigabit PoE+ ports and 2 Gigabit SFP uplink interfaces, it supports the deployment of IP phones, wireless access points, surveillance systems, and other networked devices. The Cisco C1300-16FP-2G combines efficient switching performance, front-panel stacking support, and integrated security features in a compact rack-mountable platform.



Technical Specifications

Condition	New/Never Used Surplus
Brand	Cisco
Category	Networking
Part Number	C1300-16FP-2G
Subcategory	Managed Ethernet Switches
Series	Cisco Catalyst 1300 Series
Switch Type	Managed Layer 2/Layer 3 Switch
Network Ports	16x RJ45 Gigabit Ethernet PoE+ (802.3at)
Uplink Ports	2x Gigabit Ethernet SFP
PoE Budget	240W
Switching Capacity	36 Gbps
Forwarding Rate	26.78 Mpps
CPU	Dual-Core Processor up to 1.4 GHz
Memory	1 GB DDR4
Flash Memory	512 MB
Packet Buffer	1.5 MB
Jumbo Frame Support	Up to 9,000 Bytes
Stacking Support	Up to 8 Switches
Management Interfaces	1x RJ45 Console, 1x USB-A, 1x USB-C
Power Supply	Internal AC Power Supply
Input Voltage	100–240 VAC, 50/60 Hz
Cooling System	Passive Fanless Cooling
Form Factor	Rack-Mountable 1RU
Dimensions	12.7 x 10.6 x 1.7 in (323.3 x 268 x 44 mm)
Weight	5.49 lb (2.49 kg)





Information About C1300-16FP-2G

The C1300-16FP-2G is part of the Cisco Catalyst 1300 Series, a family of managed switches developed to provide scalable and secure networking for growing organizations. Built with a fanless metal chassis and support for front-panel stacking, it allows up to eight switches to be managed as a single logical unit. The switch incorporates Layer 2 and Layer 3 networking functions, IPv4 and IPv6 support, advanced traffic management, and enterprise-grade security technologies. Through Cisco Business Dashboard integration, administrators can simplify deployment, monitoring, software maintenance, and lifecycle management across network infrastructure.

Key Features:

• 16 Gigabit PoE+ Ports: Provides 16 Gigabit Ethernet interfaces with up to 30W of power per port.
• 240W PoE Budget: Supports wireless access points, IP cameras, VoIP phones, and other powered devices.
• Dual Gigabit SFP Uplinks: Includes 2 SFP ports for high-speed fiber connectivity to aggregation networks.
• Front Panel Stacking: Supports stacking of up to 8 switches with unified management through a single IP address.
• Layer 3 Routing Functions: Enables VLAN segmentation and inter-VLAN routing for improved traffic control.
• Advanced Security Protection: Features 802.1X authentication, DHCP snooping, ARP inspection, and IP Source Guard.
• Fanless Passive Cooling: Operates silently without active fans, making it suitable for office and classroom environments.
• Cisco Business Dashboard Support: Simplifies configuration, monitoring, and network lifecycle management.

The C1300-16FP-2G delivers the reliability and precision required for secure business networking, PoE-powered device deployments, and scalable access-layer switching environments.
