[shortdesc]
- Managed, Rack-mountable, 48 x 10/100 Fast Ethernet ports, 4 x 1G SFP Uplinks, No PoE (Data Only), Layer 2
[/shortdesc] [properties]
| Properties |
C1000FE-48T-4G-L |
| Description |
48x 10/100 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks and 2x 1G SFP uplinks |
| Product Family |
Catalyst 1000 |
| Product Type |
Ethernet Switch |
| Number of Ports |
48 |
| Uplink Interfaces |
2 SFP/RJ-45 combo
and 2 SFP |
| Available PoE power |
No |
| Fanless |
No |
| Width |
17.32" |
| Depth |
11.34" |
| Height |
1.73" |
[/properties] [specifications]
| Specifications |
C1000FE-48T-4G-L |
| Console Ports |
1x RJ-45 Ethernet
1x USB-A port for storage and Bluetooth console |
| CPU |
ARM v7 800 MHz |
| DRAM |
512 MB |
| Flash Memory |
256 MB |
| Forwarding Bandwidth |
FE: 8.8 Gbps |
| Switching Bandwidth |
FE: 17.6 Gbps |
| Forwarding Rate (64-byte L3 packets) |
FE: 13.09 Mpps |
| MAC addresses |
16000 |
| Maximum Active VLANs |
256 |
Operating Temperature
Up to 5,000 ft (1500 m) |
-5 to 45 deg C |
Operating Temperature
Up to 10,000 ft (3000 m) |
-5 to 40 deg C |
| Safety |
UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1, GB 4943.1-2011 |
| EMC: emissions |
47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A |
| EMC: immunity |
EN55024 (including EN 61000-4-5), EN300386, KN35 |
| Environmental |
Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco |
Common Language Equipment Identifier (CLEI) code |
| U.S. Government certifications |
USGv6 and IPv6 Ready Logo |
| Ethernet interfaces |
10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 UTP cabling
100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Telnet - SSH |
Yes |
| TACACS, TACACS+, Radius |
Yes |
[/specifications] [accesories]
| Part Number |
Description |
| CAB-CONSOLE-RJ45 |
Console Cable 6 Feet with RJ-45 |
| PWR-CLP |
Power Cable Restraining Clip |
[/accesories]

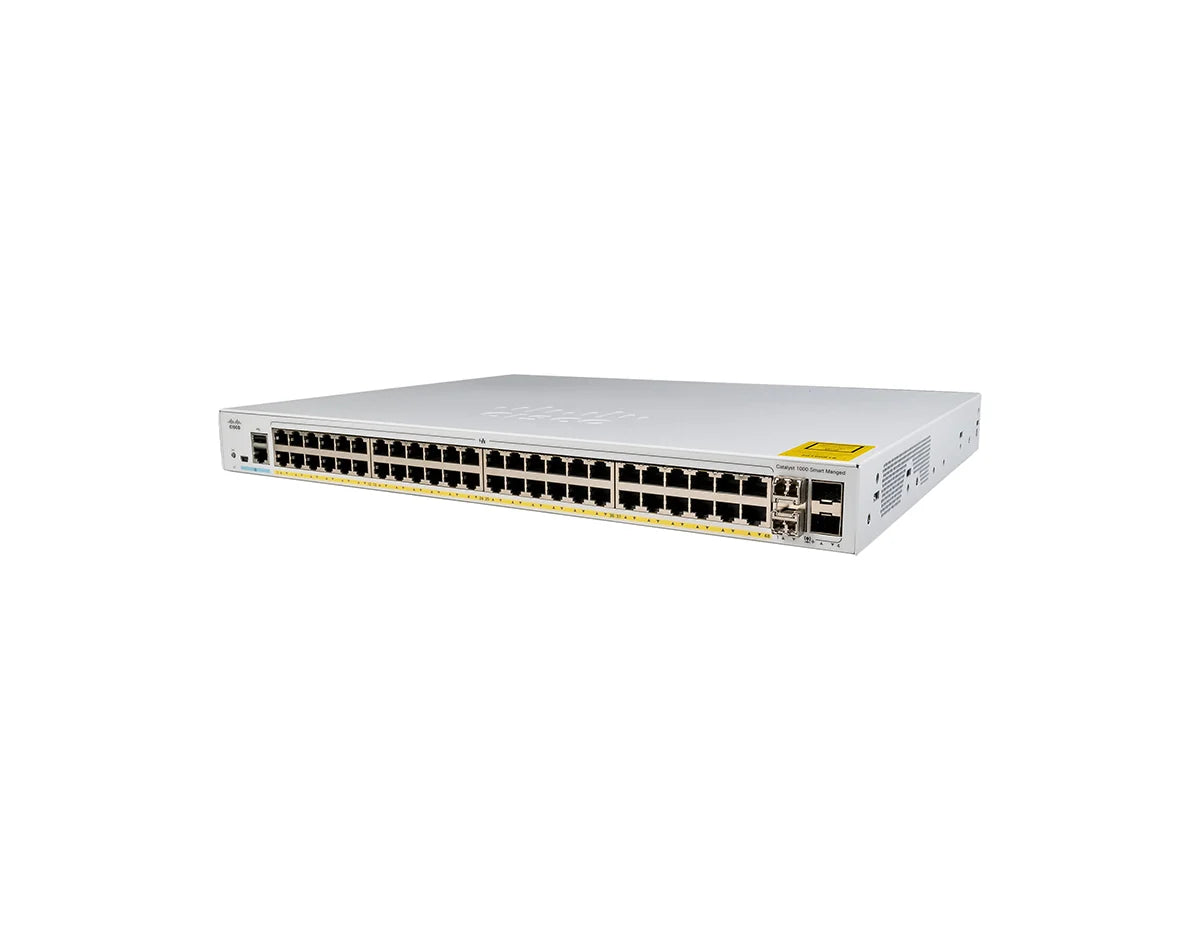

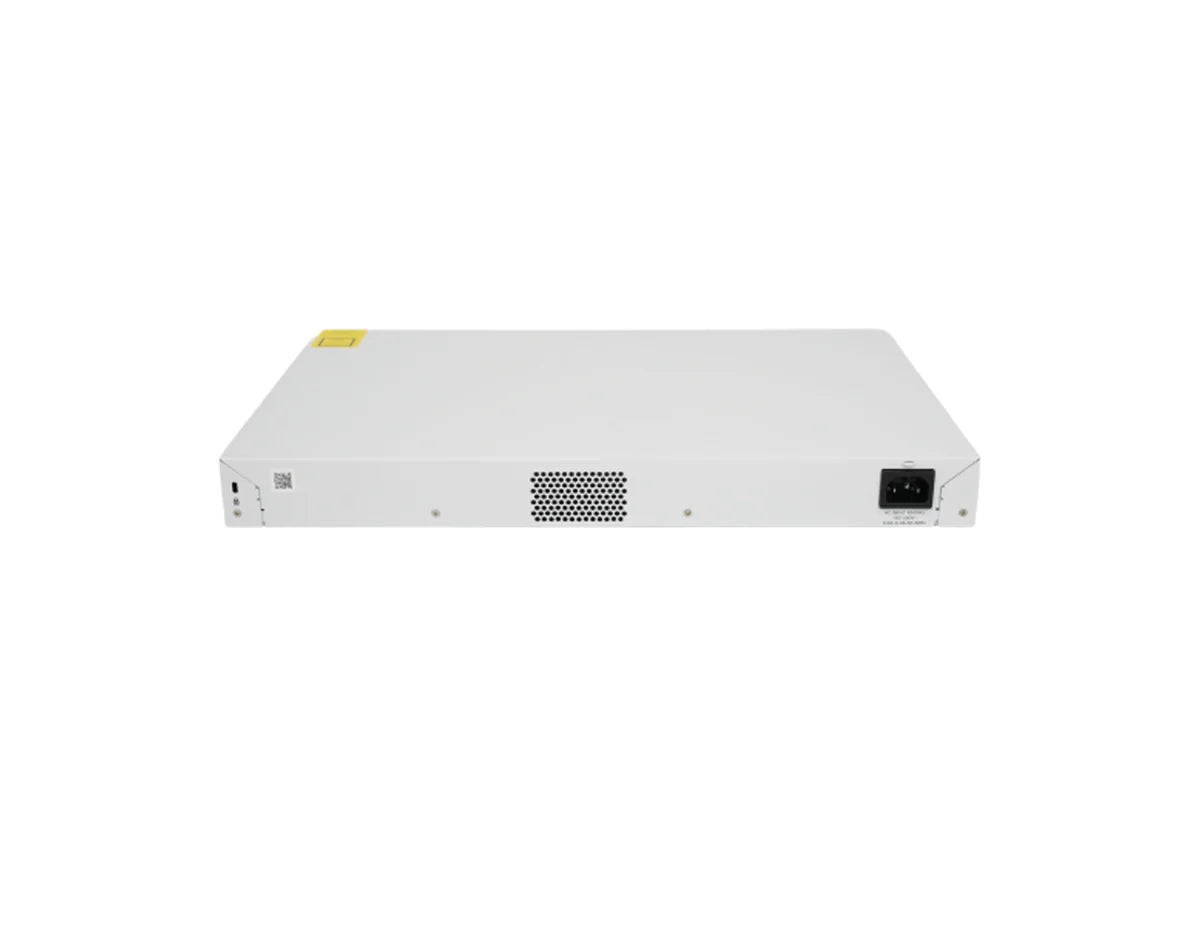

Cisco C1000FE-48T-4G-L Switch
The Cisco C1000FE-48T-4G-L is a managed Fast Ethernet switch built for small and medium-sized businesses that need dependable Layer 2 connectivity at scale. With 48 Fast Ethernet access ports and four 1G SFP uplinks (two SFP/RJ-45 combo plus two SFP), the switch offers flexible expansion while maintaining secure, straightforward operations through an intuitive web UI and CLI.
Key Features:
-
48 x Fast Ethernet Ports: Reliable access-layer connectivity for endpoints such as PCs, printers, and IP phones.
-
4 x 1G SFP Uplinks: Two SFP/RJ-45 combo and two SFP uplinks enable scalable aggregation and backbone connectivity.
-
Robust Security: 802.1X, port security, ACLs, BPDU Guard, and SPAN enhance visibility and protection.
-
Operational Simplicity: Web UI and CLI management with features like AutoQoS and EEE for efficient operations.
-
Quiet, Office-friendly Form Factor: Compact 1RU design suitable for wiring closets and office racks.
Technical Overview:
-
Recommended for: SMB access, retail floors, classrooms, and branch offices.
-
Ports: 48 x 10/100 Fast Ethernet access ports, 4 x 1G SFP uplinks (2 SFP/RJ-45 combo + 2 SFP).
-
Switching Capacity: 17.6 Gbps.
-
Forwarding Rate: 13.09 Mpps.
-
Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet supported.
You can check the related tab for the C1000FE-48T-4G-L datasheet.
