Description

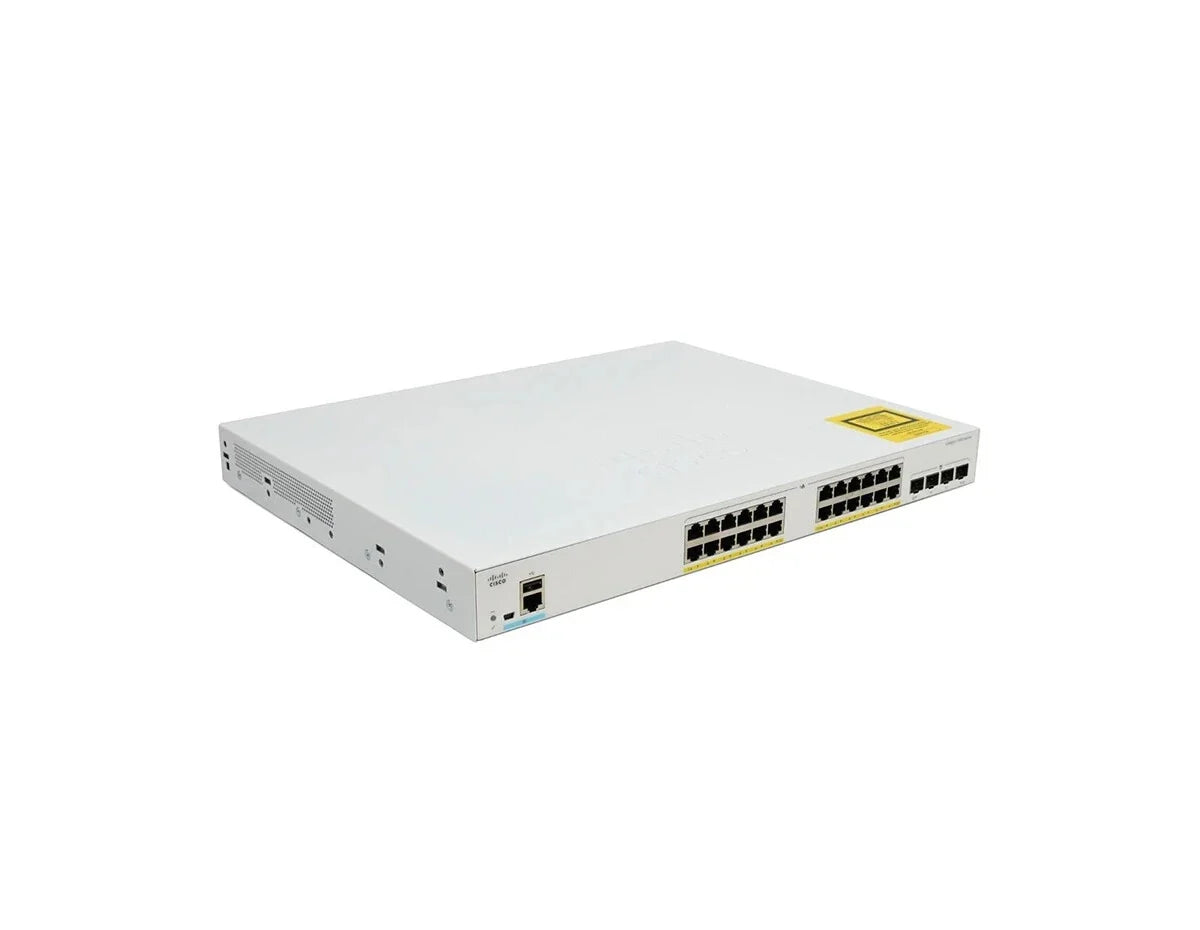

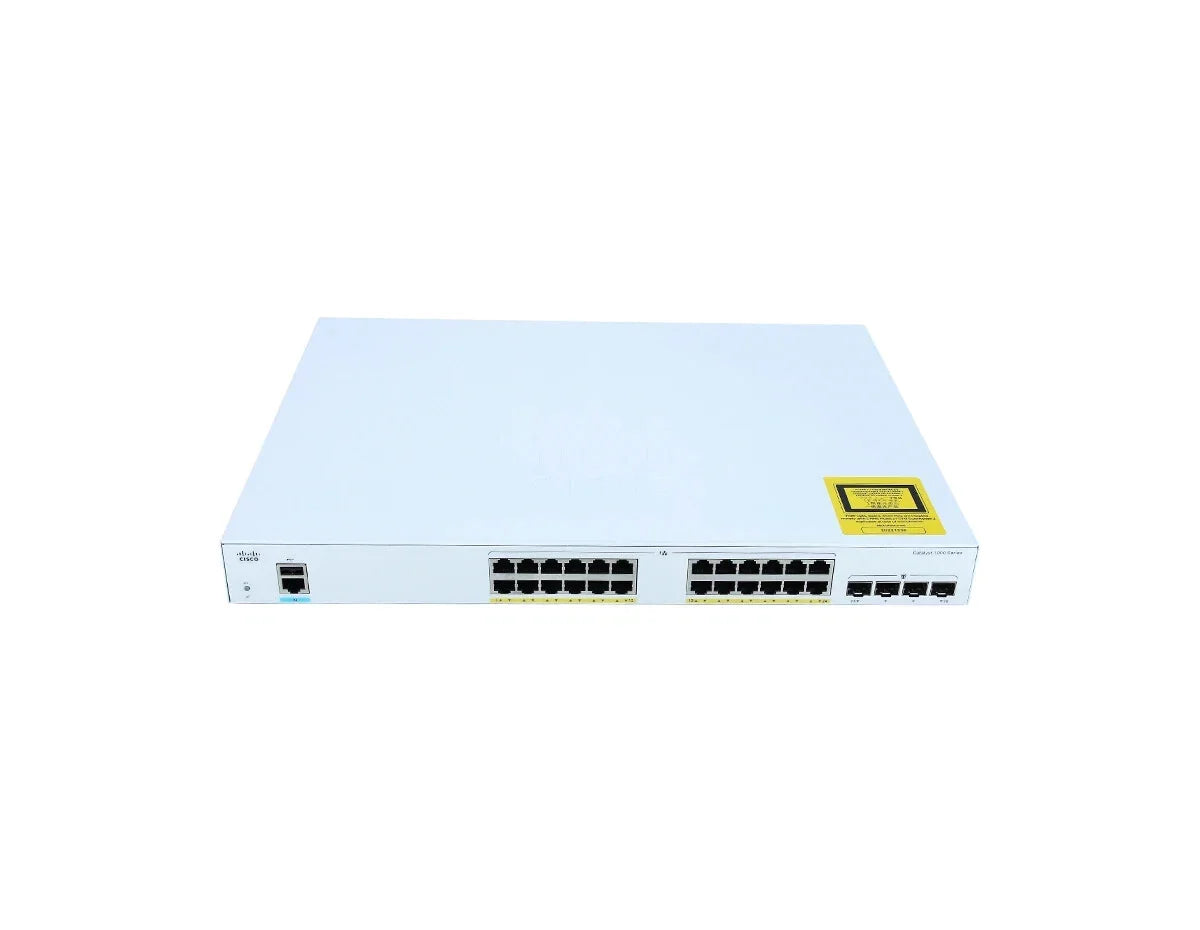

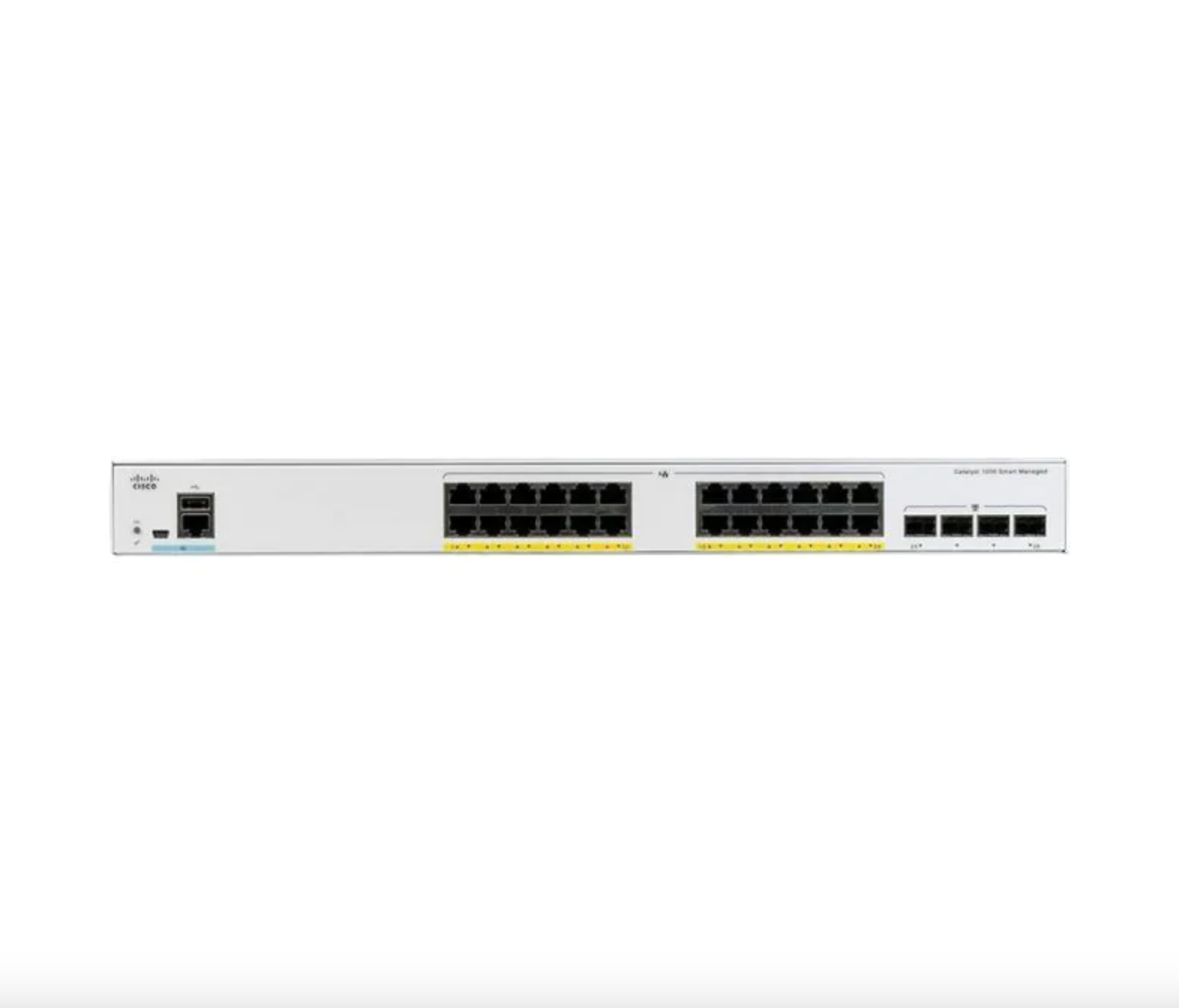

The Cisco C1000-24FP-4G-L is a managed Gigabit Ethernet switch designed for small business and branch office networking environments that require reliable connectivity and integrated power delivery. Featuring 24 PoE+ ports and 4 Gigabit SFP uplinks, it supports the deployment of IP phones, wireless access points, cameras, and other network devices while maintaining efficient traffic management. The Cisco C1000-24FP-4G-L combines Layer 2 switching functionality, flexible management options, and a 370W PoE budget in a compact enterprise-class platform.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco |
| Category |
Networking |
| Part Number |
C1000-24FP-4G-L |
| Subcategory |
Managed Ethernet Switches |
| Series |
Cisco Catalyst 1000 Series |
| Switch Type |
Layer 2 Managed Switch |
| Network Ports |
24x 10/100/1000 Gigabit Ethernet PoE+ RJ45 |
| Uplink Ports |
4x 1 Gigabit SFP Uplink Ports |
| Management Ports |
1x RJ45 Management, 1x USB Mini-B, 1x USB Type-A |
| Software Version |
LAN Base |
| PoE Budget |
370W |
| Switching Capacity |
128 Gbps |
| Forwarding Rate |
95.23 Mpps |
| MAC Address Table Size |
16,000 Entries |
| Power Supply |
1x Internal AC Power Supply |
| Form Factor |
Rack-Mountable |
| Network Standards |
IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at |
| Model Number |
C1000-24FP-4G-L |
| Weight |
Approximately 9.7 lbs (4.4 kg) |
Information About C1000-24FP-4G-L
The C1000-24FP-4G-L is part of the Cisco Catalyst 1000 Series, a family of fixed-managed switches developed for small and medium-sized business networks. Built with Cisco LAN Base software, it delivers secure Layer 2 switching capabilities, simplified management, and dependable network operation. The switch supports Power over Ethernet Plus technology, enabling connected devices to receive both data and power through a single Ethernet connection. With dedicated Gigabit SFP uplinks, enterprise-grade security features, and support for network segmentation, it is suitable for offices, retail locations, educational facilities, and branch deployments.
Key Features:
- 24 Gigabit PoE+ Ports: Provides 24 RJ45 Gigabit Ethernet interfaces with PoE+ support for connected devices.
- 370W PoE Budget: Supplies substantial power for IP phones, wireless access points, cameras, and IoT endpoints.
- Gigabit Fiber Uplinks: Includes 4 dedicated 1G SFP uplink ports for high-speed backbone connectivity.
- High Switching Performance: Delivers up to 128 Gbps switching capacity for efficient network traffic handling.
- Fast Packet Forwarding: Supports forwarding rates up to 95.23 Mpps for low-latency communication.
- LAN Base Software: Provides Layer 2 switching features, security controls, and simplified administration.
- Flexible Management Interfaces: Supports RJ45 management, USB Mini-B console, and USB Type-A connectivity.
- Enterprise-Class Reliability: Designed for continuous network operation in business and branch office environments.
The C1000-24FP-4G-L delivers the reliability and precision required for business network switching, PoE-powered device deployments, and secure access-layer connectivity.
