[specifications]

Throughput: Application Control (AVC)	1,100 Mbps
Throughput: Application Control (AVC) and IPS	650 Mbps
Maximum Concurrent Sessions	500,000
Maximum New Connections per Second	20,000
Supported Applications	More than 3,000
URL Categories	80+
Number of URLs Categorized	More than 280 Million
Centralized configuration, logging, monitoring, and reporting	Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center
On-Device Management	ASDM
Stateful Inspection Throughput (Maximum)	2 Gbps
Stateful Inspection Throughput (Multiprotocol)	1 Gbps
Triple Data Encryption Standart/Advanced Encryption Standart (3DES/AES) VPN throughput	300 Mbps
Users/nodes	Unlimited
IPsec site-to-site VPN peers	750
Virtual Interfaces (VLANs)	200
Security Contexts (Included; Maximum)	2; 20
Integrated Wireless Access Point	N/A
Expansion Slot	1 Interface Card
User-Accessible Flash Slot	0
USB 2.0 Ports	2
Integrated I/O	8 GE Copper
Expansion I/O	6 GE Copper or 6 GE SFP
Dedicated Management Port	Yes (1 GE)
Serial Ports	1 RJ-45 Console
Solid-State Drive	1-slot, 120 GB MLC SED
Memory	8 GB
System Flash	8 GB
System Bus	Multibus Architecture
Operating Temperature	23 to 104F (-5 to 40C)
Non-Operating Temperature	-13 to 158F (-25 to 70C)
Operating Relative Humidity	90 Percent
Non-Operating Relative Humidity	10 to 90 percent
Operating Altitude	Designed and Tested for 0 to 10,000 ft (3050m)
Non-Operating Altitude	Designed and Tested for 0 to 15,000 ft (4572m)
Acousticnoise	64.2 dBA max

Power Input (Per Power Supply)

AC Range Line Voltage	100 to 240 VAC
AC Normal Line Voltage	100 to 240 VAC
AC Current	4.85A
AC Frequency	50/60 Hz
Dual-Power Supplies	None
DC Domestic Line Voltage	-40.5 to 56 VDC (-48 VDC nominal)
DC International Line Voltage	-55 to -72 VDC (-60 VDC nominal)
DC Current	15A (Maximum Input)

Output

Steady State	75W
Maximum Peak	108W
Maximum Heat Dissipation	369 Btu/hr
Form Factor	1RU, 19-in. Rack-Mountable
Dimensions (H x W x D)	1.75 x 17.5 x 14.25 in. (4.45 x 20.04 x 36.20 cm)
Weight (With AC Power Supply)	22.0 lb (10 kg)

[/specifications]

Install Cisco ASA5525-FPWR-K9 Firewall for Complete Security

Cisco ASA5525-FPWR-K9 Firewall gives equal level of protection for its users, from midsize to large enterprise networks. This is built to handle the performance needs and budget of a large enterprise and provide the performance at a price you can afford, without compromising security.

Key Benefits of Cisco ASA5525-FPWR-K9 Firewall

Cisco ASA5525-FPWR-K9 Firewall offers the same proven level of security that protects some of the largest networks at some of the most security-conscious companies in the world. It meets the performance and security requirements of a wide range of network applications, to correspond with your changing needs.

Cisco ASA5525-FPWR-K9 Firewall uses the Cisco SecureX framework for a context-aware approach to security that delivers multiple security services, multi-gigabit performance, flexible interface options, and redundant power supplies. This is built to deliver superior performance for exceptional operational efficiency.

Firewall Protection Supported:

• Antivirus
• Anti-spyware
• Intrusion Prevention
• Remote Access Authentication
• Access Control
• Application Layer Filtering
• Worm Scanning
• Content Filtering
• Malware Protection

Manufacturer Part Number	ASA5525-FPWR-K9
Expansion Slot	1 Interface card
USB 2.0 Ports	2
Integrated I/O	8 GE copper
Expansion I/O	6 GE copper or 6 GE SFP
Dedicated Management Port	Yes (1 GE)
Memory	8 GB
System Flash	8 GB
Operating Temperature	23 to 104F (-5 to 40C)
Dimension	1.75 x 17.5 x 14.25 in.
Weight	22.0 lb (10 kg)

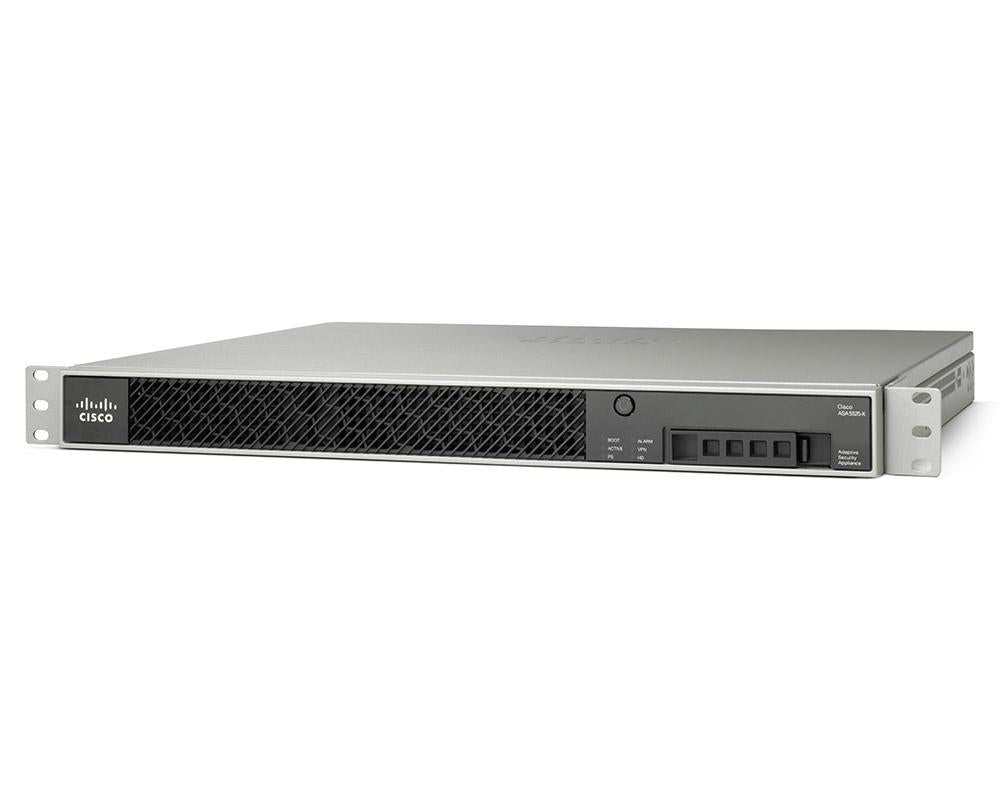

Image below shows the front panel of ASA5525-FPWR-K9

Image below shows the back panel of ASA5525-FPWR-K9
