[properties]
| Properties |
C9120AXI-E |
| Description |
Cisco Catalyst 9120AX Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, E Domain |
| Product Family |
Cisco Catalyst 9120AX Series Access Points |
| Product Type |
Access Point |
| Hardware Type |
Indoor |
| Features |
- 802.11ax (Wi-Fi 6) - Cisco RF ASIC - Uplink/downlink OFDMA - MU-MIMO technology - Target wake time - BSS coloring - Intelligent Capture - Flexible Radio Assignment - Dual 5-GHz radio support - Smart antenna connector - Cisco Mobility Express - Multigigabit Ethernet support - Bluetooth 5.0 - Container support for applications |
|
Line Coding Format
|
OFDMA |
| MU‑MIMO technology |
Yes |
|
Frequency Band
|
2.4 GHz, 5 GHz |
|
Interfaces
|
1 x 1/2.5GBase-T - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x USB 2.0 |
| Ports |
1 x LAN |
|
Data Link Protocol
|
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, 802.11ax |
| 802.11n version 2.0 (and related) capabilities |
● 4x4 MIMO with four spatial streams ● Maximal Ratio Combining (MRC) ● 802.11n and 802.11a/g beamforming ● 20- and 40-MHz channels ● PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support |
| Input power requirements |
● 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ®) ● Cisco power injector, AIR-PWRINJ6= ● 802.3af PoE ● Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af) |
|
Internet of Things (IoT) Compatible
|
Yes |
|
Dimensions in.
|
8.5 x 8.5 1.7 in. |
[/properties][specifications]
| DRAM |
2048 MB |
| Flash |
1024 MB |
|
Encryption Algorithm
|
AES, TLS, PEAP, TTLS, WPA, WPA2, EAP-SIM, EAP-FAST
|
|
Authentication Method
|
MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM
|
| Regulatory Domain |
E regulatory domain: • 2.412 to 2.4835; 13 channels • 5.150 to 5.350 GHz; 8 channels • 5.470 to 5.725 GHz; 8 channels |
|
Software Included
|
● Cisco Unified Wireless Network Software Release 8.9.x or later
● Cisco IOS ® XE Software Release 16.11 with AP Device Pack, or later
|
|
Service & Support
|
|
Operating Temperature
|
32 °F - 122 °F
|
| Available transmit power settings |
2.4 GHz
● 23 dBm (200mW)
● 20 dBm (100mW)
● 17 dBm (50mW)
● 14 dBm (25mW)
● 11 dBm (12.5 mW)
● 8 dBm (6.25mW)
● 5 dBm (3.13mW)
● 2 dBm (1.56mW)
● -1dBm (0.79mW)
●-4dBm(0.39mW)
5 GHz
● 26 dBm (400mW)
● 23 dBm (200mW)
● 20 dBm (100mW)
● 17 dBm (50mW)
● 14 dBm (25mW)
● 11 dBm (12.5 mW)
● 8 dBm (6.25mW)
● 5 dBm (3.13mW)
● 2 dBm (1.56mW)
● -1dBm (0.79mW) |
[/specifications]

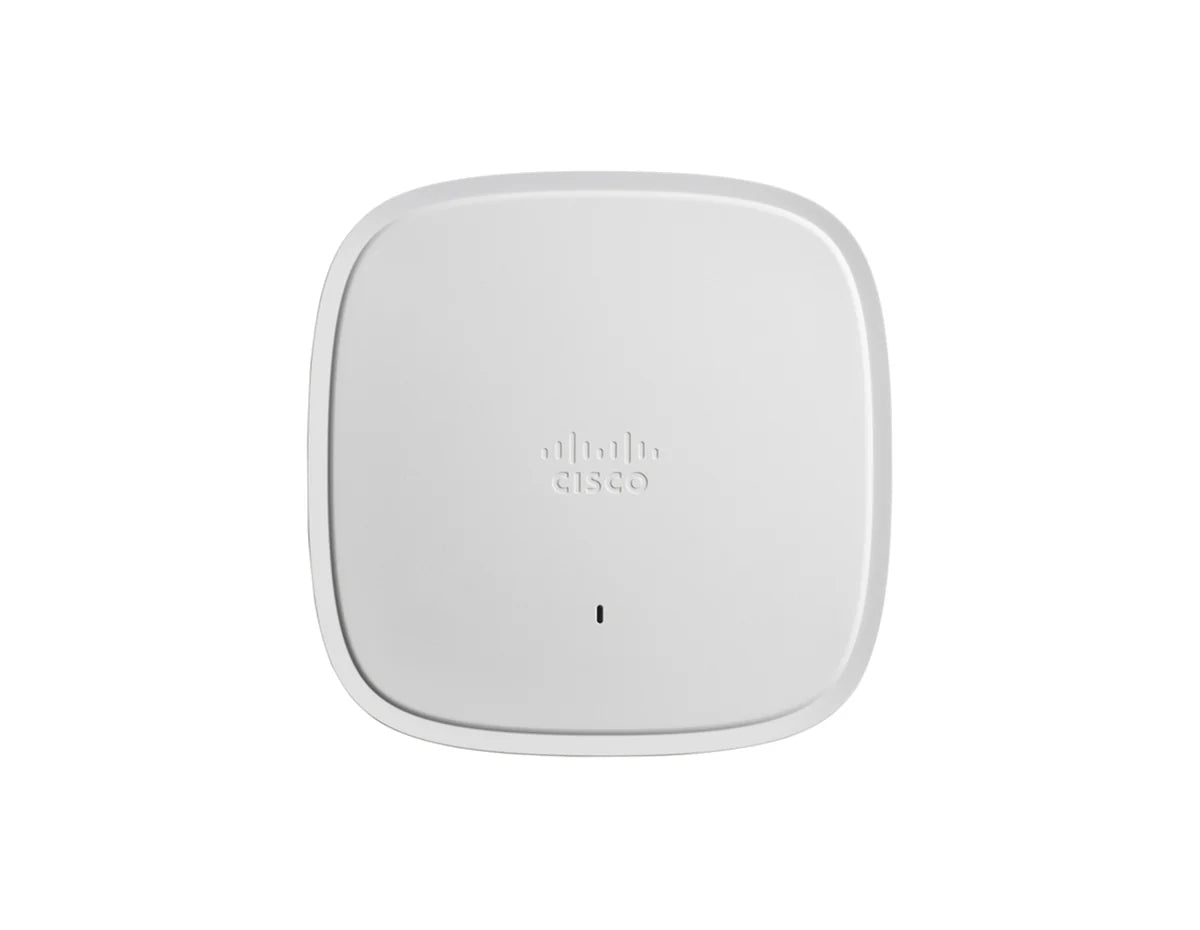

Cisco Access Point C9120AXI-E
The Cisco Catalyst 9120AX Series Access Points represent a significant leap in wireless network technology, offering more than just compliance with the Wi-Fi 6 (802.11ax) standard. They are an integral part of Cisco's intent-based network, scaling effectively to meet the growing needs of various network sizes. The C9120AXI-E is made for indoor environments with internal antennas for the E domain.
Key Features:
- 2.4-GHz and 5-GHz bands
- 4x4:4 MIMO
- Cisco DNA
The tabs contain the Cisco C9120AXI-E datasheet with all the specifics you need.
