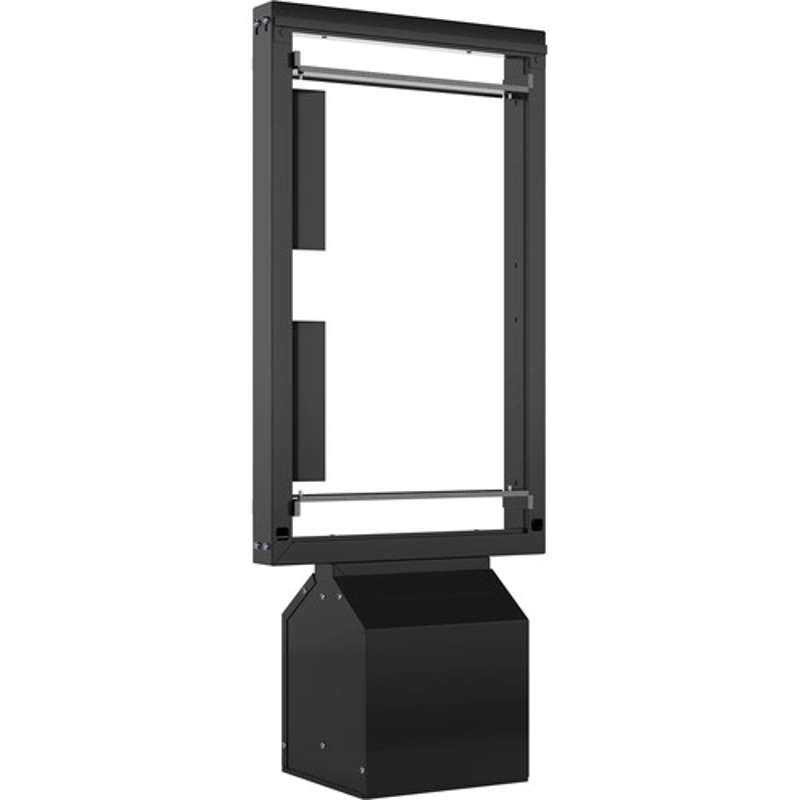

Chief Velocity Outdoor Single Pedestal System

• Supports Samsung and LG 55" outdoor displays
• Bezel-to-bezel distance between displays optimizes multi-display content
• Slotted base plate provides 15° of rotational positioning flexibility
• Optional Speaker Mount Accessory can be mounted to the left or right of the display
• Open back design provides easy access for maintenance
• Tamper-resistant security screws prevent vandalism
• Outdoor rated finish meets UL 2442 Part 2 requirements
• Wind-tested to 140 mph
• Off-the-shelf product for quick lead times (install in less than two weeks)
• Competitive standard product pricing – no custom quotes needed
• Ships on a 40” x 48” pallet – convenient for smaller docks
• UL Listed
• Five-year warranty
• Mounting Method: Concrete Mount Via Threaded Rod or Wedge Anchors

Ideal Applications

Ideal for drive-thru menu boards and wayfinding signage, the Chief® Velocity Outdoor Pedestal System is a modular outdoor digital signage pedestal mount that supports Samsung and LG 55" outdoor displays. Its modular design allows for single, double or triple displays and easily accommodates future expansion. Create a fully integrated solution with optional Speaker Mount and Back Cover accessories.

Designed to Evolve

Thanks to its modular design, Chief Velocity allows easy upgrades from single to double or triple display configurations. This reduces long-term ownership costs and maximizes digital signage investment.

Fast, Easy Two-Person Installation

Chief Velocity is designed for quick setup and requires only two people for installation. No heavy lift equipment is necessary, saving on rental costs. Simplified French cleat display mounting enables fast, safe installation with lateral shift for zero bezel-to-bezel gaps. For QSR owners, this means reduced downtime for drive-thru service.

Dimensions & Measurements

• Internal Device Mounting Dimensions: 15.34” x 16.37” x 17.76” (390 x 416 x 451 mm)
• Mounting Plates: 16.18” x 7.6” (411 x 193 mm)
• Overall Dimensions: 15.336” x 28.25” x 67.375” (390 x 718 x 1711 mm)
• Typical Screen Size: 55” (1397 mm)
• Weight Capacity: 150 lbs (68 kg) per frame

Characteristics & Features

• Color: Black
• Orientation: Portrait
• Product Configuration: Single Display
• VESA Mounting Pattern: 560" x 1186"
