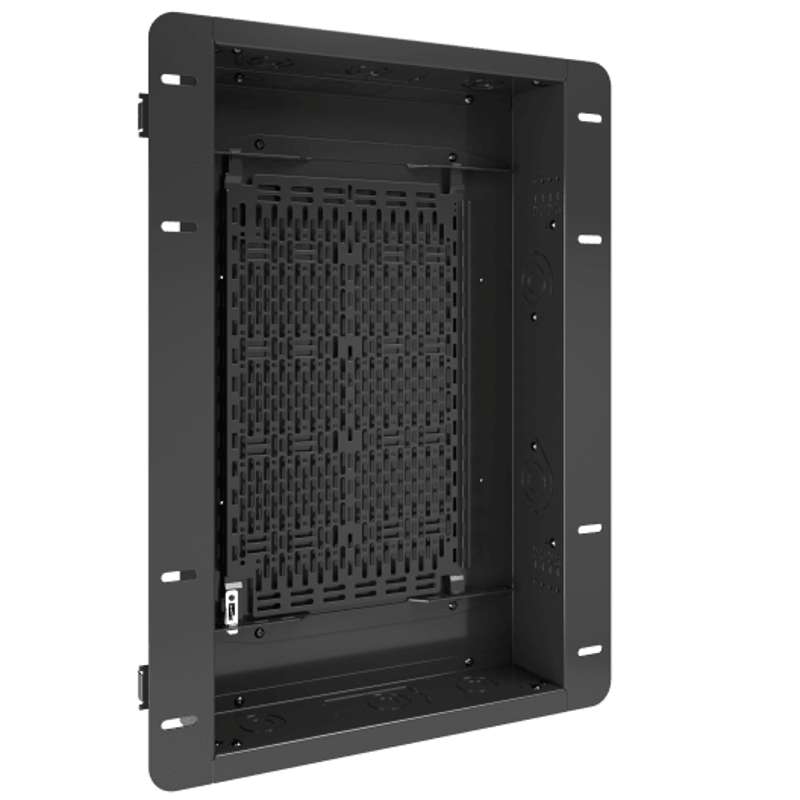

Tempo™ In-Wall AV Storage Box – 14” x 23”

Tempo™ In-Wall Storage Boxes are designed to fit perfectly between 16” O.C. (On Center) metal studs and install like any other in-wall box.

Add as many storage boxes as needed to store small devices. An infinite number of horizontal mounting patterns are compatible with the system to accommodate extra-large and some ultrawide displays because storage boxes can be set as far apart as needed to align the flat panel with the mount.

The Tempo In-Wall Storage Box ships with one 15x10” Lever Lock™ plate, offering a minimum clearance for 1 RU of AV equipment. Place small devices where you need them thanks to lateral shift flexibility within the storage boxes. Lever Lock plates are compatible with Middle Atlantic® Forward Small Device Mounting Clamps to quickly secure devices in place.

Three types of knockouts per box offer flexibility in vertical and horizontal cabling between storage boxes, giving total control over power and data design.

• Side wall knockouts accommodate four different trade conduit sizes: 1.5", 1.25", 1" and 0.5"
• Top (3) & Bottom (3) knockouts: 1.25", 1" and 0.5" per box
• Single-gang electrical box: one bottom, one top per box

Kit Includes

• (1) In-wall box
• (4) Stud tab
• (4) #6 x ¼” flathead screw
• (4) #6 x 3/8” tapping screw
• (1) Grounding screw
• (2) Side flange
• (1) Lever Lock panel
• (8) Cable tie
• (1) 1/8” Allen key
• (2) Lever Lock rivet
• (4) Cable tie mount
• (8) #10-24 x ¼” button cap screw
• (1) Toggler anchor hardware bag
• (2) Top/bottom flange
• (1) Installation Manual

Dimensions & Measurements

• Storage Weight Capacity: 20 lbs (9 kg) per Lever Lock plate
• Wall Stud Compatibility: 16” on-center

Characteristics & Features

• Accessory Type: Cable Management, Component Storage, In-Wall, Metal Stud
• Application: In-Wall
• Color: Black
• Kit Options: AV Storage In-Wall Box

Certifications & Warranties

• Certifications: UL 2416
