Description

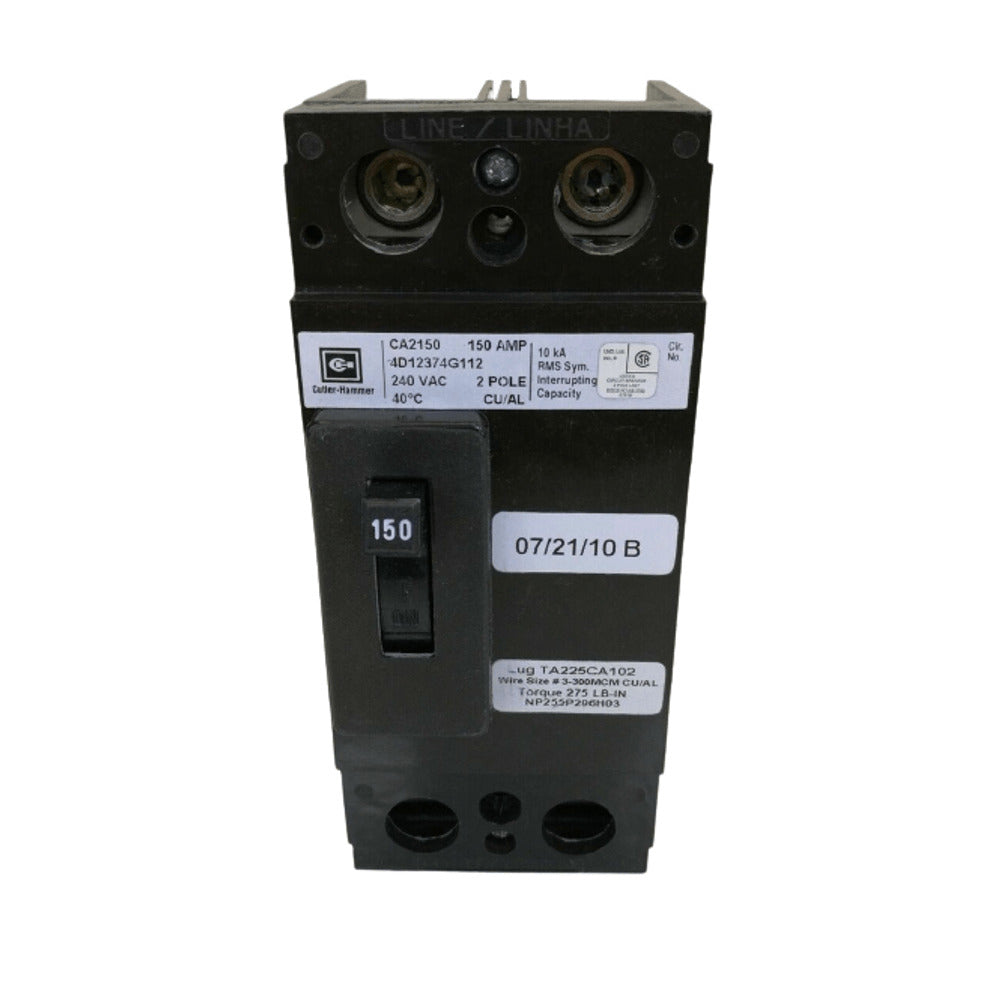

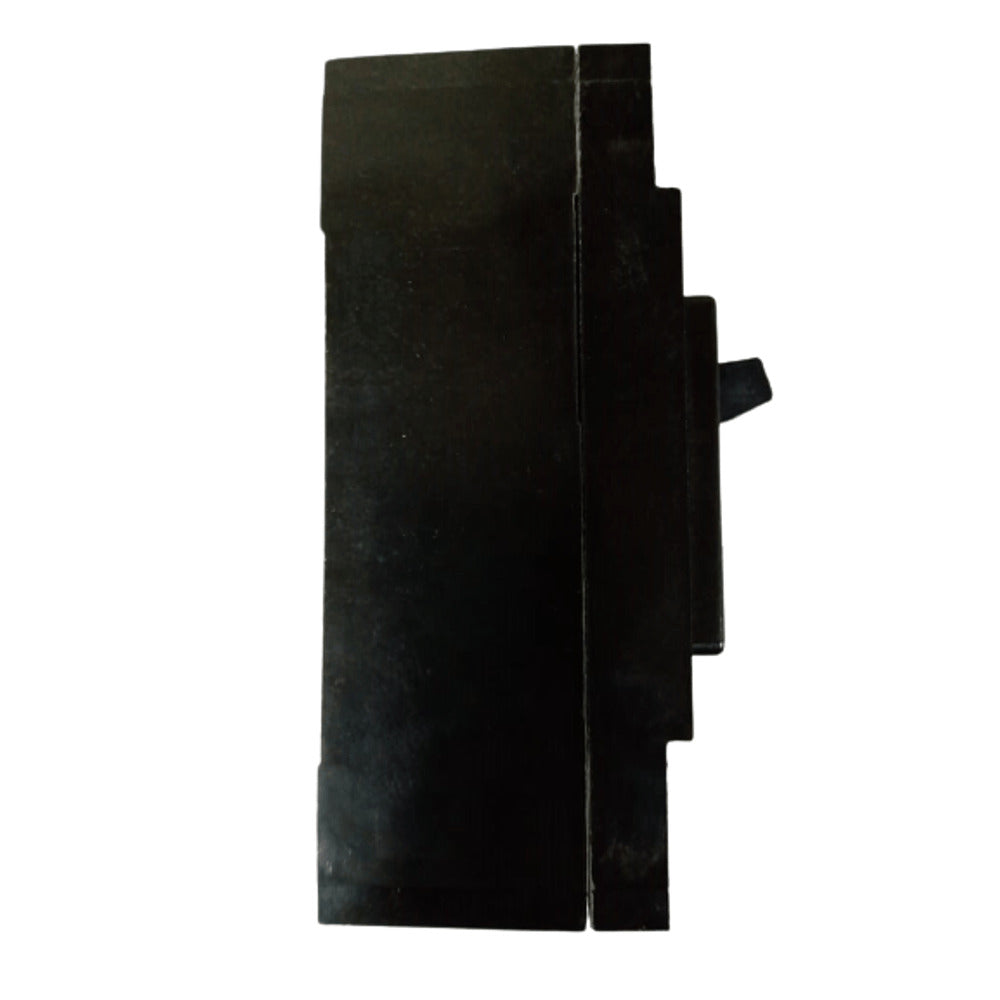

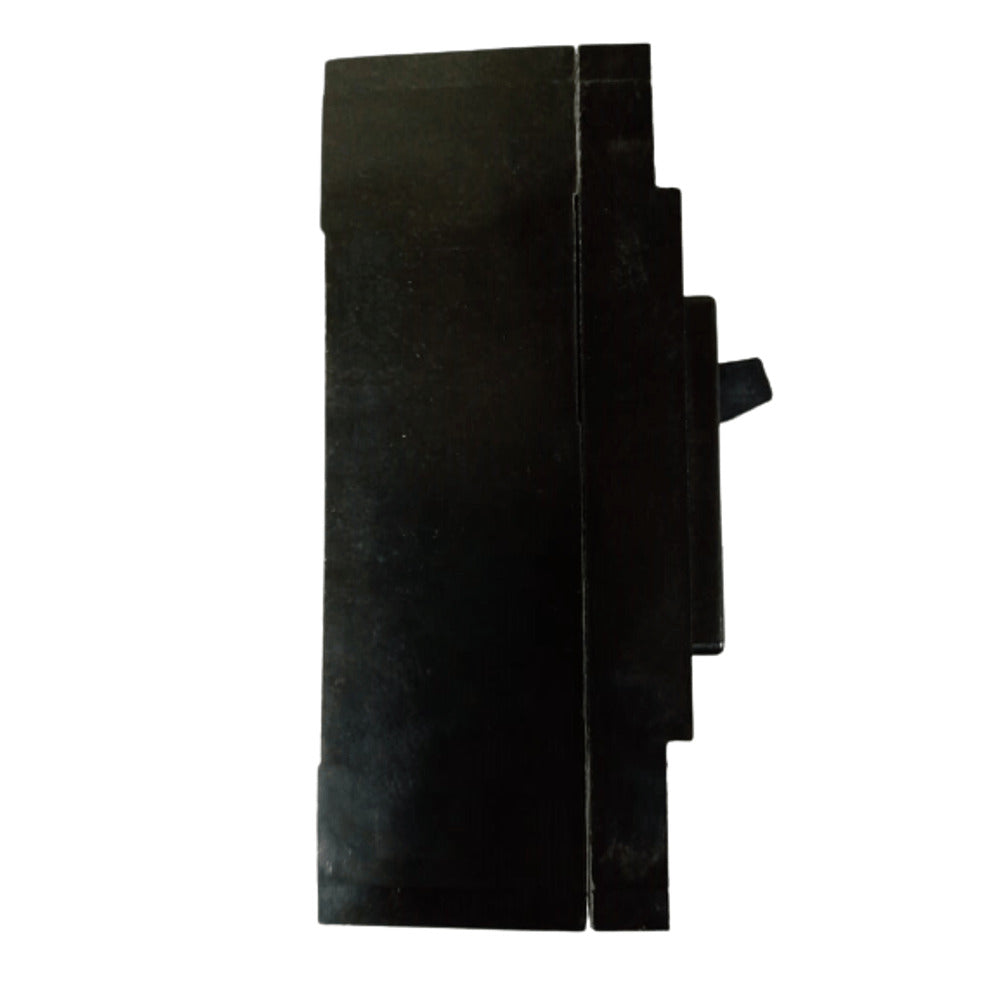

The Eaton Cutler-Hammer CA2150 is a 2-pole thermal magnetic molded case circuit breaker designed for reliable circuit protection in industrial and commercial applications. With a current rating of 150 amps and a voltage capacity of 240 VAC, it provides dependable overcurrent protection with a standard interrupting rating of 10 kAIC. The CA2150 ensures consistent performance across a wide range of load conditions, making it ideal for panelboard and distribution systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton / Cutler-Hammer |
| Category |
Circuit Breakers |
| Part Number |
CA2150 |
| Subcategory |
Molded Case Circuit Breakers |
| Series |
AB DE-ION |
| Frame Type |
CA |
| Amperage Rating |
150 A |
| Voltage Rating |
240 VAC |
| Number of Poles |
2 |
| Phase |
Single |
| Interrupting Rating |
10 kAIC @ 240 VAC |
| Trip Function |
LI – Long-Time and Instantaneous |
| Protection Type |
Thermal Magnetic |
| Connection Type |
Feed-Thru |
| Terminal Type |

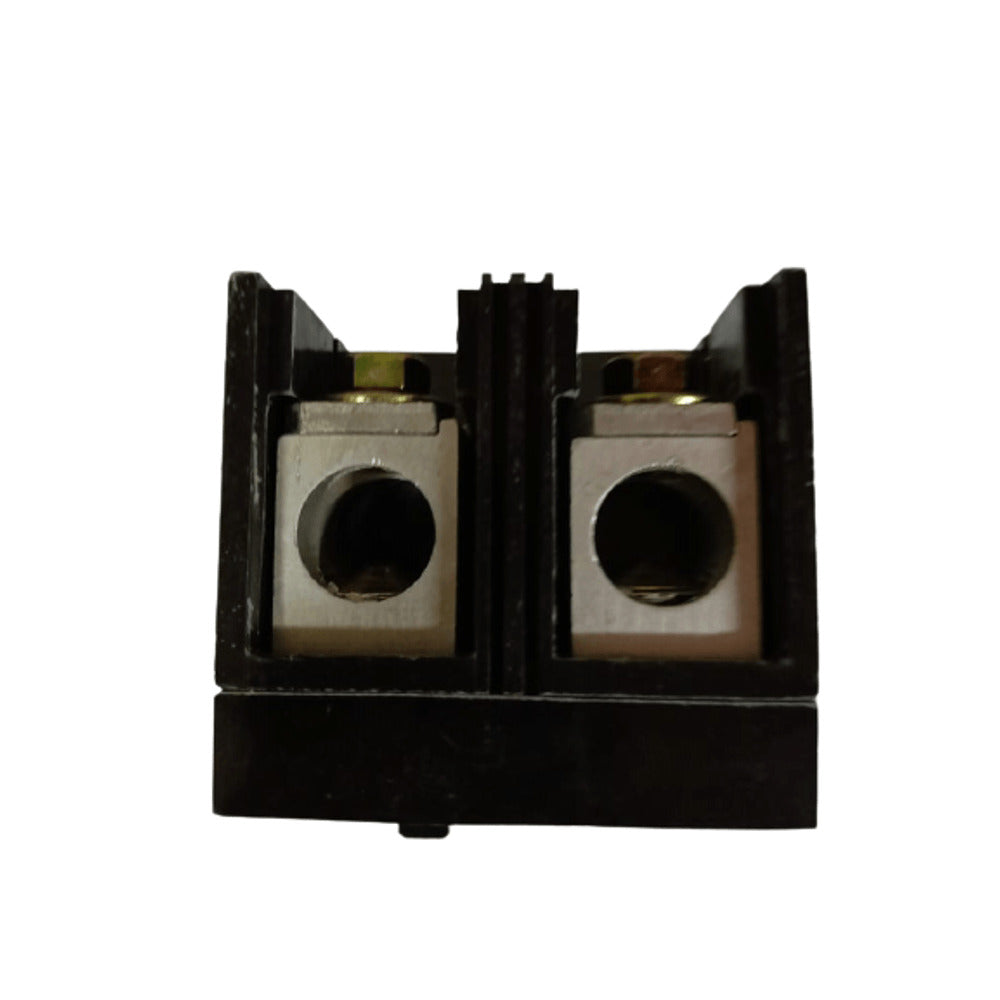

Line and Load Side Lugs |
| Operating Temperature |
40°C |
| Approvals |
UL, CSA |
| Mounting Type |
Panel Mount |
| Frequency Rating |
50/60 Hz |
| Weight |
0.45 kg |
Information About CA2150
The CA2150 is part of Eaton’s AB DE-ION Series of molded case circuit breakers, built for high durability and consistent thermal magnetic performance. It features a compact CA frame and is designed for 2-pole, single-phase configurations operating at 240 volts. The breaker includes long-time and instantaneous (LI) trip functions for enhanced circuit safety and protection against overload or short-circuit conditions. Compatible with various Eaton and Cutler-Hammer panel systems, the CA2150 uses a feed-thru connection for simple installation and maintenance.
Key Features:
- Current Rating: Supports 150 amps for moderate to high load applications.
- Voltage Capacity: Operates efficiently at 240 VAC single-phase power.
- Interrupting Rating: Provides 10 kAIC protection at 240V for secure fault interruption.
- Trip Function: Thermal magnetic with long-time and instantaneous trip elements.
- Connection Type: Feed-thru terminals for easy line and load wiring.
- Construction: Compact molded case design for space-efficient installations.
- Certifications: UL and CSA approved for safety and compliance.
- Temperature Rating: Rated for operation at 40°C ambient conditions.
The CA2150 delivers the reliability and precision required for dependable circuit protection in residential, commercial, and light industrial environments.
