Description

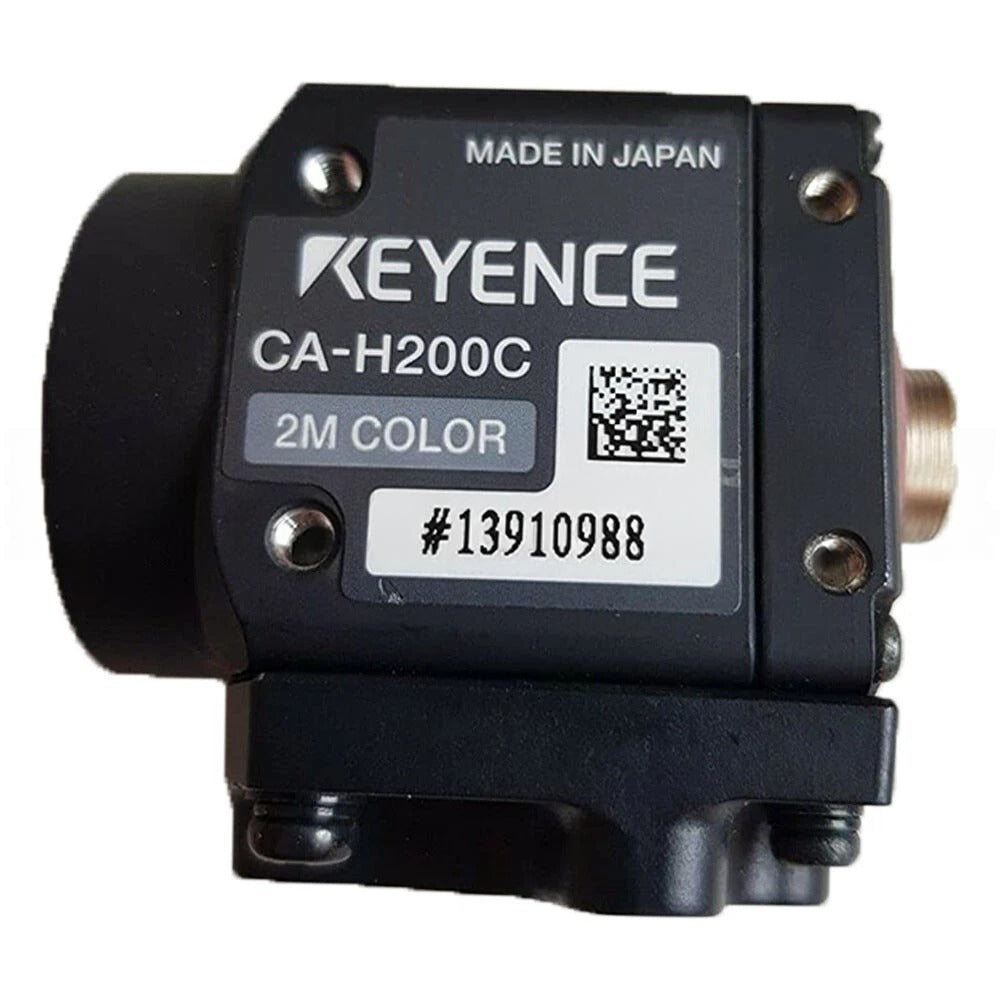

The Keyence CA-H200C is a high-speed color CMOS industrial camera designed for precision machine vision applications. Engineered for durability and speed, this environment-resistant 2-megapixel camera delivers exceptional image clarity and rapid frame transfer using advanced 7×/16× high-speed readout technology. With a C-mount lens interface, progressive scanning system, and digital serial data transfer, the CA-H200C ensures superior image capture in automated inspection, robotics, and production quality systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Keyence |
| Category |
Camera & Vision |
| Part Number |
CA-H200C |
| Subcategory |
Video Camera |
| Type |
High-Speed Color CMOS Machine Vision Camera |
| Image Element |
Color CMOS, 7×/16× high-speed reading using square pixel |
| Unit Cell Size |
4.5 μm × 4.5 μm (0.18 mil × 0.18 mil) |
| Valid Pixel Count |
2 MP: 1600 (H) × 1200 (V); 1 MP: 1024 (H) × 960 (V) |
| Image Sensor Size |
1/1.8" equivalent |
| Scanning System |
Progressive |
| Transfer Speed |
7×: 28.9 ms; 16×: 11.8 ms |
| Pixel Transfer Frequency |
7×: 86 MHz; 16×: 198 MHz |
| Transfer System |
Digital serial transfer |
| Electronic Shutter |
0.05 to 9000 ms (1/15, 1/30, 1/60, 1/120, 1/240, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/20000) |
| Lens Mount |
C-mount |
| Enclosure Rating |
IP64 (IEC60529) |
| Operating Temperature |
0°C to +45°C (32°F to 113°F) |
| Storage Temperature |
−10°C to +60°C (14°F to 140°F) |
| Relative Humidity |
≤85% RH (non-condensing) |
| Power Supply |
Supplied via controller (12 VDC typical) |
| Interface |
Compatible with Keyence vision systems (digital serial) |
| Housing Material |
Aluminum alloy body, industrial coating |
| Dimensions |
Compact body for modular mounting |
| Weight |
Approx. 0.17 lbs (75 g, not including lens) |
Information About CA-H200C
The Keyence CA-H200C is part of the CA-H Series of high-speed machine vision cameras, optimized for integration with Keyence’s CV- and XG-series vision controllers. Its 2-megapixel CMOS sensor (1600 × 1200 pixels) captures detailed color images at ultra-fast frame rates, supporting both standard and high-speed transfer modes for real-time inspection. The IP64-rated housing protects against dust and splashes, making it suitable for harsh industrial environments. The camera’s C-mount lens configuration allows for flexible optics selection, while its adjustable electronic shutter enables precise control over exposure in dynamic lighting conditions.
Key Features:
- High-Speed Color CMOS Sensor: 7× and 16× readout modes for fast, stable image acquisition.
- High Resolution: 2-megapixel capture (1600 × 1200 pixels) for detailed inspection.
- Rugged Construction: IP64 enclosure resists dust and light water exposure.
- Progressive Scan: Provides distortion-free imaging for moving objects.
- Adjustable Electronic Shutter: 0.05 to 9000 ms exposure control with fine increments.
- Digital Serial Transfer System: Ensures high-fidelity, low-noise image transmission.
- Compact and Lightweight: 75 g body for flexible mounting in tight spaces.
- C-Mount Compatibility: Supports a wide range of industrial lenses.
- Temperature-Resistant Design: Operates in demanding factory conditions (0°C to +45°C).
- Optimized for Vision Controllers: Seamless integration with Keyence vision systems for fast setup and image processing.
The CA-H200C combines industrial-grade durability with precision imaging performance for real-time automated visual inspection.
