Description

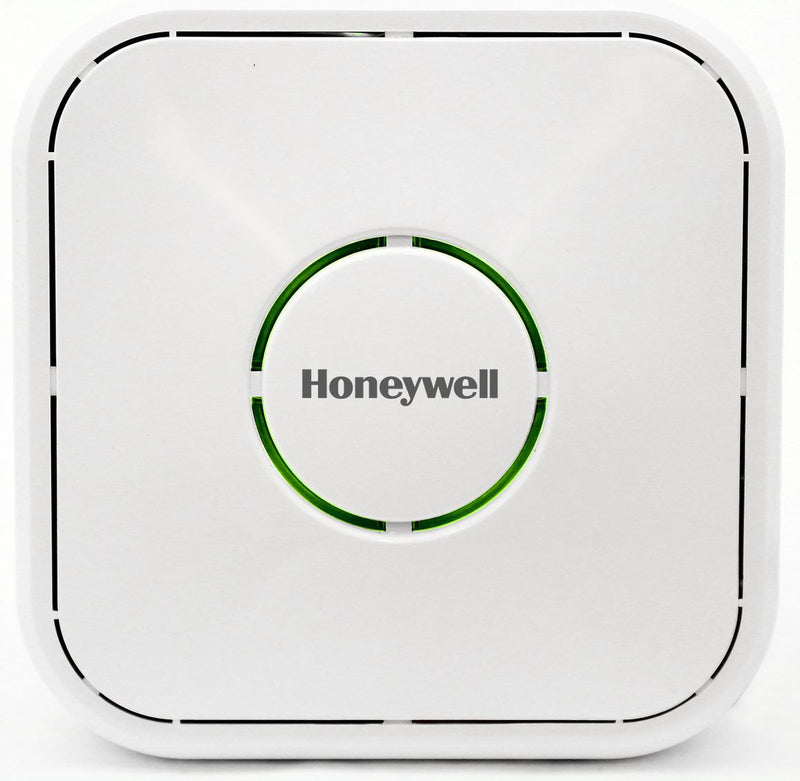

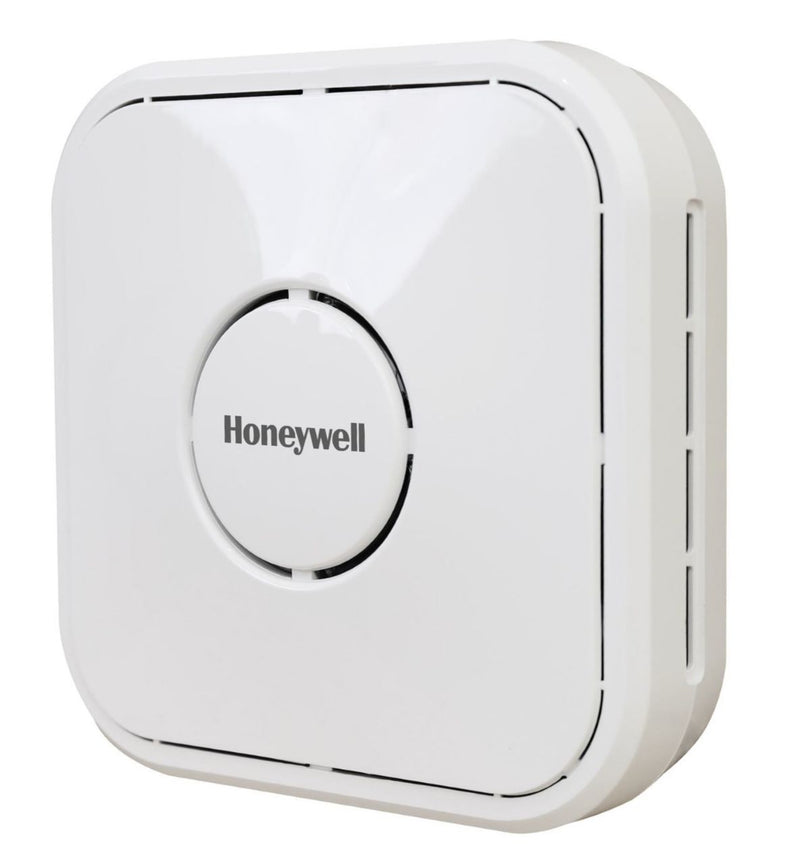

The Honeywell C7355A1050 is a wall-mounted indoor air quality (IAQ) monitor designed for commercial building environmental monitoring. The Honeywell C7355A1050 measures multiple parameters including PM2.5, PM10, CO₂, TVOC, temperature, and relative humidity to provide real-time air quality data. It integrates with building automation systems using RS-485 Modbus communication for continuous environmental monitoring and analysis.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Building Automation |
| Part Number |
C7355A1050 |
| Subcategory |
Indoor Air Quality Monitor |
| Monitored Parameters |
PM2.5, PM10, CO₂, TVOC, Temperature, Relative Humidity |
| Communication Protocol |
Modbus RTU |
| Communication Interface |
RS-485 |
| Power Supply (DC) |
12–28 VDC |
| Power Supply (AC) |
18–27 VAC |
| Installation Type |
Wall mounted |
| Visual Indicator |
Three-color LED air quality ring |
| Certification |
RESET Air Accredited Grade B |
| Application |
Indoor air quality monitoring for commercial buildings |
| Operating Mode |
Continuous real-time monitoring |
| Weight |
0.80 lbs |
Information About C7355A1050
The C7355A1050 is part of Honeywell’s indoor air quality monitoring solutions developed for commercial buildings, offices, and smart facilities. It is a RESET Air Accredited Grade B monitor capable of measuring several environmental parameters simultaneously within a single device. The unit communicates with building management systems through the RS-485 interface using the Modbus RTU protocol, enabling centralized data collection and monitoring. Its integrated sensor module is designed for long-term stability and uses calibration and compensation technologies to minimize measurement deviations caused by environmental conditions.
Key Features:
- Multi-Parameter Air Quality Monitoring: Measures PM2.5, PM10, CO₂, TVOC, temperature, and relative humidity in one device.
- RESET Air Accredited Grade B: Suitable for indoor air quality monitoring in certified healthy building environments.
- Real-Time Environmental Monitoring: Provides continuous 24-hour indoor air quality measurements.
- RS-485 Modbus Communication: Enables integration with building automation and data management systems.
- High-Precision Sensor Module: Commercial-grade sensors designed for long-term stability and reliable readings.
- Visual Air Quality Indicator: Three-color LED ring displays current air quality status.
- Environmental Compensation Technology: Minimizes the influence of ambient temperature and humidity on measurements.
- Flexible Power Supply: Supports both AC and DC power inputs for integration in building systems.
The C7355A1050 delivers the reliability and precision required for indoor environmental monitoring and building air quality management.
