Description

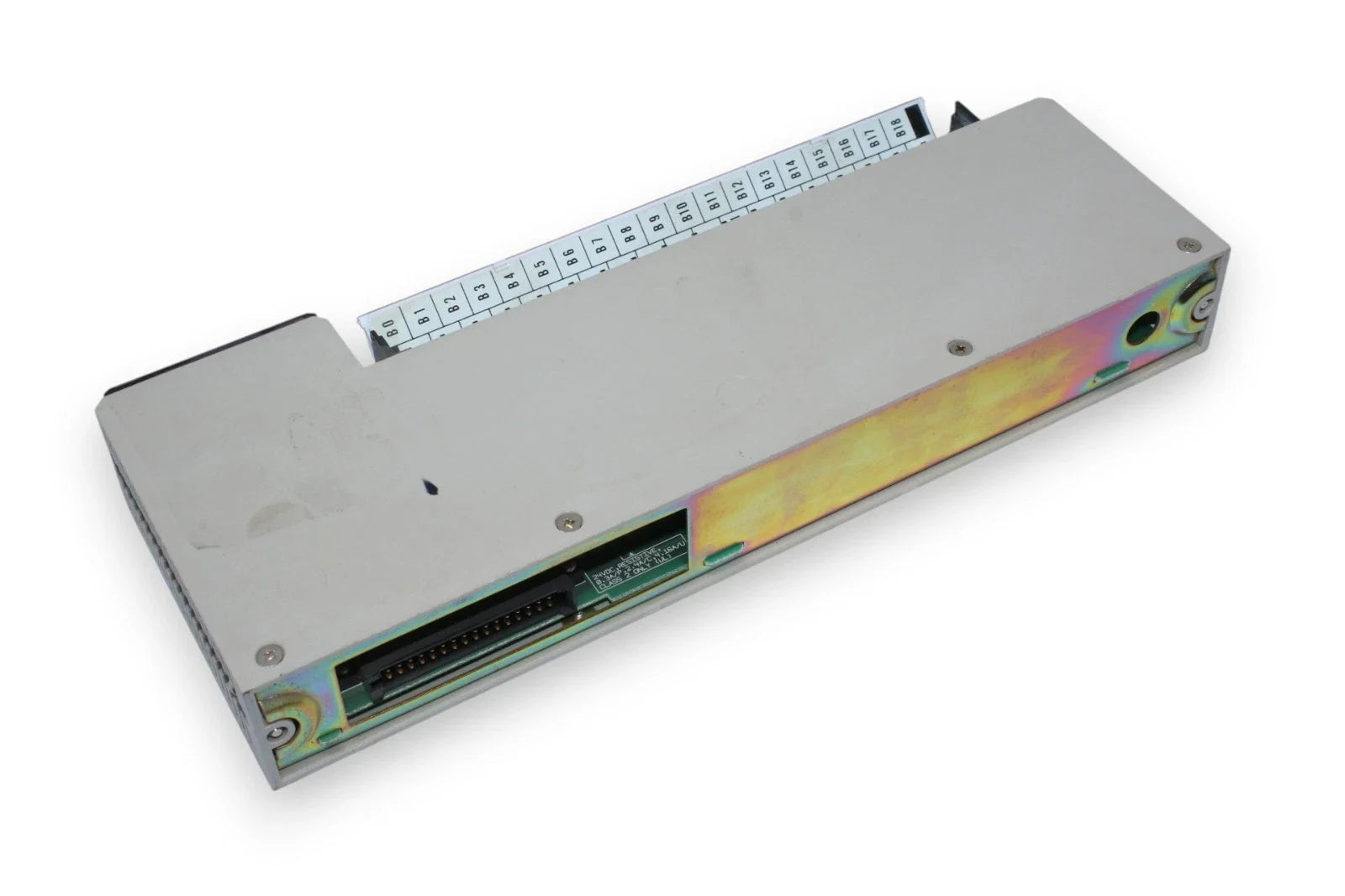

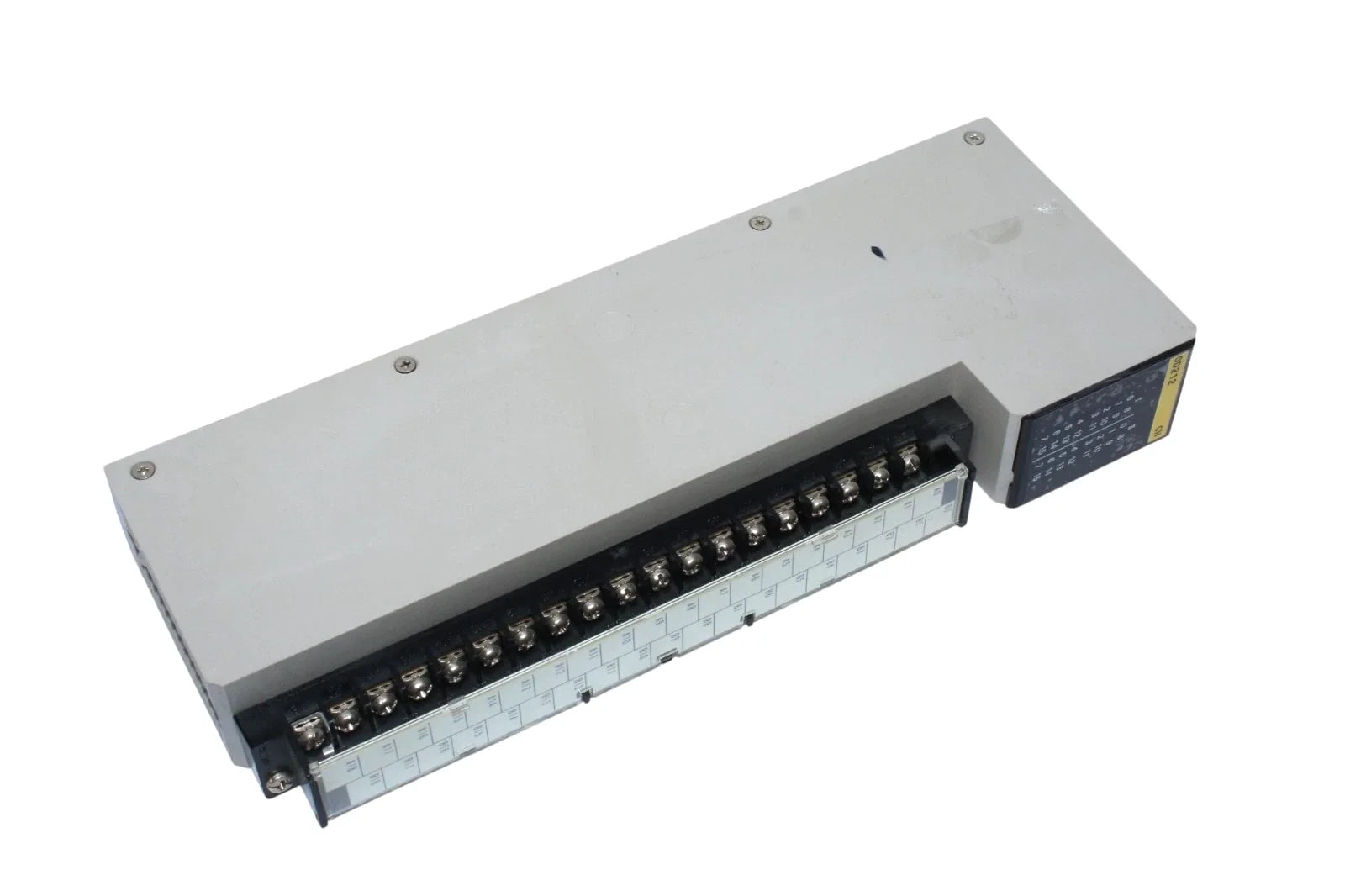

The Omron C500-OD212 is a PLC output module designed to provide transistor-based output control within Sysmac C500 automation systems. It supports multiple DC outputs for driving external devices such as relays, solenoids, and indicators. This module is intended for panel-mounted PLC racks requiring reliable, isolated output switching.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
PLC I/O Modules |
| Part Number |
C500-OD212 |
| Subcategory |
Output Modules |
| Series |
Sysmac C500 |
| Product Type |
PLC Output Module |
| Model Reference |
C500-OD212 (3G2A5-OD212) |
| Output Type |
Transistor (Sinking) |
| Number of Outputs |
32 |
| Load Voltage Range |
12–24 VDC |
| Max Load Current per Output |
0.3 A |
| Common Current Rating |
2.4 A |
| Total Unit Current Rating |
4.8 A |
| Isolation Method |
Photocoupler |
| Mounting Type |
PLC Rack / Panel Mount |
| Application |
DC Output Control |
| Weight |
2.00 lbs (0.91 kg) |
Information About C500-OD212
The C500-OD212 is part of Omron’s Sysmac C500 series, a modular programmable controller platform used in established industrial automation systems. It functions as a transistor output unit using photocoupler isolation to protect control circuitry from external electrical noise. The module operates on a 12–24 VDC load voltage range and is designed for integration with other C500-series CPU and I/O modules. Its construction supports consistent output performance in continuous-duty industrial environments.
Key Features:
- Sysmac C500 Output Module: Designed for use with Omron C500 PLC systems.
- Transistor Output Design: Provides fast and reliable DC switching capability.
- Multiple Output Channels: Supports up to 32 transistor outputs for control flexibility.
- Photocoupler Isolation: Electrically isolates outputs to improve system reliability.
- 12–24 VDC Load Voltage: Compatible with standard industrial DC devices.
- Panel-Mount PLC Architecture: Integrates directly into C500 system racks.
- Industrial Output Performance: Engineered for stable operation in automation panels.
The C500-OD212 delivers the reliability and precision required for transistor-based output control in PLC-driven industrial automation systems.
