Description

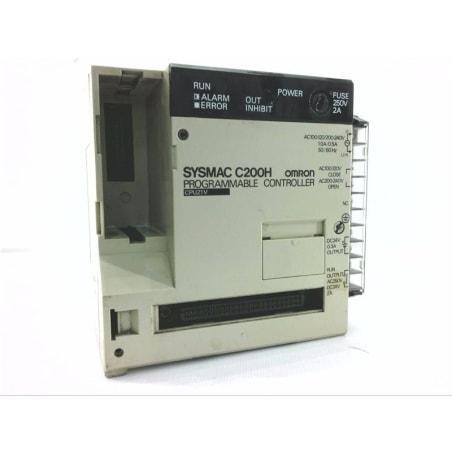

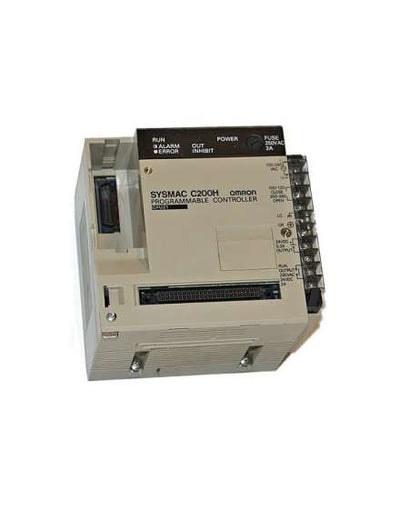

The Omron C200H-CPU21V-E is a versatile CPU module from the Sysmac C200H series, compatible with both 100–120 VAC and 200–240 VAC (50/60 Hz) power sources.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
PLCs/Machine Control |
| Part Number |
C200H-CPU21V-E |
| Subcategory |
PLC Module/Rack
|
| Series |
C200H |
| Product Type |
CPU Unit / Programmable Controller |
| Power Supply Voltage |
100–120 VAC / 200–240 VAC, selectable, 50/60 Hz |
| Current Rating |
1 A at 100–120 VAC / 0.5 A at 200–240 VAC |
| Power Consumption |
Max 120 VA |
| Instruction Set |
14 basic instructions, 211 special instructions |
| Execution Time – Basic Instructions |
0.375 to 2.25 µs |
| Execution Time – Special Instructions |
10 to 724 µs |
| Instruction Length |
1 address per instruction, 1 to 4 words |
| Memory Capacity |
6,974 words, expandable to 8,000 words |
| Output Current (5V DC) |
4.6 A (3.2 A for I/O units) |
| Surge Current Tolerance |
Up to 30 A |
| Dielectric Withstand Voltage |
2,000 VAC (AC terminals to casing) |
| Grounding Resistance |
Below 100 Ω |
| Noise Tolerance |
1,500 Vp-p, pulse width 100 ns to 1 µs |
| Main Processing Unit Type |
CMOS, LS-TTL |
| Programming Language |
Ladder Diagram |
| Weight |
2.76 lbs |
Information About C200H-CPU21V-E
The Omron C200H-CPU21V-E is a CPU unit from the Sysmac C200H series, designed for mid-range programmable control applications in industrial automation. It operates on single-phase AC power, supporting both 100–120 VAC and 200–240 VAC at 50/60 Hz, with a maximum power consumption of 120 VA. The unit provides a 5 VDC output with a capacity of 4.6 A (3.2 A for I/O units) to power connected modules.
Key Features:
- Model & Series: C200H-CPU21V-E, Sysmac C200H Series.
- Power Supply: 100–120 VAC / 200–240 VAC, 50/60 Hz, single-phase.
- Output Power: 5 VDC, 4.6 A (3.2 A for I/O units).
- Instruction Set: 14 basic, 211 special instructions.
- Execution Speed: 0.375–2.25 µs for basic, 10–724 µs for special instructions.
- Memory: 6,974 words, expandable to 8,000 words.
- Programming Language: Ladder diagram.
- Protection: 30 A surge tolerance, 2,000 VAC dielectric withstand, <100 Ω grounding, 1,500 Vp-p noise tolerance.
- Processor Type: CMOS, LS-TTL.
The Omron C200H-CPU21V-E combines versatility, robust performance, and durability, making it a trusted choice for maintaining and supporting legacy automation systems.
