Description

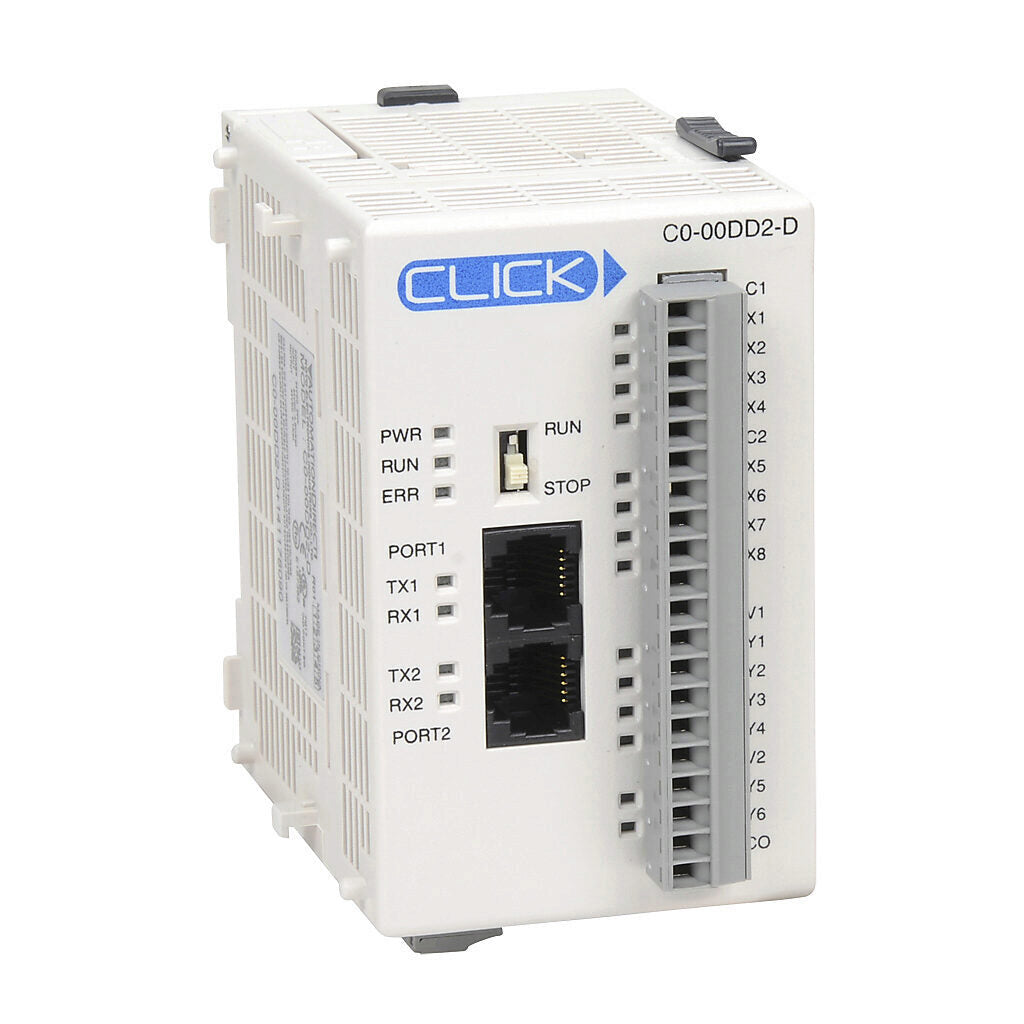

The Automation Direct C0-00DD2-D is a CLICK Basic series PLC designed for compact machine control and small automation applications. It operates on 24 VDC power and provides 8 discrete inputs and 6 sourcing discrete outputs. With 8k steps of ladder memory and dual RS-232 communication ports, it supports reliable serial-based control and monitoring tasks.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Programmable Logic Controllers |
| Part Number |
C0-00DD2-D |
| Subcategory |
Compact PLCs |
| Series |
CLICK Basic |
| Ladder Memory |
8k steps |
| User Data Memory |
16 KB |
| Programming Language |
Ladder |
| Programming Software |
CLICK software v1.00 or later |
| Power Requirement |
24 VDC |
| Discrete Inputs |
8 (24 VDC, sinking/sourcing) |
| Discrete Outputs |
6 (24 VDC, sourcing) |
| Output Current |
0.1A per point |
| Communication Ports |
(2) RS-232 (RJ12) |
| Protocols Supported |
Modbus RTU Master/Slave, ASCII In/Out |
| Maximum Expansion Modules |
8 |
| Real-Time Clock |
No |
| Retentive Memory |
No |
| Battery Backup |
No |
| Terminal Block |
Removable (included) |
| Weight |
0.6 lb |
Information About C0-00DD2-D
The C0-00DD2-D is part of the CLICK Basic PLC family engineered for straightforward, cost-effective automation solutions. It features 8k steps of ladder memory and 16 KB of user data memory for handling control logic and process variables. The controller includes two RS-232 (RJ12) ports supporting Modbus RTU Master/Slave, ASCII communication, and programming/monitoring functions. Designed for 24 VDC operation, it supports up to eight expansion modules and includes a removable terminal block for simplified wiring and maintenance.
Key Features:
- 8k Step Ladder Memory: Provides sufficient program space for small to mid-level control tasks.
- Dual RS-232 Ports: Two RJ12 serial ports supporting Modbus RTU and ASCII protocols.
- 8 Discrete Inputs: 24 VDC sinking/sourcing inputs with two isolated commons.
- 6 Sourcing Outputs: 24 VDC discrete outputs rated at 0.1A per point.

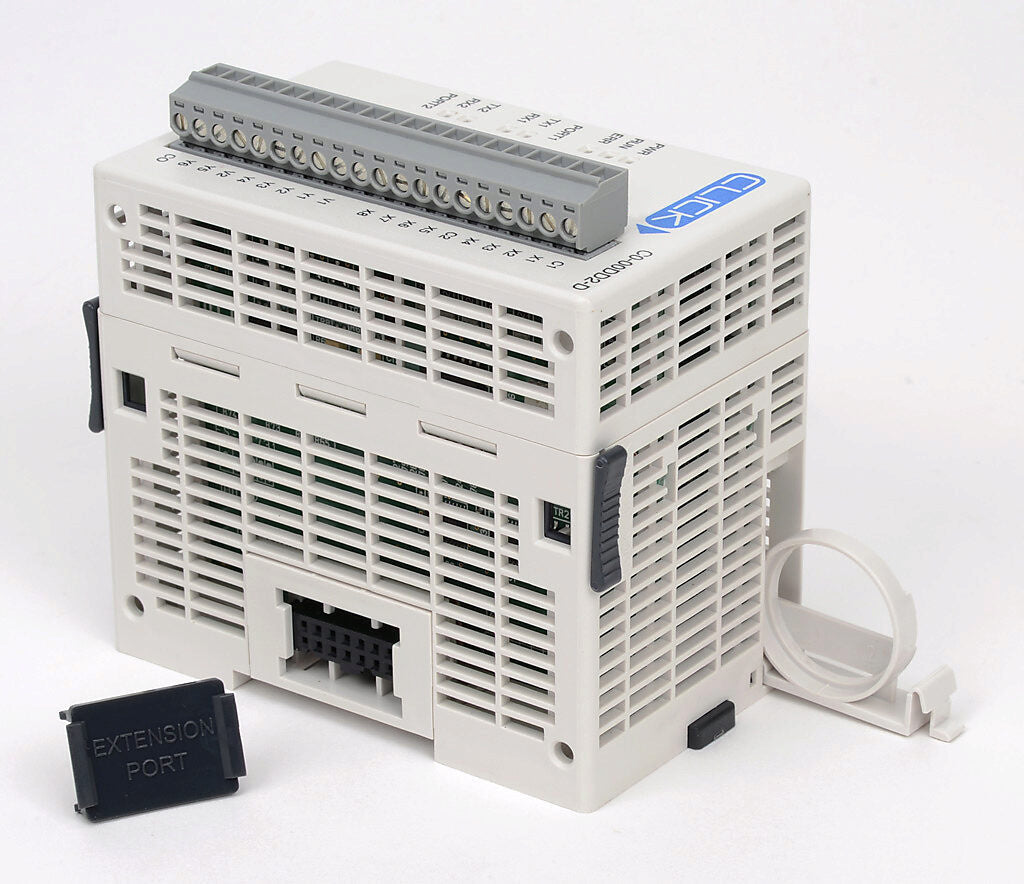

- Expandable System Design: Supports up to eight CLICK expansion modules.
- 24 VDC Operation: Designed for standard industrial DC control power systems.

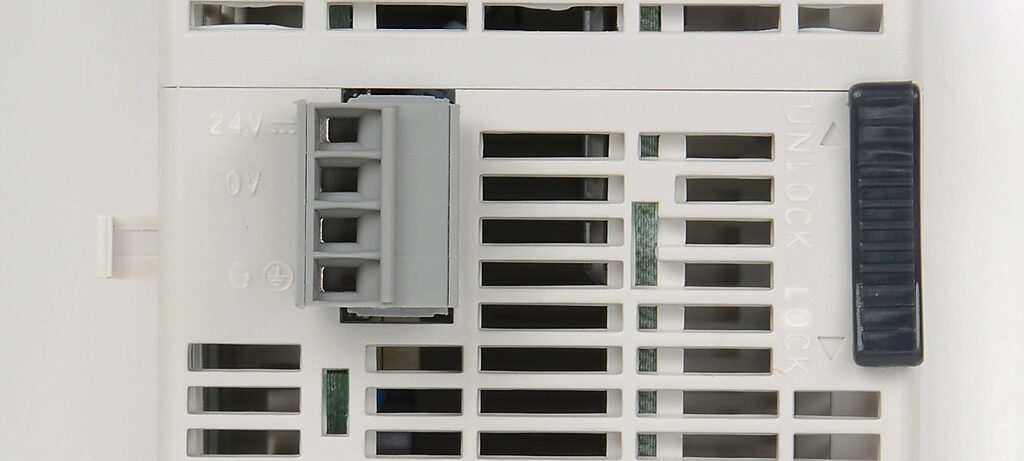

- Removable Terminal Block: Simplifies installation and field wiring.
- CLICK Software Compatibility: Programmed using CLICK software v1.00 or later.
The C0-00DD2-D delivers the reliability and precision required for compact PLC-based machine control and serial communication applications.
