Description

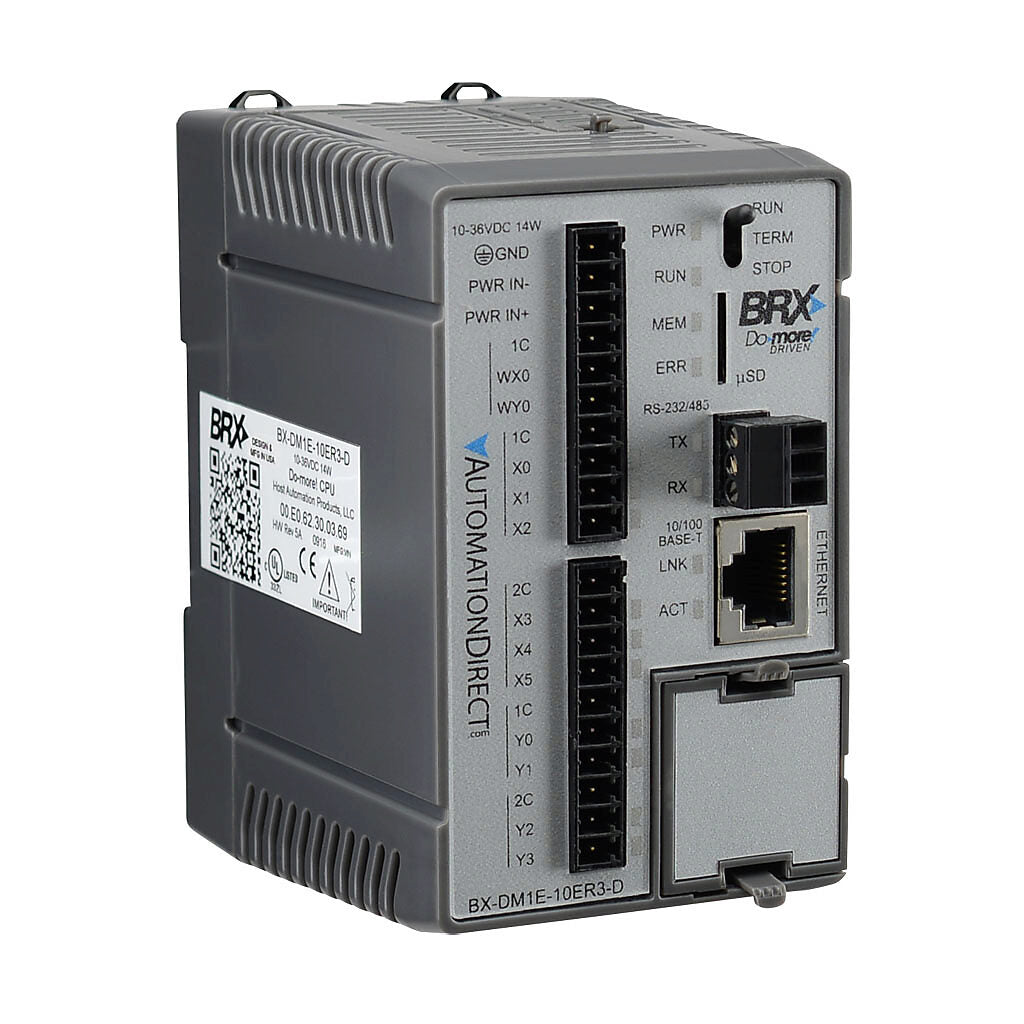

The Automation Direct BX-DM1E-10ER3-D is a compact BRX Do-more PLC micro controller designed for small to mid-scale industrial automation tasks. It integrates a mix of discrete and analog inputs/outputs with Ethernet and serial communications for flexible connectivity in process and machine control. Its robust power, I/O flexibility, and onboard battery backup suit diverse control environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Part Number |
BX-DM1E-10ER3-D |
| Category |
Programmable Logic Controllers |
| Subcategory |
Micro PLCs |
| Power Supply |
12–24 VDC |
| Discrete Inputs |
6-point, AC/DC |
| Discrete Outputs |
4-point, relay |
| Analog Input |
1-channel, current/voltage selectable |
| Analog Output |
1-channel, current/voltage selectable |
| Ethernet Port |
1 × 10/100 Mbps RJ45 |
| Serial Port |
RS-232/RS-485 (software selectable) |
| Memory Backup |
Battery-backed retentive memory |
| Memory Expansion |
microSD card slot |
| Expansion Capability |
Supports additional BRX I/O expansion modules |
| Mounting Type |
DIN rail mount |
| Weight |
Approx. 0.25 kg |
Information About BX-DM1E-10ER3-D
The BX-DM1E-10ER3-D is part of the BRX Do-more 10-point micro PLC series by Automation Direct, offering built-in logic I/O alongside network and field communications. This unit combines 6 discrete inputs, 4 relay outputs and one channel each of software-selectable analog input/output, all powered from 12–24 VDC, making it suitable for mixed signal control applications. The CPU supports a standard 10/100 Mbps Ethernet port and a software-selectable RS-232/RS-485 serial port for integration with industrial networks and devices. A microSD card slot and onboard battery backup enhance data retention and system resilience in industrial settings.
Key Features:
- Brand & Series: BRX Do-more PLC series designed for compact automation control.
- Power Requirements: Operates from standard 12–24 VDC industrial power.
- Discrete I/O: Six discrete input points (AC/DC compatible) for versatile digital sensing.
- Relay Outputs: Four relay outputs (Form A) suitable for switching loads up to industrial levels.
- Analog Channels: One analog input and one analog output supporting current/voltage ranges.
- Communications: Integrated Ethernet (10/100 Mbps) and serial (RS-232/RS-485) ports for networked control.
- Expandability: Supports up to two I/O expansion modules for system scaling.
- Data & Backup: Onboard microSD slot for data logging and battery backup for program retention.
The BX-DM1E-10ER3-D delivers the reliability and precision required for versatile industrial automation and control applications.
