Description

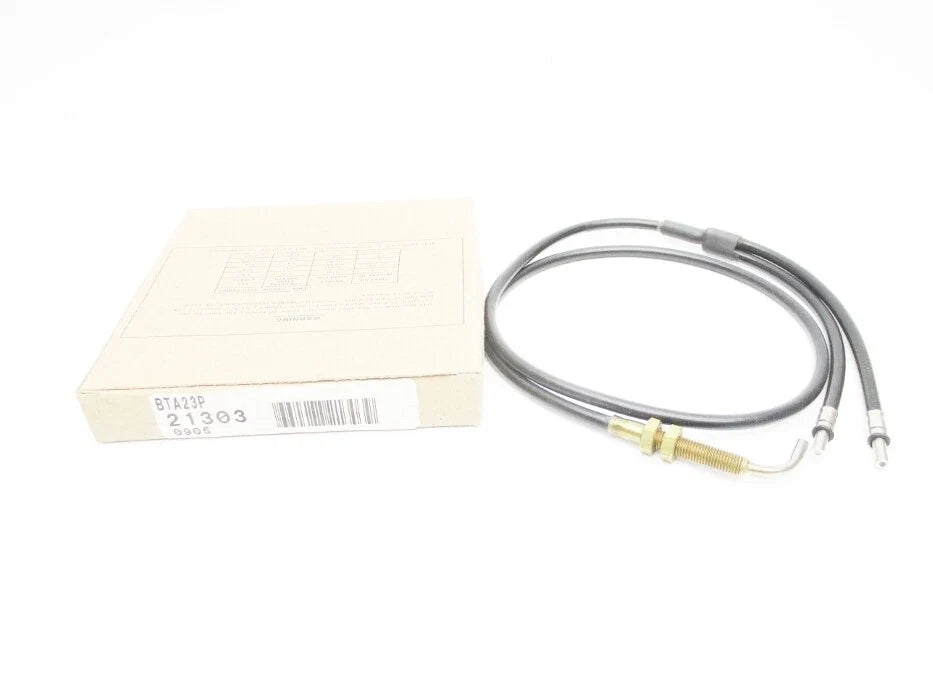

The Banner Engineering BTA23P is a fiber optic cable assembly designed for use with BTA2 Series fiber optic sensor amplifiers in opposed sensing configurations. It features a 36-inch length and a 0.125-inch diameter fiber bundle to support reliable light transmission over distances up to 2 meters. With a PVC sheath and threaded, angled sensing tip, it provides durable and flexible installation in industrial environments.

Technical Specifications

Information About BTA23P

The BTA23P is a fiber optic accessory engineered for compatibility with Banner Engineering BTA2 Series amplifiers in opposed-mode sensing applications. It incorporates a ferrule-style termination to ensure proper alignment and secure connection with the amplifier interface. The cable features a 0.125-inch fiber bundle diameter and a PVC protective sheath, offering mechanical flexibility and environmental resistance. Its threaded and angled sensing tip design allows precise mounting in machinery or brackets where directional beam alignment is required.

Key Features:

• BTA2 Series Compatibility: Designed specifically for use with Banner BTA2 fiber optic amplifiers.
• Opposed Sensing Configuration: Supports emitter/receiver applications for through-beam detection.
• 36 in (0.914 m) Length: Provides flexible routing in control panels and machinery.
• 0.125 in Fiber Bundle Diameter: Ensures consistent light transmission performance.
• PVC Protective Sheath: Offers durability and abrasion resistance.

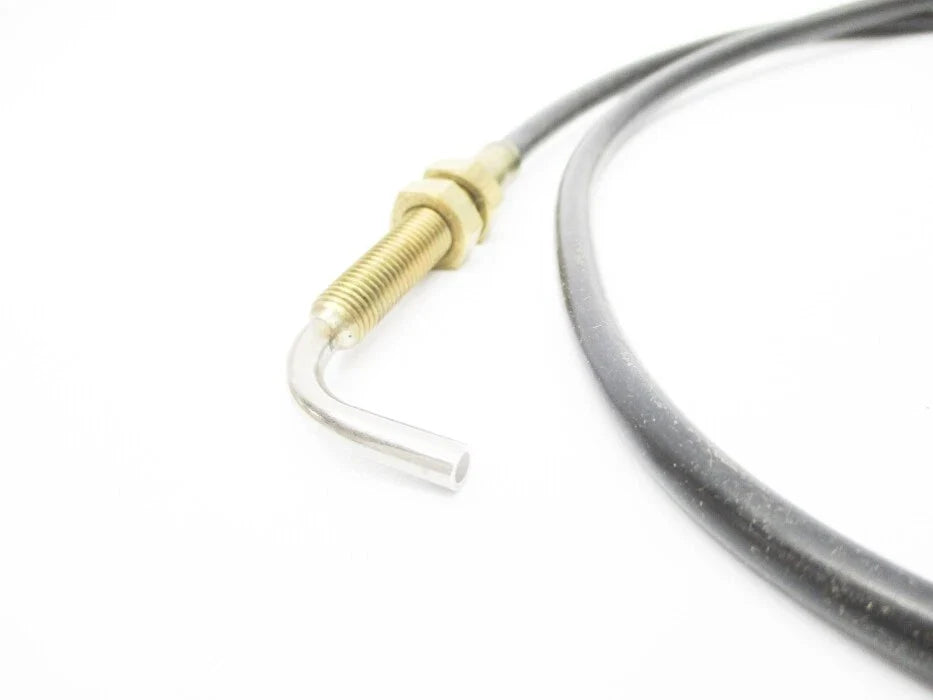

• Threaded & Angled Sensing Tip: Enables secure installation and directional beam positioning.

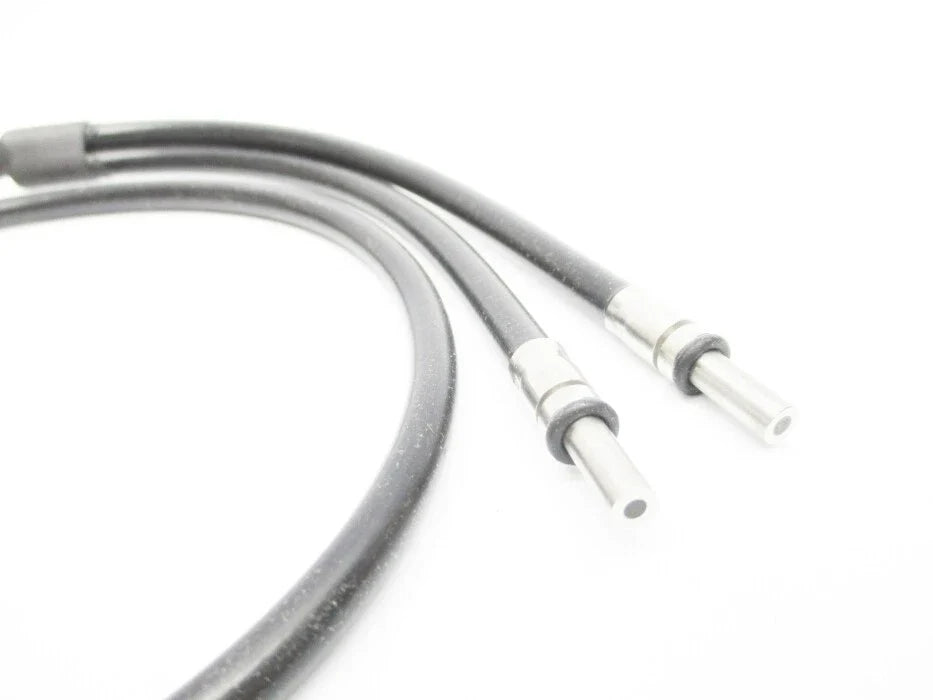

• Ferrule Termination: Ensures reliable connection to compatible sensor amplifiers.

The BTA23P delivers the reliability and precision required for opposed-mode fiber-optic sensing in industrial automation systems.
