Description

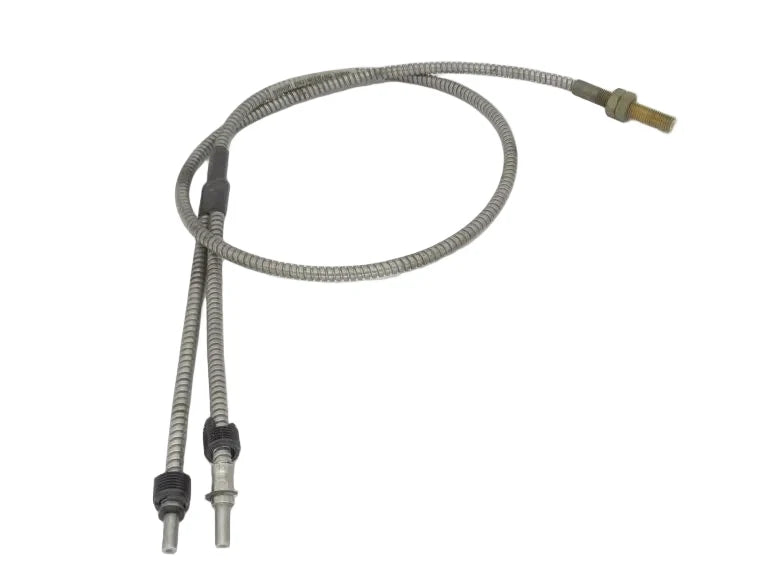

The Banner Engineering BT23SM600 is a high-temperature glass fiber optic assembly designed for diffuse (reflective) sensing applications in demanding industrial environments. Featuring a 3.2 mm fiber bundle diameter and stainless steel monocoil sheathing, it provides durable light transmission for use with compatible fiber optic amplifiers. Its threaded brass sensing tip and 2-meter length enable secure mounting and reliable operation in elevated temperature conditions up to 315°C at the sensing end.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors |
| Part Number |
BT23SM600 |
| Subcategory |
Fiber Optic Cables |
| Fiber Optic Type |
Glass |
| Sensing Mode |
Diffuse (Reflective) |
| Fiber Configuration |
Bifurcated Assembly |
| Fiber Length |
2 m |
| Core Diameter |
3.2 mm |
| Sensing End Tip |
Threaded |
| Sensing End Size |
#5/16-24 Thread |
| Sensing End Material |
Brass |
| Sheathing Material |
Stainless Steel Monocoil |
| Beam Exit |
In-line |
| Minimum Bend Radius |
25 mm |
| Termination |
Terminated |
| Maximum Temperature |
315°C (Sensing End) |
| Housing Style |
Round |
| Weight |
Approx. 0.4 kg |
Information About BT23SM600
The BT23SM600 is a bifurcated glass fiber optic cable engineered for reflective sensing configurations in industrial automation systems. Constructed with a stainless steel monocoil jacket, it offers mechanical protection and resistance to heat in harsh operating environments. The sensing end features a threaded brass tip (#5/16-24 thread) for stable installation in brackets or machine housings. Designed for use with compatible fiber optic sensor amplifiers, this assembly supports high-temperature applications where standard polymer fibers would not be suitable.
Key Features:
- Glass Fiber Construction: Ensures reliable light transmission and durability in industrial settings.
- High-Temperature Rating: Sensing end withstands temperatures up to 315°C.
- Diffuse (Reflective) Sensing Mode: Suitable for non-contact object detection applications.
- Stainless Steel Monocoil Sheathing: Provides mechanical protection and thermal resistance.
- Threaded Brass Sensing Tip (#5/16-24): Enables secure and precise mounting.
- 3.2 mm Fiber Bundle Diameter: Supports stable signal transmission with compatible amplifiers.
- Bifurcated Fiber Assembly: Designed for paired transmit/receive light paths.
- 2 m Cable Length: Allows flexible installation in machinery and control setups.
The BT23SM600 delivers the reliability and precision required for high-temperature fiber-optic sensing in industrial automation environments.
