[properties]
| Product Name |
Broadcom 9500-16I Tri-Mode Storage Adapter |
|
| Product Description |
High-port PCIe Gen4 HBA storage adapter with 16 internal ports, designed to enhance connectivity and performance in enterprise data centers. |
| Interface |
PCI Express Gen4 |
SATA 6 Gbps |
| Port Configuration |
16 internal ports |
|
| Supported Devices |
Connects up to 1024 SAS/SATA devices or 32 NVMe devices |
|
| Connector Type |
2x 8 SFF-8654 connectors |
|
| Compatibility |
Universal Bay Management (UBM) ready |
|
| Performance Features |
Enhanced bandwidth and IOPS performance for high-demand applications |
|
| Intended Application |
Ideal for enterprise data centers and critical applications requiring high performance and scalability |
[/properties]
[specifications]
| Interface Type |
PCIe Gen4 |
| Internal Ports |
16 |
| Connector Type |
2x 8 SFF-8654 |
| Device Compatibility |
Supports SAS, SATA, and NVMe devices |
| Maximum Device Support |
Up to 1024 SAS/SATA or 32 NVMe devices |
| Compatibility Feature |
Universal Bay Management (UBM) ready |
| Performance Benefits |
Optimized for high bandwidth and IOPS in enterprise environments |
| Ideal for |
Enterprise data centers and critical applications |
[/specifications]

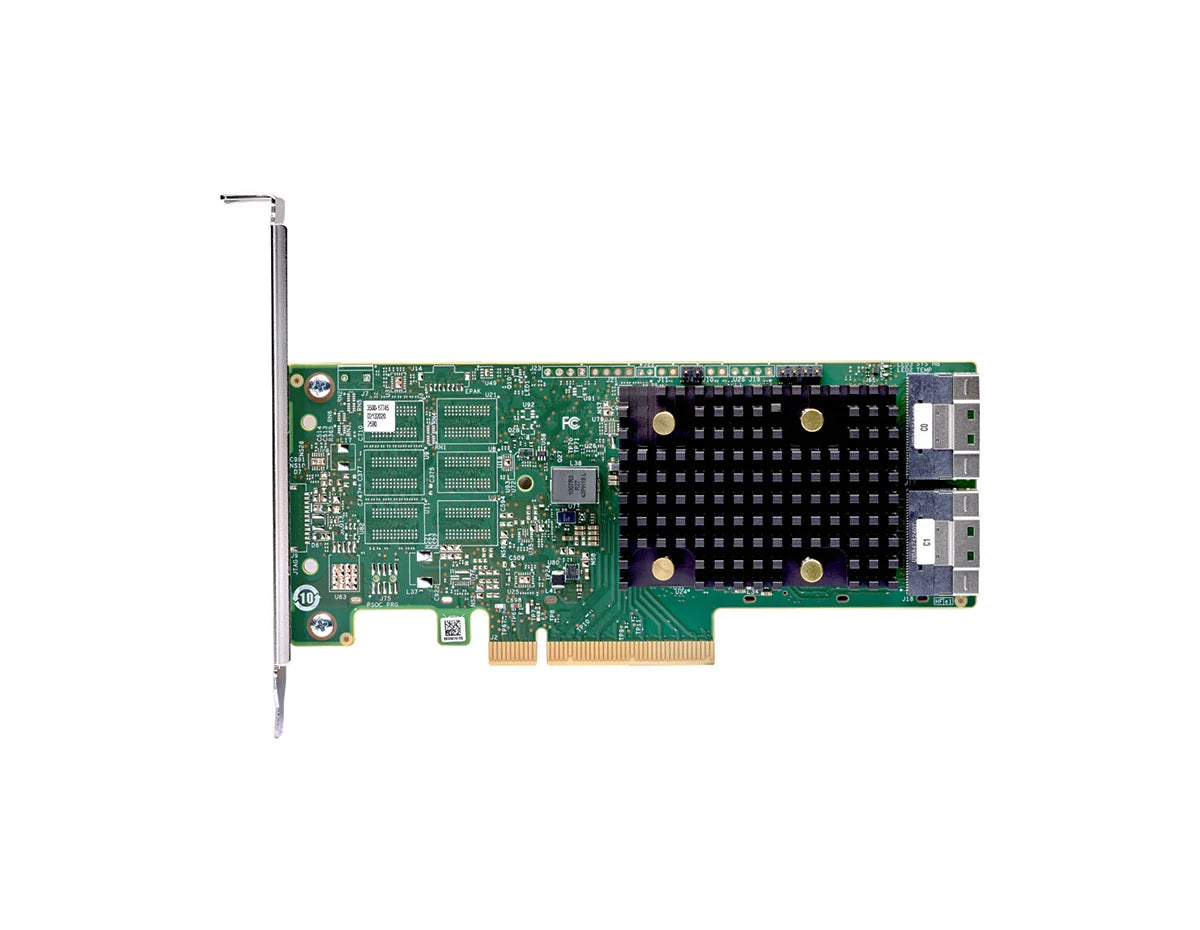

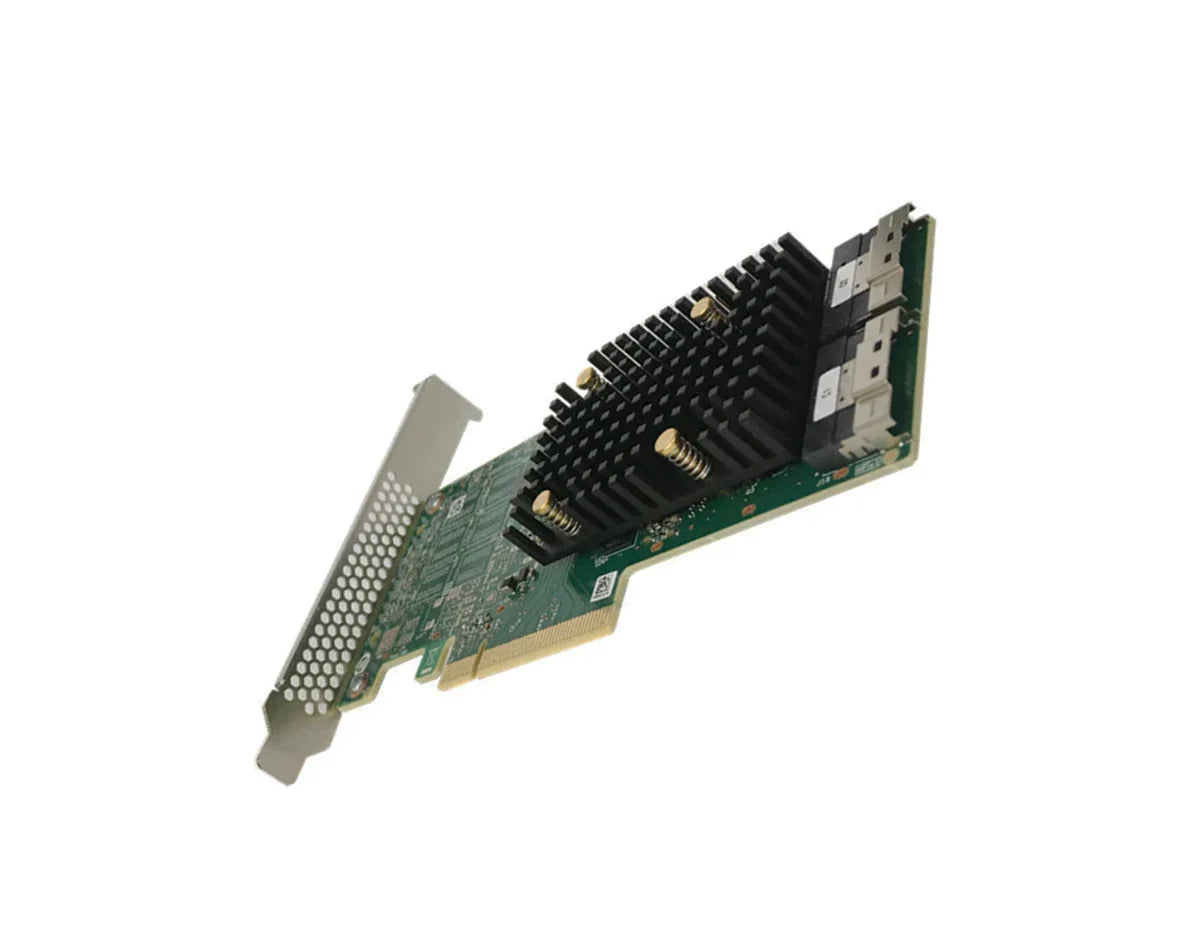

Broadcom 9500-16I Tri-Mode Storage Adapter
The high-port 9500-16i Tri-Mode, PCIe Gen4 HBA is well-suited for enhancing connectivity and optimizing performance in enterprise data centers. Compared to its predecessors, this adapter offers improved bandwidth and IOPS performance, making it a suitable choice for critical applications that demand high performance and scalability. Equipped with 16 internal ports and 2 x8 SFF-8654 connectors, the 9500-16i is particularly beneficial for businesses seeking resilient storage solutions.
Quick Specs:
- 16 internal ports
- Connects up to 1024 SAS/SATA devices or 32NVMe devices
- Universal Bay Management (UBM) ready
- Connectors: 2x 8 SFF-8654
Please see the related tabs for the 9500-16i datasheet and compatible accessories.
