Description

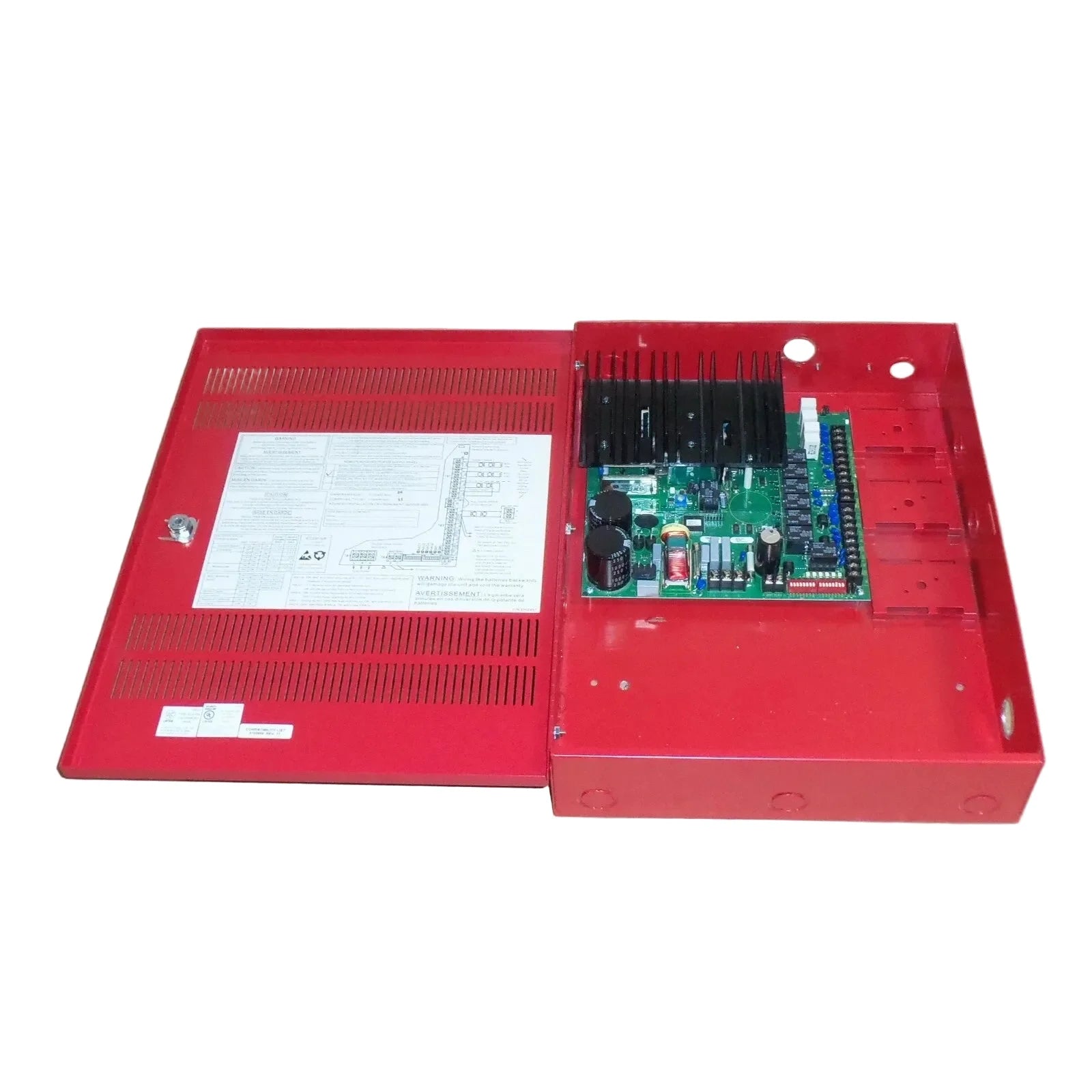

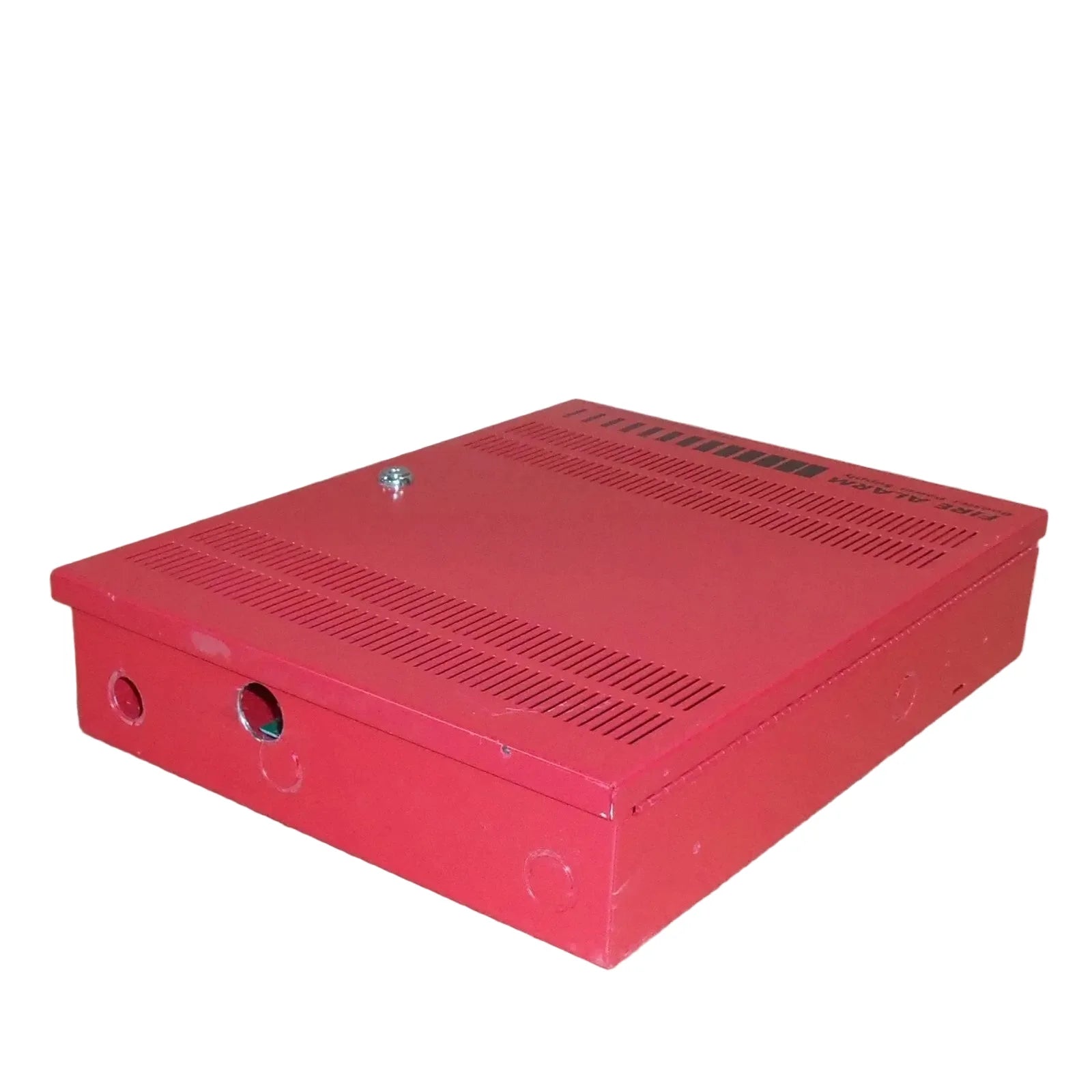

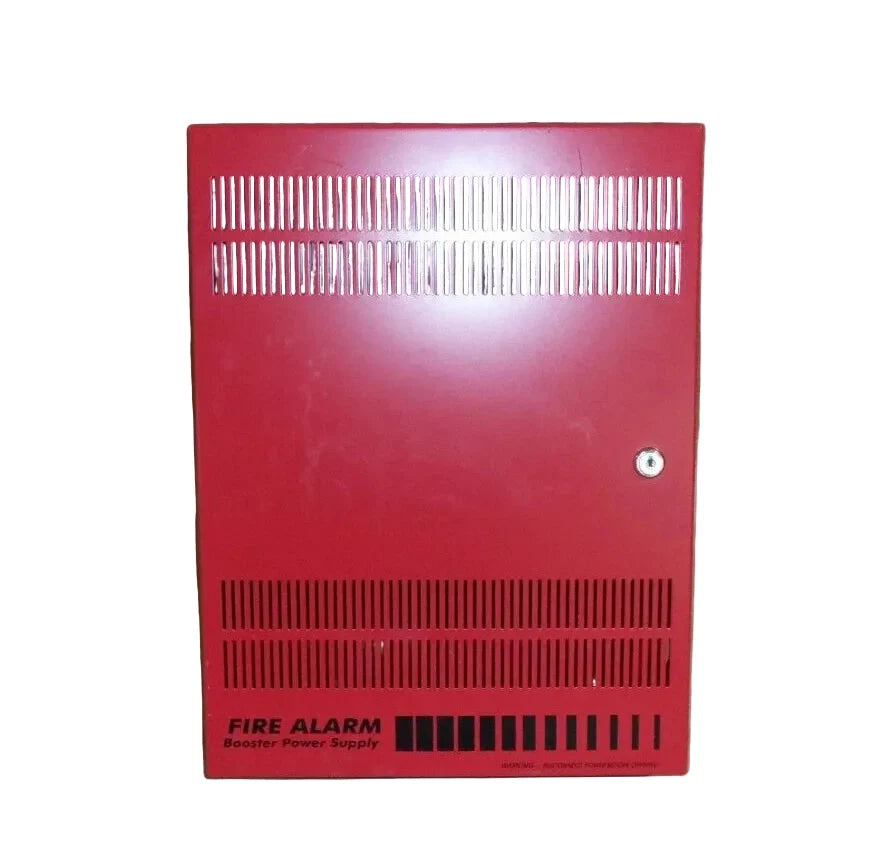

The Edwards Signaling BPS10A Booster Power Supply is a UL 864, 10th Edition listed unit designed to provide 24 VDC filtered and regulated power for fire alarm, security, and emergency communication systems. With a 10-amp capacity, it extends system signaling capability by supporting additional NACs or auxiliary power circuits. Its durable steel cabinet and built-in battery charging system make it a reliable choice for life safety applications.
Technical Specifications
| Condition |
New |
| Brand |
Edwards Signaling |
| Part Number |
BPS10A |
| Subcategory |
Booster Power Supplies |
| Series |
EST3 Multiplexed Fire Alarm System |
| Product Type |
Booster Power Supply |
| Voltage Output |
24 VDC filtered and regulated |
| Output Capacity |
10 Amps |
| NAC Circuits |
4 Class B (convertible to 2 Class A) |
| Circuit Capacity |
3A per circuit (not exceeding unit rating) |
| Synchronization |
Genesis and Enhanced Integrity appliances |
| Input Power Options |
110 VAC or 230 VAC |
| Battery Support |
Up to 2 × 10 Ah batteries |
| Cabinet Type |
Lockable steel enclosure, removable door |
| Diagnostic Features |
Onboard LEDs for fault and wiring issues |
| Wire Size Supported |
18–12 AWG |
| Protection |
Self-restoring overcurrent protection |
| Dimensions |
14.5 × 18.3 × 5.2 in |
| Color |
Red |
| Weight |
13 lbs |
Information About BPS10A
The BPS10A is part of the EST3 Multiplexed Fire Alarm System series, built to deliver dependable auxiliary and NAC power to a wide range of safety and security applications. It includes four Class B notification appliance circuits, which can be converted to two Class A circuits and activated in groups for flexible configuration. The unit supports synchronization of Genesis and Enhanced Integrity notification appliances while providing advanced diagnostics through onboard LEDs. With a lockable steel cabinet, dual battery charging capability, and compatibility with both 110V and 230V AC models, the BPS10A ensures easy integration and reliable performance in critical installations.
Key Features:
- UL 864, 10th Edition Listed: Certified for compliance with modern fire protection standards.
- 10-Amp Power Capacity: Provides regulated 24 VDC power for NACs and auxiliary loads.
- Flexible NAC Configuration: Four Class B circuits convertible to two Class A circuits.
- Genesis Appliance Synchronization: Ensures compatibility with Genesis and Enhanced Integrity devices.
- Built-in Battery Charging: Monitors and charges internal or external batteries up to 10 Ah.
- Durable Steel Enclosure: Standard Edwards keyed, lockable cabinet with removable door.
- Diagnostic LEDs: Simplifies troubleshooting by identifying wiring or internal faults.
- Optional Enhancements: Supports tamper switch and OSHPD seismic pre-approval.
The BPS10A delivers the reliability and precision required for expanding and powering modern fire alarm and life safety systems.
