Description

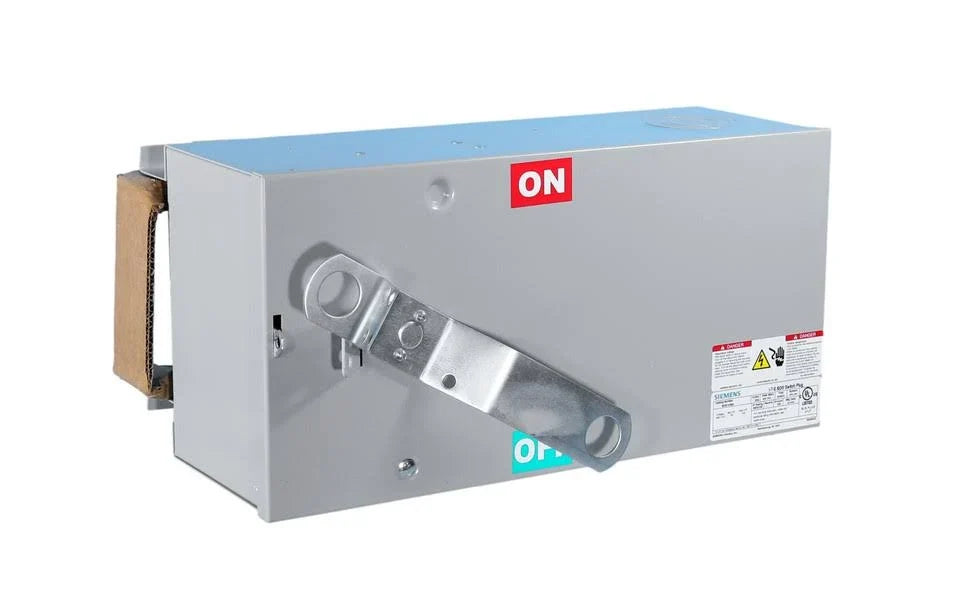

The Siemens BOS14354 is a Vacu-Break fusible switch plug designed for high-capacity power distribution in industrial electrical systems. Rated at 200 A and 600 V, this Type BD bus plug supports three-phase operation and provides reliable circuit isolation and protection. It is engineered for use with ITE Bull Dog busway systems in demanding commercial and industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
Electrical Power Distribution |
| Part Number |
BOS14354 |
| Subcategory |
Busway Switch Plugs |
| Product Type |
Vacu-Break Fusible Switch Plug |
| Series / Type |
I.T.E. Type BD |
| Current Rating |
200 A |
| Voltage Rating |
600 V |
| Phase Configuration |
3-phase |
| Number of Poles |
3 |
| Number of Wires |
3 |
| Interrupt Rating |
65 kA |
| Enclosure Rating |
IP40 |
| Operation Method |
Floor-operable |
| Fusing Type |
Fusible |
| Maximum Motor Rating |
150 HP |
| Country of Origin |
Mexico |
| Weight |
Approx. 18 kg |
Information About BOS14354
The BOS14354 is part of the Siemens I.T.E. Type BD Vacu-Break switch plug family, developed for safe power tap-off and load switching on busway installations. It is a fusible design, allowing overcurrent protection through properly rated fuses while maintaining high interrupting capacity. The unit supports floor-operable switching, enabling safe operation without direct access to energized components. Its rugged construction and standardized interface ensure compatibility with ITE Bull Dog busway systems and long-term reliability in power distribution applications.
Key Features:
- Vacu-Break Switch Plug Design: Provides safe load switching and circuit isolation under industrial conditions.
- 200 Amp Current Rating: Supports high-load power distribution for machinery and equipment.
- 600 Volt Operation: Suitable for medium-voltage industrial and commercial power systems.
- Three-Phase Configuration: Designed for 3-phase, 3-pole, 3-wire electrical systems.
- Fusible Protection: Accepts fuses for overcurrent and short-circuit protection.
- High Interrupt Rating: Rated up to 65 kA for robust fault handling capability.
- Floor-Operable Mechanism: Enables safe switching operation from floor level.
- Type BD Compatibility: Designed for use with ITE Bull Dog busway systems.
- IP40 Enclosure Rating: Provides protection against solid objects in indoor installations.
- Heavy-Duty Industrial Build: Engineered for continuous service in demanding environments.
The BOS14354 delivers the reliability and protection required for industrial busway power distribution, load switching, and electrical system safety.
