Description

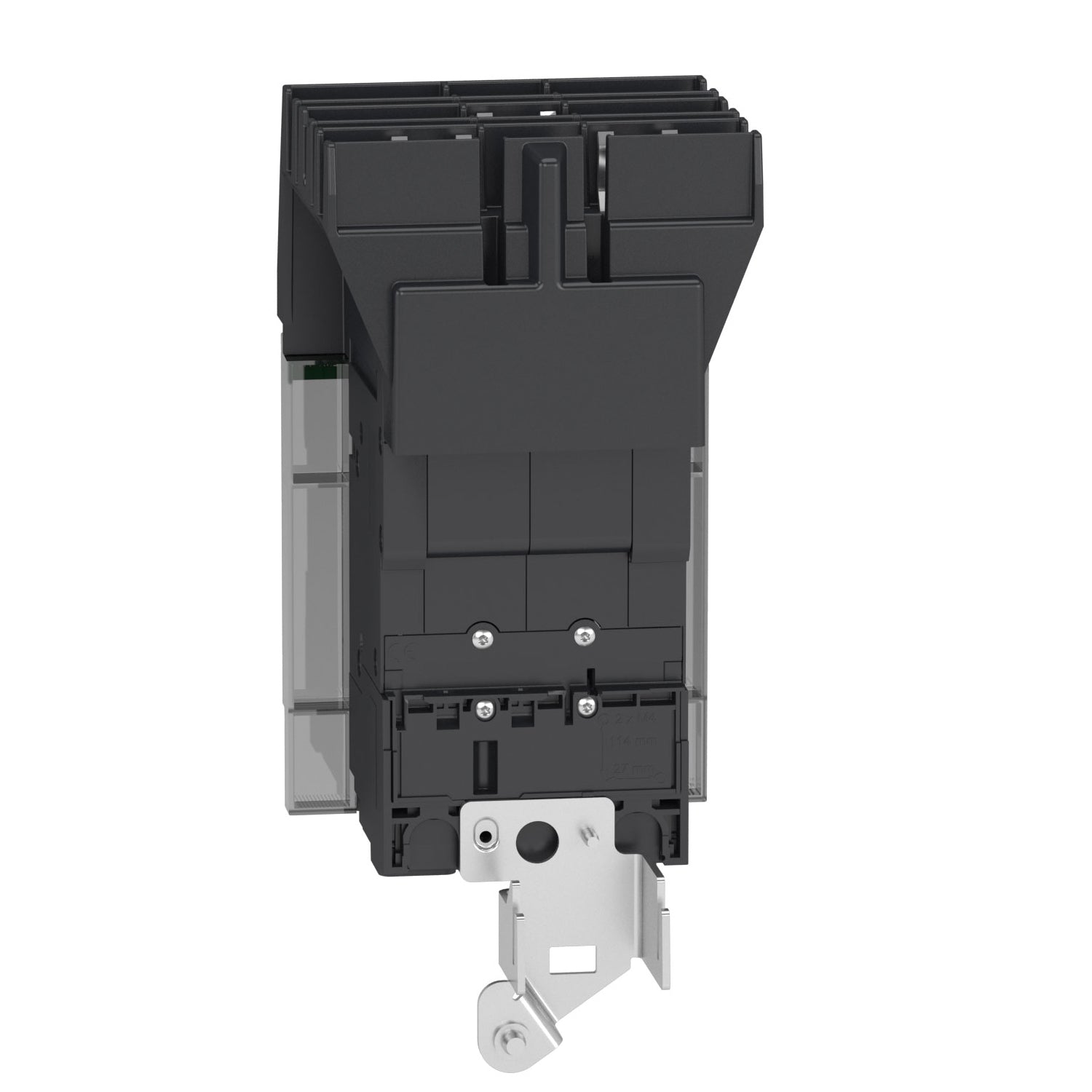

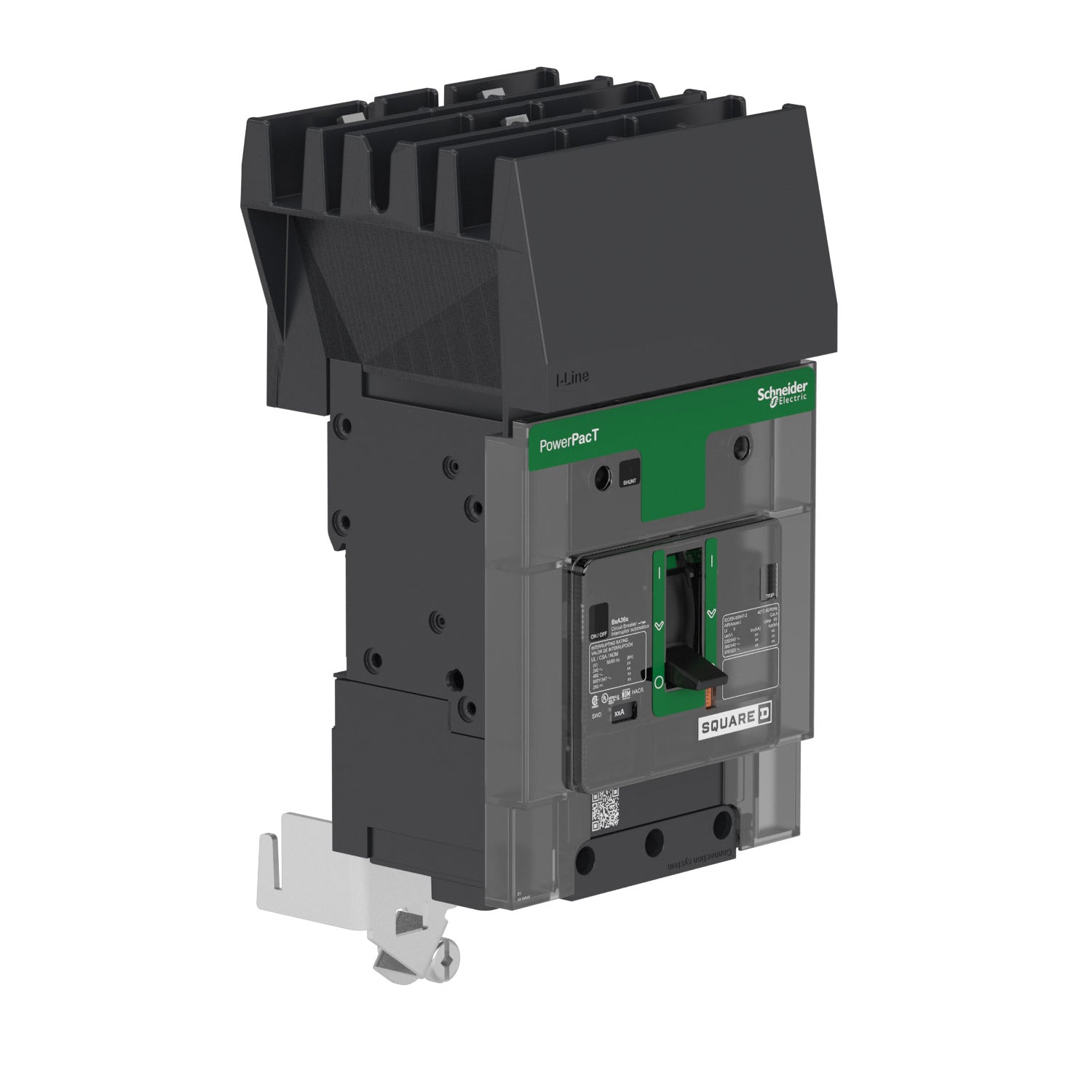

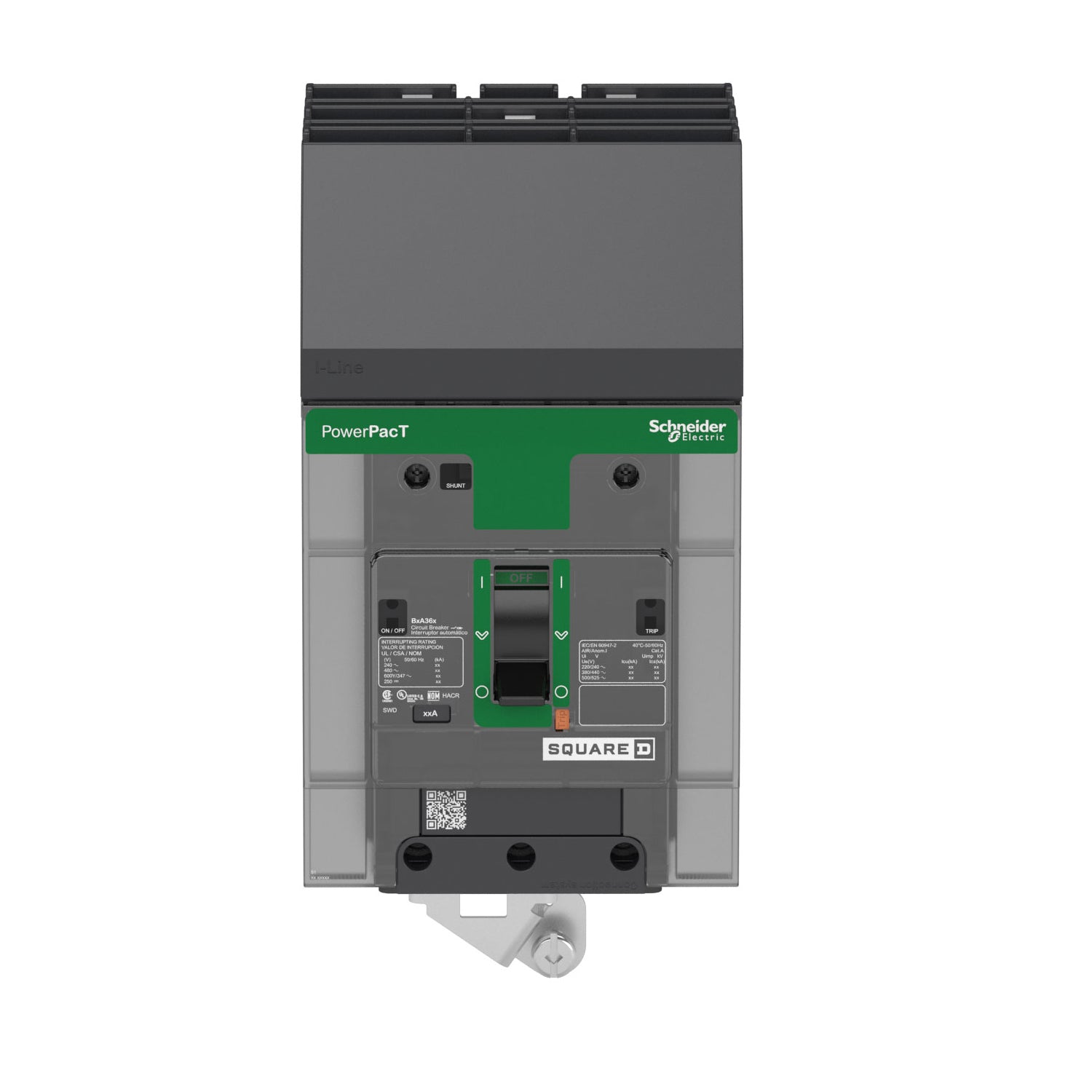

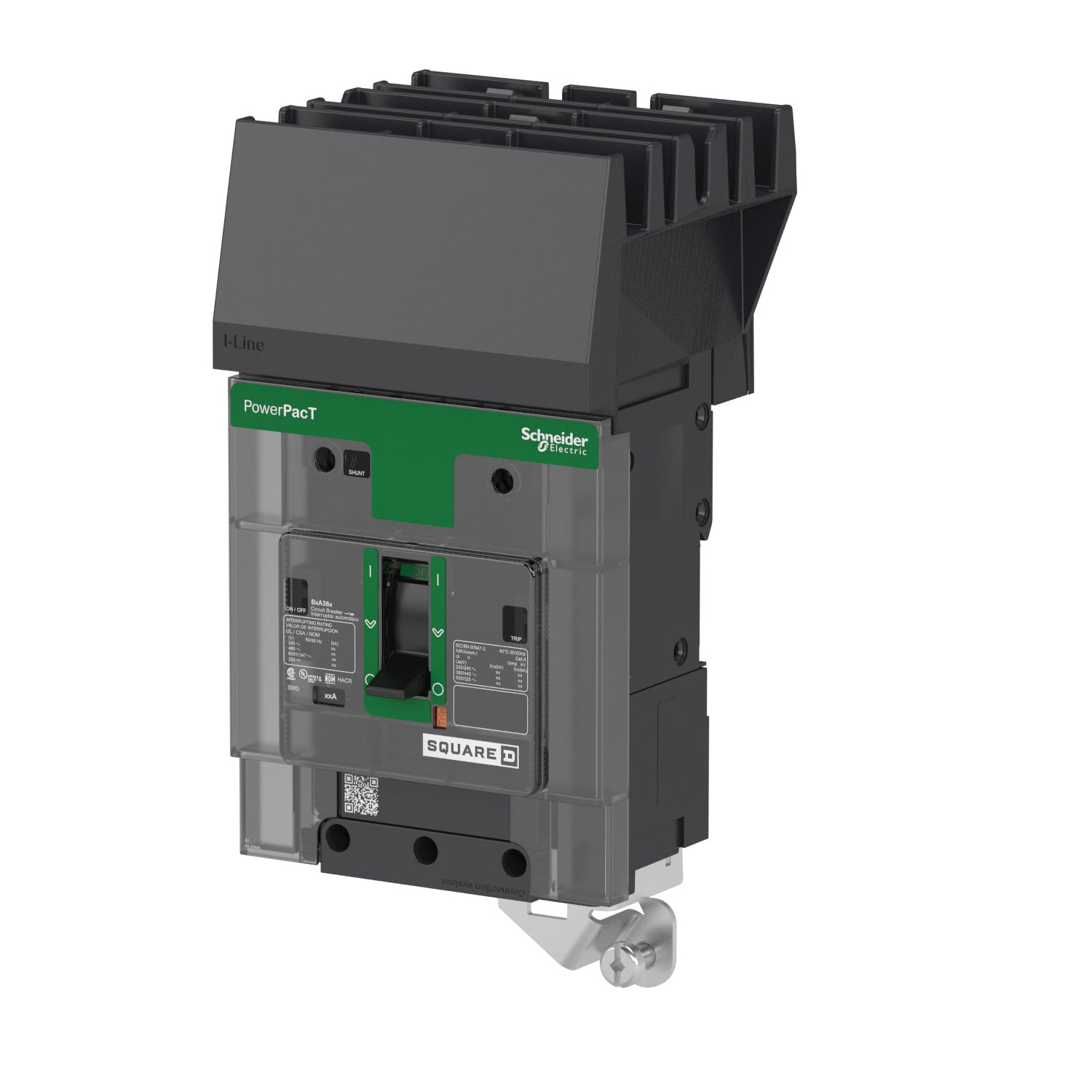

The Schneider Electric BJA36050 is a molded case circuit breaker designed to provide reliable overload and short-circuit protection in low-voltage power distribution systems. It is commonly used to protect feeders and branch circuits in commercial, industrial, and institutional installations. This breaker delivers dependable interruption performance for three-phase electrical applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
Circuit Breakers |
| Part Number |
BJA36050 |
| Subcategory |
Molded Case Circuit Breakers |
| Series |
Square D BJA |
| Rated Current |
50 A |
| Number of Poles |
3 |
| Rated Voltage |
Up to 600 V AC |
| Trip Unit Type |
Thermal-magnetic |
| Mounting Type |
Bolt-on |
| Interrupting Rating |
High interrupting capacity (UL rated) |
| Frequency |
50/60 Hz |
| Application |
Branch and feeder circuit protection |
| Standards Compliance |
UL, CSA |
| Weight |
5.0 lb |
Information About BJA36050
The BJA36050 is part of Schneider Electric’s Square D BJA series of molded case circuit breakers, engineered for compact size and consistent protection performance. It features a durable molded case housing with a thermal-magnetic trip mechanism that responds accurately to both overload and fault conditions. The breaker is compatible with standard Square D mounting arrangements, allowing integration into panelboards and switchboards. Designed for low-voltage AC systems, it meets applicable UL and CSA standards for electrical safety and reliability.
Key Features:
- Square D BJA Series Breaker: Designed for dependable branch and feeder circuit protection.
- Thermal-Magnetic Trip Unit: Provides reliable response to overloads and short-circuit events.
- 50 A Current Rating: Suitable for medium-duty electrical distribution applications.
- 3-Pole Configuration: Protects three-phase power circuits simultaneously.
- Compact Molded Case: Saves panel space while maintaining robust protection capability.
- High Interrupting Capacity: Safely interrupts fault currents in low-voltage systems.
- Standards Compliance: Manufactured to meet UL and CSA requirements.
The BJA36050 delivers the reliability and precision required for effective circuit protection in commercial and industrial electrical distribution systems.
