Description

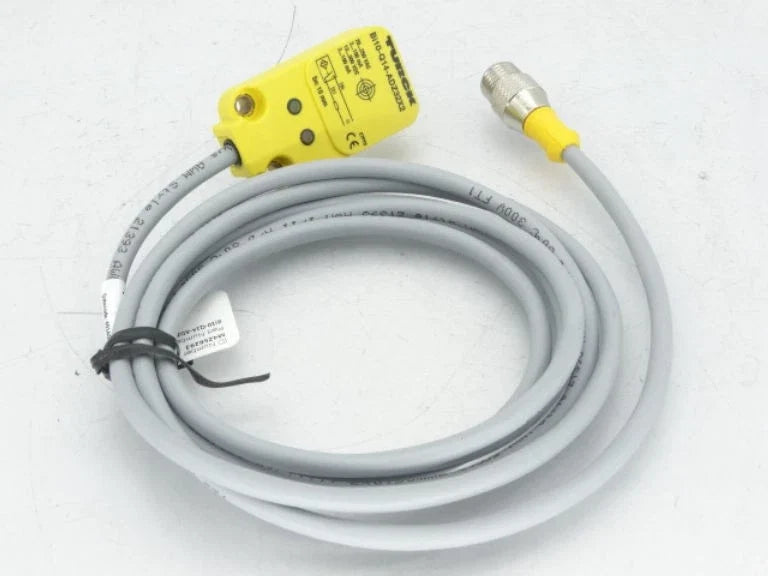

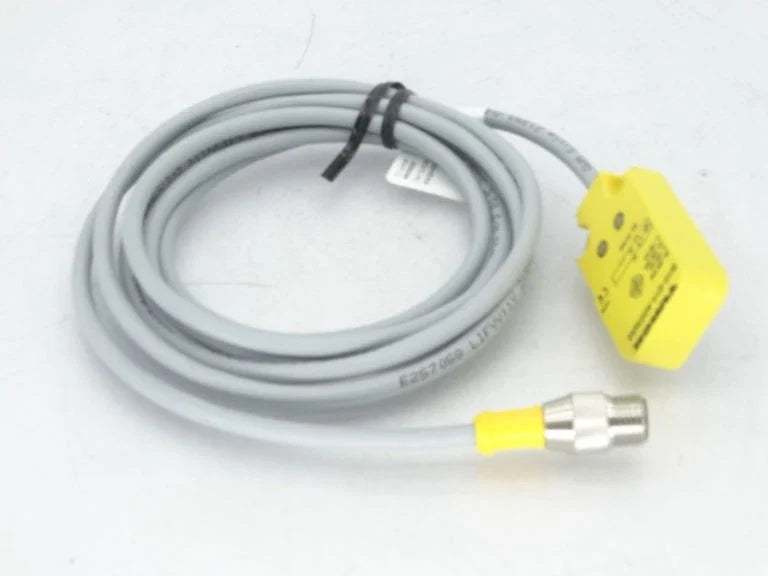

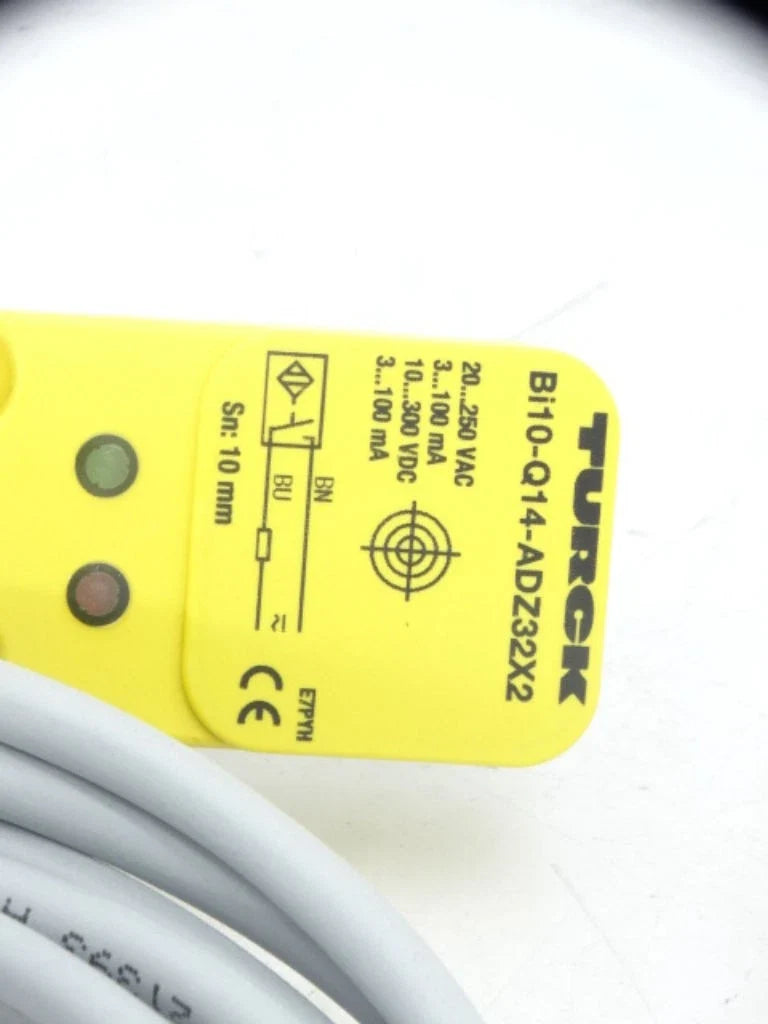

The Turck BI10-Q14-ADZ32X2-2-SB3T is an inductive proximity sensor designed for reliable non-contact detection of metal objects in industrial automation systems. It provides a defined sensing distance with stable switching performance in demanding environments. This sensor is commonly used for position detection, presence monitoring, and machine control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Turck |
| Category |
Industrial Sensors |
| Part Number |
BI10-Q14-ADZ32X2-2-SB3T |
| Subcategory |
Inductive Proximity Sensor |
| Sensing Distance |
10 mm |
| Sensor Type |
Inductive |
| Housing Style |
Rectangular Q14 |
| Housing Material |
Plastic |
| Output Type |
Transistor |
| Output Function |
Normally open |
| Supply Voltage |
10–30 V DC |
| Switching Frequency |
Up to 1 kHz |
| Electrical Connection |
Cable |
| Protection Class |
IP67 |
| Operating Temperature |
−25 °C to +70 °C |
| Mounting Type |
Flush mounting |
| Weight |
0.13 lbs |
Information About BI10-Q14-ADZ32X2-2-SB3T
The BI10-Q14-ADZ32X2-2-SB3T is part of Turck’s BI series of inductive proximity sensors engineered for robust industrial use. It features a compact rectangular housing made from durable plastic, allowing flexible mounting in confined machine spaces. The sensor is designed to operate with DC supply voltage and provides a transistor switching output compatible with standard PLC inputs. Its inductive sensing technology ensures wear-free operation and long service life in automation and material handling applications.
Key Features:
- Inductive Sensing Technology: Detects metallic objects without physical contact for wear-free operation.
- 10 mm Sensing Distance: Provides reliable detection at a defined nominal switching distance.
- DC 3-Wire Operation: Supports standard industrial power and control wiring.
- Transistor Switching Output: Ensures fast and stable signal transmission to control systems.
- Rectangular Q14 Housing: Allows space-saving installation in machinery and automation equipment.
- High Switching Frequency: Suitable for dynamic applications with frequent object detection.
- Industrial Protection Rating: Designed for reliable operation in harsh industrial environments.
The BI10-Q14-ADZ32X2-2-SB3T delivers the reliability and precision required for accurate metal object detection in industrial automation applications.
