Description

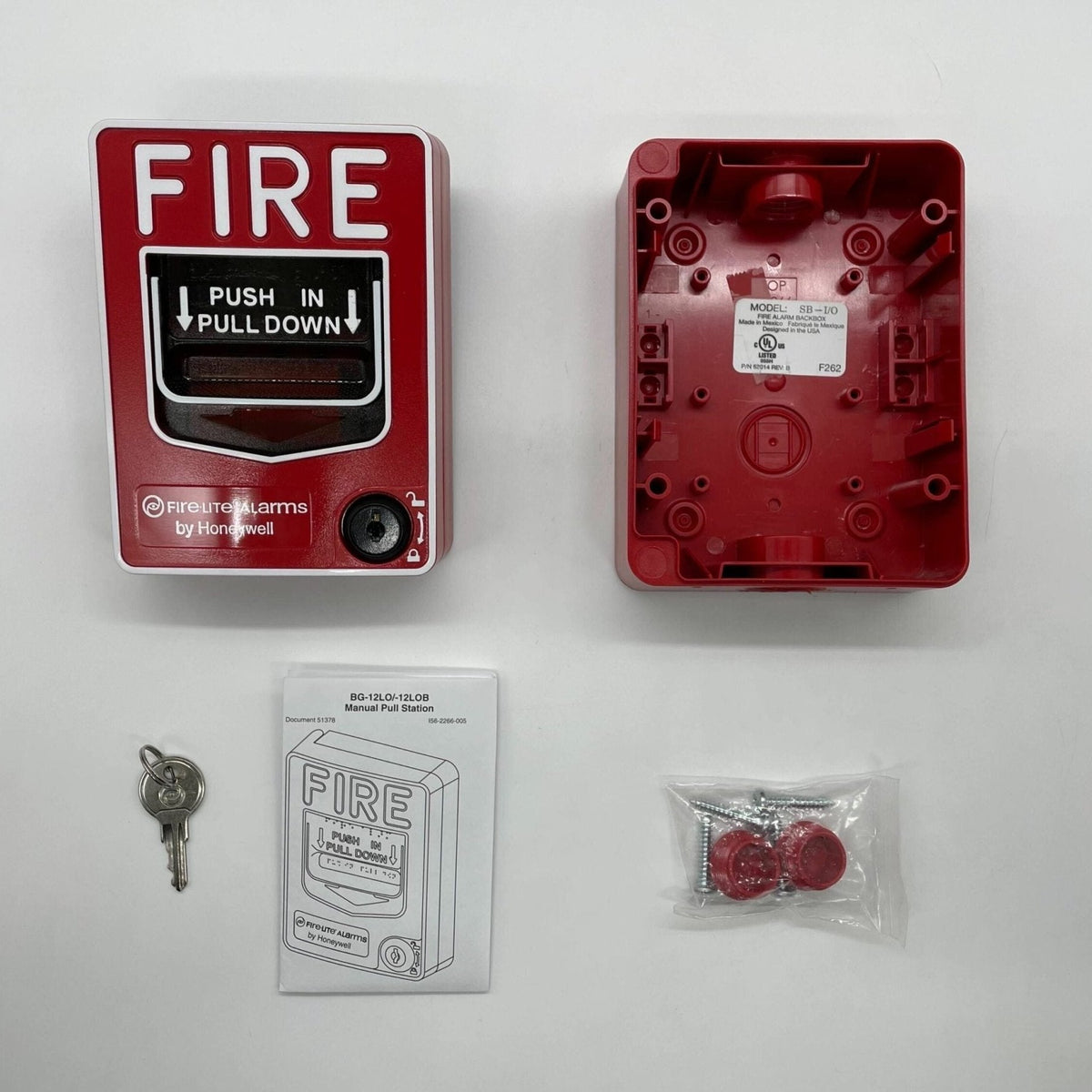

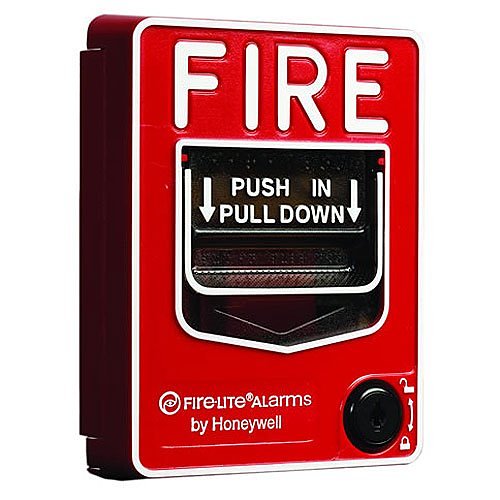

The Fire-Lite BG-12LOB is a single-action manual pull station designed for reliable outdoor fire alarm activation. Manufactured by Honeywell, this unit features a weather-resistant housing and a secure key-lock reset. Its durable construction makes it ideal for exposed environments where consistent performance is critical.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Fire-Lite |
| Category |
Fire Detection |
| Part Number |
BG-12LOB |
| Subcategory |
Manual Pull Stations |
| Series |
BG-12 Series |
| Operation Type |
Single-action (Pull Down) |
| Reset Mechanism |
Key-lock reset |
| Electrical Input |
Normally open (N/O) initiating input |
| Accessibility |
ADA compliant, ≤5 lb. pull force, Braille markings |
| Visual Indicators |
Handle latches down; “ACTIVATED” text displayed |
| Material |
Rugged die-cast housing |
| Mounting |
Compatible with UL-listed outdoor backbox |
| Listings & Approvals |
UL, ULC, FM, CSFM, MEA |
| Application |
Outdoor fire alarm activation |
| Production Status |
Active |
| Dimensions |
7 × 7 × 6 in |
| Manufacturer |
Honeywell |
| Weight |
2 lbs |
Information About BG-12LOB
The BG-12LOB is part of the Fire-Lite BG-12 series, built with rugged die-cast materials to endure harsh outdoor conditions. It provides a normally open initiating input to Fire-Lite control panels, ensuring seamless integration into existing fire protection systems. The device complies with ADA requirements, offering a maximum 5 lb. pull force and molded Braille labeling for accessibility. With its key-lock reset feature and weatherproof backbox, the BG-12LOB is engineered for long-term use in outdoor facilities such as campuses, loading docks, and parking structures.
Key Features
- Outdoor-Ready Construction: Equipped with a weatherproof backplate and outdoor backbox for reliable use in exposed environments.
- Single-Action Operation: Simple pull-down activation ensures fast response during emergencies.
- Key Reset Mechanism: Secure reset with a key lock for controlled system restoration after activation.
- High Visibility Design: Bright red housing with large “FIRE” marking for easy identification.
- ADA Compliant: Meets the 5 lb. maximum pull-force requirement and includes Braille text for accessibility.
- Tamper-Resistant Build: Rugged die-cast metal construction withstands impacts and tampering.
- Integrated Indicators: Handle latches in down position and displays “ACTIVATED” in yellow for clear status indication.
- Multiple Approvals: UL, ULC, FM, CSFM, and MEA listings for regulatory compliance.
The BG-12LOB delivers the reliability and precision required for dependable manual fire alarm activation in outdoor applications.
