Description

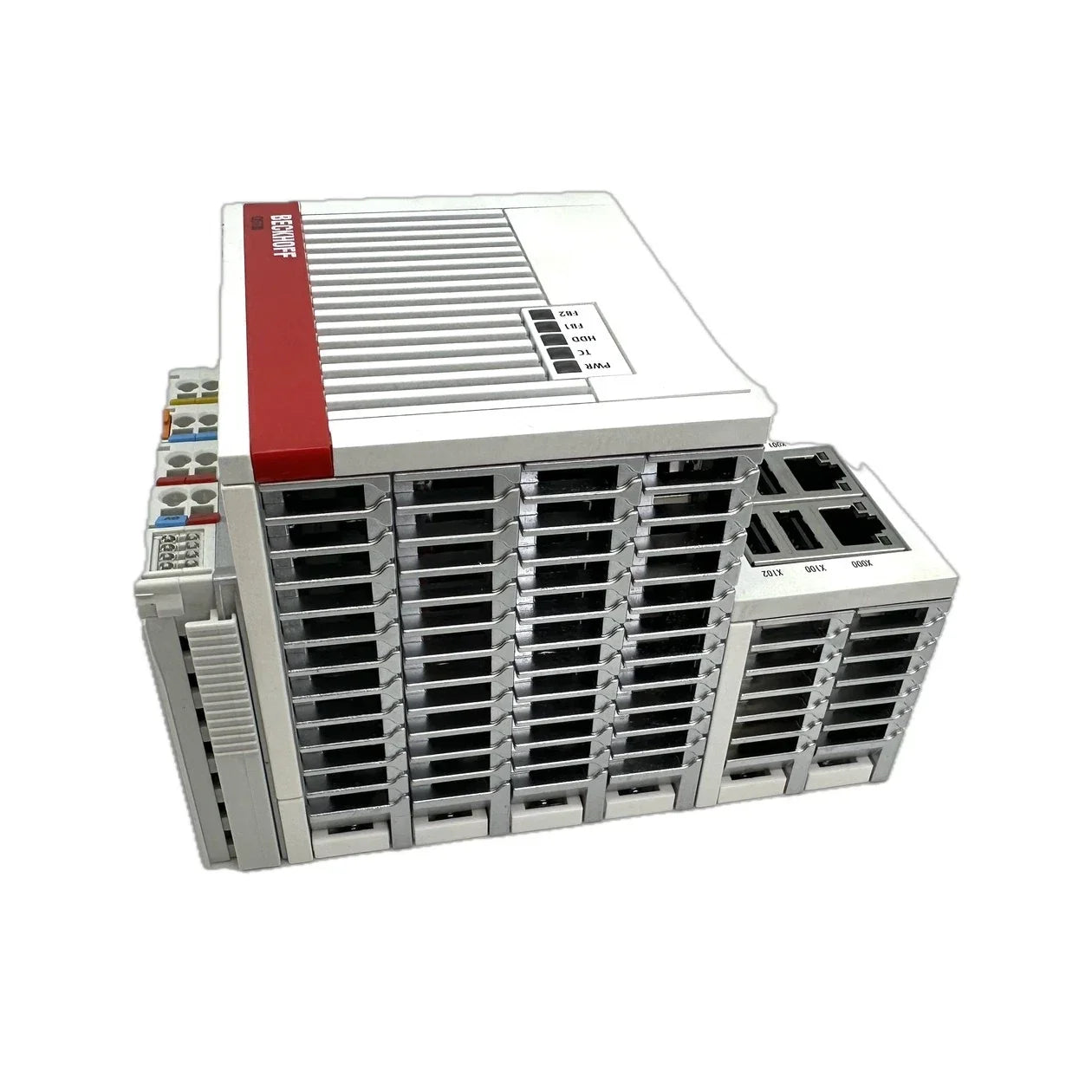

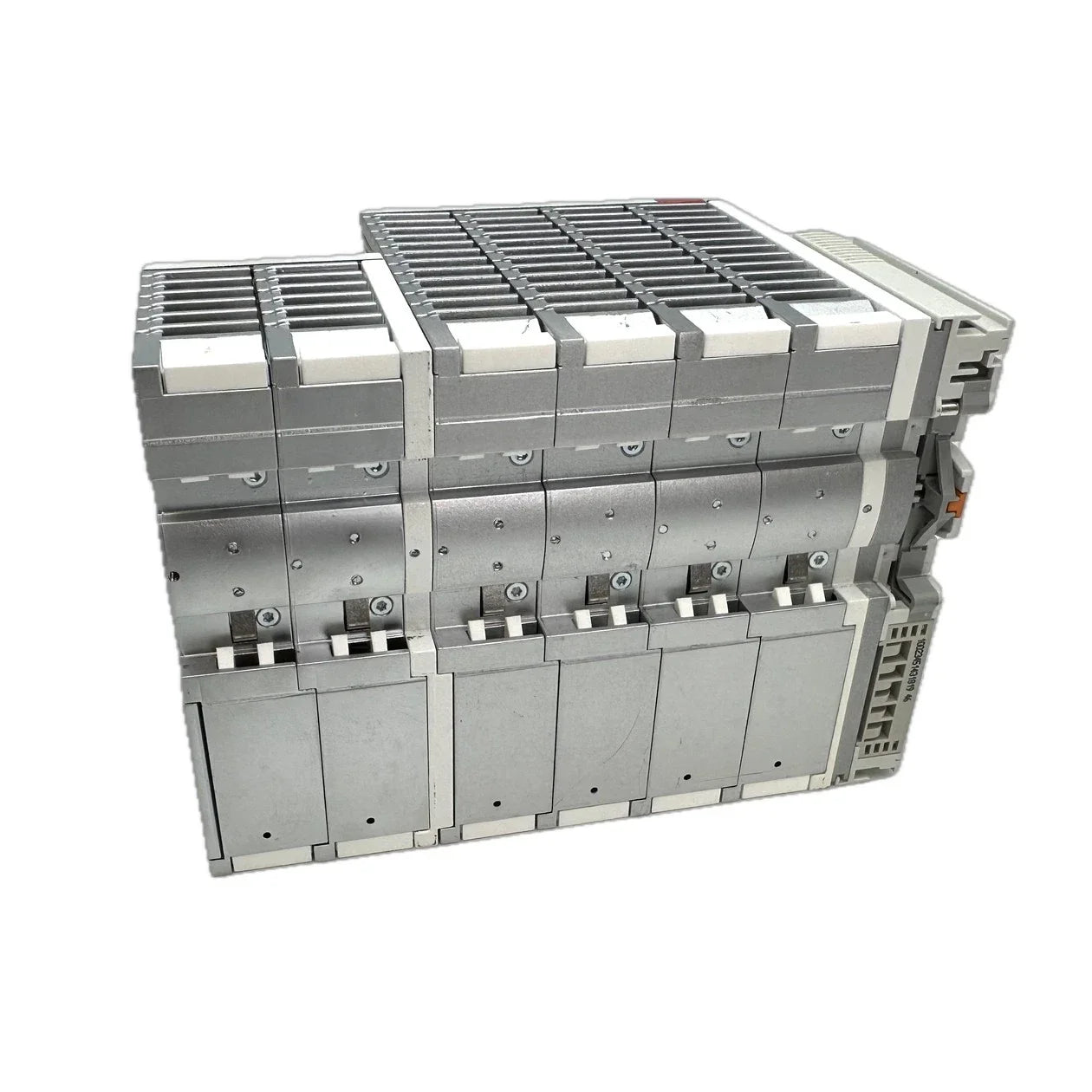

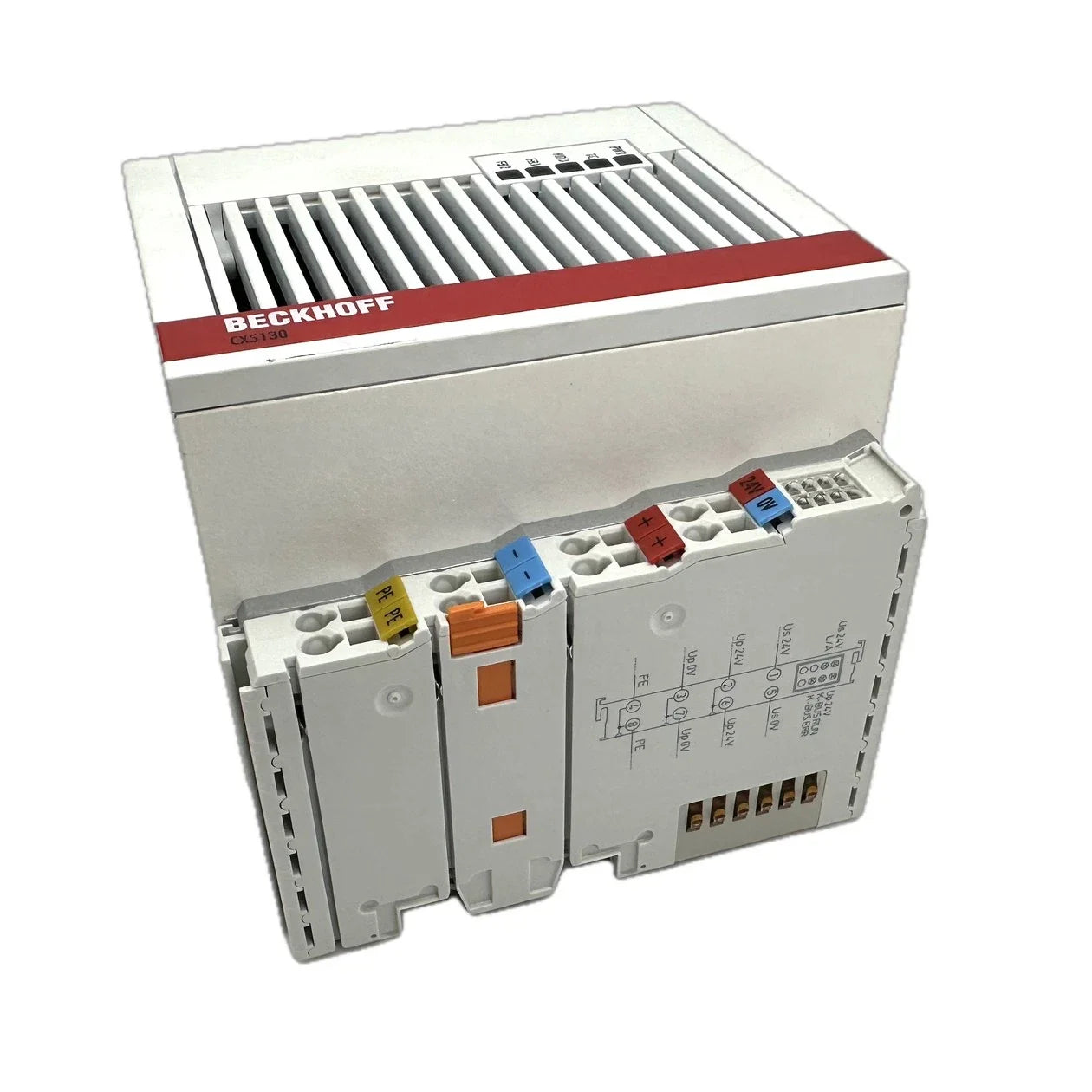

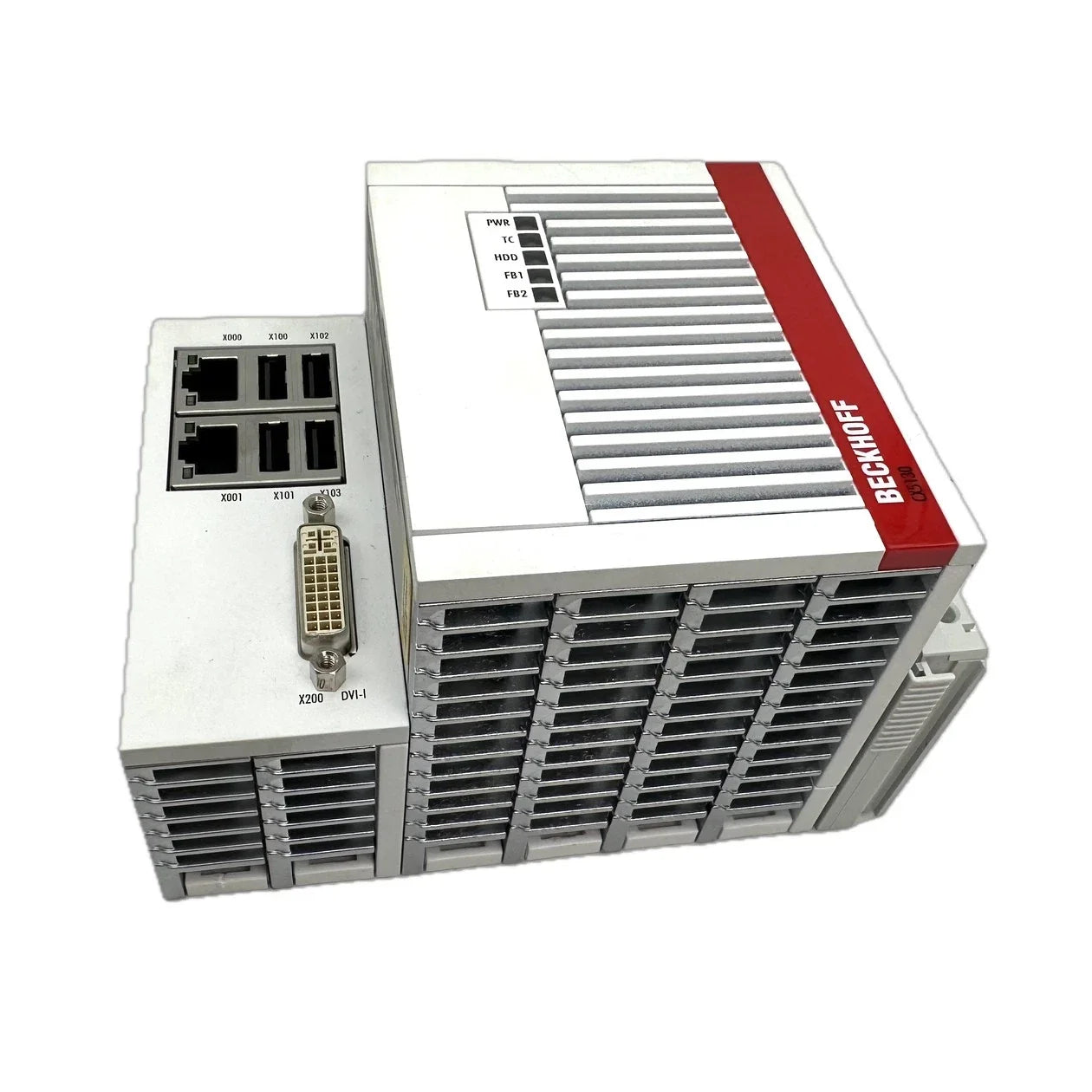

The Beckhoff CX5130 is a compact Embedded PC and DIN rail-mounted industrial controller designed for high-performance machine automation, PLC control, and PC-based industrial computing. Powered by a dual-core Intel® Atom® processor, it delivers reliable real-time control, extensive communication interfaces, and seamless integration with TwinCAT software for demanding automation applications.
Technical Specifications
| Condition |
New / Surplus Available |
| Brand |
Beckhoff |
| Part Number |
CX5130 |
| Category |
Industrial Automation |
| Subcategory |
Embedded PC / Industrial Controller |
| Product Type |
Embedded PC |
| Series |
CX5100 |
| Processor |
Intel® Atom® E3827, Dual-Core, 1.75 GHz |
| Memory |
4 GB DDR3 RAM |
| Storage |
CFast Card Slot, microSD Card Slot |
| Operating Systems |
Windows Embedded Compact 7, Windows Embedded Standard 7, Windows 10 IoT Enterprise, TwinCAT/BSD |
| Control Software |
TwinCAT 2 Runtime, TwinCAT 3 Runtime (XAR) |
| Ethernet Ports |
2 × RJ45 Gigabit Ethernet |
| USB Ports |
4 × USB 2.0 |
| Video Output |
DVI-I |
| Optional Interface |
1 Expansion Interface |
| I/O Connection |
E-bus / K-bus (Automatic Recognition) |
| Power Supply |
24 VDC (-15% / +20%) |
| Maximum Power Consumption |
14 W (20 W with UPS charging) |
| Cooling |
Passive (Fanless) |
| Protection Rating |
IP20 |
| Operating Temperature |
-25°C to +60°C |
| Dimensions (W × H × D) |
142 × 100 × 92 mm |
| Weight |
2.41 lbs |
Information About CX5130
The CX5130 is part of Beckhoff's CX5100 Series Embedded PCs, combining industrial PC performance with compact dimensions and fanless operation. Equipped with a dual-core Intel® Atom® E3827 processor running at 1.75 GHz and 4 GB DDR3 RAM, it supports TwinCAT 2 and TwinCAT 3 runtime environments as well as multiple Windows IoT operating systems. Integrated Gigabit Ethernet, USB, DVI-I video output, and automatic E-bus/K-bus recognition make the controller ideal for machine control, motion control, visualization, and industrial networking applications.
Key Features:
- CX5100 Series Embedded PC
- Intel® Atom® E3827 dual-core processor (1.75 GHz)
- 4 GB DDR3 RAM
- Fanless, passive cooling design
- TwinCAT 2 and TwinCAT 3 runtime support
- Dual Gigabit Ethernet ports
- 4 USB 2.0 ports and DVI-I display output
- Supports Windows IoT and TwinCAT/BSD operating systems
- Automatic E-bus and K-bus recognition
- DIN rail-mounted industrial controller
The CX5130 delivers reliable industrial computing and high-performance machine control for modern automation systems.
