Description

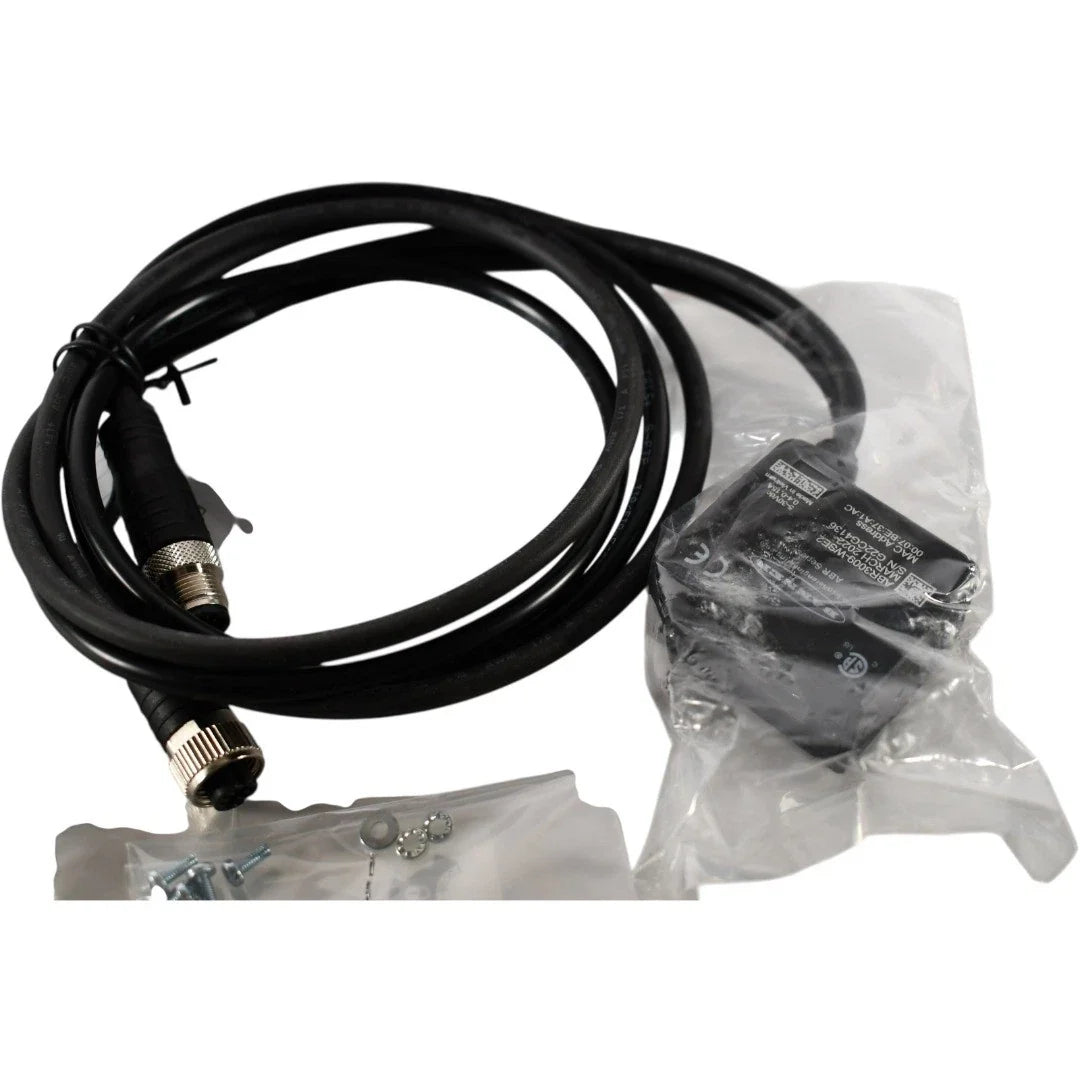

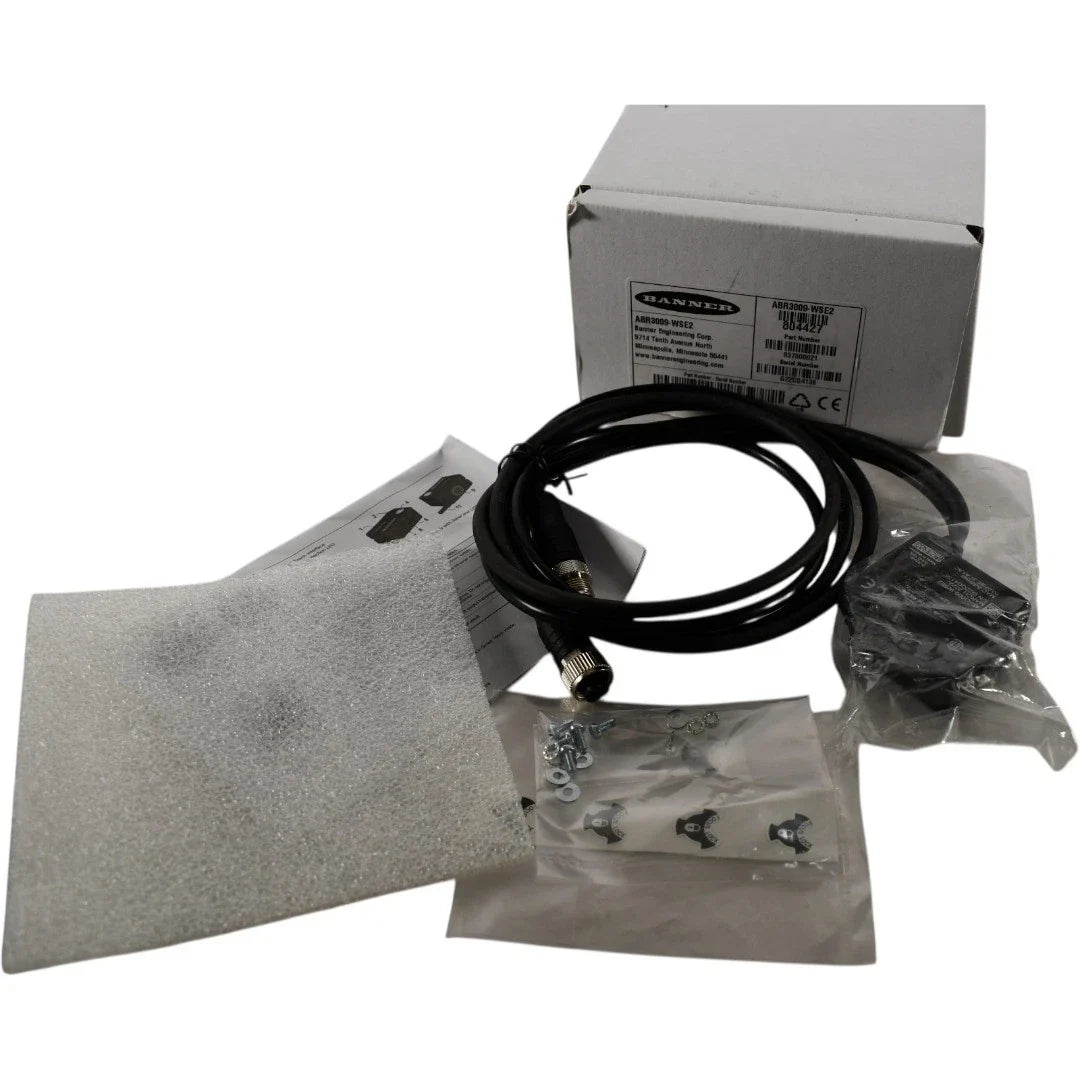

The Banner Engineering ABR3009-WSE2 is a compact industrial barcode reader designed for fast and reliable decoding of 1D and 2D barcodes in manufacturing, packaging, logistics, and traceability applications. Equipped with a 0.4 MP CMOS image sensor, integrated white illumination, and industrial Ethernet communication, it delivers dependable barcode reading performance in demanding environments.
Technical Specifications
| Condition |
New |
| Brand |
Banner Engineering |
| Part Number |
ABR3009-WSE2 |
| Category |
Industrial Automation and Controls |
| Subcategory |
Bar Code Reader |
| Product Type |
Multi-Code Reader |
| Series |
ABR3000 |
| Image Sensor |
CMOS |
| Image Type |
Grayscale |
| Resolution |
0.4 MP (752 × 480 Pixels) |
| Code Types |
1D and 2D |
| Lens |
Fixed 9 mm |
| Light Source |
Integrated White LED |
| Supply Voltage |
5–30 VDC |
| Communication |
EtherNet/IP, PROFINET, Modbus/TCP, RS-232, RS-422, FTP |
| Protection Rating |
IP65 |
| Housing Material |
Aluminum |
| Mounting Type |
Chassis Mount |
| Operating Temperature |
0°C to +45°C |
| Termination Style |
Cable with Connector |
| Dimensions (H × W × L) |
24 × 45 × 39 mm |
| Weight |
0.90 lbs |
Information About ABR3009-WSE2
The ABR3009-WSE2 is part of Banner Engineering's ABR3000 Series of industrial barcode readers. Featuring a 752 × 480 grayscale CMOS image sensor, a fixed 9 mm lens, and integrated white LED illumination, it accurately reads both 1D and 2D codes. The reader supports EtherNet/IP, PROFINET, Modbus/TCP, RS-232, and RS-422 communications, allowing seamless integration into PLC-based automation systems. Its rugged IP65-rated aluminum housing provides reliable operation in industrial environments while Banner's software simplifies configuration and deployment.
Key Features:
- ABR3000 Series industrial barcode reader
- 0.4 MP CMOS grayscale image sensor
- 752 × 480 image resolution
- Reads 1D and 2D barcodes
- Integrated 9 mm lens
- Built-in white LED illumination
- EtherNet/IP, PROFINET, Modbus/TCP, RS-232, and RS-422 communication
- IP65-rated aluminum housing
- Compact industrial design
- Ideal for manufacturing, packaging, and traceability applications
The ABR3009-WSE2 delivers reliable high-speed barcode reading for industrial automation and machine vision systems.
