Description

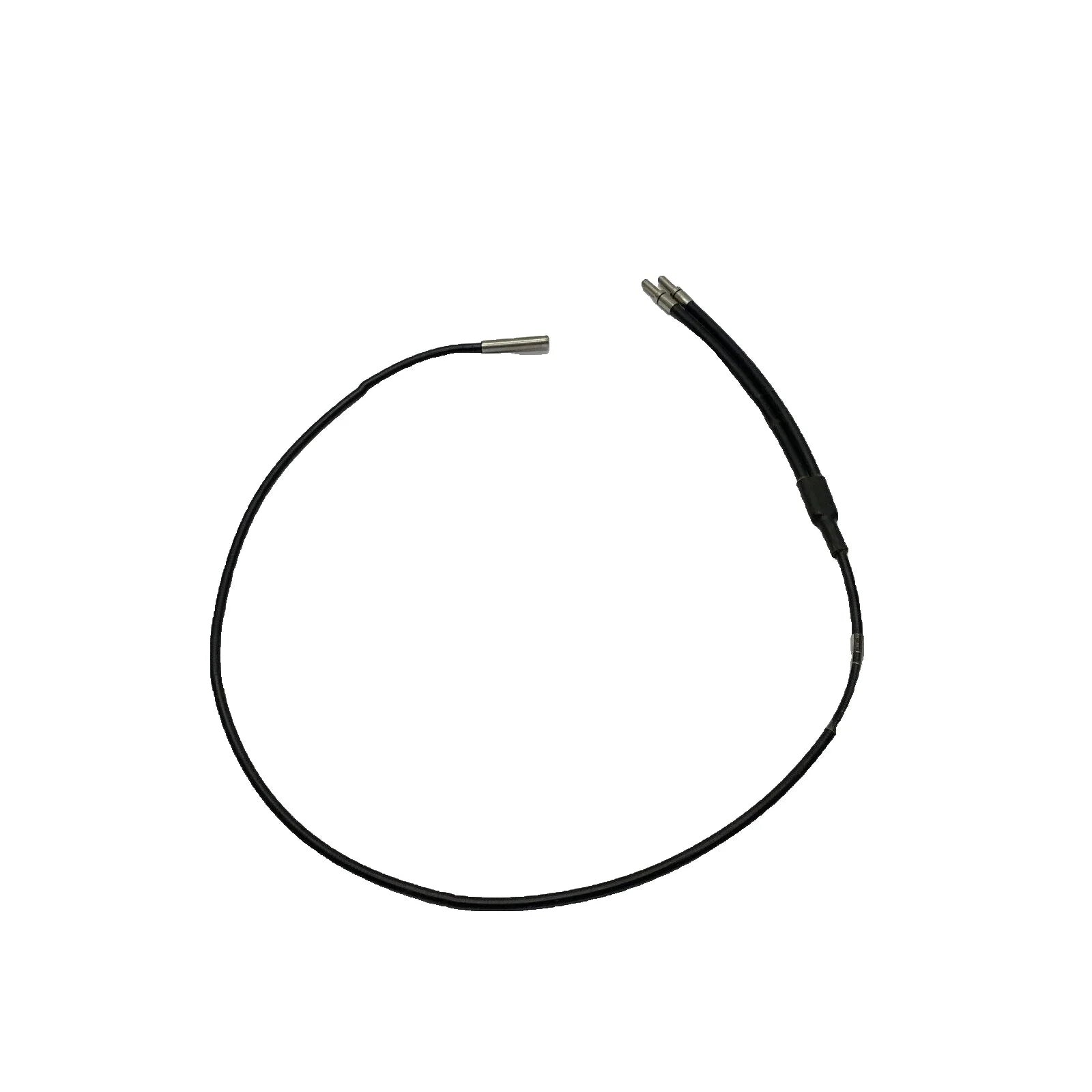

The Banner Engineering BA13PMTA is a glass fiber optic sensor designed for diffuse reflective sensing in industrial detection applications. Featuring a right-angle beam exit and sideview stainless steel sensing tip, it enables precise object detection in confined or difficult-to-access areas. Its durable PVC-jacketed stainless steel monocoil construction provides mechanical protection and stable optical performance.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors |
| Part Number |
BA13PMTA |
| Subcategory |
Fiber Optic Sensors |
| Fiber Optic Type |
Glass |
| Sensing Mode (General) |
Diffuse |
| Sensing Mode (Detailed) |
Reflective |
| Beam Exit |
Right Angle |
| Fiber Sensing End Tip |
Sideview |
| Sensing End Material |
Stainless Steel |
| Fiber Sheathing Material |
PVC over Stainless Steel Monocoil |
| Fiber Length |
0.914 m |
| Core Diameter |
1.6 mm |
| Fiber Sensing End Size |
6.4 mm |
| Mounting Area Size |
6.4 mm |
| Minimum Bend Radius |
25 mm |
| Termination |
Terminated |
| Housing Style |
Round |
| Maximum Operating Temperature |
105°C |
| Weight |
0.10 kg |
Information About BA13PMTA
The BA13PMTA is a terminated glass fiber optic sensing assembly engineered for use with compatible Banner fiber optic amplifiers. Designed with a round housing configuration, it utilizes a reflective (diffuse) sensing mode and a sideview ferrule tip to support accurate detection in space-restricted installations. The stainless steel sensing end and PVC-coated stainless steel monocoil sheathing enhance durability and resistance to mechanical stress. With a 0.914-meter fiber length and 1.6 mm core diameter, it supports reliable light transmission while maintaining a minimum bend radius of 25 mm.
Key Features:
- Glass Fiber Optic Construction: Provides stable light transmission for precise sensing applications.
- Diffuse Reflective Sensing Mode: Detects objects based on reflected light from the target surface.
- Right-Angle Beam Exit: Enables installation in tight or perpendicular mounting locations.
- Sideview Stainless Steel Tip: Enhances durability and supports lateral detection orientation.
- PVC over Stainless Steel Monocoil Jacket: Offers mechanical protection and flexibility.
- 0.914 m Fiber Length: Suitable for short-distance routing between amplifier and sensing point.
- 1.6 mm Core Diameter: Supports efficient optical signal transmission.
- 105°C Maximum Temperature Rating: Designed for elevated-temperature industrial environments.
The BA13PMTA delivers the reliability and precision required for fiber optic-based object detection in industrial automation systems.
