Description

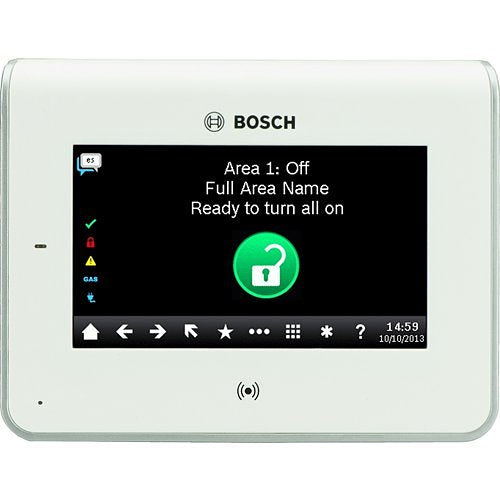

The Bosch B942W Touch Screen Keypad is a white, SDI2-compatible security interface designed for intuitive intrusion control. Featuring a full-color graphic touchscreen and built-in proximity reader, it enables both standard passcode entry and contactless access. With its sleek, modern design and reliable functionality, the B942W is ideal for residential, commercial, and high-security environments requiring user-friendly alarm management.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Bosch Security |
| Category |
Intrusion |
| Part Number |
B942W |
| Subcategory |
Keypads |
| Display Type |
Color graphic touchscreen |
| Communication Interface |
SDI2 bus |
| Inputs/Outputs |
4 inputs, 1 output |
| Access Method |
Passcode and proximity reader |
| Presence Detection |
Built-in motion sensor activates display |
| Mounting Type |
Wall mount |
| Material |
ABS plastic housing |
| Color |
White |
| Languages Supported |
English, Chinese, Dutch, French, German, Greek, Italian, Hungarian, Polish, Portuguese, Spanish, Swedish |
| Power Requirements |
Supplied through control panel via SDI2 bus |
| Operating Temperature |
0°C to +50°C (typical) |
| Country of Origin |
China |
| Width |
6.2 in (157 mm) |
| Height |
4.7 in (120 mm) |
| Depth |
0.7 in (18 mm) |
| Weight |
0.7 lb (0.32 kg) |
Information About B942W
The B942W is part of Bosch’s advanced SDI2 keypad series, engineered for efficient communication with compatible Bosch control panels. It combines visual clarity with interactive functionality, offering a responsive color touchscreen, programmable inputs, and an output for flexible configuration. The built-in proximity reader supports keyfobs or cards, providing convenient access control and dual authentication options for restricted zones. Its compact form factor, multi-language support, and adaptive presence detection make it a versatile and dependable solution for modern intrusion systems.
Key Features:
- Color Graphic Touchscreen: Provides clear visual feedback using intuitive icons and multilingual text.
- Presence Detection: Integrated motion sensor activates the display when a user approaches.
- Proximity Reader: Enables keyfob or card access in place of passcodes or for dual authentication.
- Expandable I/O: Four inputs and one output for additional system control or automation tasks.
- Elegant Design: Slim, white housing complements contemporary interiors.
- Customizable Settings: Adjustable brightness and volume for user preference.
- SDI2 Bus Compatibility: Ensures seamless integration with Bosch intrusion control panels.
- Wide Language Support: Includes 12 language options for international use.
The B942W delivers the reliability and precision required for secure, intuitive operation in professional intrusion detection systems.
