• The AXIS TU8001 Ethernet Surge Protector safeguards PoE devices from voltage spikes, ensuring system stability and reduced maintenance downtime. Designed for indoor or enclosed use, it is compatible with Axis devices, providing robust protection for Ethernet-based networks

[/shortdesc]

[specifications] [/specifications]

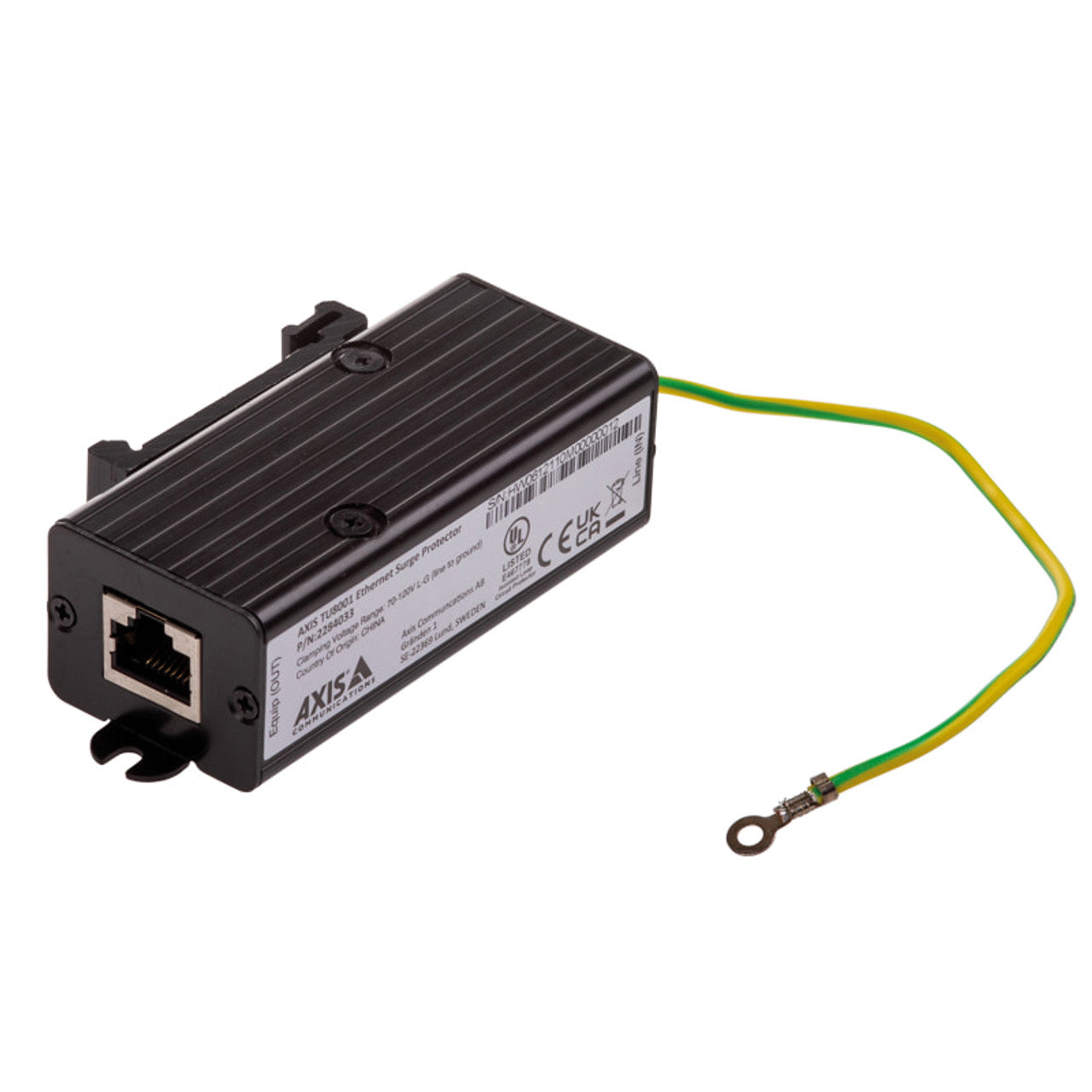

AXIS TU8001 Ethernet Surge Protector (02315-001)

The AXIS TU8001 Ethernet Surge Protector is a high-performance accessory engineered to protect PoE devices from transient voltage spikes in Ethernet cables. With its compact aluminum casing and compatibility with Axis devices, this surge protector ensures seamless network performance and enhanced reliability. Ideal for installation near PoE switches or network cameras, it can be mounted on walls or DIN rails for flexible deployment. Its durable design supports IEEE 802.3bt standards and provides data rates up to 1 Gbps, making it a vital component for maintaining system integrity in challenging environments.

Key Features:

• Surge Protection: Protects devices from up to 10 kV surges.
• Power Capability: Supports IEEE 802.3bt up to 95 W.
• High-Speed Data: Handles data rates of up to 1 Gbps.
• Flexible Mounting: Suitable for wall or DIN-rail mounting.
• Compact Design: Aluminum casing for durability and reduced exposed wiring.
• Wide Operating Range: Functions between -40 °C and 85 °C (-40 °F to 185 °F).
• Environmental Compliance: IP30-rated, ensuring resilience in harsh conditions.

Technical Specifications:

• Material: Aluminum casing, black.
• Dimensions: 94 mm x 35 mm x 27 mm (3.70 in x 1.38 in x 1.06 in).
• Weight: 1.3 lbs
• Connectors: RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE.
• Power Input: Maximum 95 W, 2 A.
• Operating Temperature: -40 °C to 85 °C (-40 °F to 185 °F).
• Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F).
• Standards: IEC/EN 61643-21, IEC/EN 61000-4-5, UL 497B, NEMA TS 2.
