Description
[shortdesc]

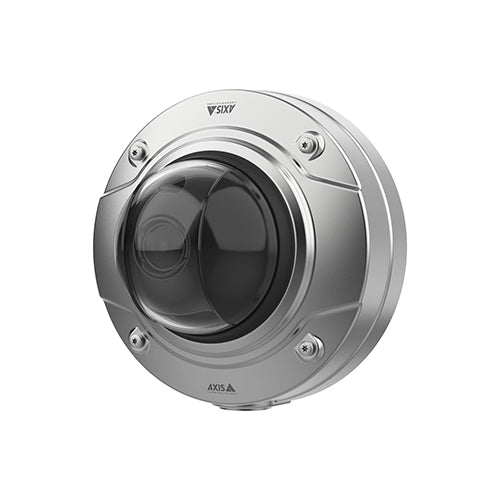

- Stainless steel 8 MP dome for corrosive areas, Ideal for corrosive and harsh conditions, Marine-grade stainless steel casing, NSF/ANSI Standard 169 Certified, Outstanding image quality in 4K, Axis Edge Vault safeguards the device
[/shortdesc]
[properties]
| Properties | AXIS Q3538-SLVE Dome Camera |
| Description | The AXIS Q3538-SLVE Dome Camera is an 8 MP stainless steel camera designed for corrosive environments. Encased in marine-grade SS 316L, it's resistant to sea water and cleaning chemicals, and DNV-certified. Offering outstanding 4K resolution, it features a deep learning processing unit for advanced analytics like AXIS Object Analytics. With protection against redirection, defocusing, impacts, and built-in cybersecurity features, it's ideal for challenging conditions. |
| Product Family | AXIS Q3538-SLVE Dome Camera |
| Product Type | Camera |
[/properties] [specifications]
| Specifications | AXIS Q3538-SLVE Dome Camera |
| Camera | |
| Image sensor | 1/1.2” progressive scan RGB CMOS |
| Pixel size 2.9 µm | |
| Lens | Varifocal, 6.2–12.9 mm, F1.6–2.9 |
| Horizontal field of view: 103°–49° | |
| Vertical field of view: 56°–28° | |
| Varifocal, Remote focus and zoom, P-Iris control, IR corrected | |
| Day and night | Automatically removable infrared-cut filter |
| Minimum illumination | Color: 0.07 lux at 50 IRE, F1.6 |
| B/W: 0 lux at 50 IRE, F1.6 | |
| Shutter speed | 1/66500 s to 2 s |
| Camera angle adjustment | Pan ±180°, tilt -43 to +80°, rotation ±175° |
| System on chip (SoC) | |
| Model | ARTPEC-8 |
| Memory | 2048 MB RAM, 8194 MB Flash |
| Compute capabilities | Deep learning processing unit (DLPU) |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| Resolution | 16:9: 3840x2160 to 160x90 |
| 16:10: 1280x800 to 160x100 | |
| 4:3: 2880x2160 to 160x120 | |
| Frame rate | With WDR: 25/30 fps with power line frequency 50/60 Hz |
| Without WDR: 50/60 fps with power line frequency 50/60 Hz | |
| Video streaming | Multiple, individually configurable streams in H.264, H.265 and |
| Motion JPEG | |
| Axis Zipstream technology in H.264 and H.265 | |
| Controllable frame rate and bandwidth | |
| VBR/ABR/MBR H.264/H.265 | |
| Low latency mode | |
| Video streaming indicator | |
| WDR | Forensic WDR: Up to 120 dB depending on scene |
| Multi-view streaming | Up to 8 individually cropped out view areas |
| Image settings | Saturation, contrast, brightness, sharpness, white balance, |
| day/night threshold, tone mapping , exposure mode, exposure | |
| zones, defogging, barrel distortion correction, electronic image | |
| stabilization, compression, rotation: 0°, 90°, 180°, 270° including | |
| Corridor Format, mirroring, text and image overlay, dynamic text | |
| and image overlay, privacy masks, polygon privacy mask | |
| Image processing | Axis Zipstream, Forensic WDR, Lightfinder 2.0, OptimizedIR |
| Pan/Tilt/Zoom | Digital PTZ, optical zoom, preset positions |
| Limited guard tour, control queue, on-screen directional indicator | |
| Tour recording (max 10, max duration 16 minutes each), guard | |
| tour (max 100) | |
| 2x optical zoom | |
| Audio | |
| Audio streaming | Configurable duplex: |
| Two-way (full duplex) | |
| Audio encoding | 24bit LPCM, AAC-LC 8/16/48 kHz, G.711 PCM 8 kHz, G.726 |
| ADPCM 8 kHz, Opus 8/16/48 kHz | |
| Configurable bit rate | |
| Audio input/output | External microphone input or line input (balanced or unbalanced), |
| line output, digital audio input, automatic gain control | |
| Microphone power: | |
| Microphone power 5V on tip, ring power 12V on ring, | |
| phantom power 12V on tip/ring | |
| Network | |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS |
| Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), | |
| UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, | |
| RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, | |
| SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, | |
| UDP/TCP/TLS), Link-Local address (ZeroConf) | |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX®, metadata |
| and AXIS Camera Application Platform (ACAP); specifications at | |
| axis.com/developer-community. ACAP includes Native SDK and | |
| Computer Version SDK. | |
| One-click cloud connection (O3C) | |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and | |
| ONVIF® Profile T | |
| Video management systems | AXIS Companion, AXIS Camera Station |
| Onscreen controls | Electronic image stabilization |
| Day/night shift | |
| Defogging | |
| Wide dynamic range | |
| Video streaming indicator | |
| IR illumination | |
| Heater | |
| Event conditions | Analytics, external input, supervised external input, edge storage |
| events, virtual inputs through API | |
| Audio: audio detection, audio clip playing | |
| Call: state, state change | |
| Device status: above operating temperature, above or below | |
| operating temperature, below operating temperature, IP address | |
| removed, network lost, new IP address, shock detected, casing | |
| open, storage failure, system ready, within operating temperature | |
| Digital audio: digital signal contains Axis metadata, digital signal | |
| has invalid sample rate, digital signal missing, digital signal okay | |
| Edge storage: recording ongoing, storage disruption, storage | |
| health issues detected | |
| I/O: digital input, manual trigger, virtual input | |
| MQTT subscribe | |
| MQTT: stateless | |
| Scheduled and recurring: schedule | |
| Video: tampering, average bitrate degradation, day-night mode, | |
| live stream open | |
| Event actions | I/O: toggle I/O once, toggle I/O while the rule is active |
| Record video: SD card and network share | |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network | |
| share and email | |
| Pre- and post-alarm video or image buffering for recording or | |
| upload | |
| Notification: email, HTTP, HTTPS, TCP and SNMP trap | |
| Calls: end SIP call, make SIP call, answer call | |
| MQTT publish | |
| Overlay text, external output activation, play audio clip, zoom | |
| preset, day/night mode, make call, flash status LED, use lights, | |
| set defog mode, send MQTT publish message, set WDR mode | |
| Built-in installation aids | Pixel counter, adjustable IR illumination intensity |
| Analytics | |
| AXIS Object Analytics | Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
| Scenarios: line crossing, object in area, crossline counting, | |
| occupancy in area, time in area | |
| Up to 10 scenarios | |
| Metadata visualized with trajectories, color-coded bounding | |
| boxes and tables | |
| Polygon include/exclude areas | |
| Perspective configuration | |
| ONVIF Motion Alarm event | |
| Metadata | Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates |
| Attributes: Vehicle color, upper/lower clothing color, confidence, position | |
| Event data: Producer reference, scenarios, trigger conditions | |
| Applications | Included |
| AXIS Object Analytics | |
| AXIS Video Motion Detection, active tampering alarm, audio | |
| detection | |
| Supported | |
| Support for AXIS Camera Application Platform | |
| Approvals | |
| Product markings | BIS, CE, DNV, NSF, KC, RCM, UL/cUL, UKCA, VCCI, WEEE |
| Supply chain | TAA compliant |
| EMC | CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, |
| EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2 | |
| Australia/New Zealand: RCM AS/NZS CISPR 32 Class A | |
| Canada: ICES-3(A)/NMB-3(A) | |
| Japan: VCCI Class A | |
| USA: FCC Part 15 Subpart B Class A | |
| Railway: IEC 62236-4 | |
| Safety | CAN/CSA-C22.2 No. 60950-22, CAN/CSA C22.2 No. 62368-1, |
| IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471, IS 13252 | |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, |
| IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, | |
| IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 60529 IP68, | |
| ISO 20653 IP6K9K, IEC/EN 62262 IK11 (50J), NEMA 250 Type 4X, | |
| NEMA TS 2 (2.2.7-2.2.9) | |
| Network | NIST SP500-267 |
| Cybersecurity | |
| Edge security | Software: Signed firmware, brute force delay protection, digest |
| authentication and OAuth 2.0 RFC6749 OpenID Authorization | |
| Code Flow for centralized ADFS account management, password | |
| protection, AES-XTS-Plain64 256bit SD card encryption | |
| Hardware: Axis Edge Vault cybersecurity platform | |
| TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), secure element (CC | |
| EAL 6+), system-on-chip security (TEE), Axis device ID, secure | |
| keystore, signed video, secure boot, encrypted filesystem | |
| (AES-XTS-Plain64 256bit) | |
| Network security | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, |
| HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 | |
| Certificate PKI, IP address filtering | |
| Documentation | AXIS OS Hardening Guide |
| Axis Vulnerability Management Policy | |
| Axis Security Development Model | |
| AXIS OS Software Bill of Material (SBOM) | |
| General | |
| Casing | IP6K9K-, IP66-, IP67-, IP68- and NEMA 4X-rated, IK11 (50 joules) |
| impact-resistant stainless steel casing | |
| Polycarbonate hard-coated dome and dehumidifying membranes | |
| Electropolished SS 316L stainless steel | |
| Encapsulated electronics | |
| Captive stainless steel screws | |
| Mounting | Mounting bracket with junction box holes (double-gang, |
| single-gang, 4” square, and 4” octagon) | |
| ¾” (M25) conduit side entry | |
| Power | Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 |
| Typical 9 W, max 23 W | |
| 10–28 V DC, typical 9 W, max 24 W | |
| Connectors | Audio: 3.5 mm mic/line in, 3.5 mm line out |
| I/O: Terminal block for two configurable supervised inputs / | |
| digital outputs (12 V DC output, max load 50 mA) | |
| Network: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE | |
| Power: DC input | |
| IR illumination | OptimizedIR with power-efficient, long-life 850 nm IR LEDs |
| Range of reach 40 m (130 ft) or more depending on the scene | |
| Storage | Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) | |
| Recording to network-attached storage (NAS) | |
| Operating conditions | (-50 °C to 55 °C (-58 °F to 131 °F) |
| Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C | |
| (165 °F) | |
| Start-up temperature: -40 °C (-40 °F) | |
| Humidity 10–100% RH (condensing) | |
| Storage conditions | (-40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity 5-95% RH (non-condensing) | |
| Dimensions | Height: 125 mm (4.9 in) |
| 195 mm (7.7 in) | |
| Weight | 2.2 kg (4.9 lb) |
| Box content | Installation guide, Windows® |
| decoder 1-user license, drill | |
| template, terminal block connectors for DC and I/O, RESISTORX® | |
| L-key, connector guard, Diameter 5-15mm cable gaskets, Diameter 3-5mm cable | |
| gasket, mounting bracket, plugs | |
| System tools | AXIS Site Designer, AXIS Device Manager, product selector, |
| accessory selector, lens calculator | |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional | |
| Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese | |
| Sustainability | |
| Substance control | PVC free |
| RoHS in accordance with EU RoHS Directive 2011/65/EU/ and | |
| EN 63000:2018 | |
| REACH in accordance with (EC) No 1907/2006. For SCIP UUID, | |
| Environmental responsibility | axis.com/environmental-responsibility |
| Axis Communications is a signatory of the UN Global Compact | |
[/specifications] [accesories]
| Optional accessories | • AXIS TQ3807-E Dome Smoked • AXIS TQ3807-E Dome Clear • AXIS T91F61 Wall Mount • AXIS T91F67 Pole Mount • AXIS T94U02D Pendant Kit with weathershield • AXIS T94U01D Pendant Kit • AXIS Multicable B I/O Audio Power • AXIS T8415 Wireless Installation Tool • AXIS Surveillance Cards |
[/accesories]
Advanced fixed dome camera in a DNV marine certified, electropolished stainless steel (SS 316L) outdoor casing, offering high corrosion resistance and IK10+ (50 joules) vandal resistance, with Deep Learning Processing Unit (DLPU). Support for Forensic WDR, Lightfinder 2.0 and OptimizedIR. IR shielded dome for reduced reflections. Varifocal 6-13 mm P-Iris lens with remote zoom and focus. Electronic Image Stabilization. Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. 8MP stream up to 60 fps, 30fps with WDR. AXIS Object Analytics, Video motion detection and tampering alarm. Two-way audio and audio detection. Supervised digital input / digital output for alarm / event handling. Sensors for intrusion and shock. MQTT support. AXIS Edge Vault with FIPS certified TPM for added cyber security. MicroSD memory card slot for local storage. Operation in -50 ºC to 60 ºC (-58 ºF to 140 ºF), powered by IEEE 802.3at Type 2 Class 4 (PoE+) or 10-28V DC power with redundancy. Includes mounting bracket for wall/ceiling or junction boxes.
| Feature | AXIS Q3536-LVE | AXIS Q3538-LVE | AXIS Q3538-SLVE |
|---|---|---|---|
| Max video resolution | 2688x1512 | 3840x2160 | 3840x2160 |
| Horizontal field of view | 103 - 52 / 14.9 - 40.8 | 103 - 48 | 103.4 - 48.6 |
| Lightfinder | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 |
| OptimizedIR | ✔ | ✔ | ✔ |
| Wide dynamic range | Forensic WDR | Forensic WDR | Forensic WDR |
| Two-way audio | ✔ | ✔ | ✔ |
| Alarm inputs/outputs | 2 | 2 | 2 |
| Remote zoom | ✔ | ✔ | ✔ |
| Remote focus | ✔ | ✔ | ✔ |
| Zipstream | ✔ | ✔ | ✔ |
| Electronic image stabilization | ✔ | ✔ | ✔ |
| Analytics compute capability | DLPU | DLPU | DLPU |
| TPM | ✔ | ✔ | ✔ |
| Axis Edge Vault | ✔ | ✔ | ✔ |
| Vandal rating | IK10+ | IK10+ | IK11 |
Related Products — You May Also Need
US-Based Distributor
Wellington, Florida — serving US businesses, agencies & OEMs.
Send a Part Number
Search or send your list — obsolete & current GE Speedtronic, boards & controls.
24-Hour Quotes
US-based specialists reply within 24 hours.
Purchase Orders Welcome
POs accepted from qualified US buyers; cards too.
Product
We always aim for make sure our customers love our products, but if you do need to return an order, we’re happy to help. Just email us directly and we’ll take you through the process.
Other
You can contact us through our contact page! We will be happy to assist you.
Any question?
If we still haven't answered your question, you can contact us below and we will get back to you as soon as possible.
WhatsApp +1 (305) 809-0110
info@alotechsolutions.com
Send a message
info@alotechsolutions.com
