[shortdesc]Reliable long-range thermal detection with a 60 mm F1.2 lens, <20 mK sensitivity, ARTPEC-8 SoC with DLPU, built-in analytics, audio features, and robust IP66/IP67 & IK10 protection.[/shortdesc]

[properties]

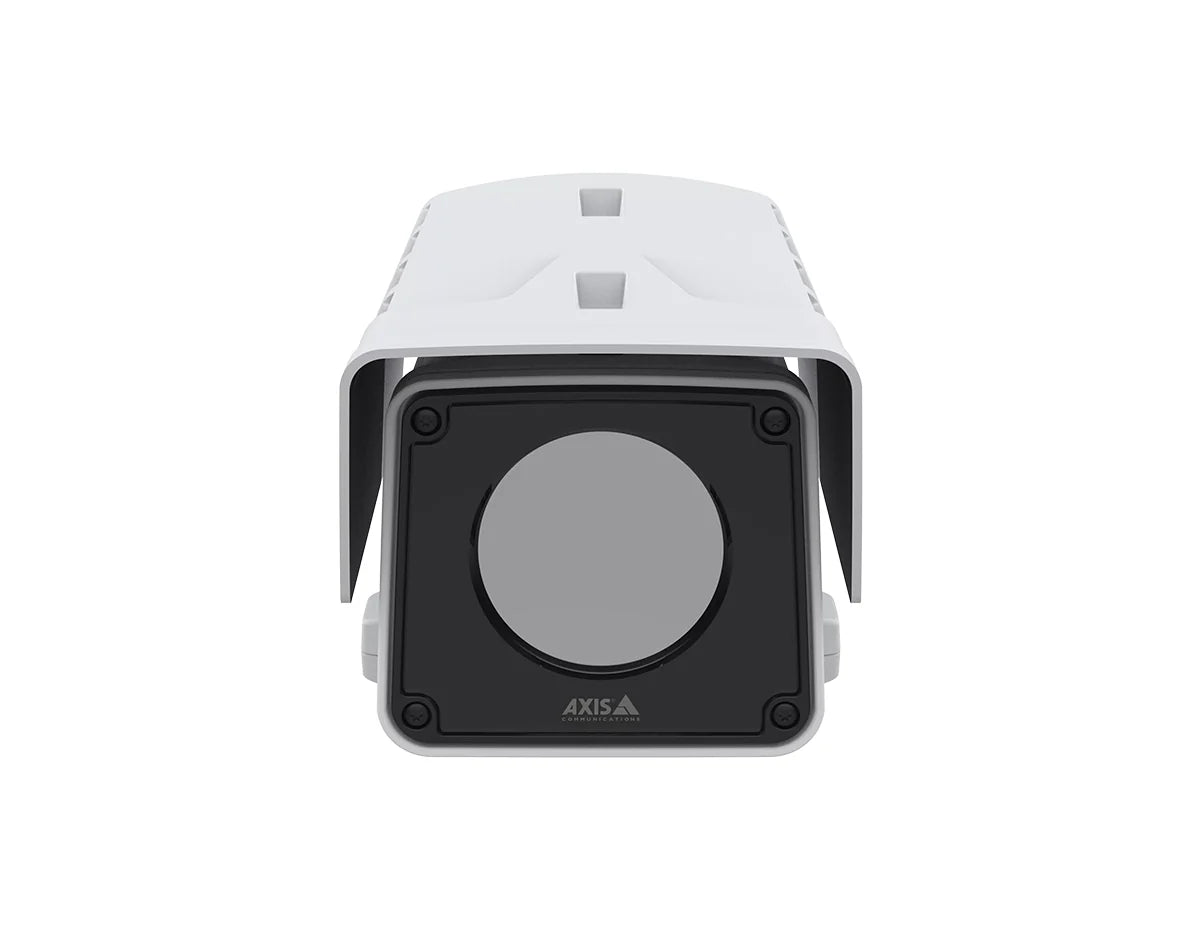

Model	AXIS Q2111-E 60 mm 30 fps Thermal Camera (02600-001)
Product Type	Thermal Camera
Image Sensor	Uncooled microbolometer, 384×288 pixels, 17 μm; spectral range 8–14 μm
Lens	60 mm, F1.2; horizontal field of view 6°; vertical field of view 4.7°; minimum focus distance 84 m
Sensitivity	NETD <20 mK @ 25 °C, F1.0
System on Chip	ARTPEC-8 with Deep Learning Processing Unit (DLPU)
Frame Rate	Up to 30 fps
Power	Power over Ethernet IEEE 802.3af/802.3at Type 2 Class 4; typical 5.6 W / max 25.5 W; 10–28 V DC (typical 4.1 W / max 25.5 W)
Connectors	RJ45 10/100/1000 Mbps PoE; 4× configurable I/O (2 supervised, 2 unsupervised); RS485/RS422; 3.5 mm mic/line in; 3.5 mm line out; DC input
Storage	microSD/microSDHC/microSDXC card with AES-XTS-Plain64 256-bit encryption; NAS recording supported
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F) ; humidity 10–100% RH (condensing); max 74 °C according to NEMA TS 2 (2.2.7)
Storage Conditions	-40 °C to 65 °C (-40 °F to 149 °F) ; humidity 5–95% RH (non-condensing)
Casing	Aluminum housing; IP66/IP67, IK10 (excluding window), NEMA 4X; white NCS S 1002-B
Dimensions	See datasheet dimension drawing; Effective Projected Area (EPA) 0.05 m²
Weight	3.5 kg (7.7 lb)
Certifications	CSA, UL/cUL, CE, KC, VCCI, RCM; CISPR 32/35; EN 50121-4; FCC Part 15 Class A; IEC 62236-4

[/properties]

[specifications]

Video	H.264 Baseline/Main/High, H.265 Main, Motion JPEG; sensor 384×288 scaled to 768×576; Axis Zipstream; up to 20 streams; VBR/ABR/MBR control
Image Settings	Contrast, brightness, sharpness, local contrast, exposure zones, compression, rotation 0°/90°/180°/270°, corridor format, mirroring, text/image overlay, polygon privacy masks, multiple color palettes, electronic image stabilization
Audio	Two-way audio (half/full duplex); external mic input with optional 5 V power; digital input with optional 12 V ring power; unbalanced line input; line output; 10-band EQ; edge-to-edge speaker pairing
Audio Encoding	24-bit LPCM; AAC-LC 8/16/32/44.1/48 kHz; G.711 PCM 8 kHz; G.726 ADPCM 8 kHz; Opus 8/16/48 kHz
Network Protocols	IPv4/IPv6, HTTP/HTTPS, HTTP/2, TLS, FTP, SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP v1/v2c/v3, DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP/SRTP/RTSPS, TCP, UDP, IGMP, RTCP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT, secure syslog, Link-Local
Integration	ONVIF Profiles G/M/S/T; VAPIX API; ACAP third-party apps; one-click cloud; compatible with AXIS Camera Station and major VMS
Event Handling	Audio detection, audio clip events, device temperature status, IP changes, network loss, digital/virtual inputs, storage events, MQTT subscribe, schedule, video tampering, bitrate degradation; actions: play/stop audio, toggle I/O, MQTT publish, notifications, pre/post-alarm buffer, SD/NAS recording, SNMP traps, status LED, upload via FTP/SFTP/HTTP/HTTPS/email
Analytics	AXIS Video Motion Detection, Motion Guard, Fence Guard, Loitering Guard, active tampering alarm, audio detection; supports AXIS Perimeter Defender and ACAP analytics
Cybersecurity	Axis Edge Vault with TPM 2.0, secure element, secure boot, signed firmware/video, encrypted filesystem (AES-XTS-Plain64 256-bit), secure keystore, Axis device ID; IEEE 802.1X, MACsec, HTTPS/HSTS, TLS 1.2/1.3, NTS, X.509 PKI, host-based firewall, brute-force protection
Environmental	IEC 60068-2-1/-2/-6/-14/-27/-78; IP66/IP67; IK10 (excluding window); ISO 21207 Method B; MIL-STD-810H; NEMA 250 Type 4X; NEMA TS 2

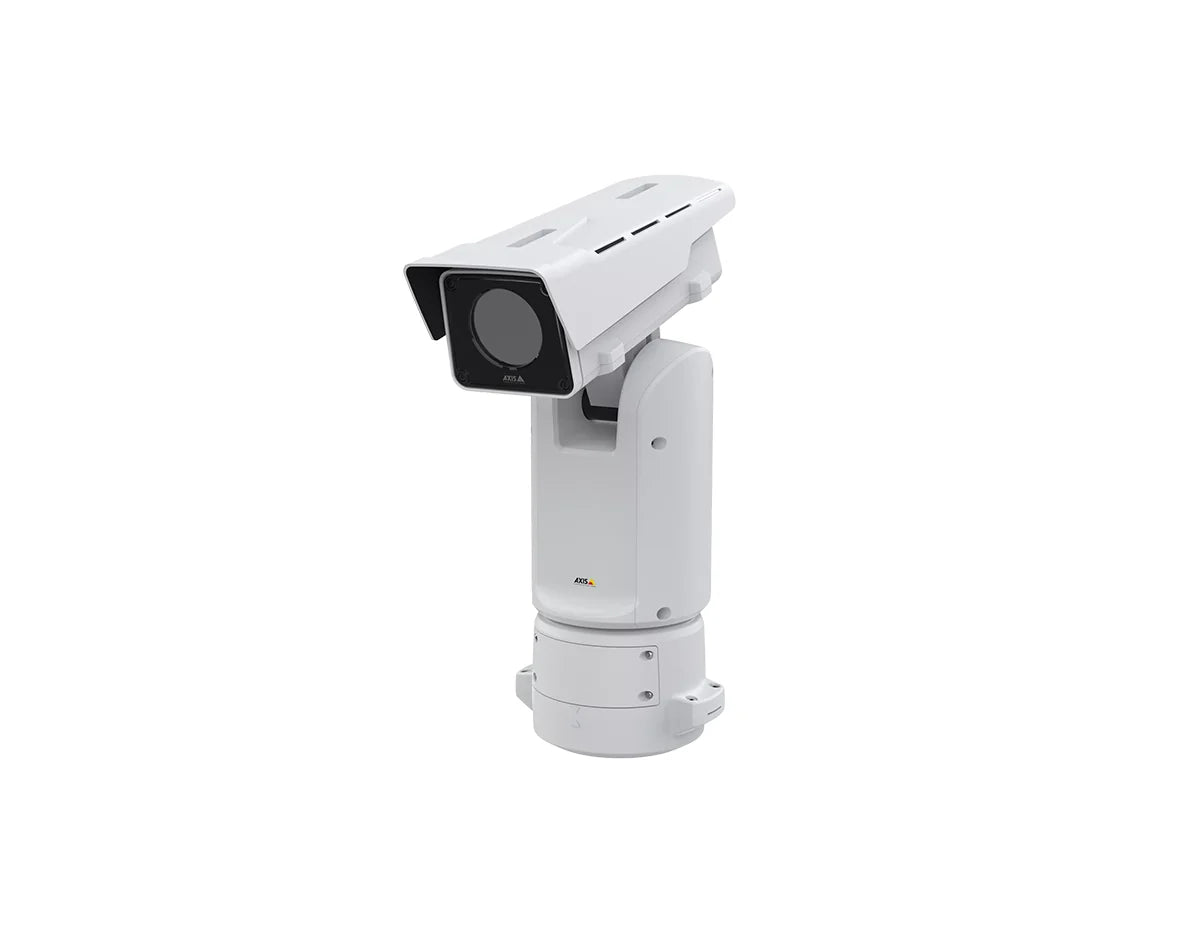

Pan/Tilt Support	Supports guard tour with up to 256 presets when used with AXIS TQ1818-E Positioning Unit (sold separately)
Languages	English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese

[/specifications]

[accesories]

Included	Camera, installation guide, terminal block connectors, connector guard, cable gaskets, owner authentication key
Optional accessories	AXIS TQ1818-E Positioning Unit, AXIS TQ1003-E Wall Mount

[/accesories]

High-Sensitivity 60 mm Thermal Imaging for Long-Range Protection

The AXIS Q2111-E 60 mm 30 fps Thermal Camera delivers precise long-range detection using a powerful 60 mm F1.2 lens, an extremely sensitive <20 mK thermal sensor, and a 30 fps thermal imaging pipeline for smooth situational awareness. Built on the ARTPEC-8 system-on-chip with a deep learning processing unit, it supports high-performance AXIS analytics and third-party ACAP applications for advanced perimeter security.

Designed for harsh outdoor environments, this robust camera features IP66/IP67 and IK10 protection, NEMA 4X compliance, and a wide operating temperature range. With four configurable I/O ports, dual RS485/RS422 interfaces, audio in/out, encrypted edge storage, and edge-to-edge speaker pairing, it provides maximum installation flexibility and system integration capabilities.

Key Benefits

• High-performance 60 mm F1.2 thermal lens enabling reliable long-range detection
• Ultra-high thermal sensitivity (<20 mK) for crisp imaging in low contrast and severe weather
• ARTPEC-8 SoC with DLPU for advanced analytics and real-time detection
• Up to 30 fps thermal imaging for smooth live monitoring
• Four I/O ports, RS485/RS422, and edge-to-edge speaker pairing for integration flexibility
• IP66/IP67, IK10, NEMA 4X-rated housing for maximum outdoor durability
• Enterprise-level cybersecurity with Axis Edge Vault and TPM 2.0

Ideal Use Cases

• Critical infrastructure and utility perimeter protection
• 24/7 long-range surveillance in low-visibility environments
• Border, seaport, and wide-area thermal monitoring
• High-security environments requiring advanced analytics
• Thermal-based intrusion detection using AXIS Perimeter Defender and ACAP apps

Technical Specifications Summary

• Image sensor: 384×288 uncooled microbolometer, 17 μm
• Lens: 60 mm F1.2; HFOV 6°; VFOV 4.7°; minimum focus distance 84 m
• Thermal sensitivity: NETD <20 mK @ 25 °C
• Video: H.264/H.265/Motion JPEG; up to 30 fps; Zipstream; 20 configurable streams
• Audio: Two-way audio, mic/line in, line out; AAC-LC, LPCM, G.711, G.726, Opus
• Interfaces: RJ45 PoE, 4× I/O, RS485/RS422, audio I/O, DC input
• Storage: microSD/microSDHC/microSDXC with AES-XTS-Plain64 256-bit encryption; NAS
• Environmental: -40 °C to 60 °C; IP66/IP67; IK10; NEMA 4X; MIL-STD-810H
• Cybersecurity: Axis Edge Vault with TPM 2.0, secure boot, signed firmware/video

Upgrade Your Operations

Enhance long-range perimeter security with high-precision thermal imaging, advanced analytics, and enterprise-grade cybersecurity in a ruggedized outdoor camera.
