[shortdesc]
- Full-featured, 16-channel video encoder, Support for HD analog cameras up to 4K, PTZ control, 2-way audio and configurable I/O, Zipstream with support for H.264/H.265, Signed firmware and secure boot
[/shortdesc]
[properties]
| Product Name |
AXIS P7316 Video Encoder |
| Description |
Full-featured, 16-channel video encoder with support for HD analog cameras up to 4K resolution, ideal for high-quality, multi-channel video surveillance. |
| Channels |
Supports 16 channels with max 4K resolution at 15 fps on 4 channels simultaneously. |
| Video Streams |
H.264, H.265, and Motion JPEG supported on all channels. |
| Frame Rate |
15 fps at 4K resolution; 25/30 fps in lower resolutions. |
| Bandwidth Efficiency |
Axis Zipstream technology for efficient bandwidth and storage management. |
| Video Analytics |
Integrated video motion detection and active tampering alarm. |
| Audio Support |
Two-way audio for communication and monitoring. |
| Input/Output |
Supports configurable I/O ports for alarm and event handling. |
| PTZ Control |
Supports PTZ functionality for remote camera control. |
| Storage Options |
Single microSD/microSDHC/microSDXC card slot for edge storage. |
| Security Features |
Signed firmware and secure boot to protect against unauthorized access. |
[/properties]
[specifications]
| Resolution |
Up to 4K (3840 x 2160) at 15 fps on 4 channels; 1080p on other channels. |
| Codec Support |
H.264, H.265, and Motion JPEG on all channels. |
| Audio |
Two-way audio for communication and monitoring. |
| Networking |
4x IP addresses; SFP slot for optional fiber connectivity and network redundancy. |
| Storage Support |
Single microSD/microSDHC/microSDXC card slot for edge storage. |
| Connectivity |
RS485/422 serial port for PTZ control. |
| Power Options |
Powered via included power supply connected to the DC input. |
| Environmental Standards |
Operational temperature range from 0°C to 50°C (32°F to 122°F). |
| Compliance |
CE, FCC, and RoHS compliant. |
| Dimensions |
Customizable rack-mount design. |
[/specifications]

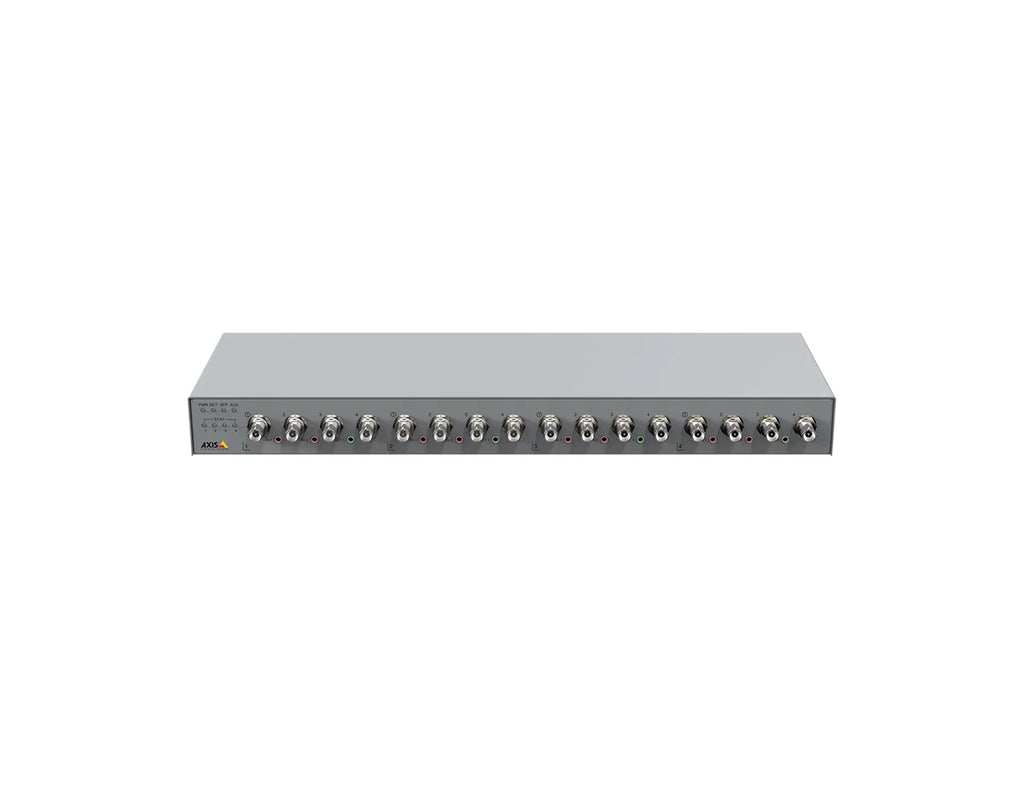

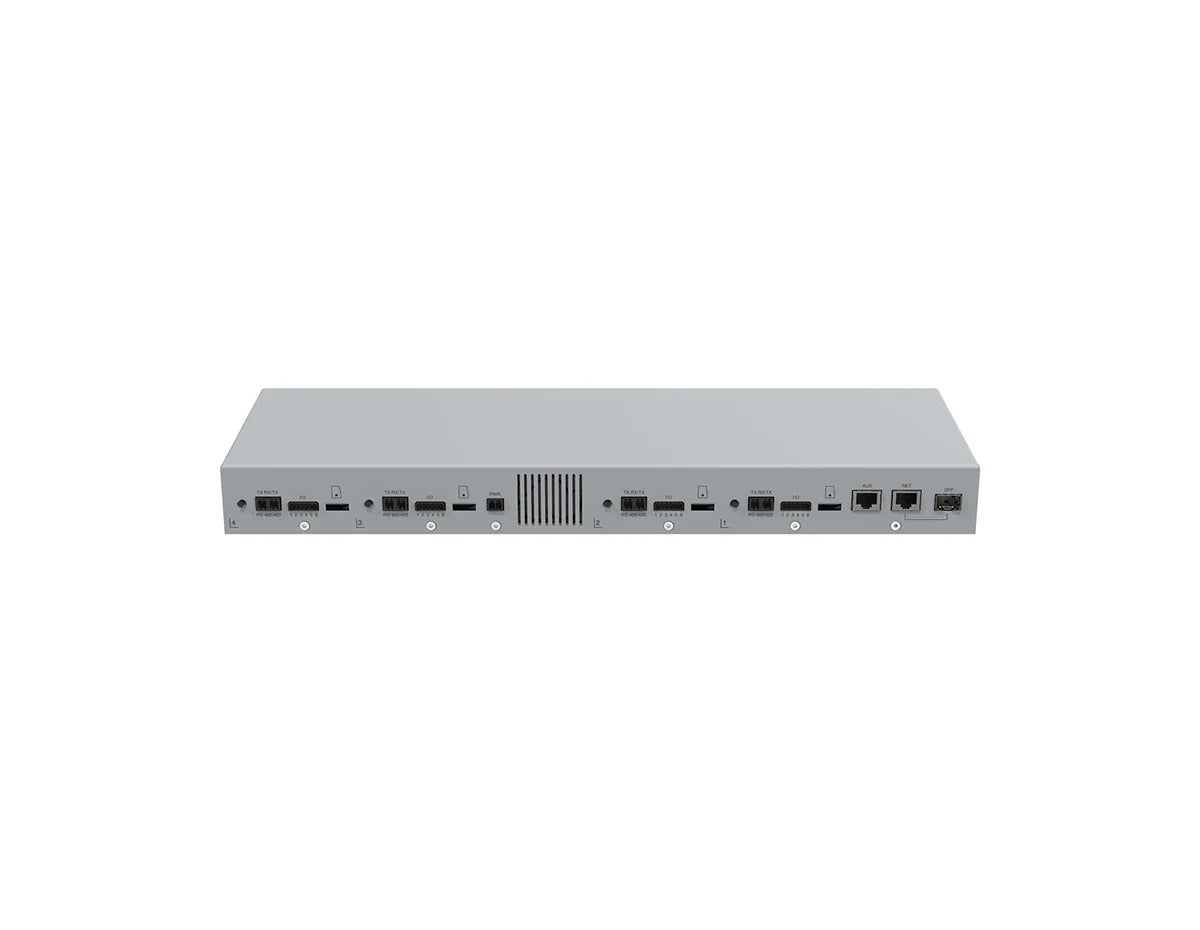

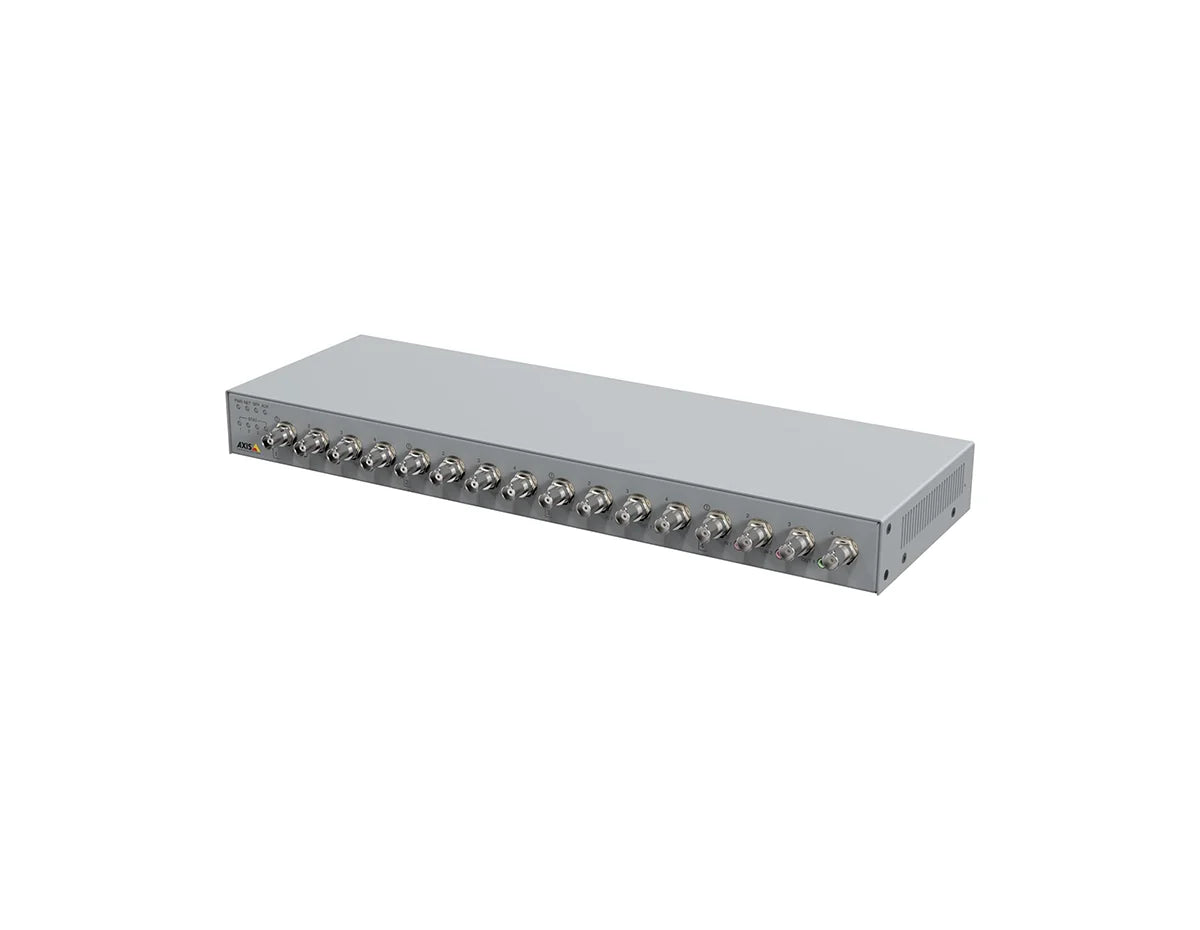

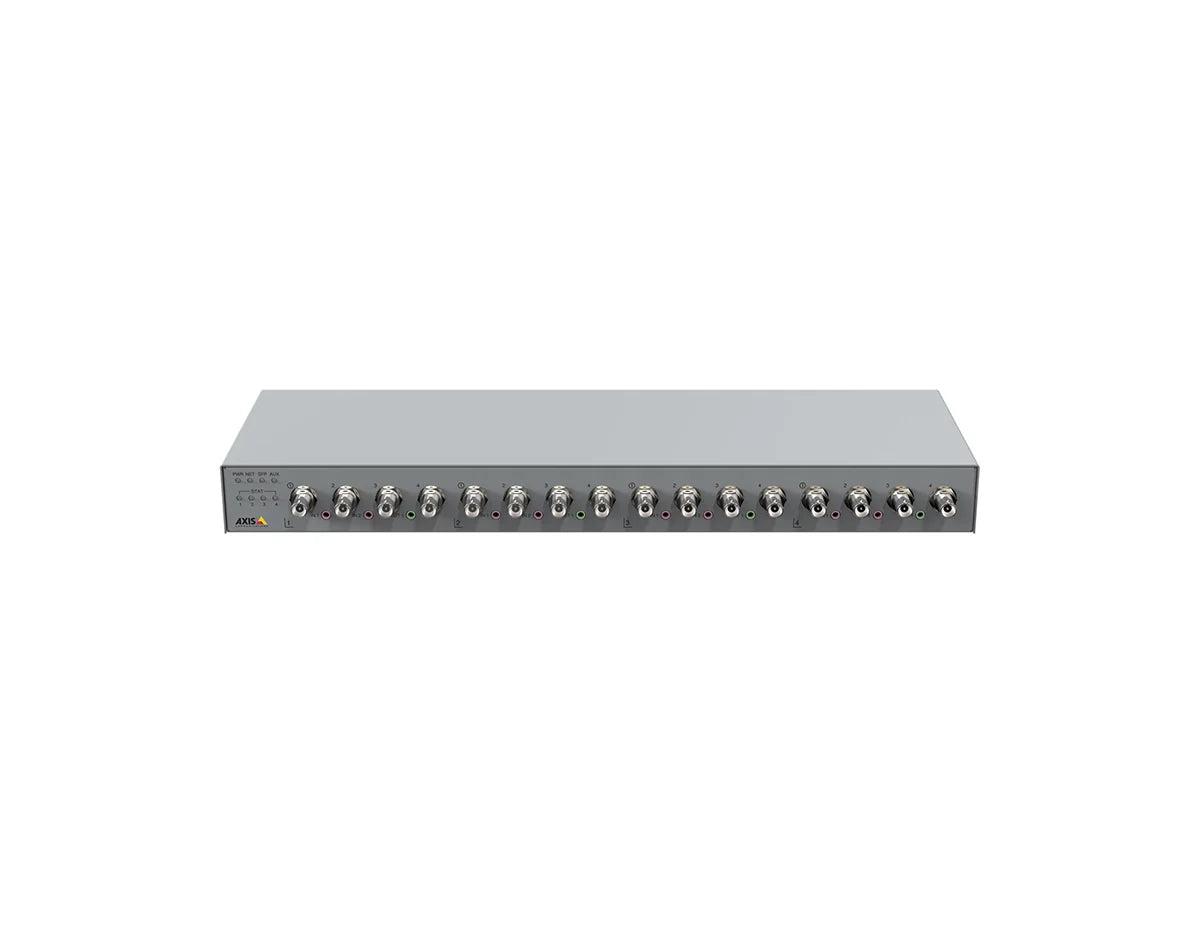

AXIS P7316 Video Encoder
16-channel video encoder supporting HD analog and standard-definition cameras. Offers max 4K resolution at 15 fps on 4 channels and 25/30 fps in lower resolutions. Features Axis Zipstream for efficient bandwidth use, video motion detection, and active tampering alarm. Two-way audio support, PTZ control, and a single microSD/microSDHC/microSDXC card slot for edge storage. Includes power supply for DC input operation. Signed firmware and secure boot ensure robust cybersecurity.
