[shortdesc]
- Cost-effective, 4-channel video encoder with Zipstream, Full frame rate in all resolutions, Zipstream with support for H.264/H.265, Signed firmware and secure boot, Extended capacity for analytics, PoE and PTZ support
[/shortdesc]
[properties]
| Product Name |
AXIS M7104 Video Encoder |
| Description |
Cost-effective 4-channel video encoder supporting PAL/NTSC cameras with advanced analytics and efficient video streaming. |
| Video Streams |
H.264, H.265, and Motion JPEG with individually configurable streams per channel. |
| Frame Rate |
25/30 fps at all supported resolutions. |
| Bandwidth Efficiency |
Equipped with Axis Zipstream technology to minimize bandwidth and storage needs. |
| Video Analytics |
Supports video motion detection and active tampering alarms. |
| Input/Output |
Serial port for RS422/485 communication for integration with PTZ cameras. |
| Power Options |
Power over Ethernet (PoE) or 8–28 V DC input for flexible deployment. |
| Storage |
Supports microSD/microSDHC/microSDXC card for edge storage. |
| Security Features |
Signed firmware and secure boot to ensure cybersecurity integrity. |
[/properties]
[specifications]
| Video Format |
PAL/NTSC with full-frame rate capability at 25/30 fps. |
| Resolution |
Supports full resolution streaming at 25/30 fps on each channel. |
| Codec Support |
H.264, H.265, and Motion JPEG with Axis Zipstream for optimized bandwidth. |
| I/O Ports |
RS422/485 serial port for PTZ control and communication. |
| Local Storage |
Supports microSD/microSDHC/microSDXC card for edge storage. |
| Power Supply |
Supports PoE and 8–28 V DC input options. |
| Operating Temperature |
Operational in a temperature range of 0°C to 50°C (32°F to 122°F). |
| Compliance |
CE, FCC, RoHS compliant for safety and environmental standards. |
[/specifications]

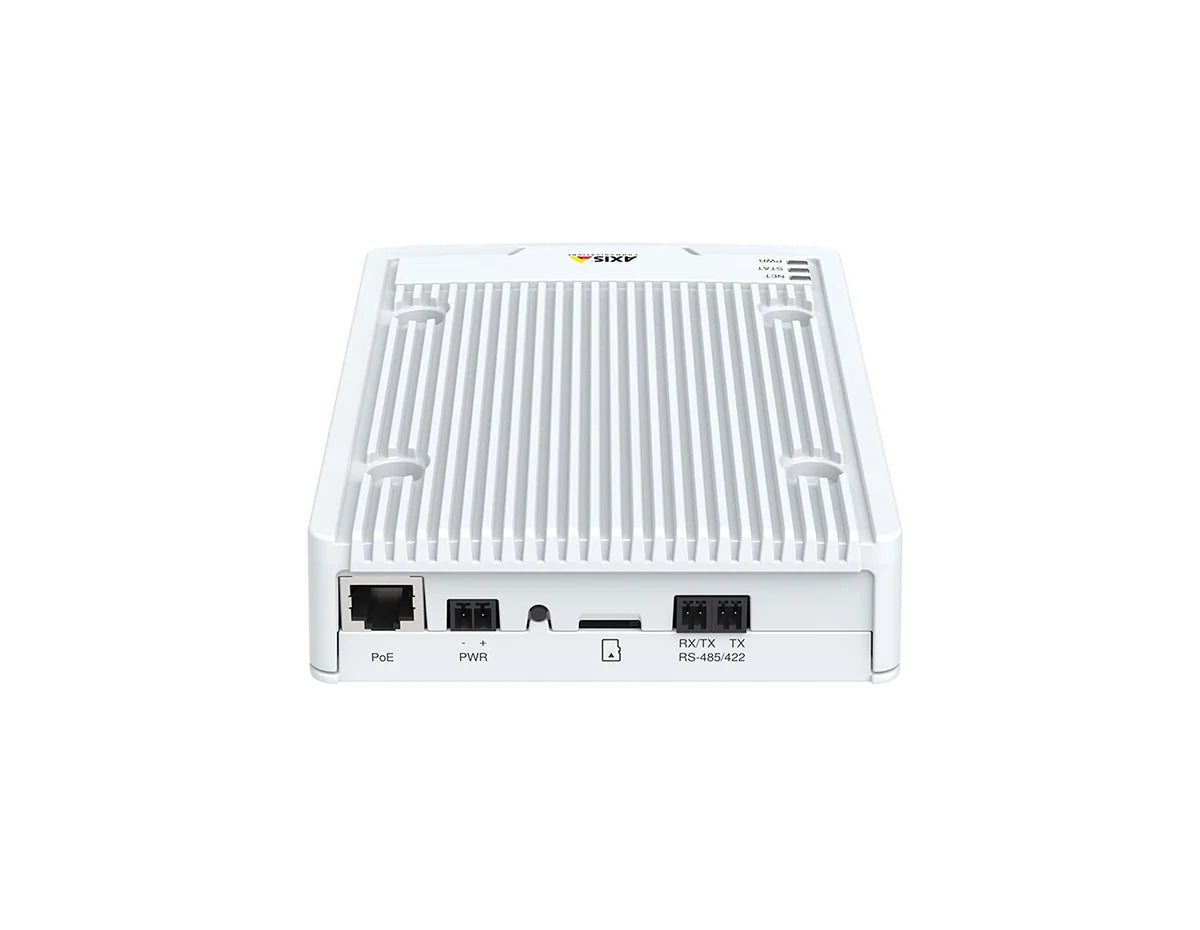

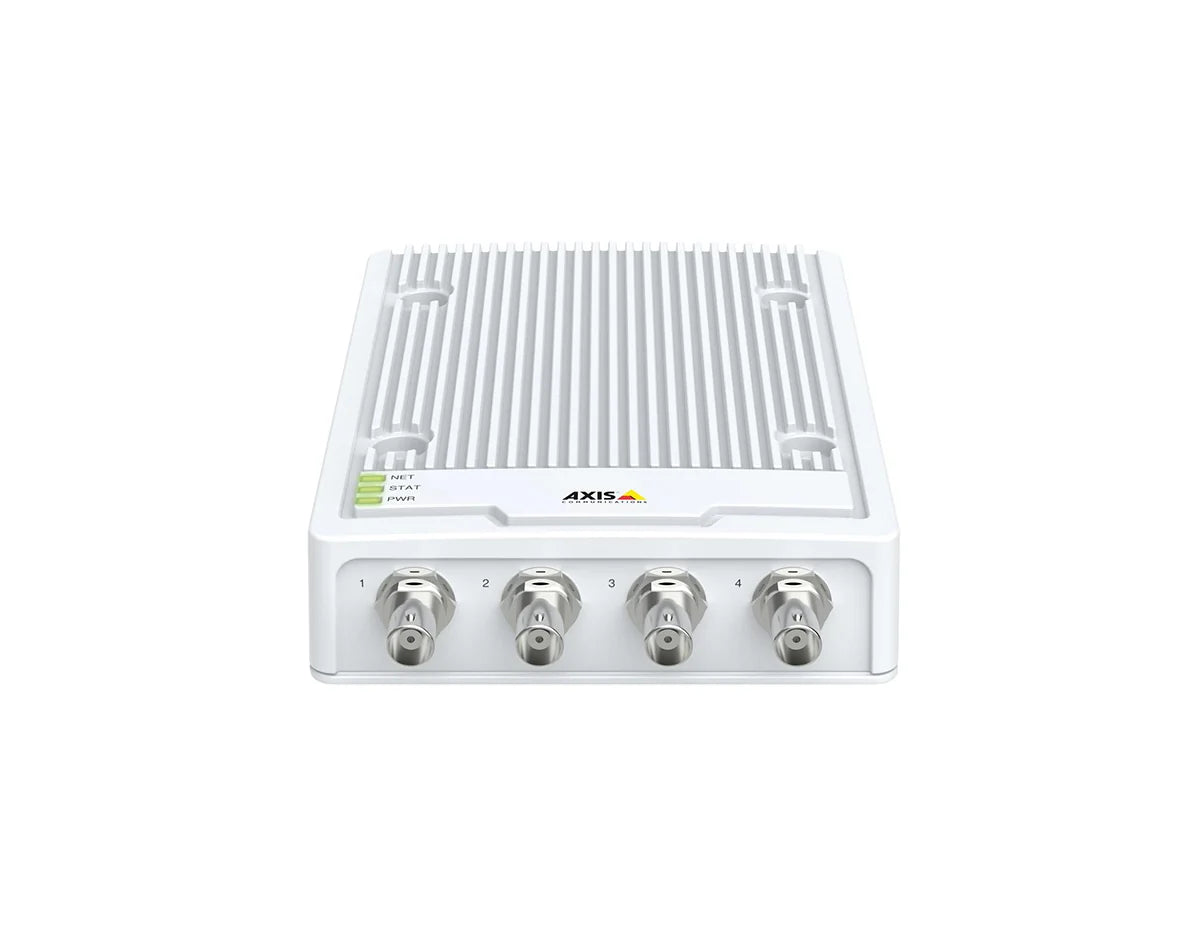

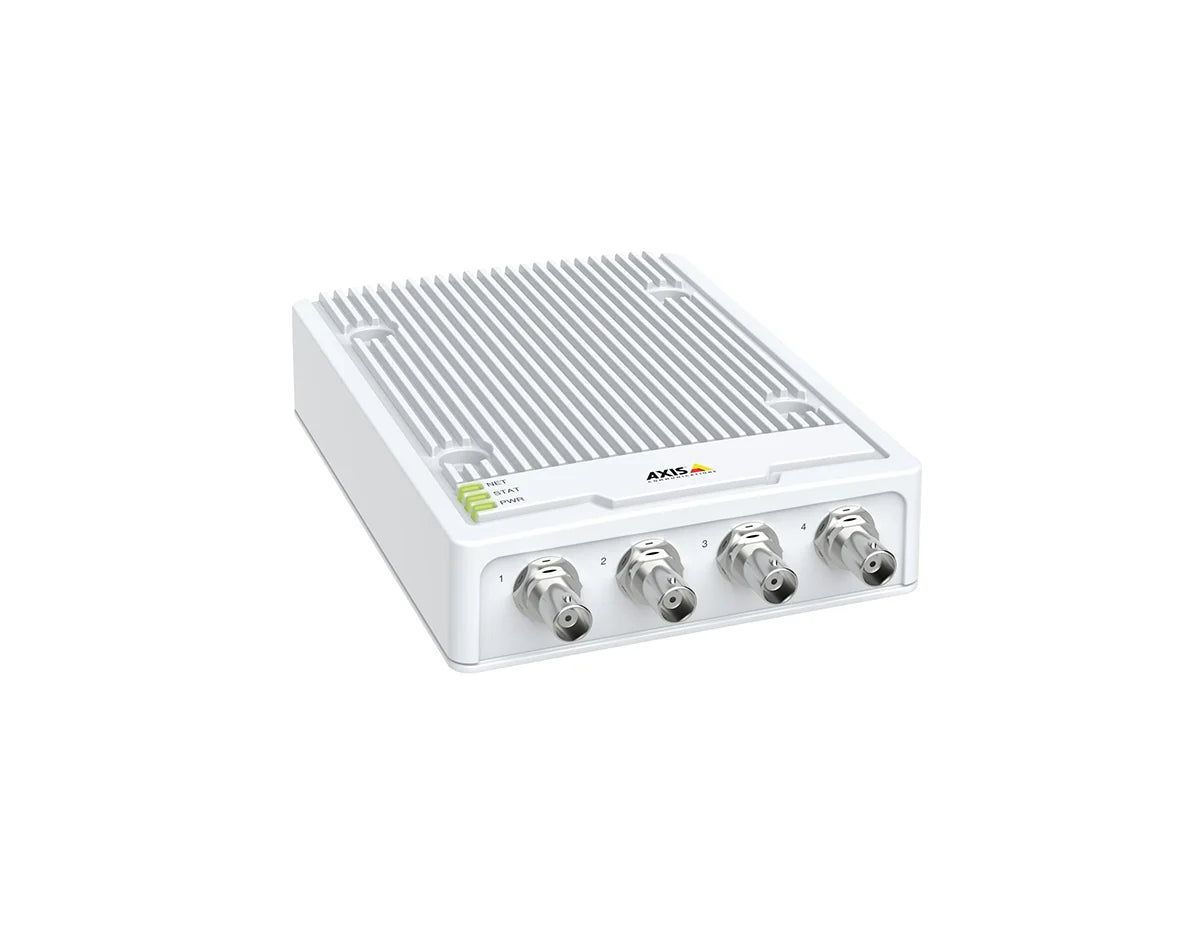

AXIS M7104 Video Encoder (01679-001)
Four-channel video encoder supporting PAL/NTSC cameras. Multiple, individually configurable H.264, H.265, and Motion JPEG streams. Frame rate 25/30 fps in all resolutions. Axis Zipstream technology for reduced bandwidth and storage needs. Video motion detection and active tampering alarm. Serial port for RS422/485 communication. Power over Ethernet or 8–28 V DC input. Supports microSD/microSDHC/microSDXC card for optional local video storage.
